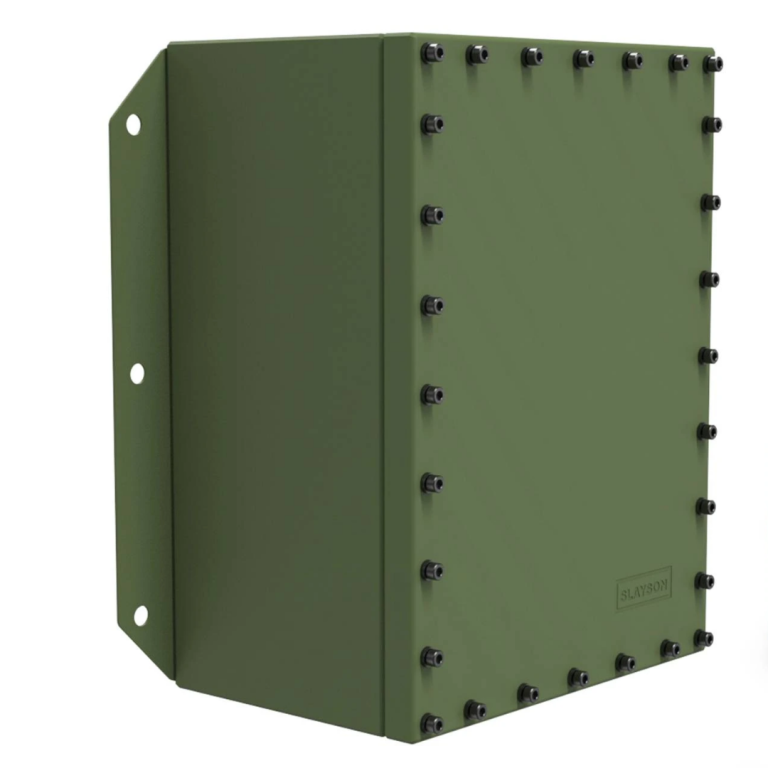

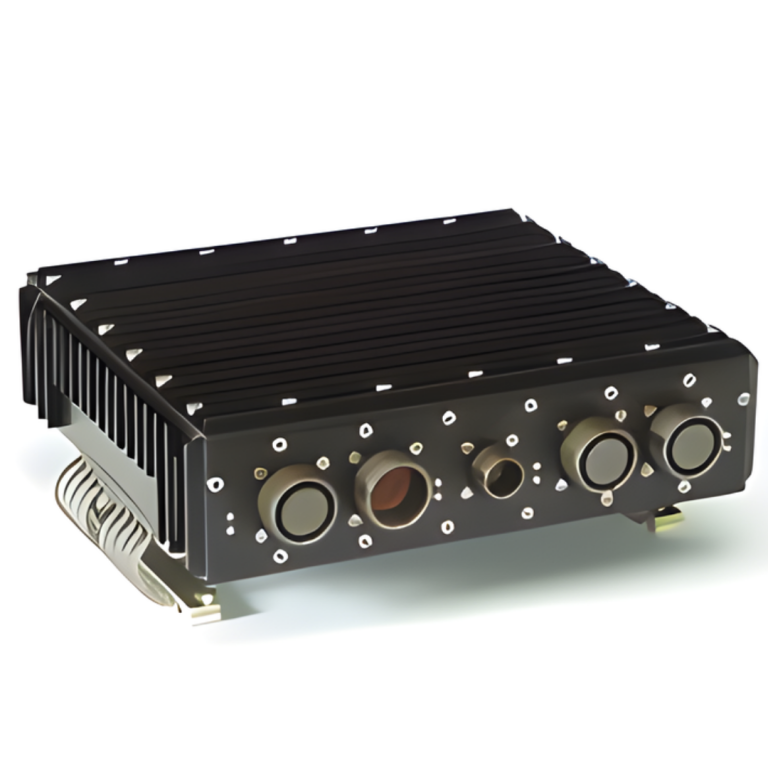

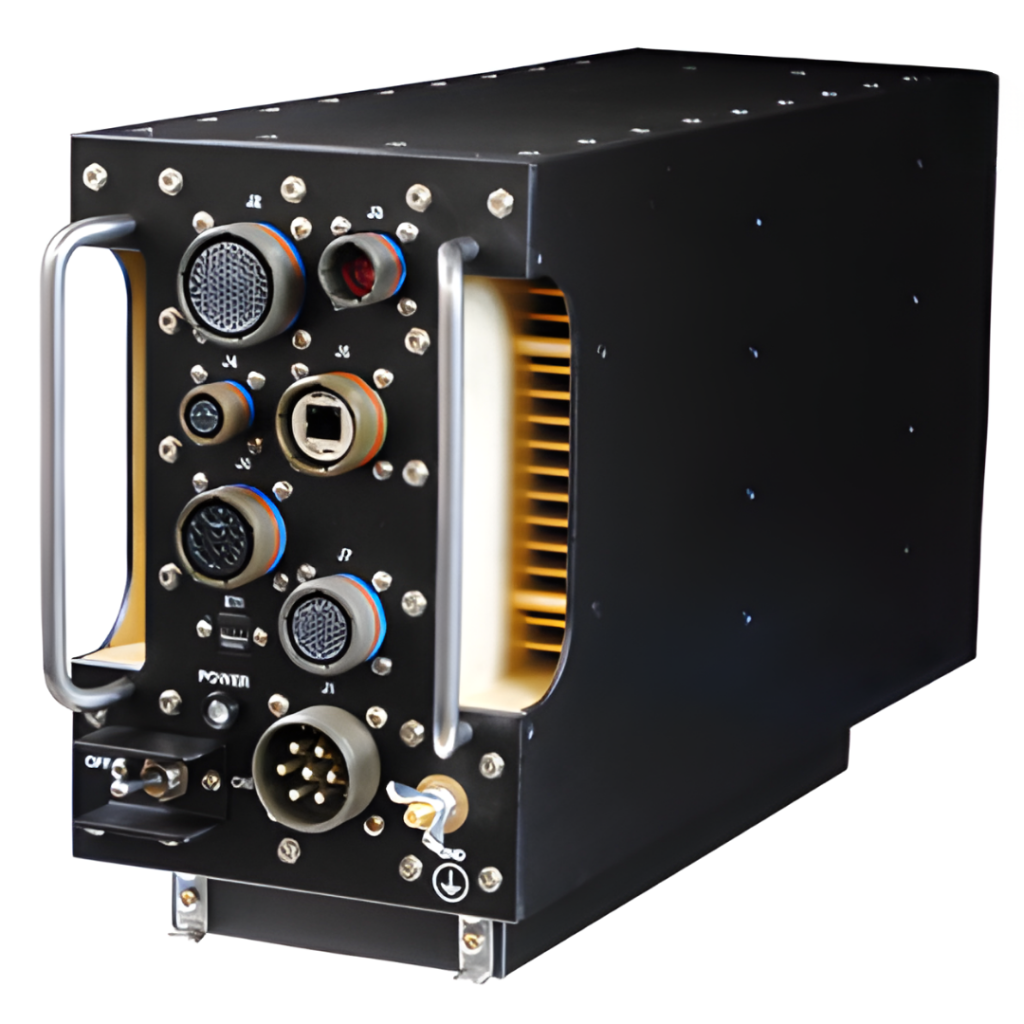

Rugged Enclosure MIL

Deploying electronic systems in combat zones, aboard naval vessels, and within military aircraft demands protective housings surviving extreme environmental conditions and tactical threats. Rugged Enclosure MIL provides military-grade containment for communications equipment, targeting systems, and battlefield electronics operating under harsh field conditions.
HY D R O L Y SIS RESIS T ANCE
Material & Grade
  • Aluminum Alloy – 5052, 6061-T6
  • Stainless Steel – SS304, SS316
  • Titanium (for weight-critical applications)
  • Cold Rolled Steel – SPCC (reinforced)
  • Sheet thickness – Up to 5.0mm capable
  • Maximum capable – 1500mm (H) x 1200mm (W) x 800mm (D)
  • Customizable based on mission requirements
  • Chemical Agent Resistant Coating (CARC)
  • Zinc-Nickel Plating (MIL-DTL-16232)
  • Chromate Conversion Coating (MIL-DTL-5541)
  • Hard Anodizing (MIL-A-8625)
  • IR-suppressive coating
  • CNC Precision Machining
  • TIG Welding (MIL-spec)
  • Aerospace-grade Forming
  • Hermetic Sealing Integration
  • EMI Gasket Installation
  • Stress-relieved Construction
  • Stainless Steel 316/A286 Hardware
  • Captive fasteners (anti-vibration)
  • Military-spec hinges (MIL-DTL-3936)
  • Shock-mounted provisions
  • Tamper-evident seals
  • Grounding studs
Get Latest Price
Get quote

Product Description

Reinforced configurations accommodate mission-critical hardware with external dimensions reaching 1500mm while withstanding shock loads from artillery fire and vehicle crashes. Our aluminum alloy or stainless steel construction meets stringent military specifications for corrosion resistance, electromagnetic shielding, and environmental sealing.

Mounting Type
  • Shock-isolated mounting systems
  • Vehicle/Aircraft integration mounts
  • Rack Mount (19″ MIL-spec)
  • Transit case provisions
  • Shipboard installation (shock-rated)
  • Portable with handles
  • IP67/IP68 Environmental Sealing
  • MIL-STD-810 sealed construction
  • Pressure relief valves
  • Desiccant provisions
  • Continuous positive pressure capability
  • NBC filtration compatible
  • MIL-STD-810 (Temperature, Humidity, Salt Fog)
  • Operating Temperature – -46°C to +71°C
  • Altitude – Up to 15,000 meters
  • Sand & Dust (MIL-STD-810 Method 510)
  • Rain/Water Immersion tested
  • Explosive atmosphere rated

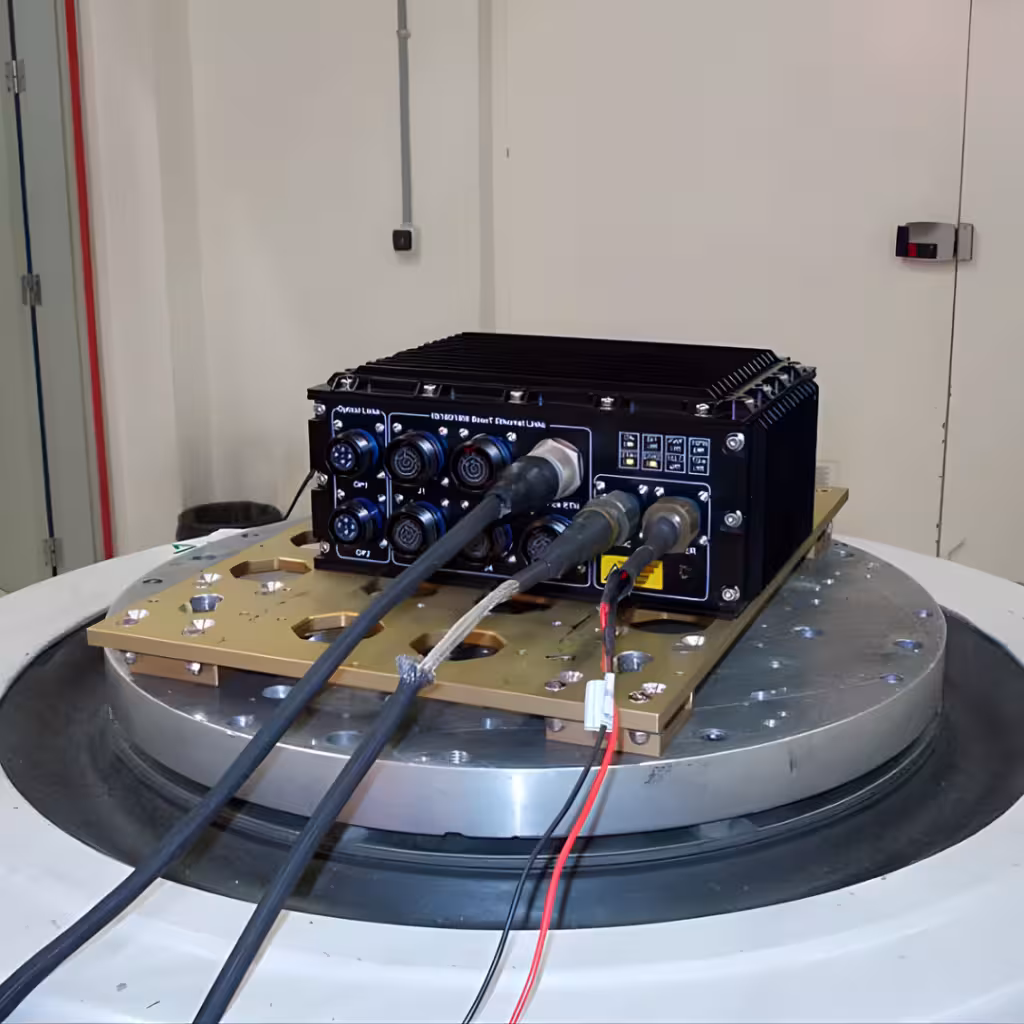

  • MIL-STD-810 Method 514 (Vibration)
  • MIL-STD-810 Method 516 (Shock)
  • Crash hazard protection (MIL-STD-1472)
  • Transportation shock rated
  • Artillery fire shock resistant
  • Isolation mount integration

MIL-STD-461 Compliance • Shielding Effectiveness – 60-100 dB • Conductive gaskets (MIL-DTL-83528) • RF-filtered connectors • TEMPEST-rated • EMP protection provisions

MIL-STD-810 (Environmental Engineering) • MIL-STD-461 (EMI/EMC Requirements) • MIL-DTL-901 (Shock – Naval) • MIL-S-901 (Shipboard Shock) • RTCA DO-160 (Airborne Equipment) • NATO STANAG Compliance • ISO 9001:2015 + AS9100 Manufacturing

Technical Advantages

Military electronics face electromagnetic threats from friendly transmitters, enemy jamming, and nuclear electromagnetic pulses requiring comprehensive shielding. Addressing these challenges, welded aluminum construction creates continuous Faraday cage protection with conductive gaskets maintaining shield integrity across panel joints. EMI-filtered connector penetrations prevent high-frequency energy from entering enclosures through cable interfaces.

Shock isolation mounting systems decouple internal electronics from vehicle frames during ballistic impacts, mine detonations, or aircraft carrier catapult launches. Frigate engineers multi-point latching mechanisms distributing sealing compression uniformly across gasket perimeters maintaining IP67 protection after thousands of access cycles. Pressure relief valves equalize internal pressure during rapid altitude changes preventing structural deformation that could compromise environmental seals.

Let's Get Started

Need reliable Enclosures for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Ground Combat Systems

Houses communications equipment, fire control computers, and targeting electronics in armored vehicles operating in hostile territories.

Naval Shipboard Electronics

Protects radar systems, sonar processors, and navigation equipment aboard surface vessels and submarines experiencing shock from weapons firing.

Military Aircraft Avionics

Contains flight control computers, weapons systems, and countermeasure electronics in fighter jets and transport aircraft.

Battlefield Command Centers

Secures mobile command systems, satellite communications, and intelligence processing equipment in deployable tactical operations centers.

Unmanned Vehicle Control

Manages ground control stations for UAVs and UGVs requiring portable electronics withstanding field deployment conditions.

Forward Operating Base Infrastructure

Consolidates surveillance equipment, network switches, and communication hubs in expeditionary military installations.

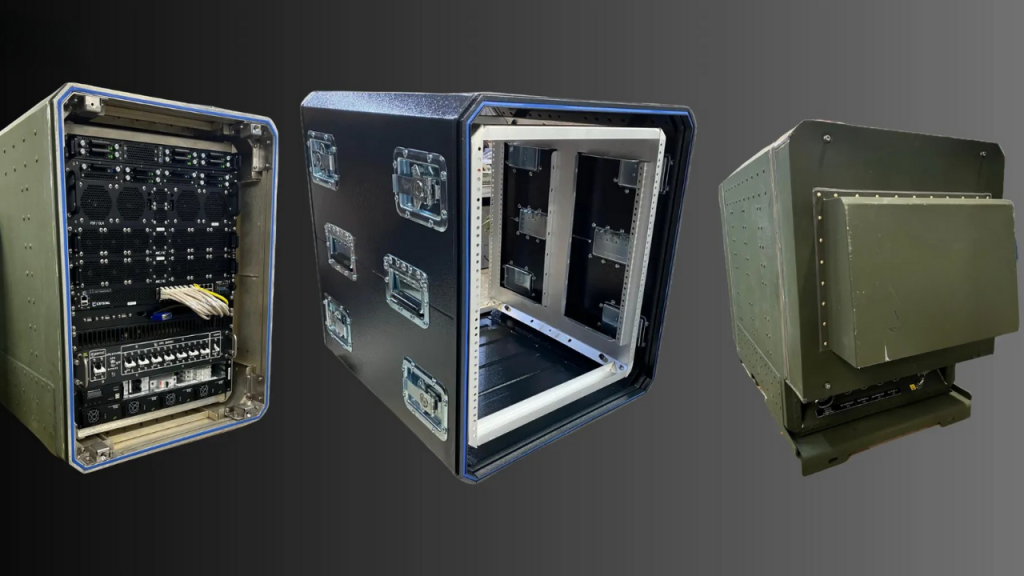

Rugged Enclosure MIL

Engineered for Mission Reliability

Equipment specifications vary from portable communication cases to rack-mounted shelter systems housing complete command centers. Rugged Enclosure MIL arrives in transit case configurations with shock-isolated foam interiors or rack-mount formats integrating into standardized military shelters and mobile command posts.

Chemical agent resistant coating meets Department of Defense decontamination requirements enabling equipment operation in CBRN-contaminated environments. For classified applications, TEMPEST-rated versions incorporate enhanced shielding preventing compromising electromagnetic emanations that could reveal sensitive operational information.

Rugged Enclosure MIL

Related products

  • FAQ

Having Doubts? Our FAQ

Check all our Frequently Asked Questions

Get Quote Now
What shock isolation mounting systems does Frigate engineer in Rugged Enclosure MIL withstanding ballistic impacts and mine detonations?

Shock isolation is built as a layered system using elastomeric mounts, spring-damper assemblies, and reinforced subframes to decouple electronics from acceleration spikes. Frigate customizes the isolation stack-up to the threat profile, payload mass, and mounting constraints defined in your drawing.

How does Frigate achieve 60–100 dB shielding effectiveness in Rugged Enclosure MIL meeting MIL-STD-461 EMI requirements?

Shielding effectiveness is achieved through –

  • Continuous conductive seams and welded joints
  • RF-tight door interfaces with conductive gasketing
  • Bonded panels and controlled grounding paths

Frigate can tune the architecture to your dB target and frequency range requirements.

Can these enclosures withstand MIL-STD-810 temperature extremes ranging from -46°C to +71°C without performance degradation?

Yes. Thermal survivability comes from selecting stable materials, maintaining seal compression across expansion, and protecting critical tolerances at both extremes. Frigate adapts clearances and interface details to the operating range and cycle profile specified for the program.

What conductive gasket materials does Frigate specify in Rugged Enclosure MIL maintaining EMI shielding across thousands of access cycles?

Cycle-capable EMI sealing typically uses –

  • Silver-plated elastomer gaskets
  • Conductive fabric-over-foam seals
  • Compression-controlled gasket channels

To match access frequency and corrosion exposure, Frigate selects gasket type and groove geometry per your requirements.

How does Frigate integrate pressure relief valves in Rugged Enclosure MIL preventing structural deformation during rapid altitude changes?

Rapid altitude equalization is supported through –

  • Pressure relief valves sized to ascent/descent rates
  • Placement away from EMI-critical seams
  • Auto-sealing designs that close after equalization

Frigate configures valve sizing and location to the altitude profile and sealing spec in your documentation.

Can Rugged Enclosure MIL meet MIL-DTL-901 naval shock requirements for shipboard weapons firing events?

Yes. Meeting naval shock profiles depends on reinforced load paths, controlled mass distribution, and shock-isolated mounting tailored to the required grade. Frigate aligns the mechanical design to the specified MIL-DTL-901 test profile and installation constraints.

What chemical agent resistant coating thickness does Frigate apply to Rugged Enclosure MIL enabling CBRN decontamination procedures?

CBRN durability is supported by –

  • CARC coatings applied to specified thickness ranges
  • Surface preparation that ensures adhesion
  • Finishes compatible with standard decon agents

Frigate matches the coating stack-up to the chemical exposure and service-life targets you define.

How does Frigate validate hermetic sealing in Rugged Enclosure MIL achieving IP68 protection under water immersion conditions?

Hermetic sealing is validated through pressure decay or vacuum leak checks, with immersion testing added when required by acceptance criteria. Frigate sets test depth, duration, and pass/fail limits to your specification so IP68 verification reflects real deployment conditions.

Can these enclosures integrate NBC filtration systems maintaining positive internal pressure in contaminated environments?

Positive-pressure integration can include –

  • Interfaces for NBC filtration modules
  • Sealed intake and exhaust routing paths
  • Ports for pressure monitoring and verification

To match airflow rate and enclosure volume requirements, Frigate configures the filtration integration accordingly.

What TEMPEST shielding provisions does Frigate incorporate in Rugged Enclosure MIL preventing compromising electromagnetic emanations?

TEMPEST-oriented provisions can include –

  • Filtered penetrations and shielded interface points
  • Waveguide-beyond-cutoff vent features where required
  • Bonding and grounding schemes that reduce leakage paths

Frigate tailors these provisions to the emanation limits and interface layout defined in your drawing.
