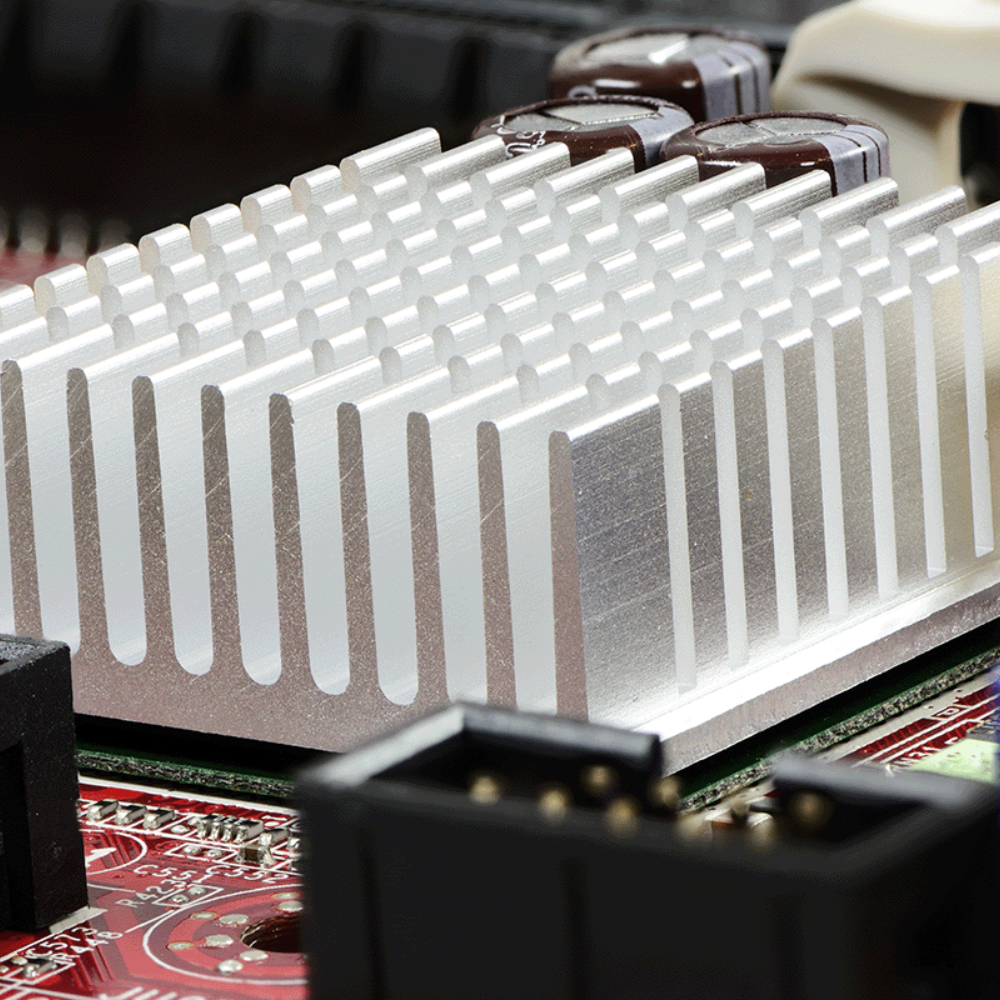

Frigate executed the heat sink extrusion from requirements to sample delivery in 6061-T6, completing 10 validation parts with tight fin control and a standardized bead-blast finish route for future mass production.
Aluminium Extrusion Manufacturing
Research and Electronics
Extrusion Production, Vendor Follow-up, Fin Geometry Control, Secondary Finishing, Quality Checks
India
Execution required controlling tight fin features, achieving the expected surface finish, and managing supplier responsiveness during the build.
Achieving 6mm pitch and 4.5mm fin thickness (±0.2mm) consistently was the primary build challenge.
Defined and finalized a bead-blasting finish route to meet appearance expectations and ensure consistent output across samples.
✔ Confirmed envelope size and fin criticals – 103×145×45mm, 6mm pitch, 4.5mm thickness (±0.2mm)
✔ Aligned material to requirement – Aluminium 6061-T6
✔ Defined finish expectation and acceptance reference at the start
✔ Converted requirements into extrusion-feasible geometry and build plan
✔ Coordinated die development approach and sample run strategy
✔ Locked checkpoints for fin geometry verification before finishing
✔ Produced 10 sample parts with controlled fin geometry targets
✔ Addressed execution risks – fin thickness, fin pitch, and surface quality
✔ Verified dimensions and tolerance achievement through inspection checks
✔ Delivered samples for customer evaluation and application validation
✔ Standardized surface finish using Glass Bead Blasting for repeatable output
✔ Provided build learnings and documentation to support future mass production readiness
We followed a structured execution process to lock dimensions, standardize surface finish, and establish a repeatable baseline for future mass production.
