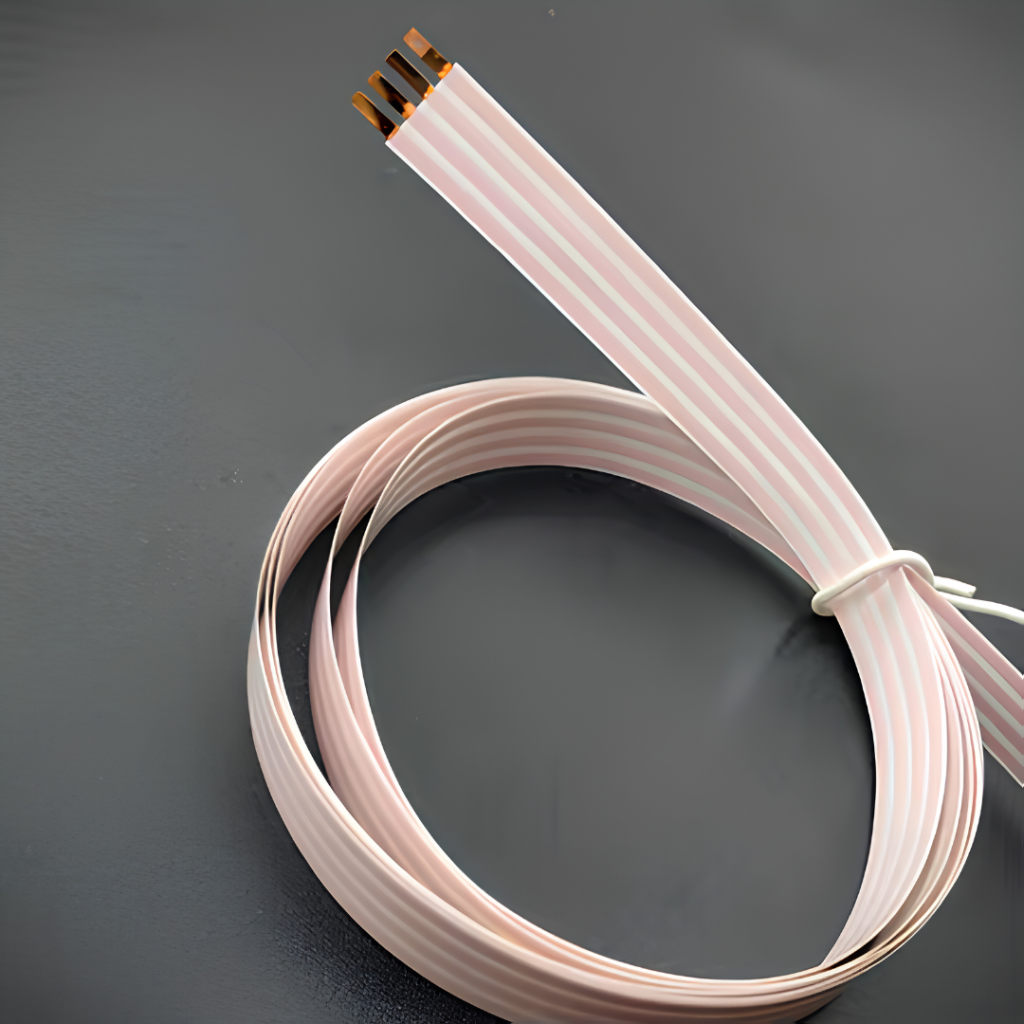

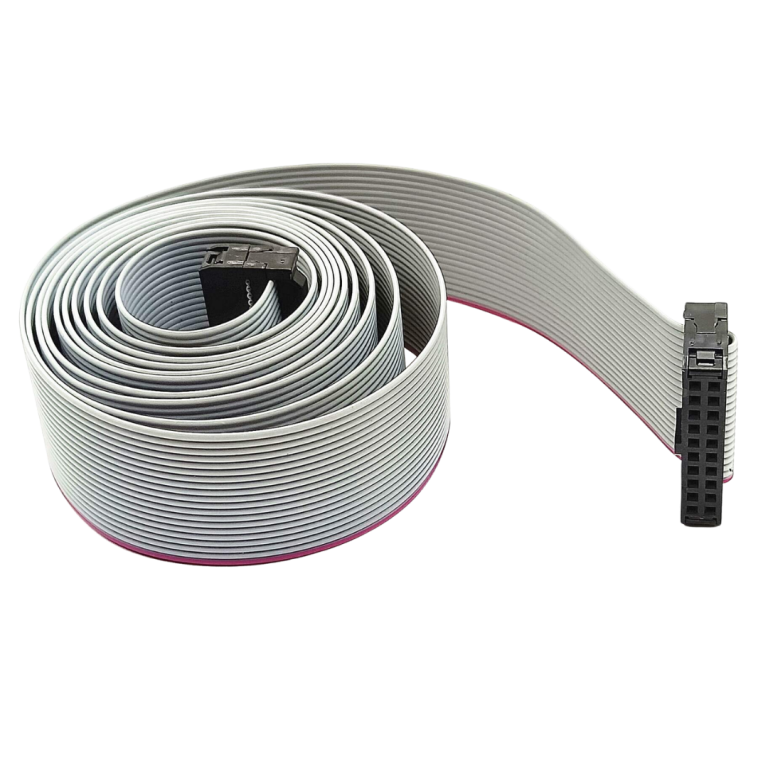

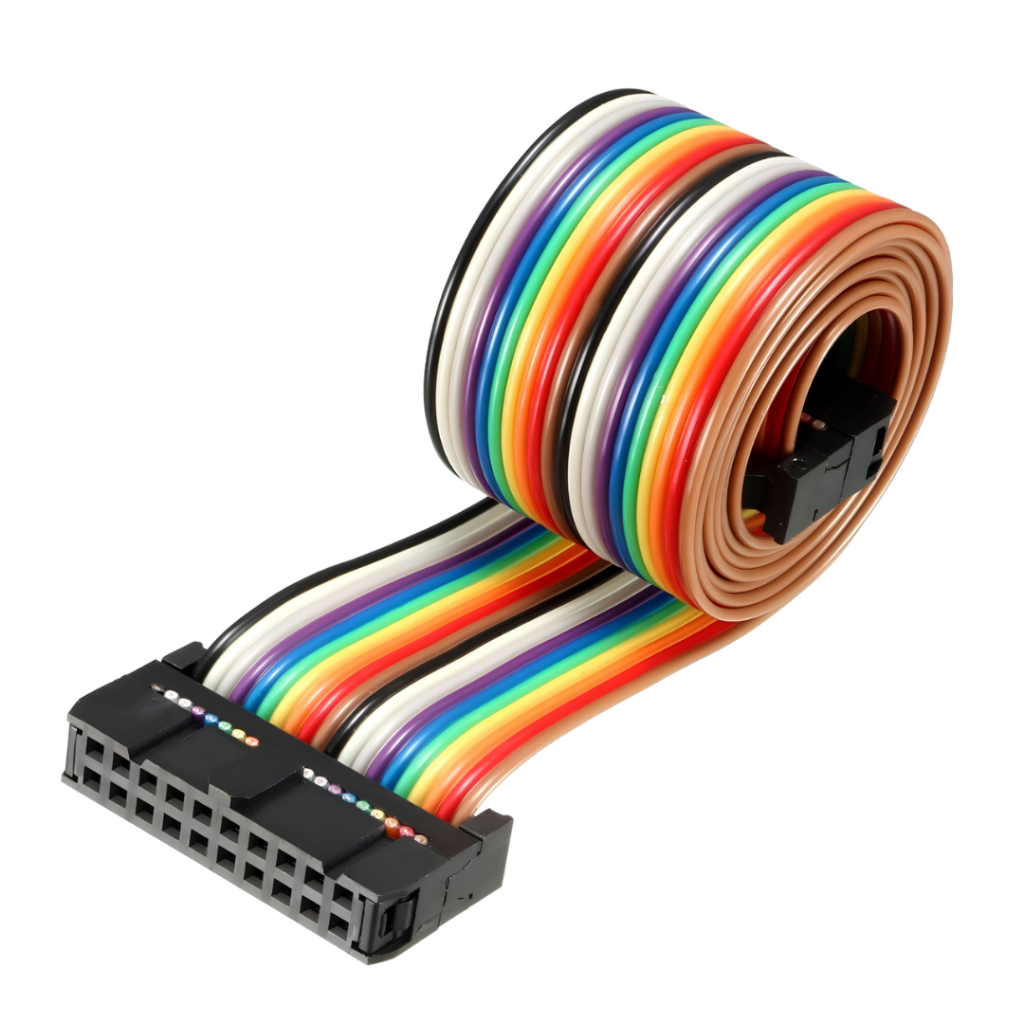

Flat Woven Ribbon Cable

Engineered for high-density electronic packaging, Frigate’s custom Flat Woven Ribbon Cables combine exceptional flexibility with unparalleled mechanical durability. Our advanced weaving technology eliminates the stiffness of traditional extruded cables, delivering a space-saving interconnect solution tailored for harsh aerospace, defense, and industrial environments.

Conductor Gauge Range

16 AWG to 38 AWG (Mixed gauges allowed in a single bundle)

Conductor Materials

Bare Copper, Tinned Copper, Silver-Plated Copper, High-Strength Alloys

Insulation Materials

PTFE, FEP, PFA, ETFE, PVC, and Polyimide

Weaving Fiber Materials

Nylon, Polyester, Nomex, Kevlar, and Vectran

Pitch/Spacing Tolerance

Down to ±) 0.05 mm (Highly consistent alignment for mass termination)

*Note: Listed timelines are indicative and based on standard material availability. Exact schedules are finalized upon design lock, engineering approval, and component sourcing review.

Product Description

Frigate’s Flat Woven Ribbon Cables are meticulously engineered to provide superior fluid routing, minimal bend radii, and optimized weight reduction for complex electronic systems. By weaving discrete wires together using high-performance textiles, we ensure maximum structural integrity and customizable conductor configurations to meet your exact engineering specifications.

Voltage Rating

Up to 1000 V RMS (Depending on insulation thickness)

Temperature Range

-65° C to +260° C (Material dependent)

Current Rating

Up to 15 A per conductor (Optimized based on AWG and thermal load)

Dielectric Strength

≥ 2500 V AC

Insulation Resistance

≥ 5000 M Ω · km

Flex Life Cycles

> 50 million flex cycles (Tested on reverse bend profiles)

Shielding Options

Braided shielding, aluminized Mylar tape, or individual line shielding

Color Coding

Full color spectrum available, repeating patterns, or custom tracers

Flammability Rating

UL 94 V-0, VW-1 compliant configurations

Compliance & Certifications

RoHS, REACH, IPC-WHMA-620, AS9100 Certified Manufacturing

Technical Advantages

The unique textile weave isolates individual conductors from structural stress, allowing for tight, multi-axis routing and a significantly longer flex life compared to standard extruded PVC ribbon cables. Furthermore, our advanced manufacturing process allows the seamless integration of mixed wire gauges, coax lines, shielded pairs, and even fluid tubing within a single, organized cable profile.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Aerospace & Avionics

Optimized for weight-critical systems, these cables provide reliable data and power distribution inside cramped cockpit consoles, satellite payloads, and flight control systems.

Defense & Military Electronics

Built to withstand severe shock and vibration, our ruggedized woven cables meet strict military standards for radar units, communication arrays, and missile guidance systems.

Medical Diagnostic Systems

Perfect for high-flex applications, including the articulating arms of robotic surgery systems, MRI gantries, and advanced patient monitoring equipment.

Industrial Robotics & Automation

Engineered for millions of continuous torsional and bending cycles in multi-axis robotic joints, pick-and-place machinery, and automated assembly tracks.

Semiconductor Manufacturing

Featuring outgassing-compliant materials, these flat profiles ensure clean, organized routing within cleanroom environments and automated wafer processing handling tools.

Automotive & EV Powertrains

Designed to fit flat against chassis surfaces, managing power signals and battery management system (BMS) telemetry in space-constrained EV battery packs.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

How does Frigate accommodate custom conductor mixes like routing RF signals alongside power lines?

Our programmable weaving looms allow us to place completely different cable types—such as miniature coaxial cables, shielded twisted pairs, and heavy-gauge power wires—parallel to one another in a single ribbon. This eliminates internal friction and ensures optimal EMI/RFI isolation across distinct signals.

We have a strict bend radius constraint in an enclosure. Why should we choose woven ribbon over extruded flat cables?

Extruded cables encapsulate wires in a solid plastic matrix, creating high internal tension when bent. Frigate’s textile weave allows individual conductors to slide microscopically against each other, drastically lowering the minimum bend radius and preventing kinks or insulation tears during tight routing.

Can your woven ribbon cables be terminated with standard, off-the-shelf IDC or circular connectors?

Yes. We can design the cable with precise pitch spacing at specified termination zones to match standard insulation displacement connectors (IDCs), or breakout the woven ends into discrete leads for soldering to D-sub, Micro-D, or circular military-grade connectors.

What mechanical protection do weaving fibers like Kevlar or Nomex add compared to standard jacketed bundles?

Integrating high-tensile fibers like Kevlar directly into the weave matrix adds exceptional structural strength, acting as an integrated strain relief that protects copper conductors from axial pull forces. Nomex or specialized nylons add superior abrasion resistance when routing over sharp metal edges.

How do you ensure electrical performance and pitch consistency over long production runs?

Every production batch undergoes strict in-line monitoring to maintain exact pitch tolerances, followed by Automated Optical Inspection (AOI) and 100% electrical testing for continuity, insulation resistance, and dielectric withstand voltage to guarantee compliance with your engineering drawing.
