Server Rack Cabinets

Insufficient cooling and cable chaos in aging racks lead to equipment failures and costly network interruptions. Our Server Rack Cabinets deliver structured airflow and organized infrastructure without modification delays.
HY D R O L Y SIS RESIS T ANCE
Material & Grade
  • Cold Rolled Steel (CRS) – SPCC
  • Hot Rolled Steel (HRS)
  • Stainless Steel – SS304, SS316
  • Aluminum Alloy – 5052, 6061
  • Sheet thickness: Up to 2.0mm capable
  • Standard sizes: 42U to 47U height
  • Width: 600mm (19″ standard)
  • Depth: 600mm to 1000mm
  • Maximum capable: 2200mm (H) x 800mm (W) x 1200mm (D)
  • Custom sizes available as per requirement
  • Powder Coating – RAL 7035 (Light Grey)
  • RAL 9005 (Black)
  • Thickness: 60-80 microns
  • Zinc Plating + Powder Coating
  • Electro-galvanized finish
  • Brushed finish (for Stainless Steel)
  • CNC Punching & Bending
  • Laser Cutting
  • TIG/MIG Welding
  • Riveting & Clinching
  • CNC Press Brake Forming
  • Hardware insertion (PEM nuts, studs)
  • Cage Nuts & Bolts (M6, M8)
  • PEM Nuts & Studs
  • Stainless Steel 304 Hardware
  • Zinc-plated Carbon Steel
  • Adjustable Mounting Rails (19″ Standard)
  • Heavy-duty hinges & locks
Get Latest Price
Get quote

Product Description

Supporting equipment loads up to 1500 kg with 19-inch EIA-standard mounting, these cabinets handle dense server configurations in enterprise and colocation facilities. We engineer reinforced frames with integrated thermal management to prevent hotspots, reduce servicing time, and maintain continuous uptime.

Mounting Type
  • Floor Standing with Leveling Feet
  • Floor Standing with Casters (4 wheels, 2 lockable)
  • Wall Mount Options
  • Seismic/Earthquake resistant mounting
  • Adjustable depth rails (450-850mm)
  • Static Load: 800 kg to 1500 kg
  • Dynamic Load: 600 kg to 1000 kg
  • Per Rail Pair: 50 kg to 80 kg

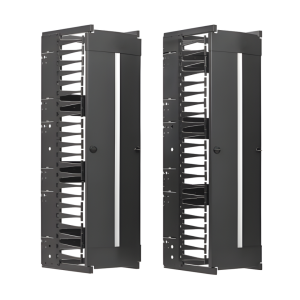

  • Vertical Cable Management Channels (Single/Double sided)
  • Horizontal Cable Managers with D-rings
  • Cable Entry: Top & Bottom (Removable Knockouts)
  • Brush Strips for cable entry
  • Cable Routing Depth: 100mm – 150mm
  • Perforated Front/Rear Doors
  • Removable Side Panels (Perforated options)
  • Roof Mounted Fan Trays (2-6 fans)
  • Bottom Cable Entry with Brush Plates
  • Chimney/Hot Aisle Design compatible
  • CFM Rating: 500-2000 CFM
  • Front: Perforated Door with 3-point locking system
  • Rear: Split or Full Perforated Door
  • Side Panels: Quick-release/Tool-less removal
  • Reversible Door Swing (180°)
  • Digital Locks/Key Locks/Handle Locks optional
  • Viewing Window: Tempered Glass/Acrylic
  • IEC 60297 (19″ rack standards)
  • EIA-310-D, IP20, IP55
  • RoHS Compliant
  • ISO 9001:2015 Manufacturing
  • Seismic Zone 4 Compliance
  • ANSI/TIA-942 Data Center Standards

Technical Advantages

Our cabinet structures utilize cold-rolled SPCC steel or stainless-grade SS304 materials for sustained performance across varied installation environments. We configure door systems with perforated panels, tempered glass windows, or solid options to balance thermal efficiency with equipment visibility.

Operating across static loads from 800 to 1500 kilograms, these enclosures accommodate both standard and seismic mounting configurations. Each unit features adjustable depth rails from 450 to 850 mm and maintains IP20 or IP55 protection levels for controlled atmosphere or industrial deployments.

Let's Get Started

Need reliable Enclosures for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

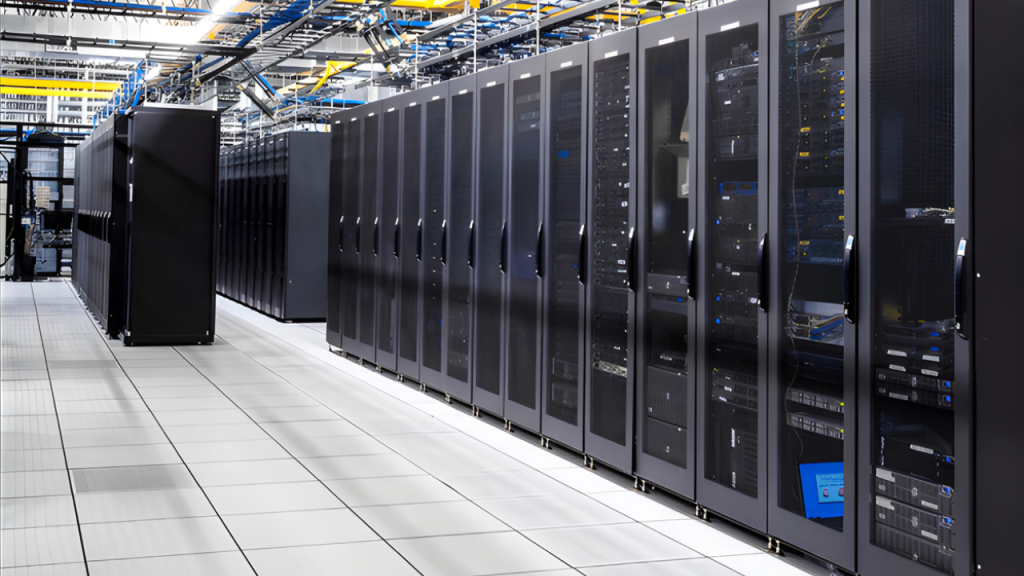

Telecommunications Data Centers

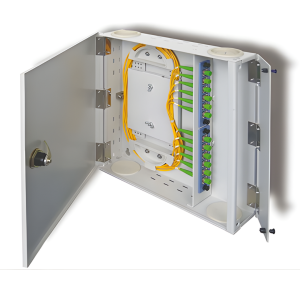

Houses core network equipment with high-density mounting rails for routers, switches, and optical distribution frames.

Financial Services IT Rooms

Protects mission-critical trading systems and database servers with enhanced security locks and tamper-proof access controls.

Healthcare Imaging Networks

Supports PACS servers and medical data storage arrays while meeting stringent compliance and electromagnetic shielding requirements.

Cloud Service Provider Facilities

Manages multi-tenant server deployments with modular cable pathways and scalable power distribution units.

Manufacturing Control Rooms

Secures industrial automation controllers and SCADA systems against dust intrusion in production floor environments.

Educational Institution Networks

Centralizes campus connectivity hardware and wireless controllers with budget-conscious yet durable steel construction.

Server Rack Cabinets

Adaptable Configurations for Evolving Infrastructure

Each deployment presents unique rack unit counts, thermal profiles, and cable density challenges. Our Server Rack Cabinets arrive in floor-standing or wall-mount formats with customizable dimensions reaching 2200 mm height and 1200 mm depth.

We supply complete hardware packages including cage nut systems, leveling casters, and fan tray assemblies matched to your specifications, alongside powder-coated finishes in RAL 7035 or RAL 9005. This approach ensures your infrastructure expands reliably without requiring cabinet replacements during technology refresh cycles.

Server Rack Cabinets

Related products

  • FAQ

Having Doubts? Our FAQ

Check all our Frequently Asked Questions

Get Quote Now
How does Frigate engineer Server Rack Cabinets to prevent thermal overload in high-density deployments?

We design cabinets with perforated front and rear doors offering 60-80% open area to maintain consistent airflow across equipment zones. Roof-mounted fan trays with CFM ratings from 500 to 2000 supplement passive cooling under peak loads. Each cabinet undergoes thermal mapping tests to verify hotspot elimination. This approach sustains component reliability in racks operating near maximum load capacity.

What makes your Server Rack Cabinets suitable for seismic zones with strict building codes?

Frigate cabinets feature reinforced frames with seismic-rated mounting hardware compliant with Zone 4 requirements. Floor anchoring systems distribute lateral forces across leveling feet without compromising cabinet stability. Load testing validates structural integrity under simulated earthquake conditions. These features enable installations in data centers where local codes mandate enhanced seismic protection.

How do your cabinets accommodate varying equipment depths across different server generations?

We provide adjustable depth rails spanning 450 to 850 mm to match legacy systems and current blade server architectures. Rail positioning uses tool-less adjustment mechanisms for rapid reconfiguration during technology upgrades. Each cabinet supports custom depth specifications up to 1200 mm for specialized storage arrays. This flexibility eliminates premature cabinet replacement when infrastructure evolves.

Can Frigate’s Server Rack Cabinets support mixed cooling strategies within a single enclosure?

Frigate’s designs allow simultaneous deployment of passive perforated panels and active fan tray systems based on equipment heat output. Cable management channels maintain separated hot and cold air pathways to prevent thermal mixing. Modular side panels enable selective perforation placement for targeted airflow. Such configurations optimize cooling efficiency in racks housing both low-power networking gear and high-wattage compute servers.

What cable management features prevent signal interference in high-frequency network deployments?

We integrate vertical management channels with 100-150 mm routing depth to physically separate power and data cables. Horizontal managers include D-ring guides that maintain bend radius specifications for fiber optic and Cat6A cabling. Brush entry plates at top and bottom openings provide EMI shielding while allowing cable passage. These elements reduce crosstalk and maintain signal integrity in 10/40/100 Gigabit Ethernet installations.

How do your cabinets maintain IP55 protection in industrial data center environments?

Frigate apply gasket seals around door frames and use solid side panels with weather-resistant coatings for installations requiring dust and moisture protection. Cable entry points feature brush strips that block particle ingress while accommodating cable movement. Each cabinet undergoes ingress testing per IEC 60529 standards to verify protection levels. This construction supports rack deployments in manufacturing facilities or outdoor telecom shelters.

What mounting rail tolerances ensure compatibility with international equipment standards?

Frigate cabinets use 19-inch mounting rails manufactured to EIA-310-D and IEC 60297 specifications with ±0.5 mm tolerance. Cage nut spacing follows universal 15.875 mm (5/8 inch) pitch across all rack units. Rail squareness is verified using laser alignment during fabrication. These precision standards guarantee fit with equipment from any global manufacturer without field modifications.

How does Frigate address access control requirements in multi-tenant colocation facilities?

We offer three-point locking systems on front doors with options for digital keypads, RFID card readers, or traditional keyed locks. Rear doors can be independently secured to allow segregated maintenance access. Side panels feature quick-release mechanisms that require tools for removal to prevent unauthorized entry. Such configurations meet SOC 2 physical security audit requirements for shared infrastructure environments.

What material selection criteria determine cabinet longevity in corrosive coastal or chemical plant installations?

Frigate specify stainless steel grades SS304 or SS316 for environments with salt air or chemical vapors that corrode standard steel. Powder coating thickness reaches 80 microns with zinc plating underlayers for enhanced barrier protection. Material selection follows accelerated corrosion testing protocols simulating 10-year exposure. These cabinets maintain structural integrity and grounding continuity where conventional steel enclosures would degrade within 24-36 months.

Can Frigate’s Server Rack Cabinets integrate with existing hot aisle containment systems?

Our cabinet dimensions align with standard containment corridor widths and include chimney top panels for sealed hot aisle integration. Door swing reversibility allows adaptation to front or rear service configurations without impacting containment performance. Brush plates and blanking panels eliminate air bypass gaps. This compatibility enables phased containment deployment as data centers expand cooling infrastructure.
