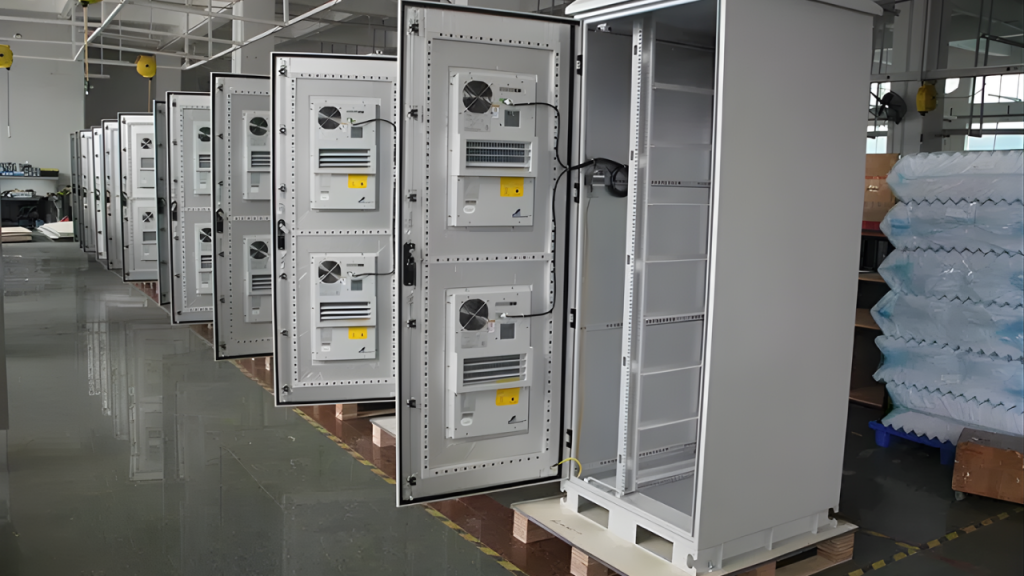

Outdoor Telecom Cabinet

Telecommunications operators deploy equipment at distributed access points throughout service areas rather than centralizing all infrastructure in protected facilities. To support this strategy, Outdoor Telecom Cabinets deliver environmentally controlled spaces for network electronics positioned curbside, in parking lots, and along roadways.
HY D R O L Y SIS RESIS T ANCE
Material & Grade
  • Cold Rolled Steel (CRS) – SPCC
  • Galvanized Steel – SGCC
  • Stainless Steel – SS304, SS316
  • Aluminum Sheet – 5052, 6061
  • Sheet thickness – Up to 3.0mm capable
  • Maximum capable – 2200mm (H) x 1500mm (W) x 800mm (D)
  • Custom sizes available per equipment requirements
  • Powder Coating – RAL 9005, RAL 7035, Custom RAL colors
  • Thickness – 80-120 microns (outdoor grade)
  • Hot-Dip Galvanizing + Powder Coating
  • Marine-grade epoxy coating
  • UV-resistant finish
  • CNC Laser Cutting
  • CNC Punching & Bending
  • TIG/MIG Welding
  • CNC Press Brake Forming
  • Seam welding for weatherproofing
  • Gasket groove forming
  • Stainless Steel 304/316 Hardware
  • Weather-sealed hinges
  • Multi-point locking systems
  • Grounding lugs & busbars
  • Equipment mounting rails (19″ rack compatible)
  • Cable management brack
Get Latest Price
Get quote

Product Description

These ground-mounted enclosures house switching equipment, optical multiplexers, and power distribution systems within structures reaching 2200mm in height. Construction using corrosion-resistant materials maintains IP65 or IP66 sealing standards against rain, dust, and temperature fluctuations between -40°C and +65°C. By combining thermal regulation with physical security, these cabinets protect sensitive network assets in unmanned locations while ensuring continuous service availability.

Mounting Type
  • Ground/Pad Mount with base frame
  • Concrete foundation anchoring
  • Floor standing with leveling feet
  • Wall Mount (smaller units)
  • Seismic mounting provisions
  • Outdoor deployment configurations
  • Standard – IP55 (dust/water jet protected)
  • Enhanced – IP65 (dust-tight/water jet protected)
  • Premium – IP66 (heavy water jet protected)
  • Outdoor installation rated
  • Cable glands – M20, M25, M32, M40, M50, M63, M75
  • Bottom/Top/Side entry configurations
  • Fiber and copper cable provisions
  • Strain relief and cable management
  • Conduit knockout sizes – 32mm to 100mm
  • Fire-rated cable penetrations
  • Single or Double door configurations
  • 180° door opening with hold-open
  • Removable panels for equipment installation
  • Transparent viewing windows (optional)
  • Tool-required or quick-access latches
  • Padlock provisions and security locks
  • Natural convection with ventilation louvers
  • Forced air cooling with fan systems
  • Heat exchanger compatibility
  • Air conditioning provisions (large cabinets)
  • Operating Temperature – -40°C to +65°C
  • Heat dissipation – Up to 8kW capable
  • GR-487-CORE (Network Equipment)
  • Telcordia GR-63-CORE (Physical Protection)
  • IEC 60529 (IP Rating)
  • ETSI EN 300 019 (Environmental)
  • NEBS Level 3 (optional)
  • CE Marked
  • RoHS Compliant
  • ISO 9001 –2015 Manufacturing

Technical Advantages

Outdoor placement exposes cabinets to vehicle strikes, vandalism attempts, and unauthorized access in public spaces without physical barriers. To withstand these threats, reinforced door construction using 2.5-3.0mm steel provides IK10 impact resistance against deliberate damage. Multi-point locking mechanisms with padlock hasps prevent forced entry while allowing authorized technicians rapid access during service calls or emergency repairs.

Internal equipment mounting follows standard 19-inch rack conventions, accepting telecommunications gear from diverse manufacturers without custom brackets. We design removable side panels that facilitate initial equipment installation when components enter through cabinet doors too narrow for fully assembled racks.

Let's Get Started

Need reliable Enclosures for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Suburban Fiber Distribution

Consolidates optical network terminals and splitters serving residential streets where underground fiber cables branch to individual households.

Rural Broadband Expansion

Extends high-speed internet to remote communities by housing line cards and media converters at interim points between central offices and customer premises.

Mobile Network Infrastructure

Contains baseband processing equipment and transport multiplexers connecting distributed radio sites to centralized mobile switching centers.

Business Service Demarcation

Provides network interface points for enterprise customers requiring dedicated access circuits separate from residential service infrastructure.

Video Distribution Networks

Protects cable television amplifiers and optical receivers delivering broadcast and on-demand content through hybrid fiber-coax architectures.

Smart Utility Communications

Houses protocol gateways and field area network routers supporting automated meter reading and grid monitoring across power distribution systems.

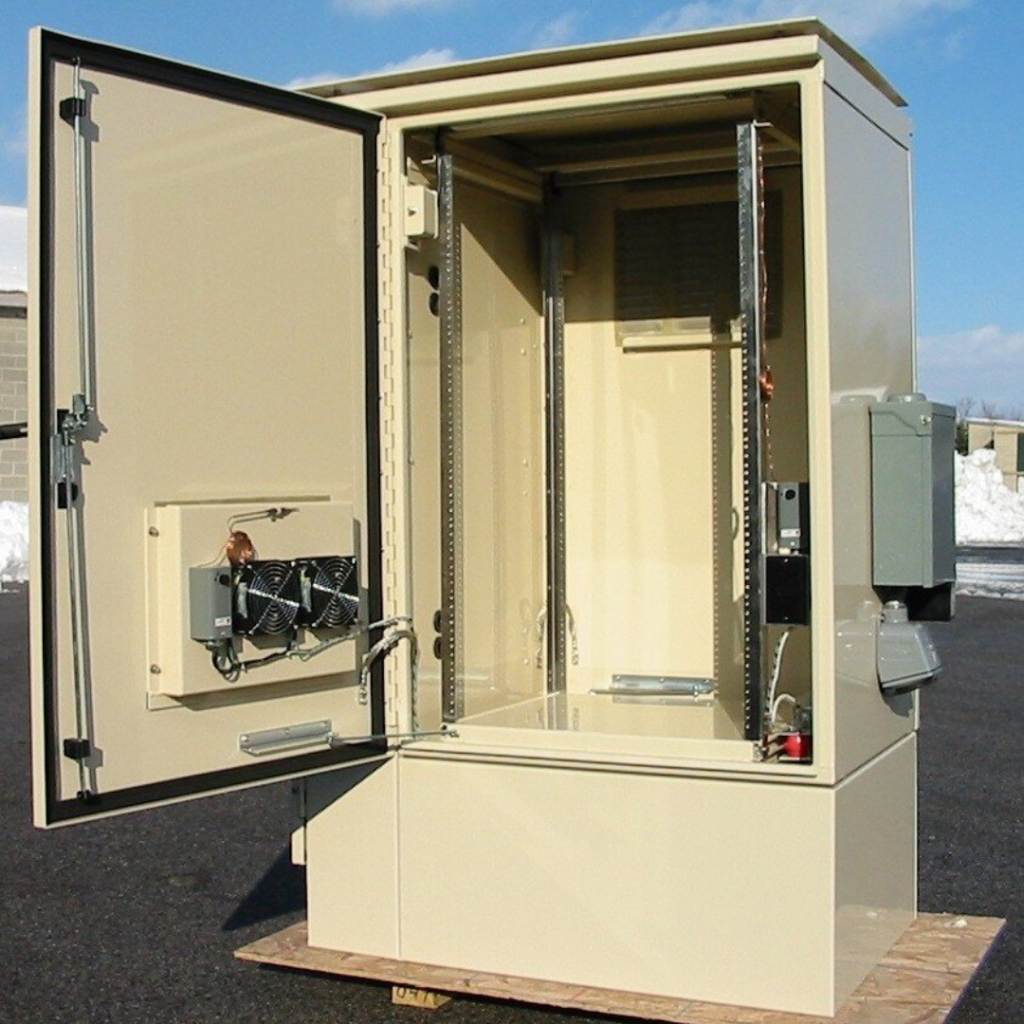

Outdoor Telecom Cabinet

Engineered Protection Systems

Site conditions determine cabinet specifications, with high-traffic urban locations requiring different protection levels than rural installations. Outdoor Telecom Cabinets ship with mounting configurations addressing vehicle impact risks, frost heave concerns, and seismic activity based on deployment geography.

Foundation specifications account for local soil bearing capacity and frost depth requirements, ensuring stable cabinet positioning throughout seasonal ground movement. Frigate provides grounding system designs that protect equipment from lightning strikes and meet telecommunications industry bonding standards for safe operation in exposed outdoor environments.

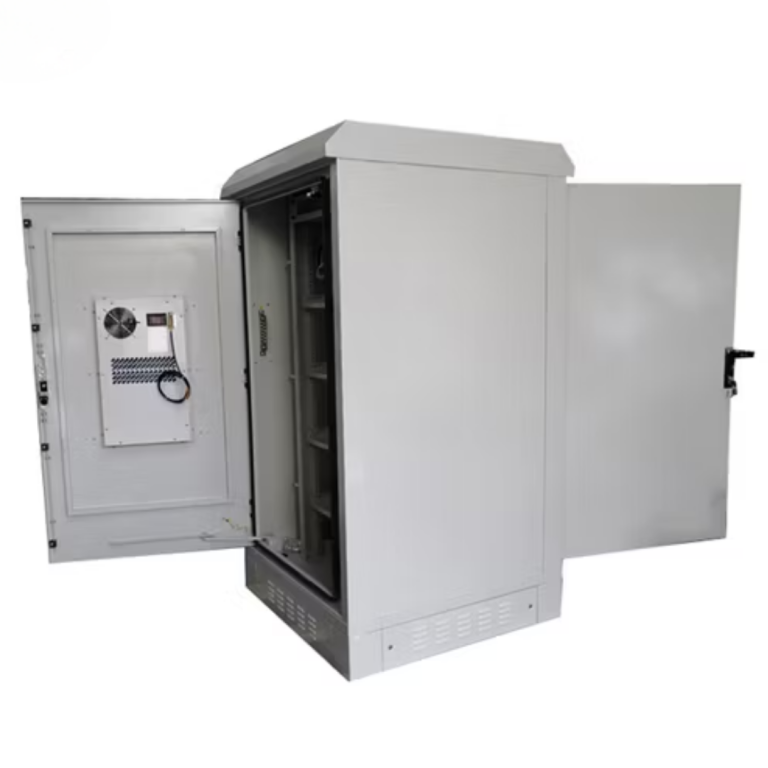

Outdoor Telecom Cabinet

Related products

  • FAQ

Having Doubts? Our FAQ

Check all our Frequently Asked Questions

Get Quote Now
How does Frigate size air conditioning systems for Outdoor Telecom Cabinets with varying equipment heat loads?

Frigate sizes cabinet cooling by mapping the real equipment heat load, airflow restrictions, and site ambient conditions, then selecting AC capacity with margin for peak operation. The layout is adjusted to support return and supply paths so cooling performance matches the deployed configuration.

What door configuration options does Frigate provide for Outdoor Telecom Cabinets requiring frequent maintenance access?

Frigate supports service-heavy sites by offering door options such as –

  • Single-door or double-door layouts for wider access
  • Front-only access or front-and-rear access configurations
  • Locking and latch choices aligned to site security needs

Door configuration is customized around service workflow and cabinet placement.

Can Outdoor Telecom Cabinets integrate battery backup systems for extended power outage protection?

Yes. Frigate can integrate battery backup zones within the cabinet envelope or as compartmentalized sections, depending on runtime targets and safety requirements. Internal layout, ventilation strategy, and access provisions are configured so batteries remain serviceable without interfering with active telecom equipment.

How does Frigate address wind load resistance for tall Outdoor Telecom Cabinets in hurricane-prone regions?

Frigate supports high-wind regions through design choices such as –

  • Reinforced frames and stiffened panel construction
  • Base and anchor patterns aligned to foundation requirements
  • Hardware selections suited to vibration and gust loading

Wind-load targets can be tailored to local codes and installation height.

What rack mounting standards do Outdoor Telecom Cabinets support for multi-vendor equipment compatibility?

Frigate supports common rack integration requirements by providing –

  • Standard 19-inch rack mounting compatibility where required
  • Configurable rail positions for depth and airflow needs
  • Cable management provisions for mixed-vendor layouts

Rack configuration is customized based on the equipment stack and service access plan.

How does Frigate prevent rodent and insect infiltration in Outdoor Telecom Cabinets deployed in rural areas?

Frigate reduces pest ingress by applying measures such as –

  • Sealed cable entry systems sized to the cable bundle
  • Gasketed doors and controlled ventilation interfaces
  • Closing of gaps at base and panel junctions

Ingress protection details are tailored to the site’s cabling and ventilation approach.

Can Outdoor Telecom Cabinets accommodate fire suppression systems for high-value equipment protection?

Yes. Frigate can provision space and mounting interfaces for fire suppression components based on the selected suppression method and cabinet zoning. Access, service clearances, and cable routing are planned so suppression hardware integrates cleanly without restricting maintenance or airflow.

What remote monitoring capabilities can be integrated into Outdoor Telecom Cabinet environmental control systems?

Frigate can integrate monitoring points and hardware provisions such as –

  • Temperature and humidity sensing locations
  • Door-open and power status monitoring interfaces
  • Alarm-ready routing for remote telemetry modules

Monitoring scope is customized to match the operator’s NOC and maintenance model.

How does Frigate address seismic requirements for Outdoor Telecom Cabinets in earthquake-prone zones?

Frigate supports seismic requirements through provisions such as –

  • Reinforced cabinet frames and bracing options
  • Anchor and base designs aligned to site foundations
  • Equipment restraint and rack stabilization features

Seismic assumptions can be tailored to the required zone and compliance standard.

What customization options does Frigate offer for Outdoor Telecom Cabinets requiring municipality-specific aesthetic compliance?

Frigate supports municipal aesthetic requirements through options such as –

  • Custom color and finish selections for streetscape alignment
  • Form factor adjustments to reduce visual impact
  • Door and vent styling choices that blend with surroundings

Aesthetic customization is aligned to local guidelines and approval workflows.
