Frigate executed an 8-part prototype test fixture program using bar stock machining across SS/SS316/MS, coordinating Tier-2 and Tier-3 suppliers to meet drawing-defined fit and function, with 100% inspection and special painting readiness.

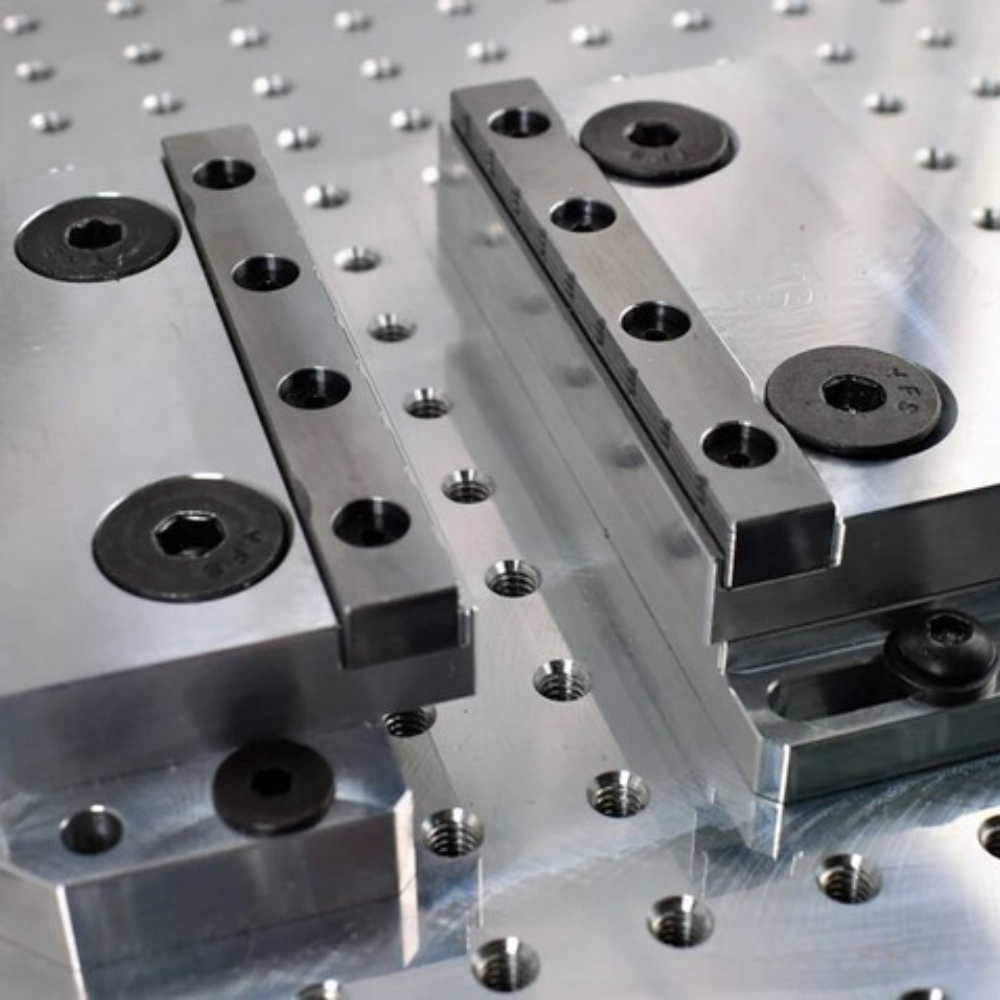

Prototype Bar Stock Machining (Test Fixture Parts)
Industrial Tooling / Manufacturing Support
Bar Stock Machining, Multi-Supplier Execution, Critical Tolerance Control, Spline Cutting, Special Painting.
India
One-off prototypes need tight supplier control, tolerance focus, and end-to-end ownership across multiple parts.
Ensuring prototype suppliers executed with priority and transparency across all 8 parts, despite 1-no quantities.
Maintaining assembly intent by meeting drawing-critical fits, including Gear Box Coupling 100 F5 (+0.051, +0.036).
✔ Reviewed drawings and identified critical interfaces and fits
✔ Confirmed major envelope – Ø515 mm and 55 mm thickness where applicable
✔ Finalized material plan across SS / SS316 / MS based on part needs
✔ Built an execution plan for one-off prototype manufacturability
✔ Included spline cutting where required to meet functional interfaces
✔ Defined inspection checkpoints aligned to drawing criticals
✔ Executed bar stock machining through controlled Tier-2/Tier-3 partners
✔ Ensured 100% inspection against drawing requirements for every part
✔ Achieved “right-first-time” output with no reworks required
✔ Delivered the full prototype set as per the agreed plan
✔ Completed special painting as the required post-process
✔ Shared inspection status and build documentation to support assembly and trials
We used a structured process to align suppliers, control tolerances, and deliver prototype fixture parts with full drawing compliance.
