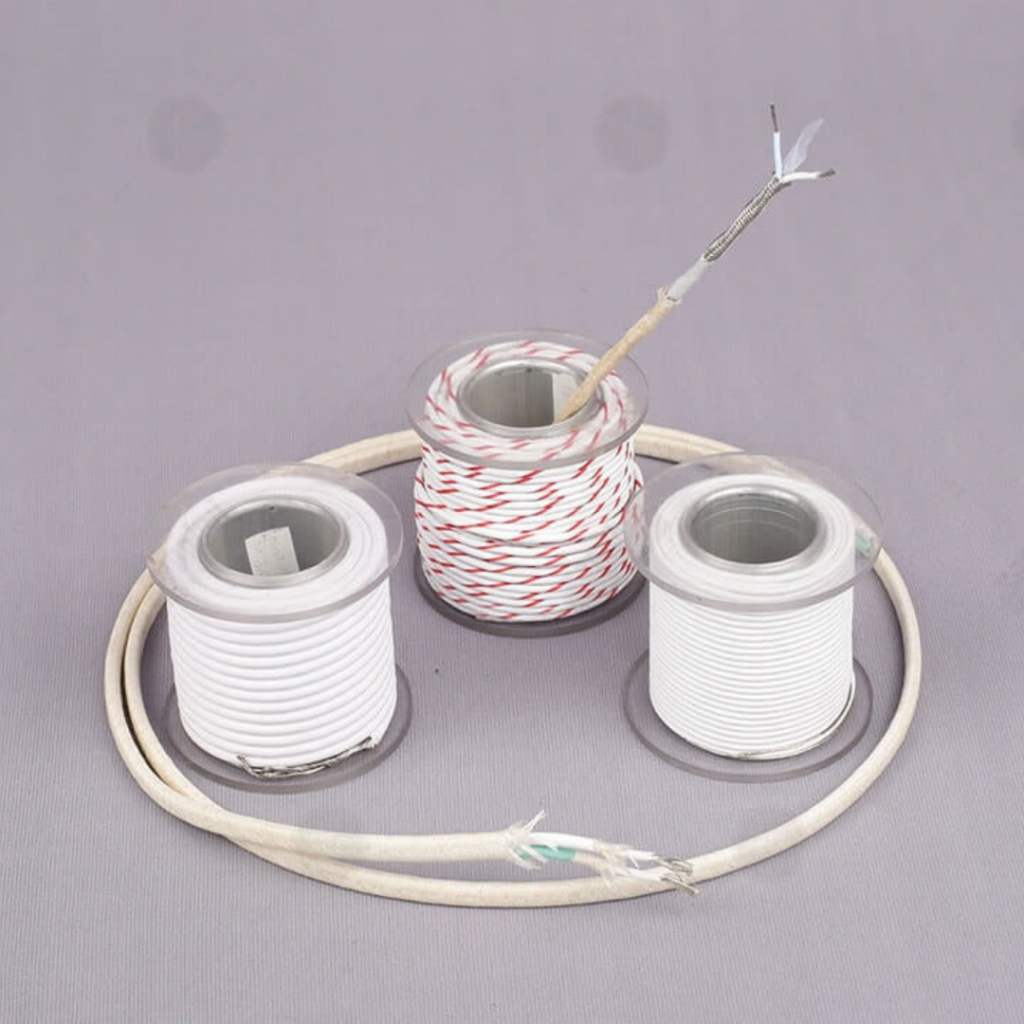

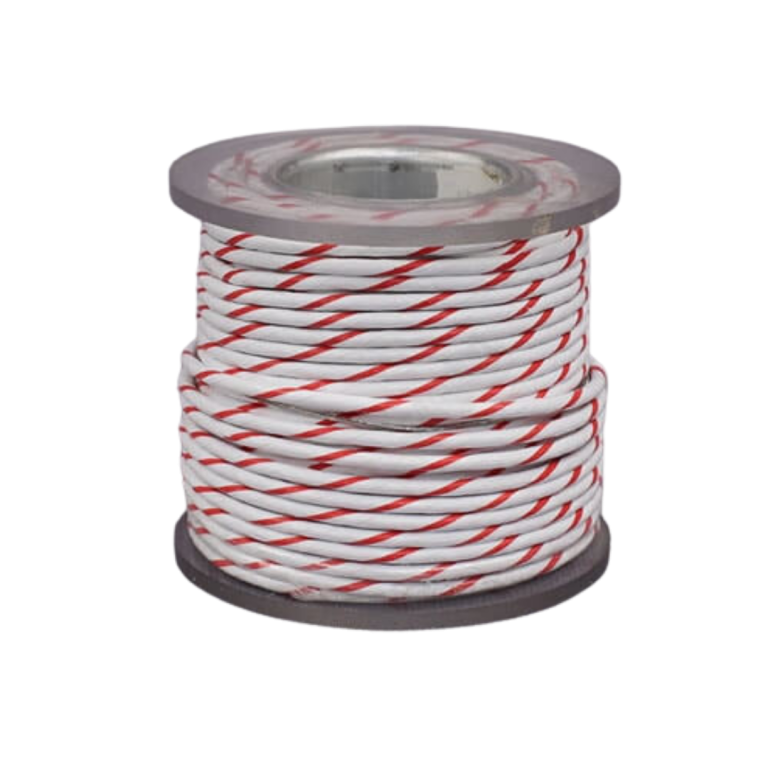

MIL-DTL-25038 Fire Resistant / Flight Critical Wire

Engineered to withstand direct flame exposure up to 1093°C, Frigate’s MIL-DTL-25038 wire ensures uninterrupted signal integrity for flight-critical aerospace systems. Trust our heavy-duty, high-temperature wire to deliver uncompromising reliability where safety and performance cannot be compromised.

Military Specification

MIL-DTL-25038 / MIL-DTL-25038/3

Voltage Rating

600 Volts RMS

Continuous Operating Temperature

-55°C to +260°C

Flame Resistance Threshold

Meets 1093°C (2000°F) flame testing protocols

Conductor Material

Nickel-clad copper or nickel-chrome alloy

*Note: Delivery timelines are indicative and subject to material availability and custom testing. Actual dispatch schedules will be finalized upon technical review of drawing specifications.

Product Description

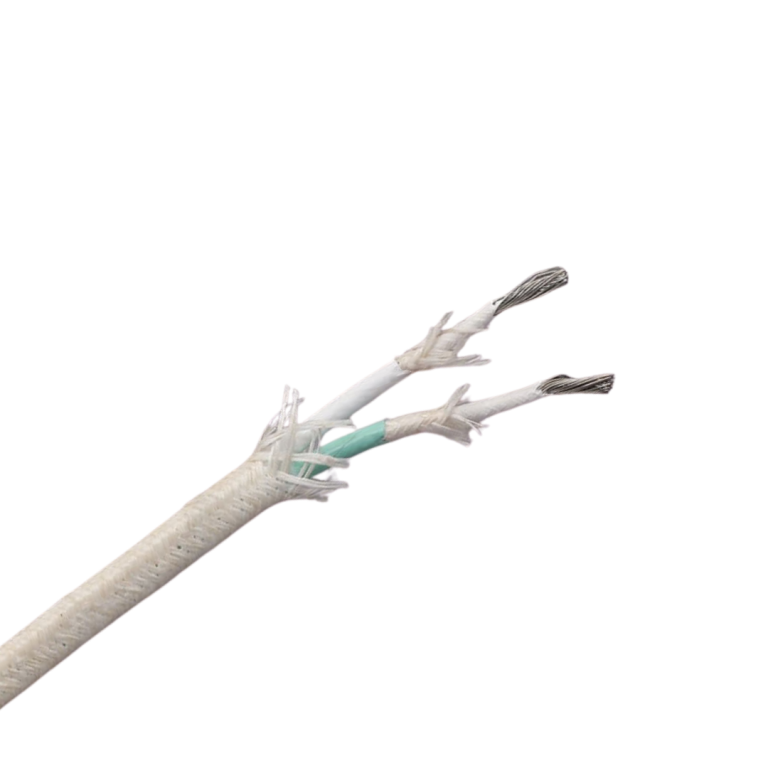

Frigate’s MIL-DTL-25038 wire is a specialized, high-performance aerospace cable designed specifically for critical circuit applications exposed to open flames and severe environments. Featuring a rugged combination of fluid-resistant insulation and heavy-duty conductors, it maintains continuous electrical functionality during emergency operations and engine zone thermal spikes.

Insulation Composition

Inorganic dielectric layers with high-temp glass braid/PTFE

Dielectric Withstanding Voltage

2,000 Volts AC RMS

Insulation Resistance

≥ 5,000 M Ω kft at ambient

Fluid Resistance Compatibility

JP-8 jet fuel, Skydrol hydraulic fluid, synthetic lube oils

Smoke Density Limits

Low-smoke emission per military aerospace standards

Acid Gas Generation

Halogen-free / Minimal toxic gas evolution

Finished Wire Weight

Configurable by AWG (optimized for aerospace weight budgets)

Identification Marking

Permanent surface printing resistent to solvent cleaning

Corona Inception Level

Minimum 350 Volts RMS at high altitude simulation

Quality Conformance Inspection

100% spark tested and continuity verified

Technical Advantages

By utilizing a dual-layer inorganic dielectric insulation system, this wire guarantees superior resistance to aviation fuels, hydraulic fluids, and severe mechanical abrasion. Its advanced construction prevents short circuits during catastrophic thermal events, offering unparalleled structural integrity for fly-by-wire and emergency defense systems.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Aircraft Engine Fire Zones

Provides reliable signal routing near engine nacelles and exhaust manifolds, ensuring critical sensors transmit vital telemetry during high-heat or localized fire events.

Emergency Power Systems

Acts as the electrical backbone for auxiliary power units (APUs) and emergency backup systems, maintaining line continuity when primary infrastructure fails.

Fly-By-Wire Flight Controls

Safeguards flight-critical actuation circuits, guaranteeing that pilot commands reach control surfaces even under severe thermal degradation or combat damage.

Fuel System Monitoring

Connects deep-tank fuel sensors and management valves, offering high resistance to continuous chemical exposure, fuel vapor saturation, and vibration.

Military UAV Deployments

Delivers lightweight, high-reliability wiring harnesses for unmanned defense platforms operating under extreme environmental profiles and rapid thermal cycling.

Space Launch Vehicles

Powers thrust vector control systems and staging telemetry cables that must withstand localized friction-induced heat during atmospheric ascent.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Can we customize the AWG sizing and conductor stranding for our specific aerospace drawing?

Yes. Frigate manufactures custom MIL-DTL-25038 configurations tailored to your specific envelope limits, including varying strand counts and nickel-clad conductor thicknesses to match your exact flexibility and resistance targets.

How does Frigate validate conformance to the 2000°F flame test requirement?

Every production lot undergoes rigorous quality conformance testing. We expose the wire to a continuous 1093°C (2000°F) flame under rated voltage and vibration to verify that no electrical breakdown occurs during the specified survival window.

What documentation and certifications are provided with an enterprise shipment?

All shipments are accompanied by a full First Article Inspection (FAI) report, a formal Certificate of Conformance (CoC), material test reports detailing chemical analysis of the insulation, and electrical trace data for full military traceability.

How does this wire perform under continuous exposure to hydraulic fluids?

The outer protective glass jacket and high-fluoropolymer barrier are specifically engineered to resist chemical degradation. They will not swell, soften, or lose dielectric strength, JP-8, or aggressive aviation cleaning solvents.

Can you accommodate expedited lead times for sudden line-down scenarios?

We maintain an agile manufacturing pipeline for critical aerospace defense projects. If you are facing an AOG (Aircraft on Ground) or tight defense deadline, our engineering team can review raw material availability to compress standard scheduling.
