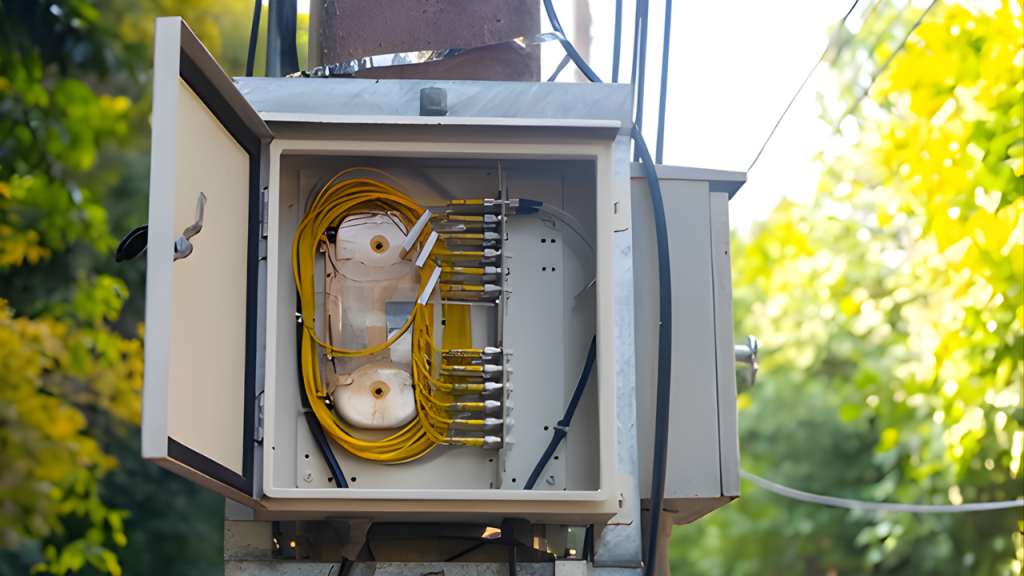

Fiber Distribution Cabinet

Fiber-to-the-home networks need secure, street-level junction points where high-count feeder cables are split and routed into individual subscriber drops. Fiber Distribution Cabinets provide that interface by housing splice trays, passive optical splitters, and patch panels that manage the transition from the central office network to end-user premises.
HY D R O L Y SIS RESIS T ANCE
Material & Grade
  • Cold Rolled Steel (CRS) – SPCC
  • Galvanized Steel – SGCC
  • Stainless Steel – SS304, SS316
  • Aluminum Sheet – 5052, 6061
  • Sheet thickness – Up to 3.0mm capable
  • Maximum capable – 1800mm (H) x 1200mm (W) x 600mm (D)
  • Custom sizes available per fiber capacity
  • Powder Coating – RAL 9005, RAL 7035, Custom RAL colors
  • Thickness – 80-120 microns (outdoor grade)
  • Hot-Dip Galvanizing + Powder Coating
  • Marine-grade coating (coastal areas)
  • UV-resistant finish
  • CNC Laser Cutting
  • CNC Punching & Bending
  • TIG/MIG Welding
  • CNC Press Brake Forming
  • Seam welding for weatherproofing
  • Gasket groove forming
  • Stainless Steel 304/316 Hardware
  • Weather-sealed hinges
  • Multi-point locking systems
  • Splice tray mounting hardware
  • Grounding lugs & busbars
  • Cable management brackets
Get Latest Price
Get quote

Product Description

These cabinets support fiber capacities from 144 to 1728 strands, with internal volumes reaching up to 1800 mm in height. Construction options such as galvanized steel or stainless steel provide IP66 protection against dust and moisture while keeping splice routing organized and serviceable.

Mounting Type
  • Ground/Pad Mount with base frame
  • Wall Mount (smaller units)
  • Pole Mount with brackets
  • Concrete foundation anchoring
  • Pedestal mounting
  • Leveling feet adjustable
  • Standard – IP65 (dust-tight/water jet protected)
  • Enhanced – IP66 (heavy water jet protected)
  • Premium – IP67 (temporary immersion protected)
  • Outdoor deployment rated
  • Operating Temperature – -40°C to +65°C capable
  • UV Resistance – 3000+ hours
  • Salt Spray – 1500+ hours resistance
  • Rain/Snow/Ice protection
  • Humidity – Up to 95% non-condensing
  • IK08 (5 Joules impact energy)
  • IK09 (10 Joules impact energy)
  • IK10 (20 Joules – vandal-resistant)
  • Reinforced construction for street-level installations
  • Cable entry ports – Multiple sealed entries
  • Bottom/Top/Side entry configurations
  • Fiber optic cable management systems
  • Bend radius protection (minimum 30mm)
  • Strain relief provisions
  • Conduit knockout sizes – 25mm to 100mm
  • GR-487-CORE (Network Equipment)
  • Telcordia GR-771-CORE (Outside Plant)
  • IEC 60529 (IP Rating)
  • ITU-T L.54 (Fiber Management)
  •  CE Marked
  • RoHS Compliant
  • ISO 9001 –2015 Manufacturing

Technical Advantages

Maintaining proper bend radius is critical for preventing signal loss and avoiding fiber damage during installation and future changes. Inside the cabinet, slide-out splice trays bring fusion splice points forward for technician access without disturbing adjacent connections.

Passive optical splitters are mounted on dedicated panels positioned between feeder and distribution splice zones, keeping the split hierarchy easy to follow. Cable management guides separate incoming feeder cables from outgoing drop cables to reduce cross-connection risk during maintenance.

Let's Get Started

Need reliable Enclosures for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Residential FTTH Deployments

Terminates feeder cables and distributes individual fiber drops to homes across a defined service area.

Multi-Dwelling Unit Connections

Supports multiple subscriber terminations for apartments, condominiums, and housing complexes from a single distribution point.

Business Park Networks

Consolidates fiber distribution serving office buildings, data centers, and industrial facilities within commercial developments.

Campus Fiber Backbones

Acts as a junction point for university or corporate networks linking multiple buildings back to a central telecom room.

Rural Broadband Expansion

Functions as a remote hub where long distances and sparse density require reliable intermediate distribution points.

Municipal Fiber Networks

Enables community-owned networks serving government buildings, schools, and public institutions with dedicated connectivity.

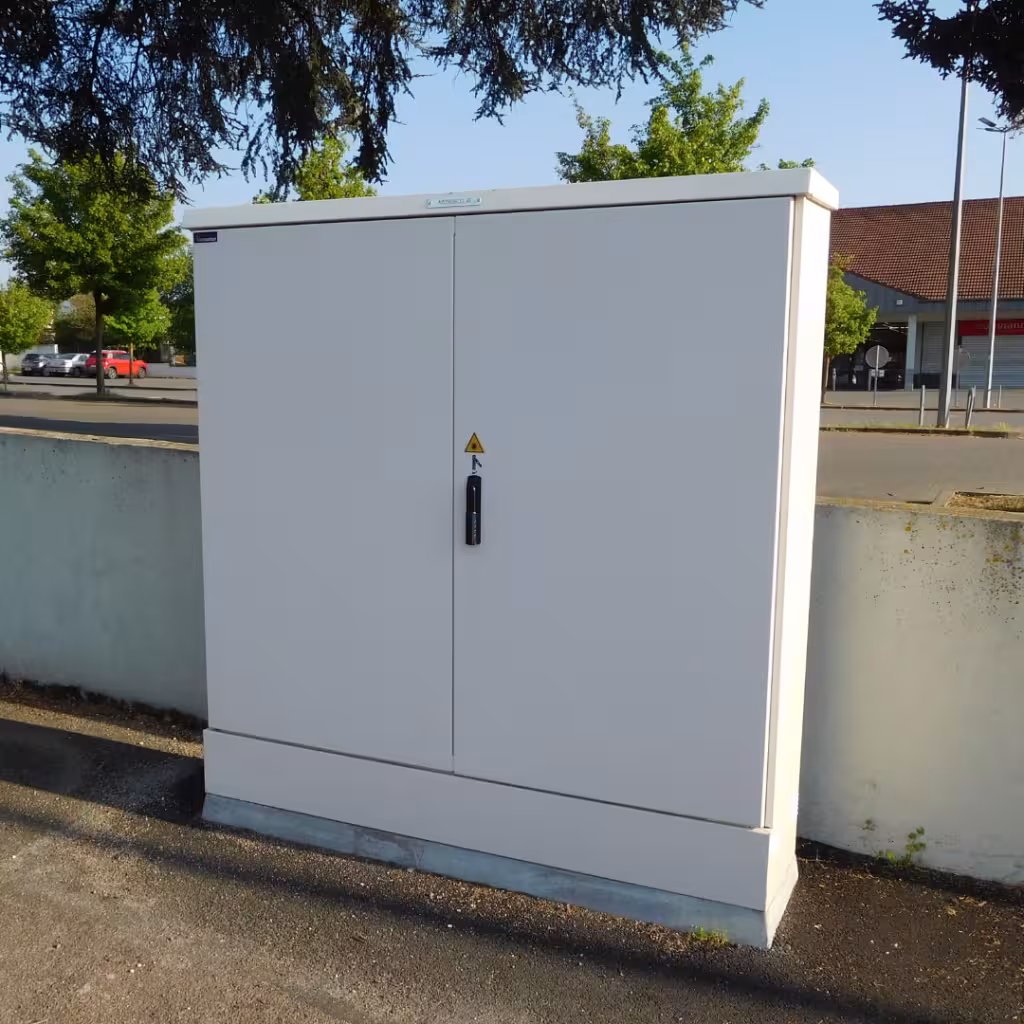

Fiber Distribution Cabinet

Network Infrastructure Protection

Cabinet requirements vary widely based on subscriber density, service-provider standards, and local conditions. To support these differences, Fiber Distribution Cabinets are available in pedestal-mount, wall-mount, or ground-mount formats.

Frigate provides complete mounting support, including hardware options, concrete foundation templates where needed, grounding provisions for lightning protection, and sealed cable entry systems. For coastal deployments, marine-grade stainless steel options help resist salt spray and corrosion so cabinet life aligns with the broader fiber plant’s operating timeline.

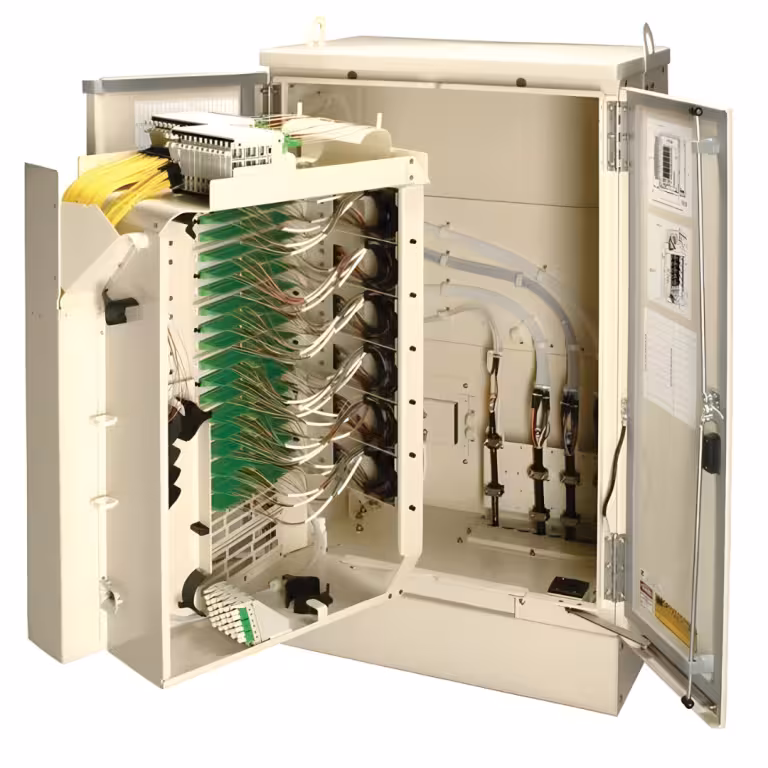

Fiber Distribution Cabinet

Related products

  • FAQ

Having Doubts? Our FAQ

Check all our Frequently Asked Questions

Get Quote Now
How does splice tray capacity affect Fiber Distribution Cabinet internal layout design?

Frigate designs the internal layout around tray count, access, and routing discipline, including –

  • Tray stacking and slide-out clearance for technician reach
  • Dedicated routing channels between tray levels
  • Splitter panel placement between feeder and drop zones

The layout can be customized to match splice density, splitter strategy, and service workflow.

What cable entry sealing methods does Frigate provide for maintaining IP66 protection with multiple fiber cables?

Frigate maintains IP66 performance for multi-cable entry by providing –

  • Sealed cable entry systems sized to cable sheath OD ranges
  • Grommeted interfaces that reduce leakage paths
  • Entry layouts that prevent crowding and pinch points

Cable entry is configured based on cable count, diameter mix, and field routing preference.



Can Fiber Distribution Cabinets accommodate both fusion splicing and mechanical splicing termination methods?

Yes. Frigate cabinet layouts can be configured for fusion splicing or mechanical splice terminations based on site practice and network standards. Splice tray selection, labeling approach, and routing channels remain organized so the chosen termination method stays serviceable through expansions and rework.

How does Frigate address condensation management in sealed fiber cabinets deployed in humid climates?

Frigate reduces condensation risk by combining sealed IP66 construction with internal layouts that avoid trapping moisture around splice zones. Material choices and sealing interfaces are selected to remain stable through temperature swings, supporting more consistent internal conditions in humid or coastal deployments.

What grounding provisions are integrated into Fiber Distribution Cabinets for lightning protection?

Frigate integrates grounding provisions aligned to site lightning protection practices, including –

  • Bonding continuity across doors and removable panels
  • Compatibility for connection to site grounding conductors

Grounding layouts can be adapted based on local standards and installation constraints.

Can Fiber Distribution Cabinets support future capacity expansion without replacing the entire enclosure?

Frigate supports scalable builds that grow over time through –

  • Modular splice tray arrangements that add termination capacity
  • Internal layouts designed to scale from 144 to 1728 fibers
  • Space planning for additional splitters or patching zones

Expansion planning can be aligned to phased rollout schedules and density forecasts.

How does Frigate organize fiber routing to prevent service disruption during maintenance on active circuits?

 Frigate reduces disruption risk during maintenance by implementing –

  • Routing channels that maintain minimum bend radius targets
  • Slide-out tray access that avoids disturbing adjacent fibers
  • Separation of feeder and drop pathways with clear labeling points

Routing schemes can be customized to match field conventions and technician workflow.

What vandalism protection features are incorporated into street-level Fiber Distribution Cabinet designs?

Frigate supports street-level protection requirements through –

  • Robust cabinet construction options in galvanized or stainless steel
  • Secure door closure design suitable for public access points
  • Mounting configurations that reduce tampering leverage

Security features can be specified based on deployment risk level and local site conditions.

How does material selection affect Fiber Distribution Cabinet longevity in coastal or industrial environments?

Frigate matches materials and finishes to exposure conditions by offering –

  • Galvanized steel for general outdoor durability
  • Marine-grade stainless options for salt spray environments
  • Finish selections suited to industrial atmospheres

Material choice can be tailored to corrosion mechanisms and service life targets.



What testing protocols does Frigate employ to validate fiber bend radius protection throughout the cabinet?

Frigate validates bend radius protection through checks such as –

  • Verifying tray and channel geometry against minimum bend radius targets
  • Reviewing routing paths through entries and around splitter panels
  • Confirming safe curvature during tray slide-out service movement

Validation can be aligned to the bend radius rules used in the specific network design.
