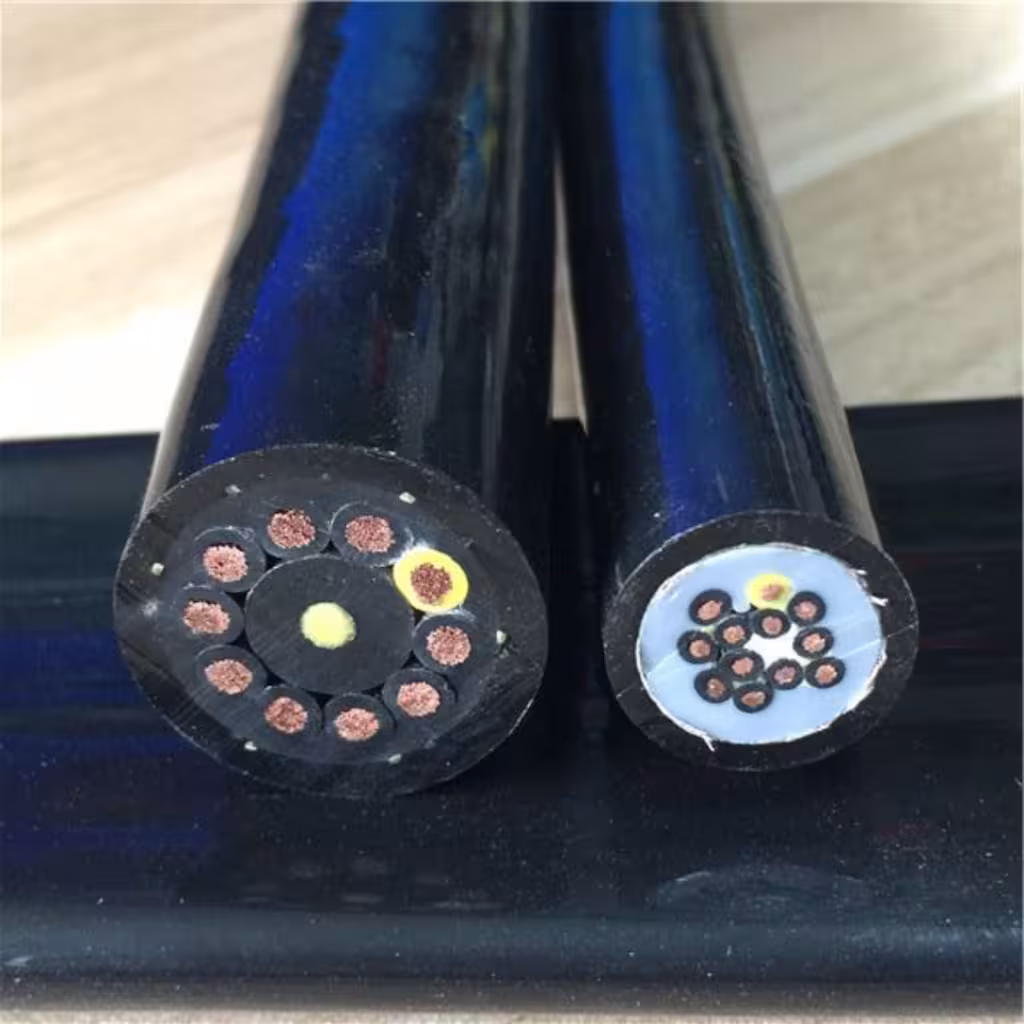

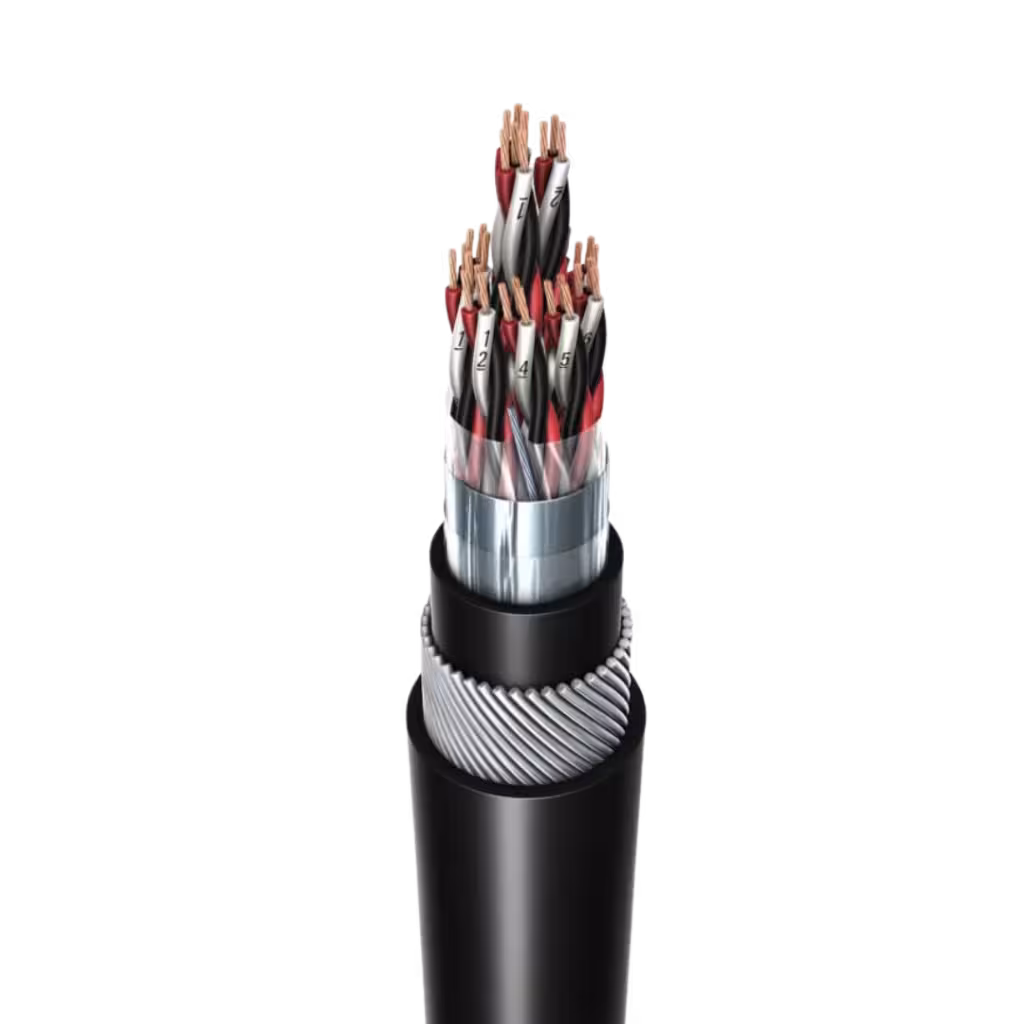

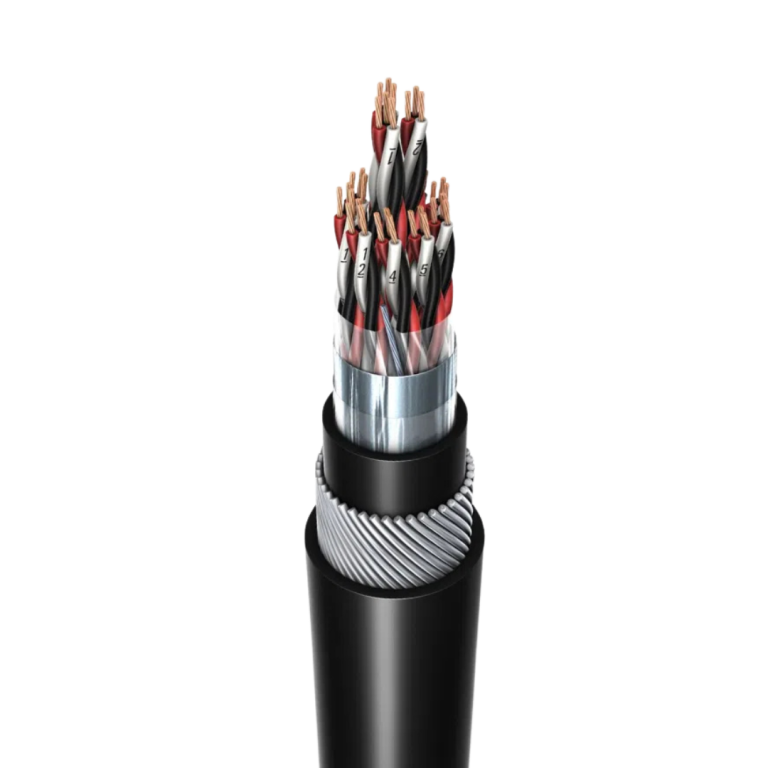

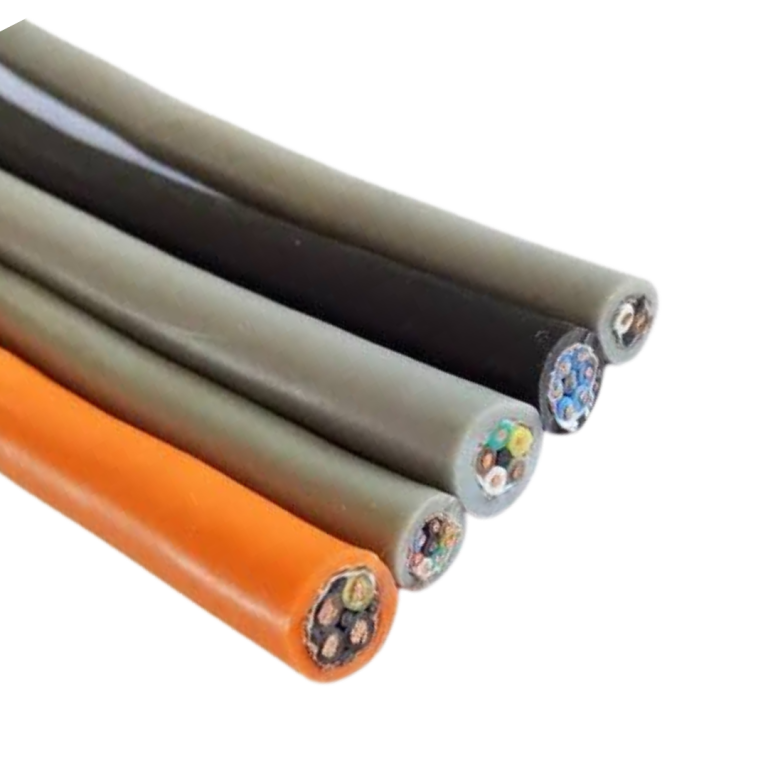

Oil Platform Cables

Developed specifically for the relentless conditions of offshore extraction, Frigate’s oil platform cables provide unfailing power and telemetry under extreme physical and chemical stress. Our high-integrity, fully certified designs protect critical infrastructure and maximize uptime in volatile marine environments globally.

Conductor Material

High-purity tinned annealed stranded copper (Class 2 or Class 5)

Insulation Type

Cross-linked Polyethylene (XLPE) or Halogen-free EPR

Bedding / Inner Sheath

Flame-retardant, halogen-free compound (SHF1 or SHF2)

Armoring Options

High-tensile galvanized steel wire braid (GSWB) or tinned copper wire braid (TCWB)

Outer Jacket Material

Mud-resistant, UV-stabilized, halogen-free thermoset compound (NEK 606 compliant)

*Note: Listed timelines are indicative averages based on current raw material queues; firm schedules are established upon formal RFQ evaluation.

Product Description

Frigate’s oil platform cables represent the pinnacle of offshore structural wiring, blending advanced metallurgical construction with cutting-edge polymer engineering. Designed specifically for the high-risk environments of offshore oil and gas production, these cables deliver unyielding circuit integrity under continuous thermal, chemical, and mechanical exposure.

Voltage Ratings

0.6/1 kV (Power), 150/250 V (Control/Instrumentation), up to 8.7/15 kV (Medium Voltage)

Operating Temperature Range

-40° C to +90° C (Maximum conductor temperature +250° C during short circuit)

Flame Retardancy Standard

IEC 60332-1-2, IEC 60332-3-22 Cat A

Smoke Density & Toxicity

IEC 61034-1/2 (Low Smoke), IEC 60754-1/2 (Zero Halogen)

Mud Resistance Profile

Resistant to ester-based, mineral-based, and water-based drilling fluids (NEK 606)

Minimum Bending Radius

6 X OD (Unarmored), 8 X OD (Armored)

Oil Resistance

IEC 60811-404 compliance

Hydrocarbon & Ozone Resistance

Excellent resistance to localized hydrocarbon exposure and accelerated UV/Ozone weathering

Tensile Strength

High mechanical load tolerance optimized for dynamic offshore applications

Certifications Available

ABS, DNV-GL, Lloyd’s Register, and Bureau Veritas certification options

Technical Advantages

By utilizing highly specialized, mud-resistant thermoset jackets, our cables prevent structural degradation caused by aggressive drilling fluids and constant salt spray. Additionally, their optimized, flexible armoring provides superior electromagnetic shielding and impact protection without sacrificing ease of routing in confined bulkhead spaces.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Topside Drilling Facilities

Robust power distribution lines designed to supply continuous, high-amperage current to heavy mud pumps, top drives, and draw-works systems.

FPSO (Floating Production, Storage, and Offloading) Vessels

Highly flexible dynamic cabling built to tolerate the constant twisting, wave motion, and structural deflection inherent to floating hulls.

Subsea Control & Umbilicals

High-integrity links providing reliable low-voltage control signals and real-time sensor data telemetry between the platform and subsea wellheads.

Emergency Shutdown & Safety Systems

Fire-resistant control circuits that maintain vital communications and structural safety systems active even during localized hydrocarbon fire events.

Accommodation & Living Quarters

Low-smoke, zero-halogen (LSZH) power and lighting infrastructure engineered to maximize personnel safety and prevent toxic gas generation during a crisis.

Offshore Substation Links

High-voltage export cabling engineered for stable, long-distance power transmission from localized offshore generation points back to the platform grid.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Can Frigate customize the cable insulation and jacketing for extreme Arctic offshore installations?

Yes. For ultra-low temperature projects, we formulate customized outer jackets capable of maintaining impact resistance and flexibility down to $-50^\circ\text{C}$. These specific configurations are tested to meet cold-bend and cold-impact standards required by global classification societies for Arctic deployments.

How do your cables comply with the NEK 606 mud resistance standards for drilling fluids?

Our oil platform cables utilize specialized SHF2 and mud-resistant thermoset compounds that undergo rigorous testing against mineral, water, and synthetic-based drilling muds. This prevents the swelling, softening, and cracking that standard industrial cables experience when exposed to aggressive offshore chemicals.

What documentation and third-party certifications are provided with custom manufacturing runs?

Every production batch undergoes comprehensive in-house testing, including insulation resistance, high-voltage withstand, and dimensional validation. Upon request during the RFQ stage, we provide full material traceability reports and type-approval certifications from major maritime societies like DNV, ABS, or Lloyd’s Register.

Can you manufacture hybrid cable configurations combining power, control, and fiber optic cores?

Absolutely. Frigate specializes in custom-engineered composite cables that integrate medium-voltage power cores, low-voltage control conductors, and single-mode or multi-mode fiber optics within a single armored jacket. This minimizes installation time, reduces total weight on the cable trays, and optimizes space utilization.

What are the minimum order quantities (MOQs) for non-standard conductor sizes or custom color jackets?

Our baseline MOQ for custom cross-sections or specialty color-coded outer jackets typically starts at 1,000 meters per line item, depending on the raw material configuration. However, for specialized prototype runs or urgent platform maintenance outages, we can review engineering schedules to accommodate lower volumes.
