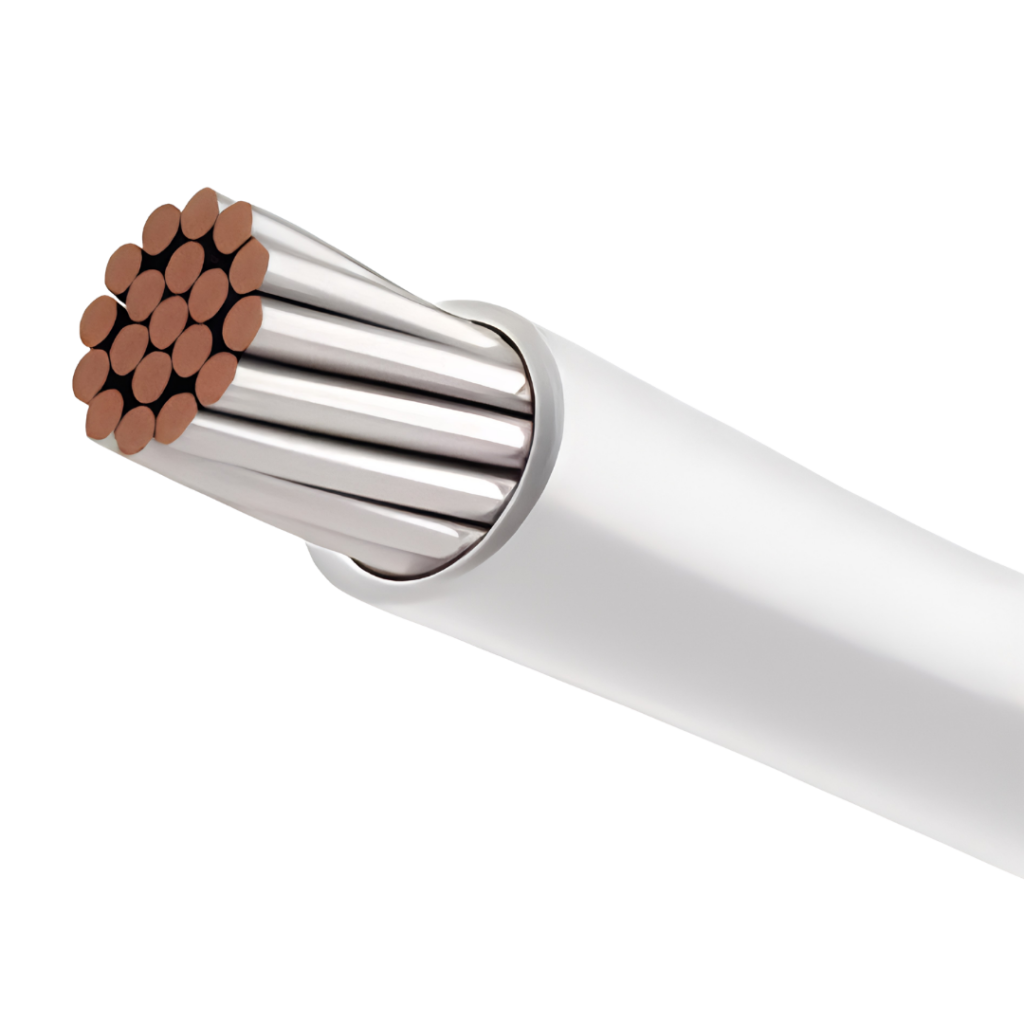

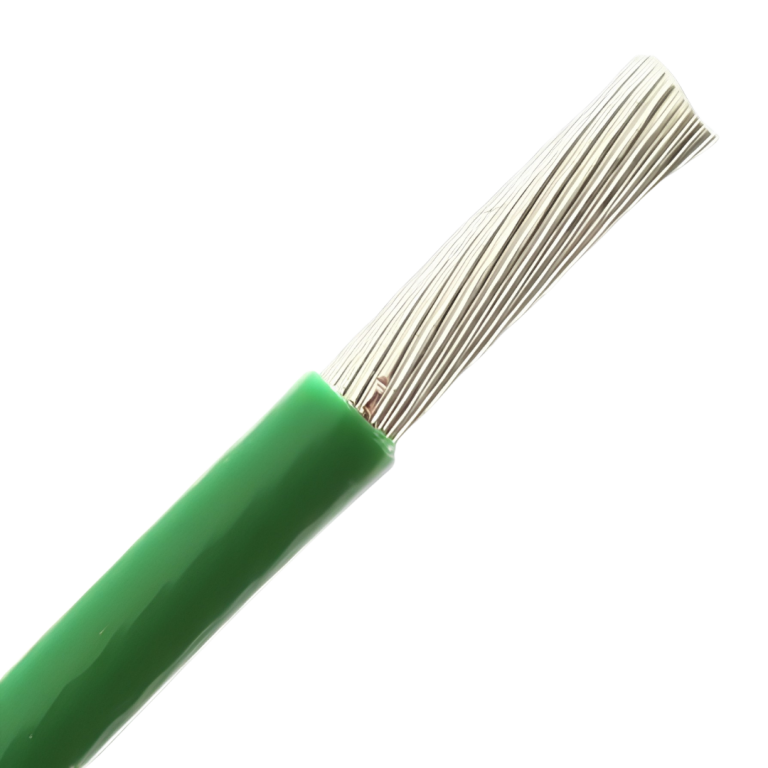

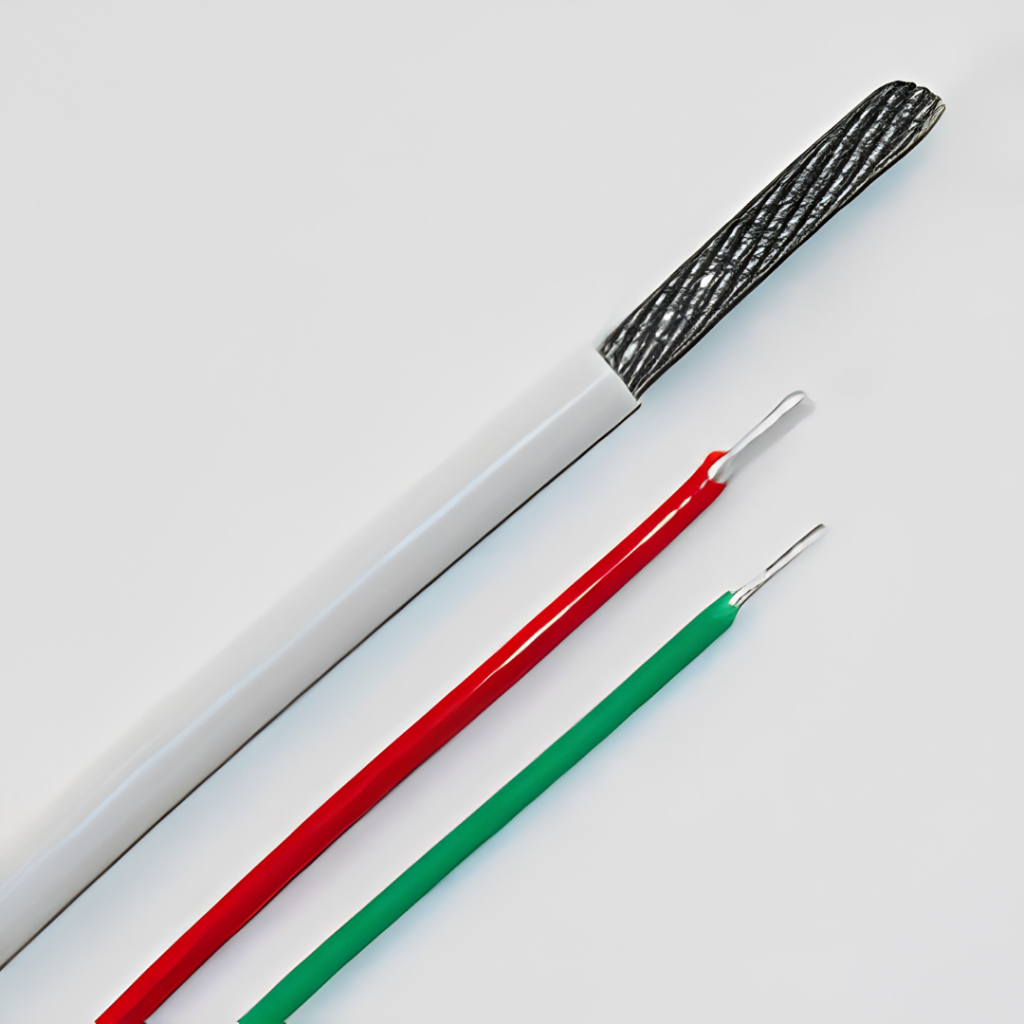

MIL-DTL-22759 Wire (Spec 44 Equiv & Superior)

Frigate delivers high-performance MIL-DTL-22759 (M22759) wire, engineered to match and exceed Spec 44 standards for the most demanding aerospace, military, and industrial environments. Utilizing advanced cross-linked ETFE (XL-ETFE) insulation, our custom-fabricated wiring solutions offer unparalleled thermal stability, mechanical toughness, and chemical resistance to keep your critical systems operational.

Conductor Material Options

Silver-coated copper, Nickel-coated copper, High-strength copper alloy

Insulation Material

Dual-wall or Single-wall Cross-linked Polyalkene / PVDF (XL-ETFE equivalent/superior)

Voltage Rating

600 V and 1000 V variants available

Temperature Range

-65° C to + 200° C (dependent on conductor coating)

Dielectric Constant

2.6 to 2.7

*Note: These lead times are indicative ranges; actual delivery depends on custom jacket shielding, specific conductor alloys, production scheduling, and volume configurations.

Product Description

Frigate’s M22759 wiring series provides specialized, high-density electrical interconnect solutions that serve as a direct, ruggedized alternative to traditional Spec 44 architectures. By optimizing our dual-wall extrusion processes, we provide custom wire runs that withstand intense environmental stress while maintaining low cross-sectional weight profiles.

Flammability Rating

Self-extinguishing, dual-jacket resistant to flame propagation

Chemical Resistance

Immune to hydraulic fluids, aviation fuels, lubricants, and aggressive solvents

Smoke & Toxicity

Low-smoke emission, highly resistant to tracking and arc propagation

Abrasion Resistance

Superior cross-linked molecular structure for enhanced scrape abrasion durability

Flexibility Class

Available in standard routing and high-flexibility stranding configurations

Available Gauge Sizes

4/0 AWG down to 28 AWG

Tensile Strength

High-strength alloy options exceeding 50,000 PSI

Moisture Absorption

Less than 0.1% weight gain under saturated conditions

Compliance Standards

SAE AS22759, MIL-STD-202, RoHS, and REACH compliant

Testing Protocols

100% spark tested, impulse dielectric tested, and elongation verified

Technical Advantages

Our proprietary cross-linking process creates an insulation matrix that offers double the abrasion resistance of standard fluoropolymers and eliminates the risk of cold-flow insulation creep. This ensures complete signal integrity and zero dielectric breakdown, even when tightly routed through sharp, high-vibration structural bulkheads.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Aerospace & Airframe Wiring

Engineered to withstand severe low-pressure environments and rapid thermal cycling in commercial and military flight control decks.

Defense & Tactical Vehicles

Provides ruggedized, chemical-resistant power distribution for ground combat vehicles operating in abrasive, fuel-heavy environments.

Unmanned Aerial Systems (UAS)

Delivers ultra-lightweight, high-density signal routing essential for maximizing payload and battery capacity in long-endurance drones.

Space Launch Infrastructure

Outgassing-compliant cabling designed to survive extreme vibration and localized heat signatures during rocket propulsion stages.

High-End Marine Systems

Resists salt-spray corrosion and moisture ingress, making it ideal for naval communications and sub-sea monitoring enclosures.

Downhole Oil & Gas Equipment

Withstands aggressive chemical exposure and high ambient temperatures inside specialized industrial drilling and telemetry tools.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

How does Frigate’s M22759 wire improve upon standard Spec 44 specifications for custom runs?

While matching the core thermal footprint of traditional Spec 44, Frigate utilizes an optimized cross-linked insulation matrix that delivers enhanced scrape-abrasion resistance and better flexibility during tight-radius bend routing. This reduces structural wear over time and prevents insulation tracking under high mechanical stress.

Can we customize the conductor alloys and shielding configurations for specific EMI constraints?

Yes. We offer custom stranding configurations using high-strength copper alloys, silver plating for enhanced conductivity, or nickel plating for high-temperature durability. We can also integrate custom braided shields and specialized outer jackets to meet specific electromagnetic compatibility (EMC) mandates.

What verification documentation and QA testing data do you provide with bulk manufacturing shipments?

Every production lot undergoes rigorous QA validation, including $100\%$ spark testing, dimensional tolerance checking, and elongation verification. We provide comprehensive material certifications, Certificate of Conformance (CoC), and full traceability data required for defense and aerospace auditing compliance.

How do you handle minimum order quantities (MOQs) for non-standard gauge sizes or custom jacket colors?

Our standard production runs typically require an MOQ depending on raw material extrusion minimums, but we accommodate smaller prototype batches during your engineering validation phase (NPI). Contact our engineering desk to discuss combined manufacturing schedules that can mitigate raw material MOQs.

Is Frigate’s M22759 wire fully compliant with defense outgassing and flame-propagation standards?

Absolutely. Our insulation compounds meet strict low-outgassing parameters and are inherently self-extinguishing. They comply with stringent aerospace toxicity and flame-spread limitations, making them entirely safe for pressurized cabin environments and sealed electronic enclosures.
