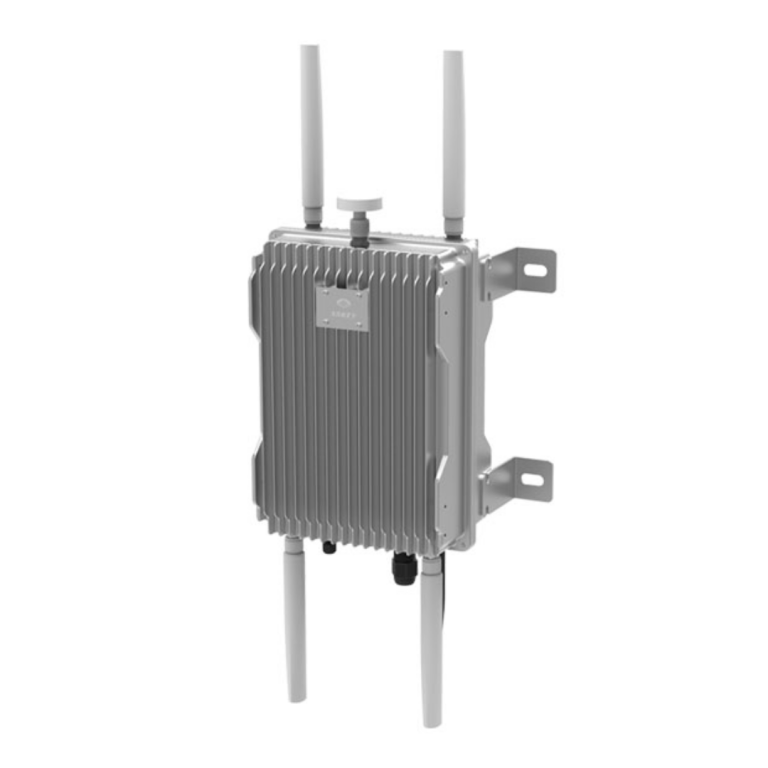

5G Outdoor Small Cell

Dense urban networks require distributed antenna systems positioned every 200-300 meters to deliver 5G millimeter-wave coverage and capacity. 5G Outdoor Small Cell Enclosures protect radio units, baseband processors, and power distribution equipment in street-level installations.
HY D R O L Y SIS RESIS T ANCE
Material & Grade
  • Cold Rolled Steel (CRS) – SPCC
  • Galvanized Steel – SGCC
  • Stainless Steel – SS304, SS316
  • Aluminum Sheet – 5052, 6061
  • Sheet thickness – Up to 2.5mm capable
  • Maximum capable – 800mm (H) x 600mm (W) x 400mm (D)
  • Compact and custom sizes available
  • Powder Coating – RAL 9005, RAL 7035, Custom RAL colors
  • Thickness – 80-120 microns (outdoor grade)
  • Hot-Dip Galvanizing + Powder Coating
  • Marine-grade coating (coastal areas)
  • UV-resistant finish
  • CNC Laser Cutting
  • CNC Punching & Bending
  • TIG/MIG Welding
  • CNC Press Brake Forming
  • Seam welding for weatherproofing
  • EMI shielding construction
  • Stainless Steel 304/316 Hardware
  • Tamper-resistant screws
  • Weather-sealed hinges
  • Multi-point locking systems
  • Grounding lugs & hardware
  • Antenna mounting provisions
Get Latest Price
Get quote

Product Description

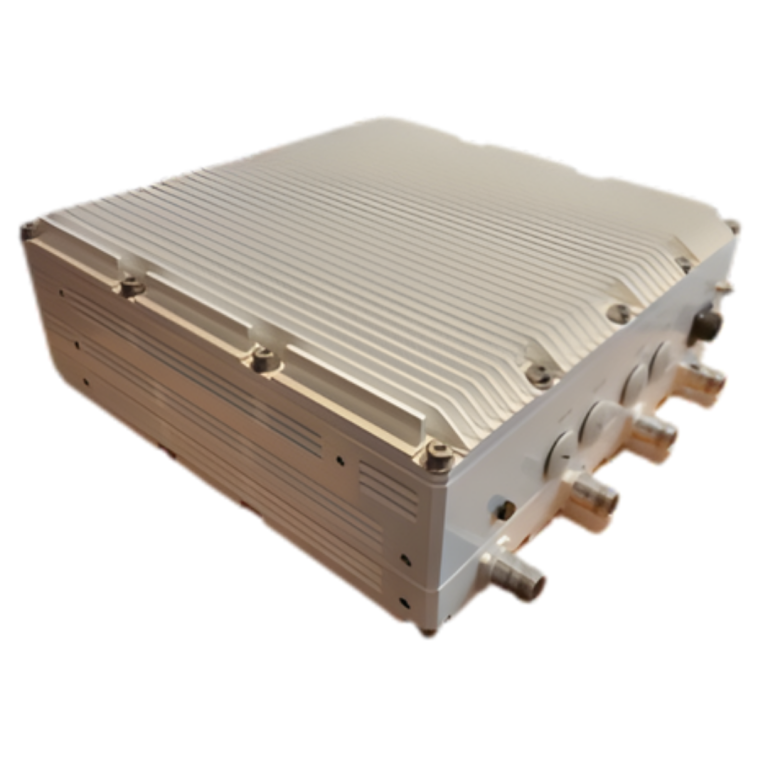

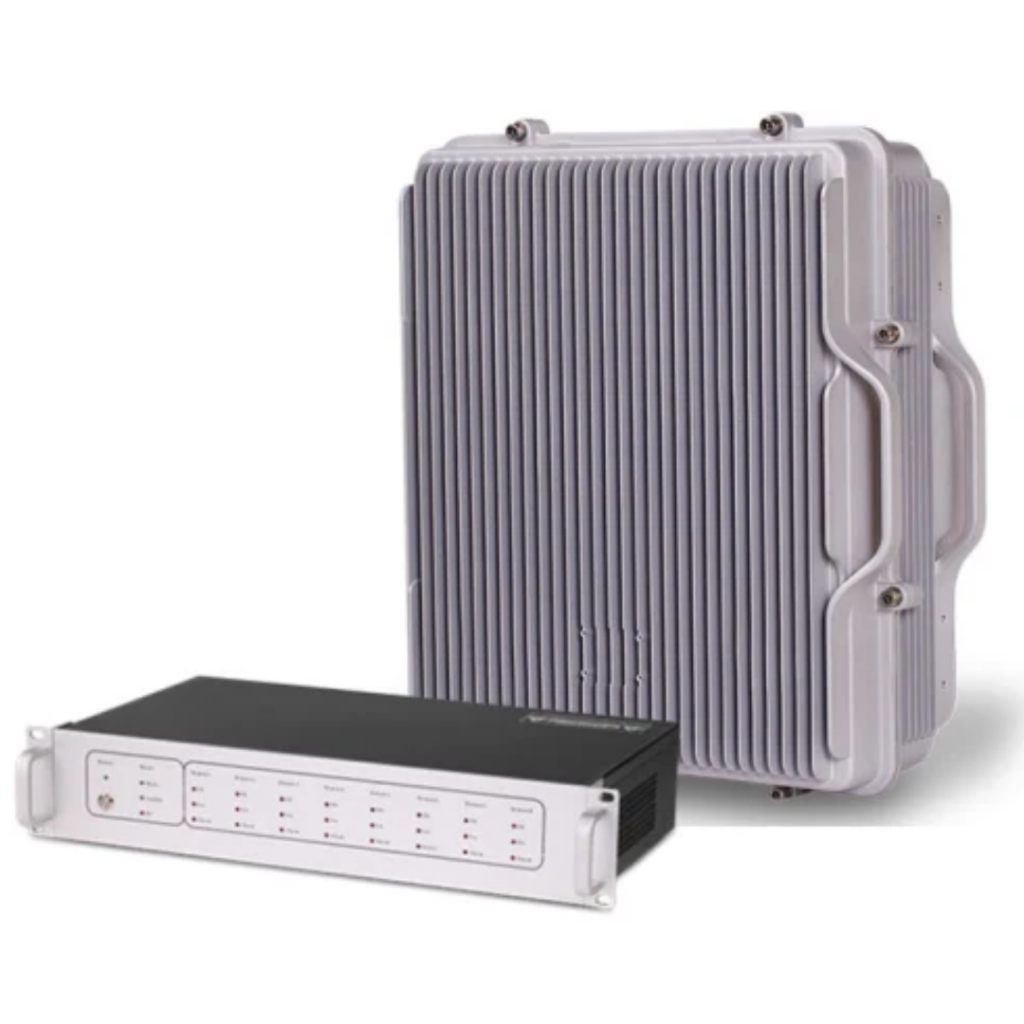

These compact housings accommodate small cell radios with internal volumes reaching 800mm dimensions and IP66 sealing. Aluminum or steel construction withstands vandalism, weather exposure, and electromagnetic interference in high-traffic urban corridors. As a result, network operators achieve seamless 5G coverage without compromising equipment reliability or aesthetic integration.

Mounting Type
  • Pole Mount (standard)
  • Wall Mount with brackets
  • Strand Mount for aerial cables
  • Rooftop/Parapet mounting
  • Universal mounting hardware
  • Adjustable bracket positioning
  • Standard – IP65 (dust-tight/water jet protected)
  • Enhanced – IP66 (heavy water jet protected)
  • Premium – IP67 (temporary immersion protected)
  • Outdoor deployment rated
  • Operating Temperature – -40°C to +65°C capable
  • UV Resistance – 3000+ hours
  • Salt Spray – 1500+ hours resistance
  • Rain/Snow/Ice protection
  • Humidity – Up to 95% non-condensing
  • IK08 (5 Joules impact energy)
  • IK09 (10 Joules impact energy)
  • IK10 (20 Joules – vandal-resistant)
  • Reinforced construction for urban installations
  • Cable glands – M16, M20, M25, M32
  • Bottom/Top/Side entry configurations
  • Fiber optic cable provisions
  • RF cable routing with bend radius protection
  • Strain relief systems
  • Internal cable management brackets
  • 3GPP Standards (5G NR specifications)
  • IEC 60529 (IP Rating)
  • FCC Part 15 (Radio Frequency Devices)
  • ETSI EN 300 019 (Environmental Conditions)
  • CE Marked
  • RoHS Compliant
  • ISO 9001 –2015 Manufacturing

RF Shielding and Thermal Architecture

Millimeter-wave radios operating at 28GHz and 39GHz bands generate localized heating within confined enclosure volumes. Aluminum construction dissipates thermal loads through convective cooling without requiring active ventilation that would compromise ingress protection. White or light-colored powder coatings minimize solar heat absorption in direct sunlight installations.

Internal EMI shielding prevents radio interference between collocated equipment and adjacent wireless systems. Cable entry provisions maintain RF isolation through filtered glands and compartmentalized routing channels. Moreover, grounding systems achieve less than 5-ohm impedance to support proper antenna operation and lightning protection requirements.

Let's Get Started

Need reliable Enclosures for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

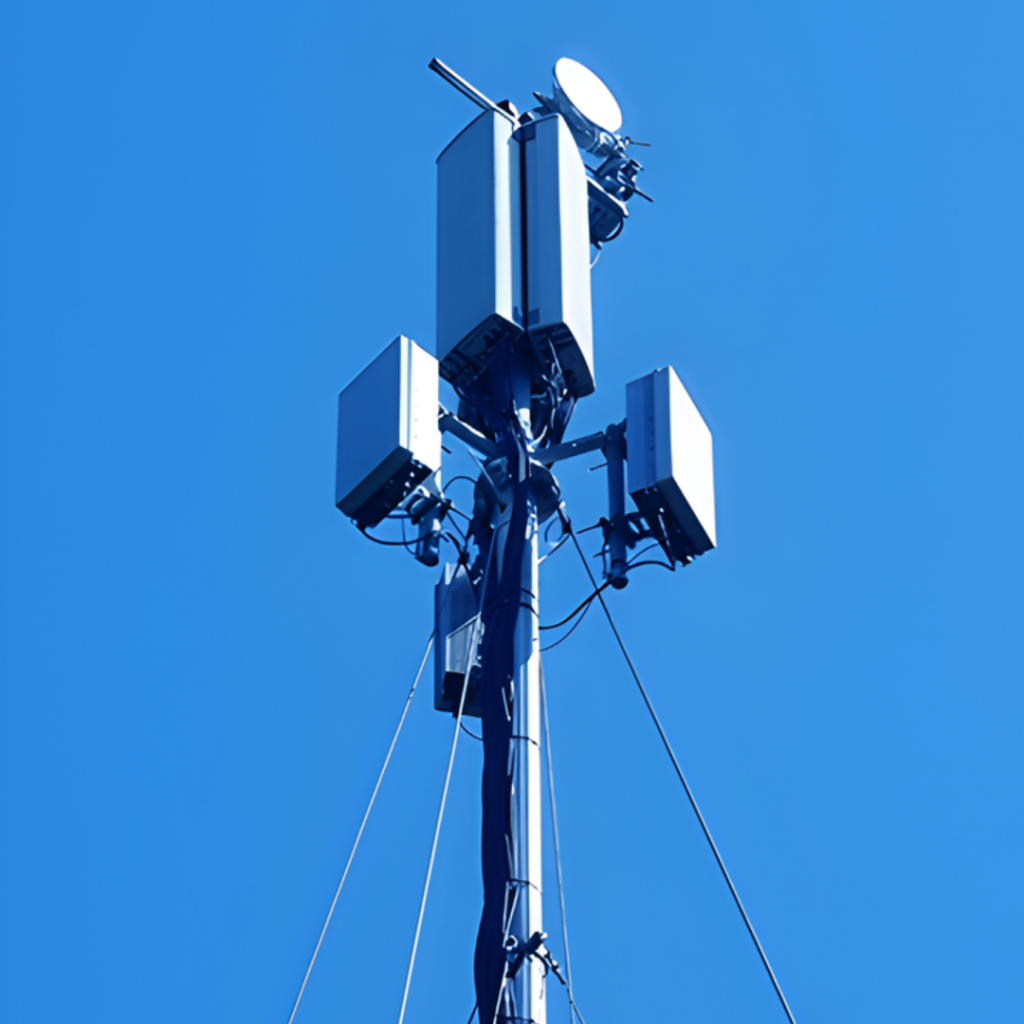

Urban Street Furniture Installations

Integrates small cells into light poles, traffic signals, and utility cabinets delivering dense coverage in metropolitan business districts.

Sports Venue Connectivity

Deploys distributed antenna systems in stadiums and arenas handling sudden capacity surges during events with 50,000+ simultaneous users.

Transit Corridor Coverage

Provides continuous 5G connectivity along subway platforms, bus rapid transit routes, and commuter rail lines supporting mobile handoffs.

Smart City Infrastructure

Houses edge computing nodes and IoT gateways at small cell sites enabling traffic management and environmental monitoring applications.

Campus Wireless Networks

Extends enterprise 5G coverage across university campuses and corporate office parks where building penetration limits macro cell effectiveness.

Industrial Wireless Automation

Supports ultra-reliable low-latency communications for manufacturing robotics and logistics operations requiring deterministic network performance.

5G Outdoor Small Cell

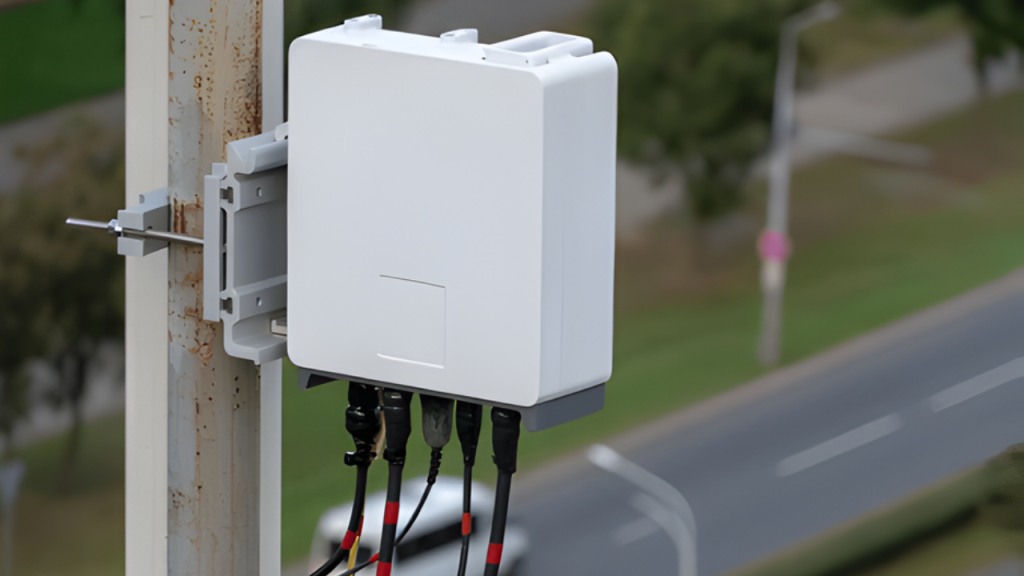

Adaptable Urban Deployment

Mounting locations vary from wooden utility poles to concrete building facades, each presenting different structural and aesthetic constraints. 5G Outdoor Small Cell Enclosures arrive in pole-mount, wall-mount, or strand-mount configurations with internal layouts accommodating operator-specific radio equipment.

Frigate supplies complete installation kits including adjustable mounting brackets, tamper-resistant hardware, and cable management accessories. Marine-grade finishes suit coastal deployments, ensuring enclosure performance persists throughout 10-15 year small cell lifecycles without environmental degradation.

5G Outdoor Small Cell

Related products

  • FAQ

Having Doubts? Our FAQ

Check all our Frequently Asked Questions

Get Quote Now
How does Frigate address heat dissipation in 5G Outdoor Small Cell Enclosures without active cooling?

Frigate uses aluminum thermal architecture to conduct heat into the enclosure body and dissipate it through convection while keeping IP66 sealing intact. Light-colored powder coatings reduce solar heat absorption in direct sun, helping maintain more stable internal operating temperatures without vents or fans.

What cable entry provisions does Frigate provide for mixed fiber and copper connections in small cell installations?

Frigate supports mixed media entry without sacrificing sealing or RF isolation by using –

  • Filtered glands to preserve RF shielding
  • Compartmentalized routing paths to separate signal types
  • Cable management accessories included with installation kits

This keeps routing cleaner and reduces interference pathways.

Can 5G Outdoor Small Cell Enclosures withstand vandalism in high-crime urban areas?

Frigate designs for street-level exposure through –

  • Aluminum or steel construction suited for impact resistance
  • Tamper-resistant hardware supplied in installation kits
  • Mounting methods compatible with poles and building facades

The result is a tougher enclosure that discourages forced access and damage.

How does Frigate maintain RF performance while providing environmental protection in 5G enclosures?

Frigate preserves RF performance while sealing the enclosure by combining –

  • Internal EMI shielding to limit interference
  • Filtered cable glands to maintain isolation at entry points
  • Grounding paths engineered for low impedance

Together, these features help radios operate cleanly in dense RF environments.

What mounting flexibility does Frigate offer for 5G Outdoor Small Cell Enclosures on existing infrastructure?

Frigate supports varied deployment surfaces using –

  • Pole-mount, wall-mount, and strand-mount configurations
  • Adjustable brackets provided as part of the installation kit
  • Internal layouts that fit operator-specific radio equipment

That range reduces custom fabrication when moving between sites.



How does Frigate address condensation management in sealed 5G Outdoor Small Cell Enclosures?

Frigate reduces condensation risk by using sealed IP66 construction alongside thermal design choices that limit rapid internal temperature swings. Cable routing and interface design are controlled to protect gasket performance, helping keep internal conditions more stable across day-night cycles and seasonal shifts.

Can Frigate's 5G Outdoor Small Cell Enclosures accommodate future equipment upgrades without replacement?

Frigate supports upgrade cycles by providing –

  • Internal dimensions up to 800 mm for small-cell equipment
  • Configurable internal layouts that adapt to hardware changes
  • Installation kits that simplify service access and rework

This helps extend enclosure usefulness across multiple radio generations.

What grounding requirements does Frigate address in 5G Outdoor Small Cell Enclosure designs?

 Frigate incorporates grounding provisions that cover –

  • Less than 5-ohm impedance targets for proper antenna operation
  • Bonding aligned with lightning protection practices
  • Reliable grounding continuity across enclosure interfaces

These details support both RF performance and site safety expectations.

How does Frigate validate weather resistance claims for 5G Outdoor Small Cell Enclosures?

Frigate’s weather-resistance approach is supported through –

  • IP66 sealing design intended for dust and water ingress protection
  • Materials selected for outdoor exposure in high-traffic corridors
  • Marine-grade finish options for coastal or high-corrosion zones

This is geared toward maintaining performance over long field lifecycles.

What aesthetic customization options does Frigate provide for 5G enclosures in architecturally sensitive areas?

Frigate enables better visual integration by offering –

  • White or light-colored powder coat options for lower visual contrast
  • Finish selections appropriate for street furniture deployments
  • Mounting styles that minimize perceived bulk on poles and facades

That makes approvals easier in locations with strict appearance constraints.
