Coaxial Cable Junction Boxes

Hybrid fiber-coax networks transition from optical signals to RF distribution at neighborhood nodes requiring protected junction points. Coaxial Cable Junction Boxes house the splitters, directional taps, and amplifiers dividing trunk signals into individual subscriber feeds.
HY D R O L Y SIS RESIS T ANCE
Material & Grade
  • Cold Rolled Steel (CRS) – SPCC
  • Galvanized Steel – SGCC
  • Stainless Steel – SS304
  • Aluminum Sheet – 5052, 6061
  • Sheet thickness – Up to 2.0mm capable
  • Maximum capable – 500mm (H) x 400mm (W) x 200mm (D)
  • Compact and custom sizes available
  • Powder Coating – RAL 9005, RAL 7035, Custom RAL colors
  • Thickness – 60-80 microns Electro-galvanized finish
  • UV-resistant coating
  • Anti-corrosion treatment
  • CNC Laser Cutting
  • CNC Punching & Bending
  • Spot Welding
  • CNC Press Brake Forming
  • Gasket groove forming
  • Edge deburring & finishing
  • Stainless Steel 304 Hardware
  • Hinged or screwed covers
  • Quick-release latches
  • Grounding lugs & terminals
  • Splitter/tap mounting provisions
  • Cable tie anchor points
Get Latest Price
Get quote

Product Description

Outdoor enclosures accommodate RF components with footprints reaching 500mm while preventing water infiltration and physical tampering. Construction using weather-resistant materials maintains controlled internal environments despite exposure to precipitation, temperature cycling, and UV radiation. By organizing cable connections and protecting sensitive RF equipment, these junction boxes support reliable broadband delivery.

Mounting Type
  • Wall Mount (indoor/outdoor)
  • Pole Mount with brackets
  • Buried/Underground vault mount
  • Aerial strand mounting
  • Pedestal mounting
  • Universal mounting provisions
  • Cable glands – M12, M16, M20, M25
  • Bottom/Top/Side entry options
  • Coaxial cable routing channels
  • Bend radius protection (minimum 50mm)
  • Strain relief systems
  • Multiple entry/exit points
  • Indoor – IP40, IP54
  • Outdoor – IP65 (dust-tight/water jet protected)
  • Enhanced – IP66, IP67 (buried/vault applications)
  • Environment-specific ratings

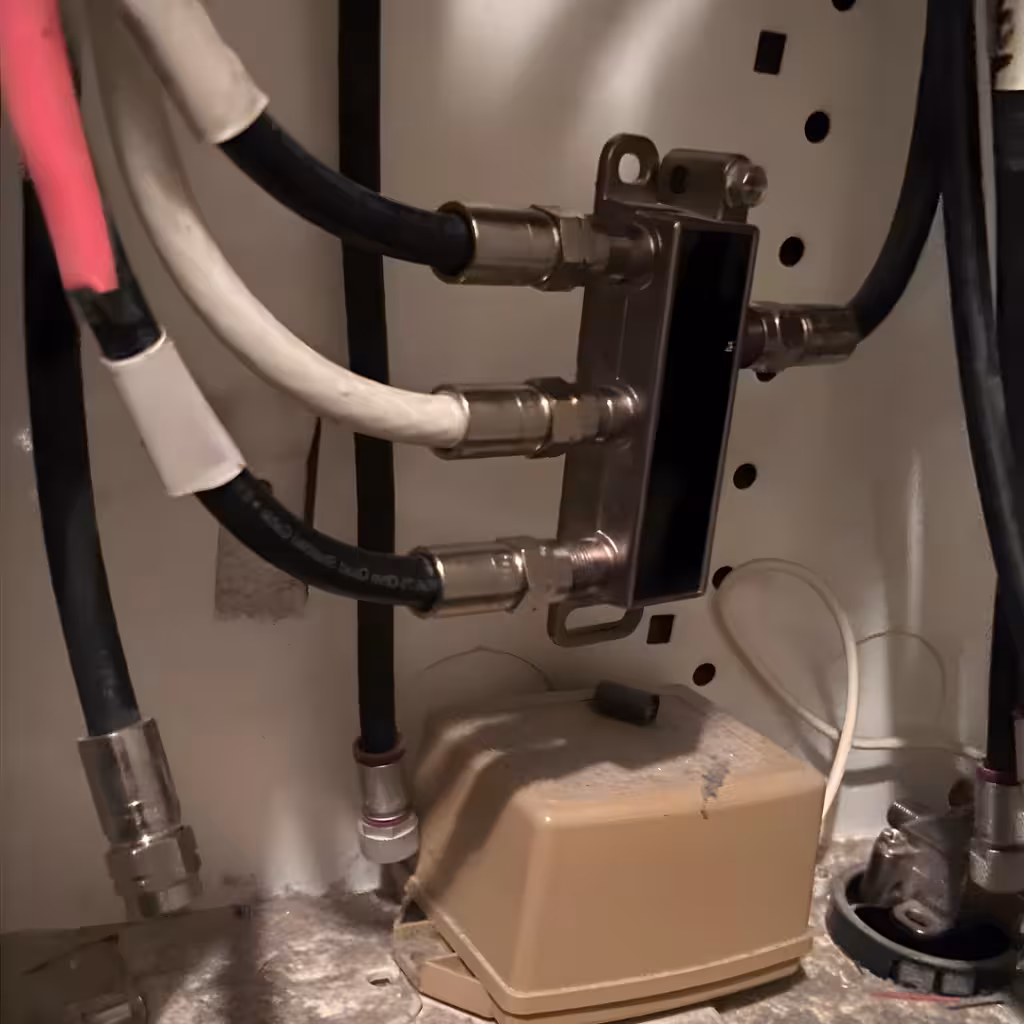

  • Splitter/tap mounting plates
  • Cable routing and organization
  • Grounding busbar provisions
  • Connector termination space
  • Service loop storage
  • Labeling and identification areas
  • Hinged cover with latch
  • Screwed cover with gasket seal
  • Transparent cover
  • Tool-required access
  • Weather-sealed design
  • Lockable cover options
  • SCTE Standards (Cable Television)
  • IEC 60529 (IP Rating)
  • ANSI/SCTE 74 (Splice Closures)
  • Telcordia GR-771-CORE
  • UL Listed (optional)
  • CE Marked RoHS
  • Compliant
  • ISO 9001 –2015 Manufacturing

Technical Advantages

Proper signal level maintenance requires secure mounting preventing connector loosening from vibration or accidental contact. To achieve this, we incorporate fixed mounting plates positioning splitters and taps at predetermined locations. Internal cable routing follows organized pathways separating high-level trunk inputs from lower-level subscriber outputs.

Continuous gasket compression around cover perimeters blocks moisture infiltration during driving rain events in aerial installations. Cable entry grommets conform to various coaxial cable diameters while maintaining ingress protection ratings. Additionally, grounding terminals bond cable shields and enclosure bodies to utility ground systems.

Let's Get Started

Need reliable Enclosures for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Residential CATV Distribution

Manages signal division from fiber nodes to coaxial drops serving single-family homes in suburban franchise areas.

MDU Wiring Closets

Contains multi-port splitters distributing cable services to individual apartment units from centralized equipment rooms.

Campus Cable Systems

 Organizes RF distribution infrastructure serving student housing and administrative buildings with institutional television services.

Business Class Circuits

Protects dedicated tap equipment providing commercial customers with guaranteed service levels separate from residential networks.

Hospitality Entertainment Networks

Supports hotel cable systems delivering premium channels and video-on-demand content to guest rooms.

Senior Living Facilities

Manages cable television distribution in assisted living environments where residents rely on in-room entertainment.

Coaxial Cable Junction Boxes

Distribution Network Solutions

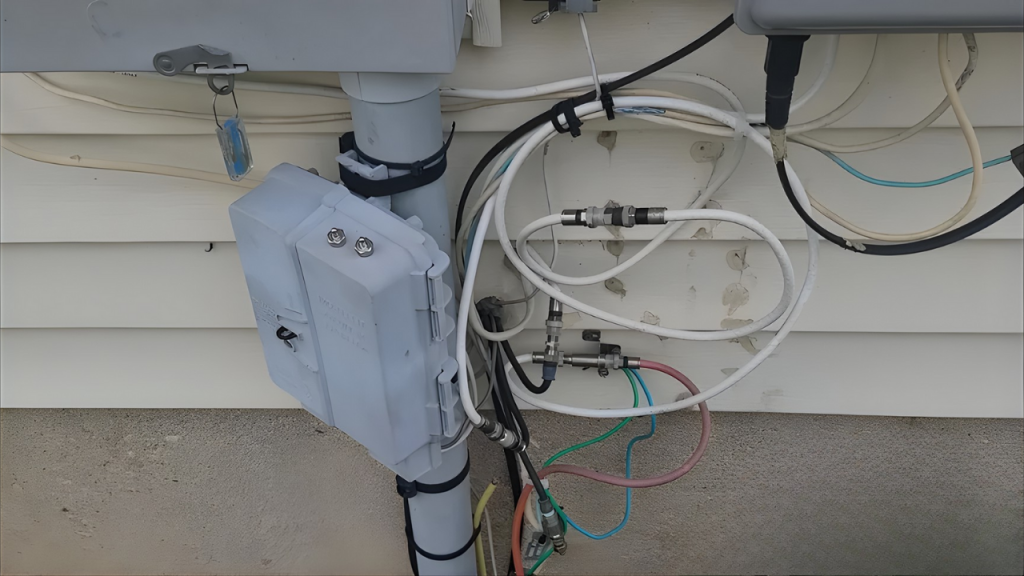

Deployment locations vary from utility poles accessible only by bucket truck to ground-level pedestal installations. Coaxial Cable Junction Boxes ship in configurations addressing aerial strand mounting, direct pole attachment, or wall-mounting.

Stainless steel fasteners resist corrosion in coastal environments where salt spray accelerates material degradation. For underground vault applications, Frigate engineers IP67-rated enclosures that withstand flooding conditions without water ingress.

Coaxial Cable Junction Boxes

Related products

  • FAQ

Having Doubts? Our FAQ

Check all our Frequently Asked Questions

Get Quote Now
How does Frigate maintain RF signal integrity in Coaxial Cable Junction Boxes during temperature cycling?

RF stability through temperature swings is protected by design choices such as –

  • Stable connector interfaces and controlled strain relief
  • Shielding continuity across seams and entry points
  • Cable routing that avoids sharp bends and micro-movement

Frigate can tune internal layout and entry sealing based on the expected thermal range.

What mounting hardware does Frigate provide for Coaxial Cable Junction Boxes on utility poles versus building walls?

Mounting is matched to the surface and load conditions, including –

  • Pole-mount bands or bracket kits for utility poles
  • Wall-mount hole patterns and standoff options for façades
  • Adjustable mounts for alignment and clearance needs

Frigate configures mounting kits based on installation practice and site constraints.

Can Coaxial Cable Junction Boxes accommodate both passive splitters and active amplifiers in the same enclosure?

Yes. Internal zoning can be configured to house passive splitters/taps alongside active amplifiers, provided heat load and service access are addressed. Frigate can plan mounting, cable routing, and separation so RF pathways remain organized and components stay maintainable.

How does Frigate address grounding requirements for Coaxial Cable Junction Boxes in aerial installations?

Grounding provisions are integrated to support aerial installation practices through –

  • Dedicated bonding/ground points on the enclosure
  • Shield continuity paths for coax terminations
  • Compatibility with site grounding conductors and hardware

Frigate can align grounding details to the operator standard and local code expectations.

What cable entry provisions does Frigate offer for Coaxial Cable Junction Boxes serving multiple subscriber drops?

Multi-drop entry is supported with provisions such as –

  • Multiple sealed entry ports sized to common coax ODs
  • Grommets/glands that reduce leakage paths and strain
  • Internal separation to keep routing clean and serviceable

Port count and entry placement can be customized to the drop plan.

Can Coaxial Cable Junction Boxes support future capacity expansion as subscriber counts increase in service areas?

Future growth is easier when reserve space and routing headroom are built in, including –

  • Extra mounting positions for additional splitters/taps
  • Cable management space for added drops
  • Port layout that allows staged population

Frigate can size the enclosure around expansion forecasts to avoid early replacement.

How does Frigate prevent moisture accumulation in sealed Coaxial Cable Junction Boxes deployed in humid climates?

Moisture control depends on sealing integrity and avoiding internal water traps. Frigate uses sealed interfaces and cable entry systems designed to maintain closure performance, while internal layouts keep drip paths away from terminations. The approach can be adapted to humidity level and temperature swing.

What service loop storage capacity is integrated into Coaxial Cable Junction Box internal layouts?

Serviceability is improved by providing loop management features such as –

  • Dedicated loop storage zones or spooling features
  • Routing guides to prevent kinked coax and shield damage
  • Tie points for controlled slack retention

Loop capacity can be customized to typical drop lengths and maintenance workflow.

Can Coaxial Cable Junction Boxes withstand burial in underground vaults subject to temporary flooding?

Yes, when specified for that environment. Frigate can provide sealed enclosure configurations and material options intended for water exposure, along with entry sealing suited to conduit feeds. Deployment details such as depth, flood duration, and pressure head inform the final configuration.

How does material selection affect Coaxial Cable Junction Box longevity in coastal salt spray environments?

Salt spray accelerates corrosion, so selection typically focuses on –

  • Corrosion-resistant metals or protected finishes
  • Fasteners chosen to reduce galvanic coupling
  • Sealing systems that remain stable under wet-dry cycling

Material stacks can be tailored to coastal exposure severity and service life targets.
