Gujarat Electronic Assembly & Box Build Centre

Full-spectrum electronics contract manufacturing, SMT assembly, turnkey box-build, cable harness production, and conformal coating for industrial and regulated-market programs.

About

Full-service electronics manufacturing facility delivering surface mount assembly, through-hole soldering, conformal coating, turnkey box-build, and cable & wire harness production. Operations run across three advanced SMT lines supported by automated inspection systems, 3D Solder Paste Inspection, 3D Automated Optical Inspection, 2D AOI, and X-Ray, providing end-to-end quality assurance at every process stage.

Located in Gujarat, India — serving industrial control, IoT & telecom, medical device, and lighting & power customers.

Compliances

ISO 9001:2015

ISO 13485:2016

Facility

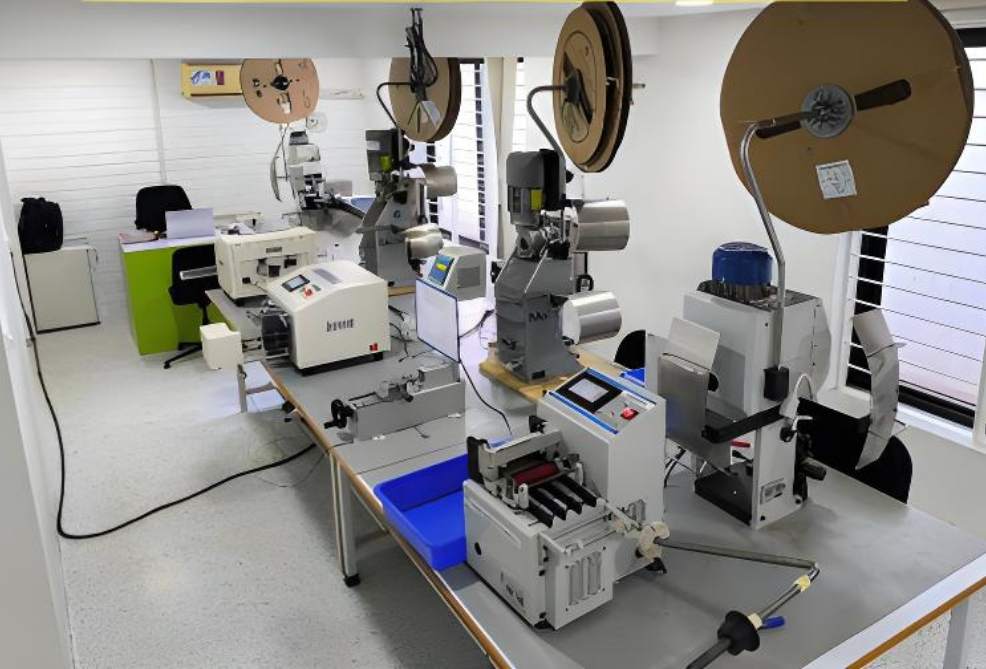

Crimping Machines

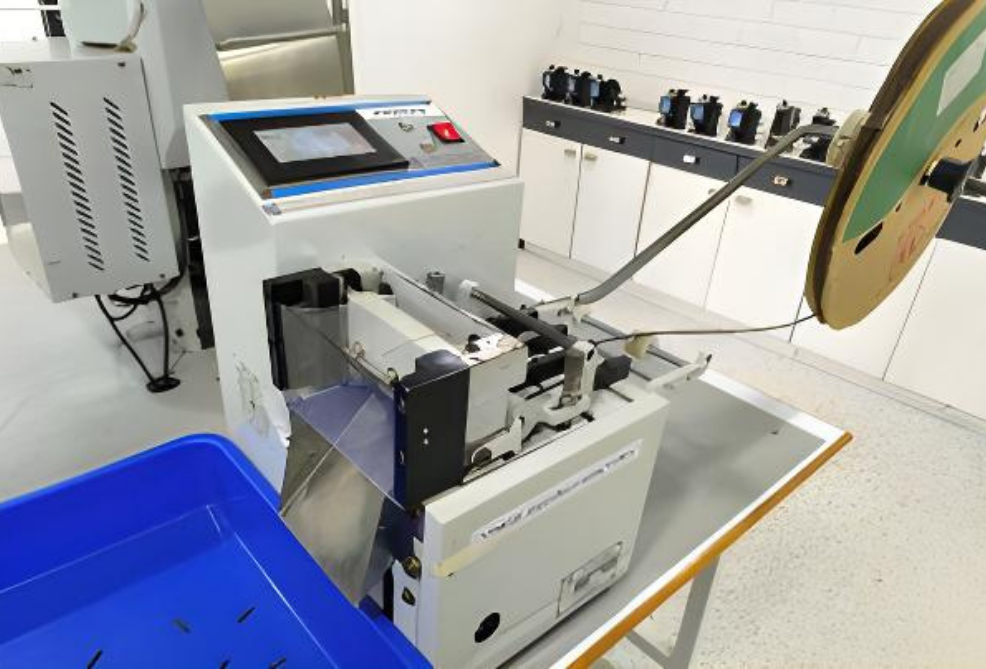

Sleeve Cutting Machines

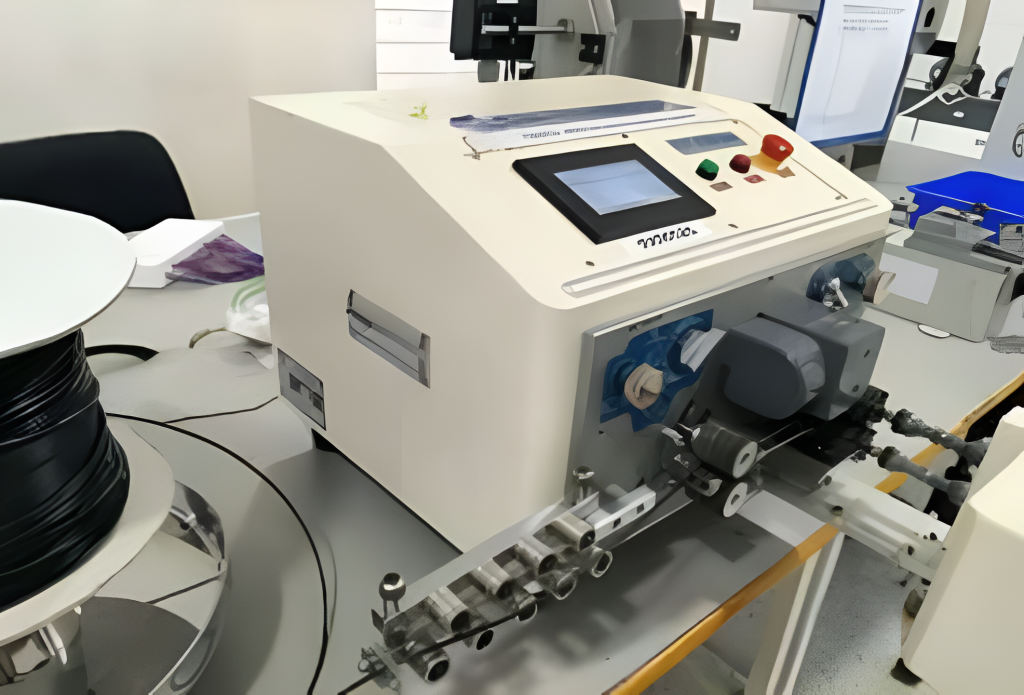

Cable Cutting Machines

Facility in Gujarat

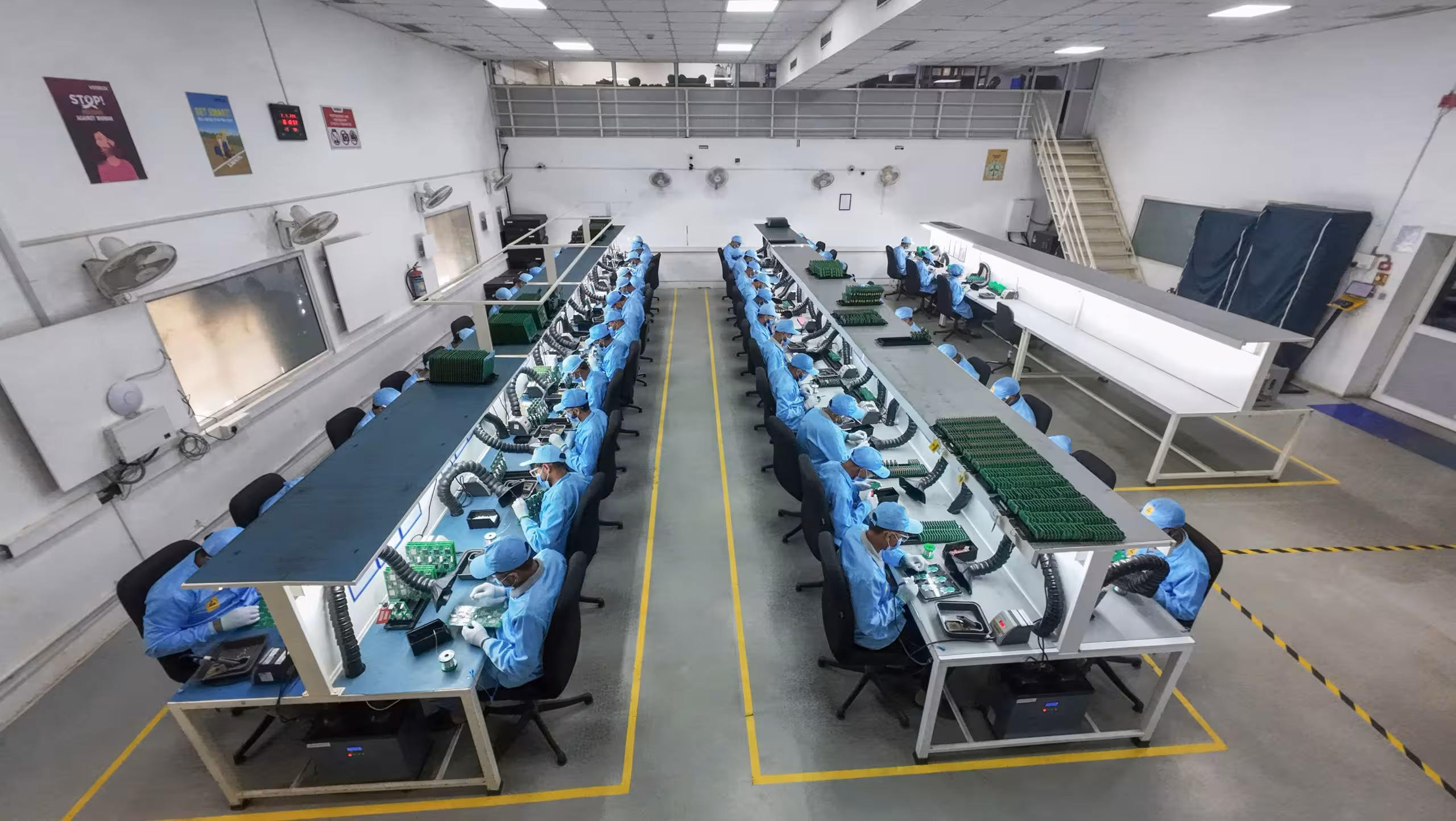

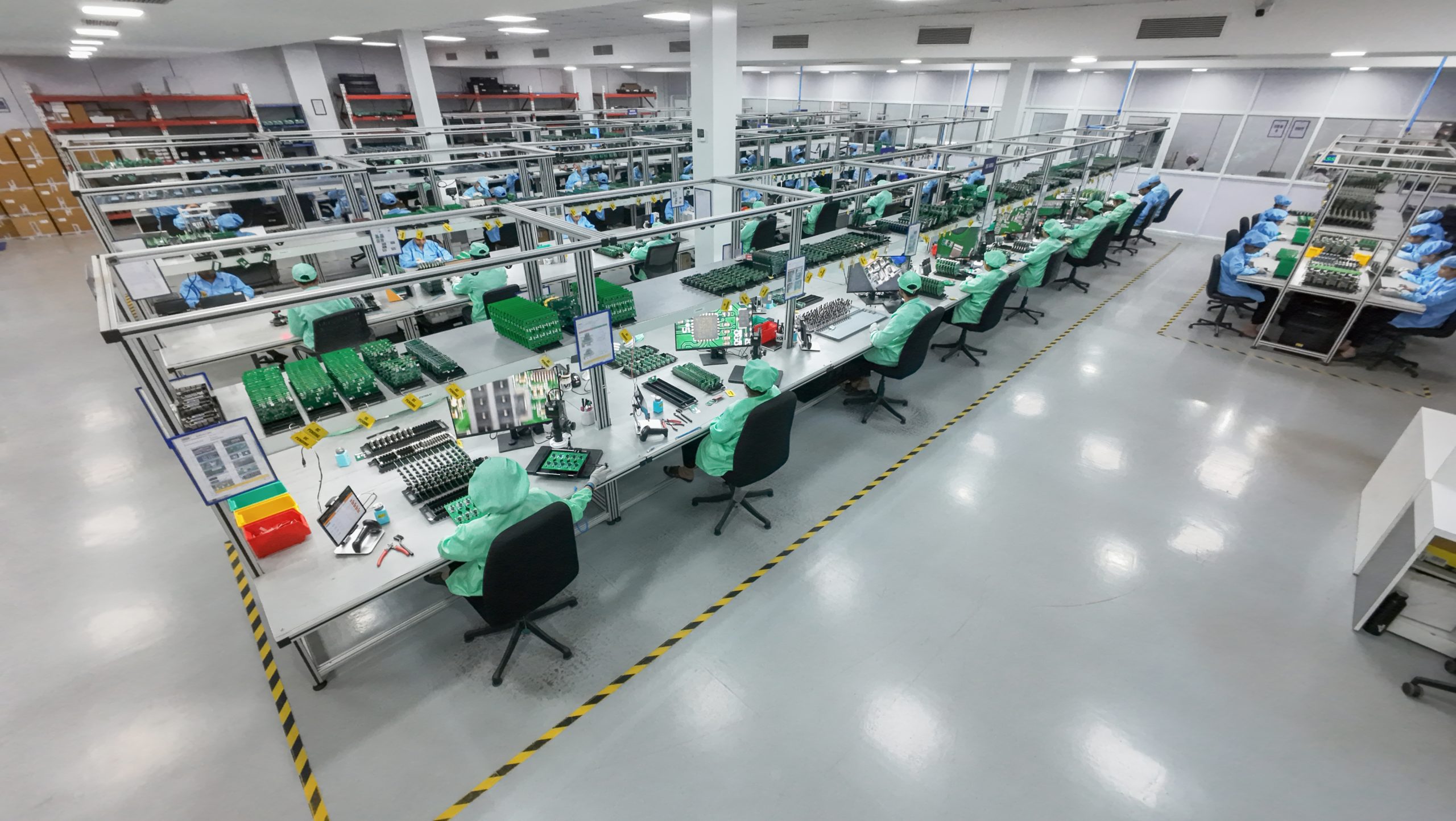

Electronics Assembly Area

Facility in Gujarat

Quality Inspection Area

Facility in Gujarat

Production Line Area

Facility in Gujarat

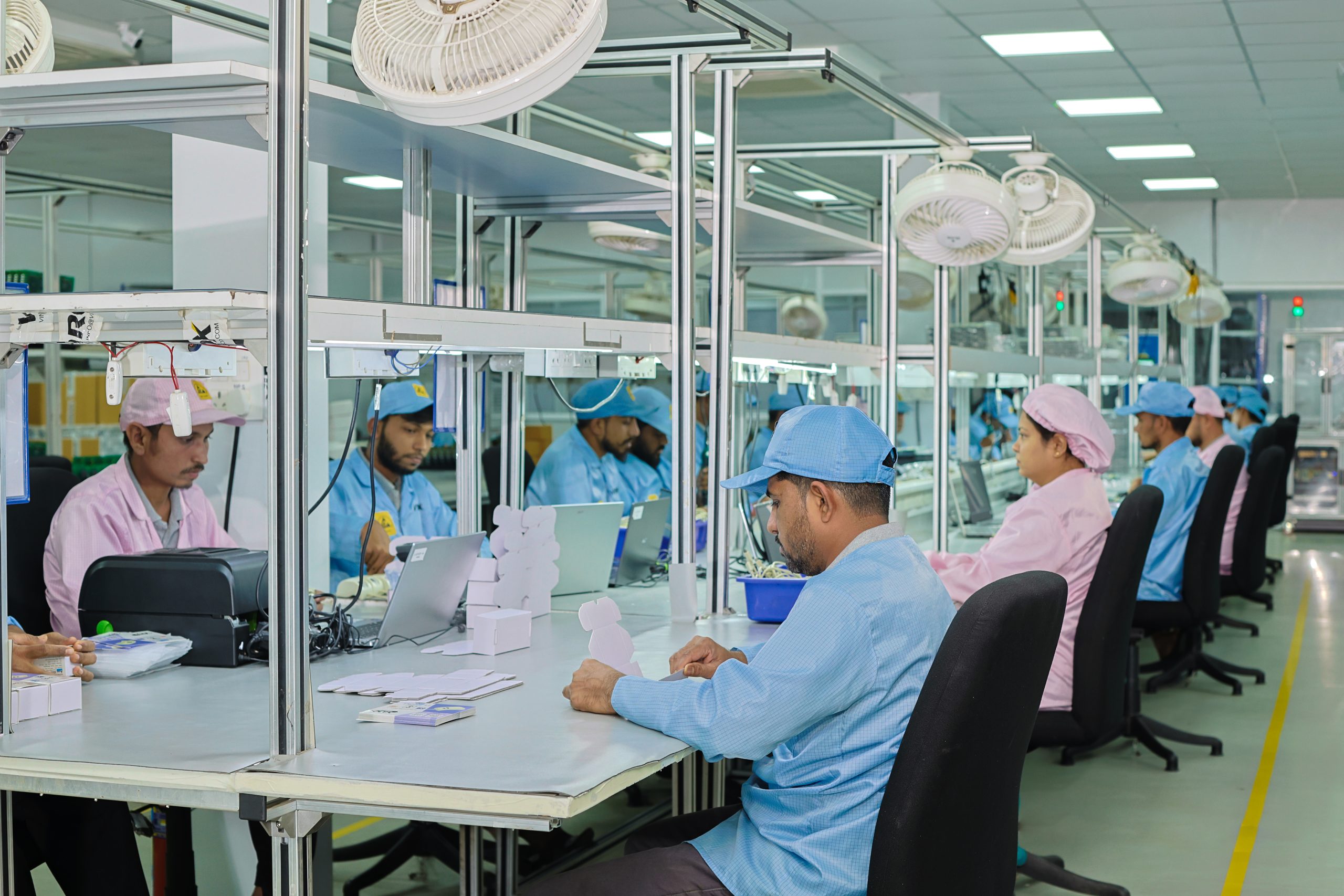

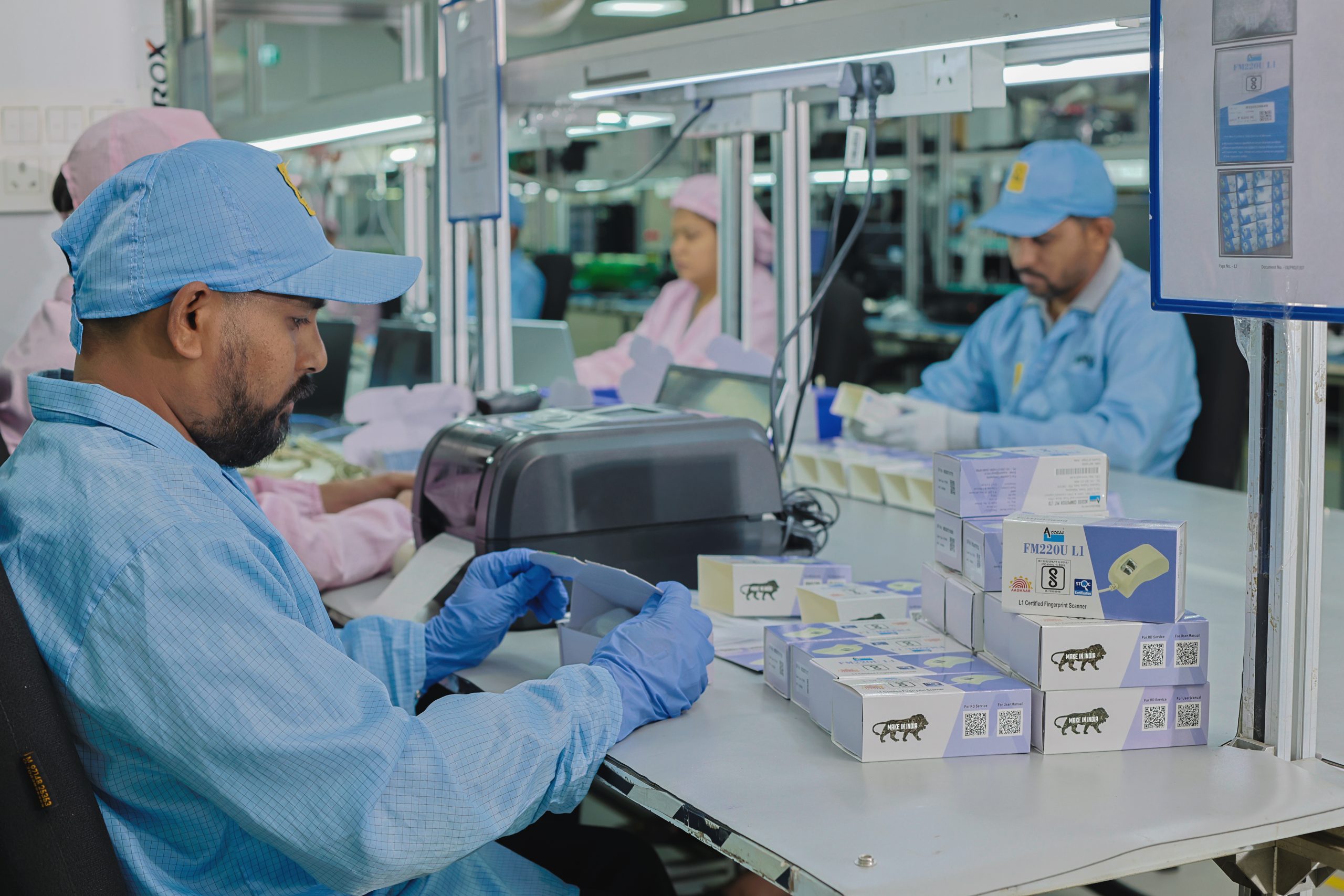

Packaging & Labeling Area

Re-Engineering

BOM Reconstruction & Obsolescence Resolution

Full bill of materials reconstruction from physical board samples, including part identification, datasheet mapping, and drop-in replacement sourcing.

Schematic Capture & PCB Layout Re-Engineering

Full hardware schematic re-drawing and PCB layout redesign from physical samples, with signal integrity checks, controlled impedance routing, and blind/buried via planning as required.

Enclosure & Material Conversion

Structural conversion from metal fabricated enclosures to injection-moulded plastic equivalents covering industrial design, tooling, mould qualification, and assembly-level review.

Lead Times

Expedite available at 15% premium.

*Lead time can change based on part complexity and production load(working days).

Industry

Industrial Control

IoT

Medical Devices

Order Execution

Total PCBA capacity across all SMT lines

~15,000

units/day

Available capacity for new orders

~5,000

units/day

Across all production lines

65–70%

utilization

65–70%

Dedicated Order Support

FAQS Order Tracking

Track your order in real time through our FAQS (Frigate Assured Quality System) platform with milestone updates, inspection photos, delay alerts, and dispatch tracking. Your dedicated manager updates progress at every stage.

How It Works

1

Submit BOM & Files

Upload your Bill of Materials, Gerber files, assembly drawings, and component datasheet package. A quotation is issued within 48–72 hours.

2

DFM Review

Engineering team reviews manufacturability, pad geometry, clearances, stencil apertures, and test-point access within 2–3 days, with written feedback.

3

Component Sourcing

Parts procured from authorised global distributors. Spot-buy for hard-to-source or long-lead components includes conformance certificates. Lead time 5–15 days depending on availability.

4

PCB Procurement

PCB panels sourced from qualified global fabricators covering rigid, flex, rigid-flex, MCPCB, Rogers, PTFE, and Hi-Tg substrates as specified.

5

SMT Assembly & Reflow

Full SMT placement with in-line 3D SPI post-paste-print and pre-placement verification, followed by reflow with thermal profiling for each assembly type.

7

In-Process Inspection & Finishing

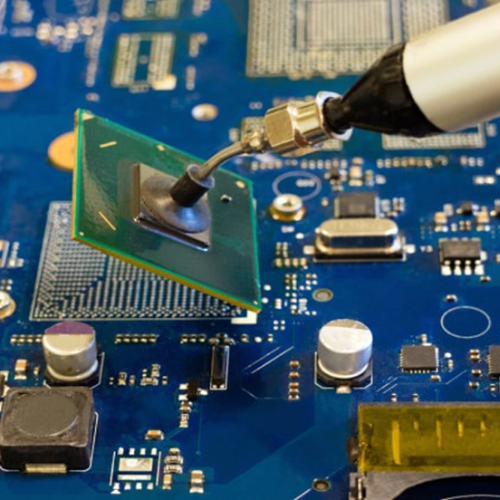

3D AOI and 2D AOI post-reflow; X-Ray for BGA and hidden joints; wave soldering for through-hole; conformal coating and epoxy potting per customer specification.

8

Testing

ICT using board-specific in-house jigs and fixtures; PCBA programming; functional test; end-of-line system-level verification as applicable.

8

Packaging & Dispatch

Products packed per IPC / customer-specified standards with full documentation, test reports, material traceability certificates, and certificate of conformance included.

Get Your Quote Now

4.9/5

Over 100 Reviews

Quality Testing

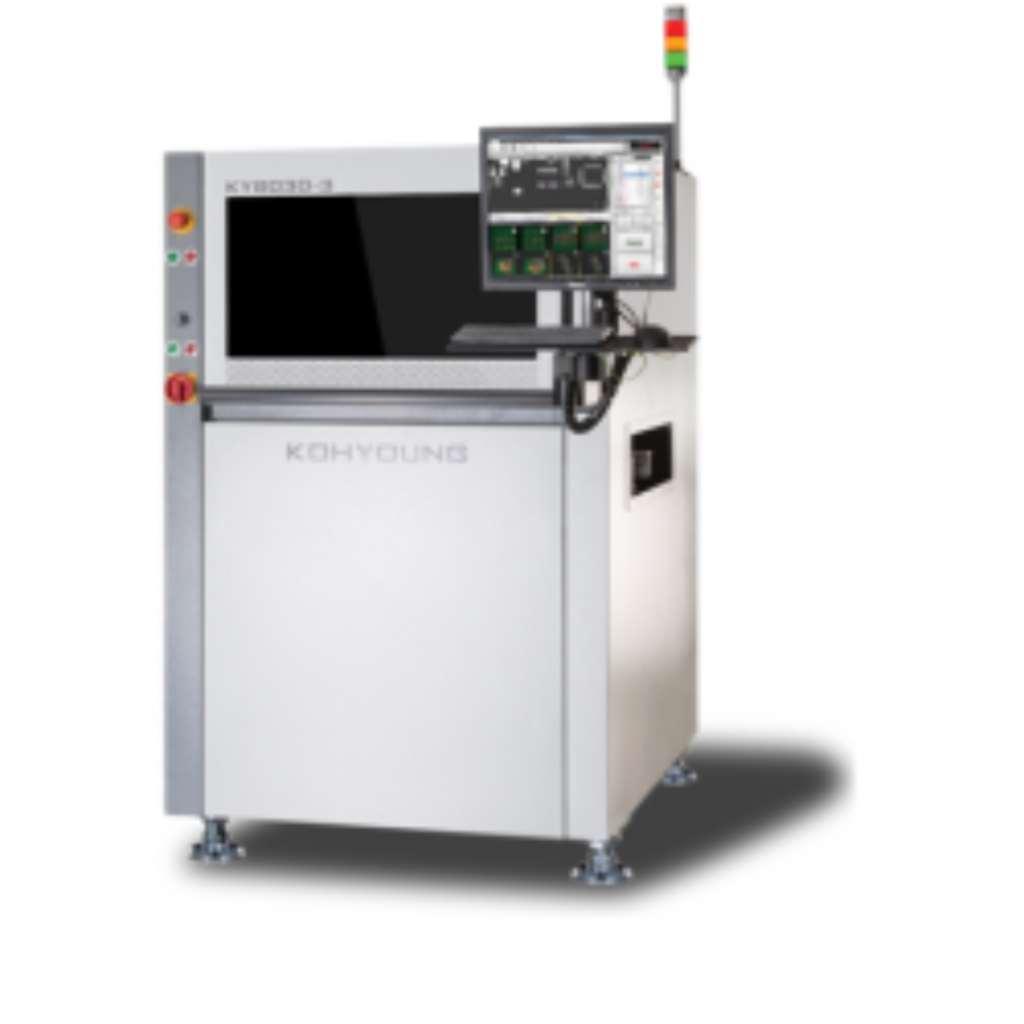

3D SPI — KOH YOUNG KY8080

Solder paste volume, area, and height verification on every board before component placement. Prevents insufficient and excessive paste defects upstream.

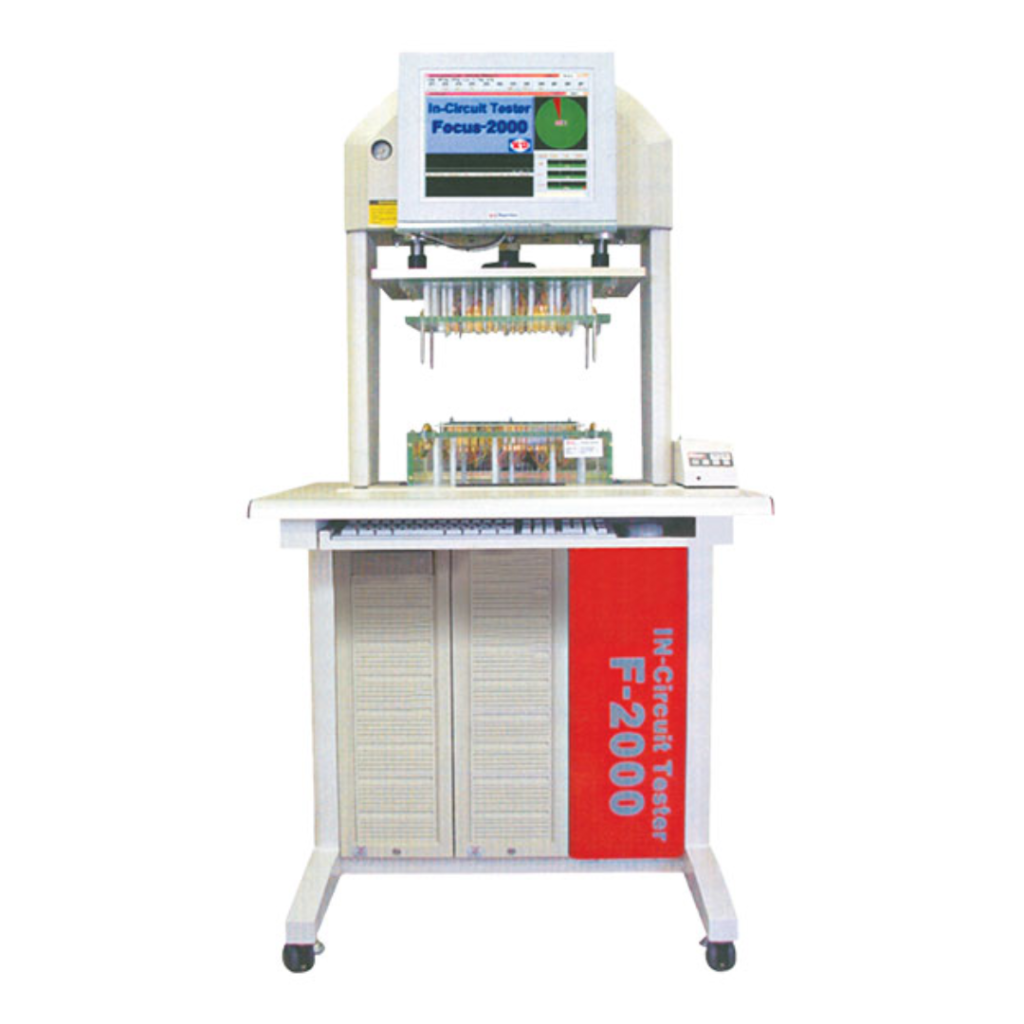

ICT — KYORITSU FOCUS 2000

In-circuit electrical verification using board-specific bed-of-nails fixtures designed and built in-house; tests opens, shorts, passives, and functional nodes.

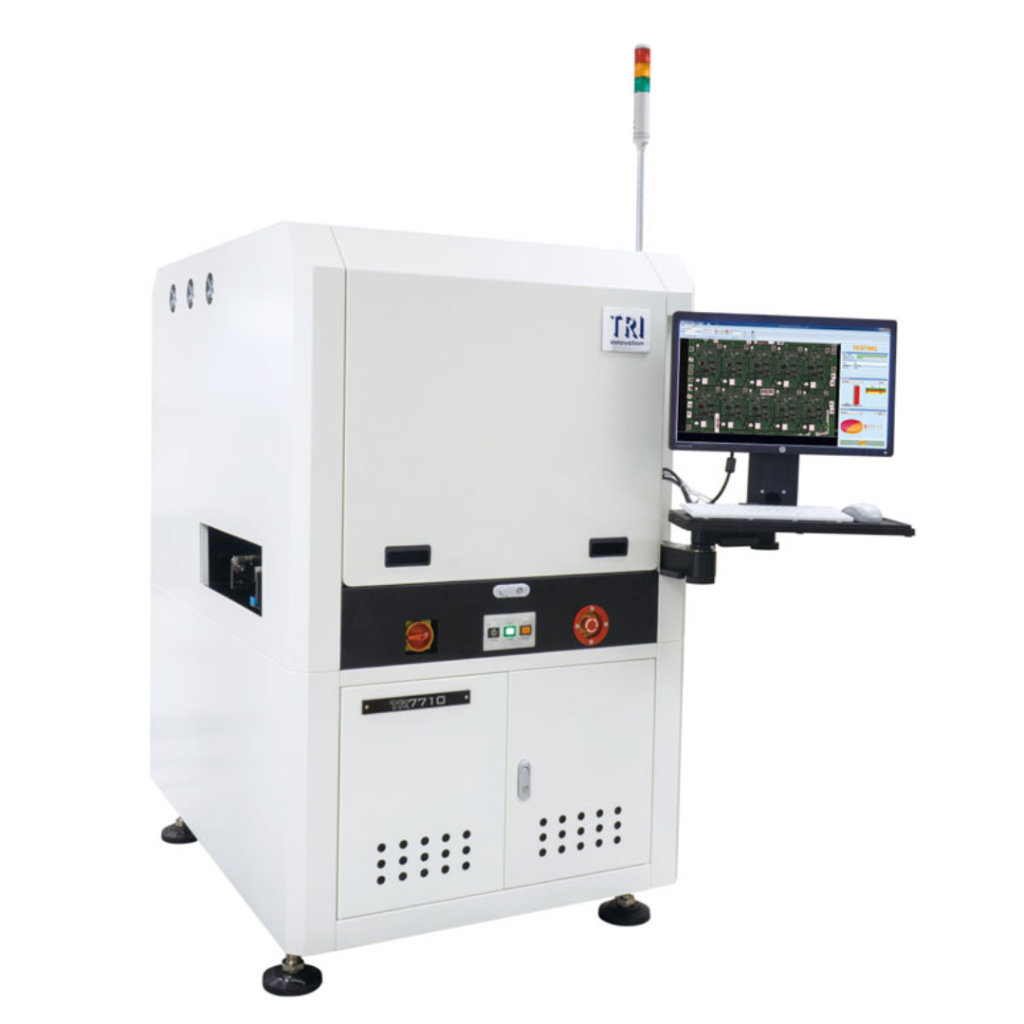

2D AOI — TRI

Secondary optical inspection layer providing additional coverage for fine-pitch and high-density assembly areas.

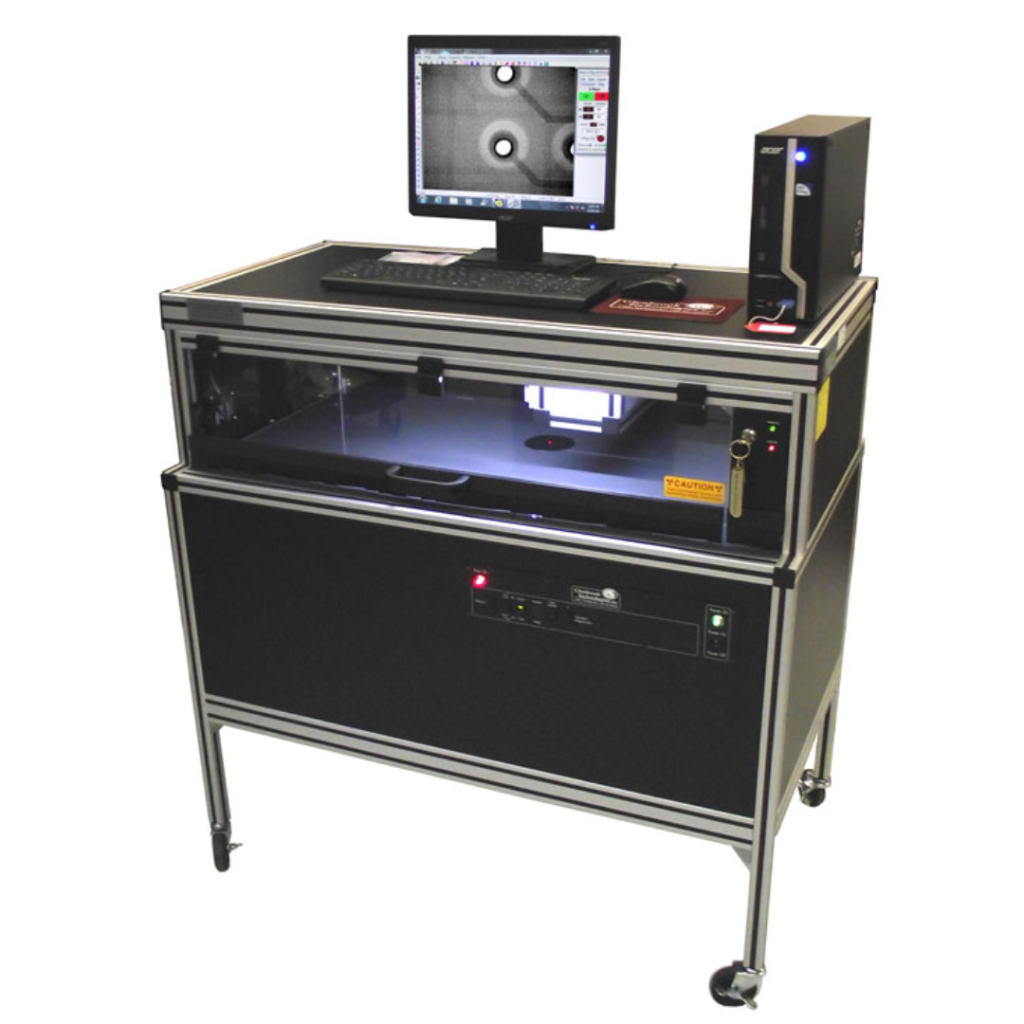

X-Ray — GLENBROOKE

Sample quality documents are available to help procurement and quality teams evaluate inspection rigour and reporting standards before programme commencement.

Quality Report

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.
