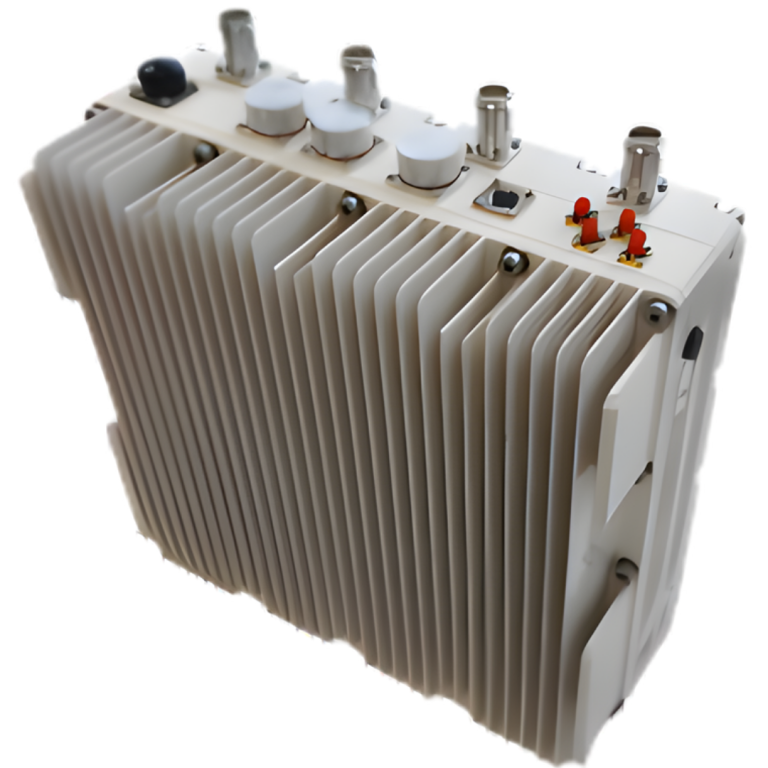

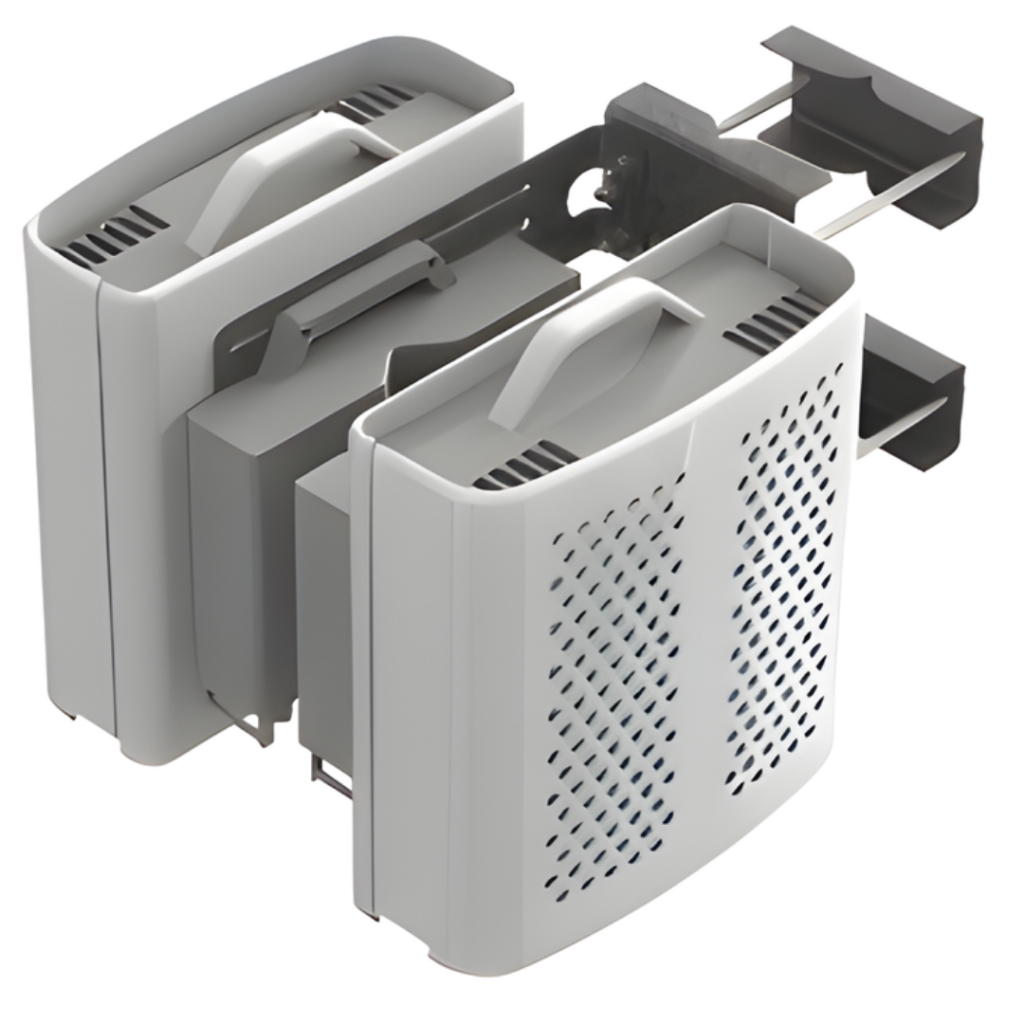

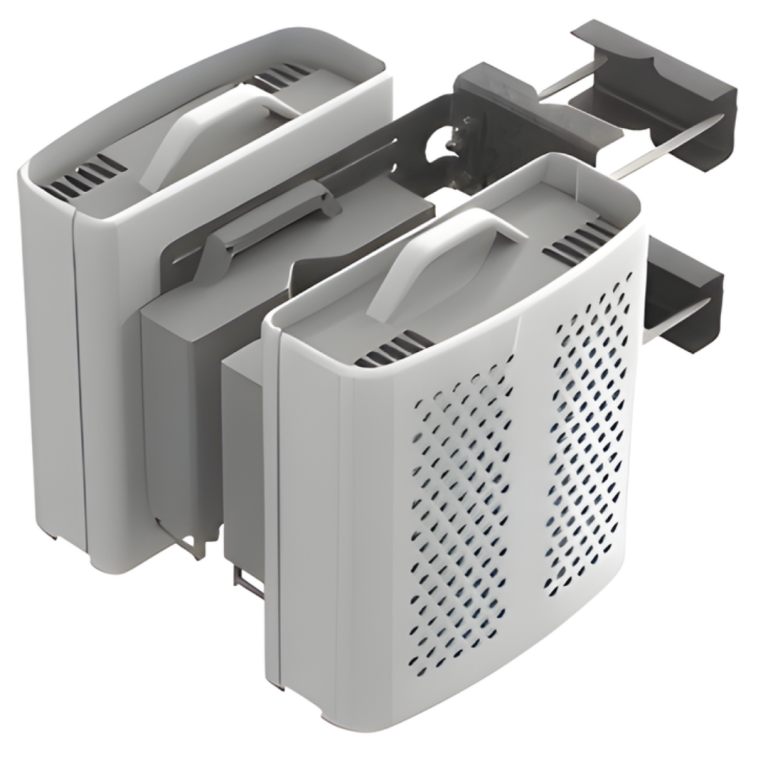

Remote Radio Head (RRH) Enclosures

Distributed radio architectures move transmission equipment from equipment rooms to antenna locations, reducing signal loss and improving network efficiency. Remote Radio Head (RRH) enclosures shield these tower-mounted radio units from wind, precipitation, and temperature extremes while maintaining thermal stability.
HY D R O L Y SIS RESIS T ANCE
Material & Grade
  • Cold Rolled Steel (CRS) – SPCC
  • Galvanized Steel – SGCC
  • Stainless Steel – SS304, SS316
  • Aluminum Sheet – 5052, 6061
  • Sheet thickness – Up to 2.5mm capable
  • Maximum capable – 1000mm (H) x 800mm (W) x 500mm (D)
  • Compact and custom sizes available
  • Powder Coating – RAL 9005, RAL 7035, Custom RAL colors
  • Thickness – 80-120 microns (outdoor grade)
  • Hot-Dip Galvanizing + Powder Coating
  • Marine-grade coating (coastal/offshore)
  • UV-resistant finish
  • CNC Laser Cutting
  • CNC Punching & Bending
  • TIG/MIG Welding
  • CNC Press Brake Forming
  • Seam welding for weatherproofing
  • EMI shielding construction
  • Stainless Steel 304/316 Hardware
  • Weather-sealed hinges
  • Quick-release latches
  • Grounding lugs & hardware
  • Radio mounting rails
  • Antenna mounting provisions
Get Latest Price
Get quote

Product Description

These weatherproof housings support radio equipment with internal volumes up to 1000mm and IP67 protection ratings. Steel or aluminum fabrication resists structural loading from ice accumulation, sustained winds, and installation stresses on tower frameworks. As a result, operators achieve reliable radio operation across diverse climate zones without frequent maintenance interventions or premature equipment failures.

Mounting Type
  • Tower/Mast mounting with brackets
  • Rooftop mounting
  • Wall Mount configurations
  • Pole Mount systems
  • Adjustable angle mounting
  • Azimuth/tilt adjustment provisions
  • IP65 (dust-tight/water jet protected)
  • IP66 (heavy water jet protected)
  • IP67 (temporary immersion protected)
  • Outdoor/tower deployment rated
  • Operating Temperature – -40°C to +65°C capable
  • UV Resistance – 3000+ hours
  • Salt Spray – 2000+ hours resistance
  • Wind Load – Up to 200 km/h capable
  • Ice/Snow load resistance
  • IK08 (5 Joules impact energy)
  • IK09 (10 Joules impact energy)
  • IK10 (20 Joules – enhanced protection)
  • Hail impact resistance
  • Cable glands – M16, M20, M25, M32, M40
  • Bottom/Side entry configurations
  • Fiber optic and coax cable provisions
  • RF cable bend radius protection
  • Weatherproof cable entries
  • Internal cable management systems
  • 3GPP Standards (RAN specifications)
  • IEC 60529 (IP Rating)
  • ETSI EN 300 019 (Environmental Conditions)
  • FCC Part 15 (Radio Frequency)
  • CE Marked
  • RoHS Compliant
  • ISO 9001 –2015 Manufacturing

Technical Advantages

Tower-mounted equipment faces wind-induced vibration, thermal cycling, and moisture ingress that standard indoor enclosures cannot withstand. To counter these challenges, reinforced construction using 2.0-2.5mm steel provides structural rigidity that prevents panel deflection during sustained wind loading. Continuous gasket compression along all door and panel seams blocks water penetration during driving rain events common at exposed tower elevations.

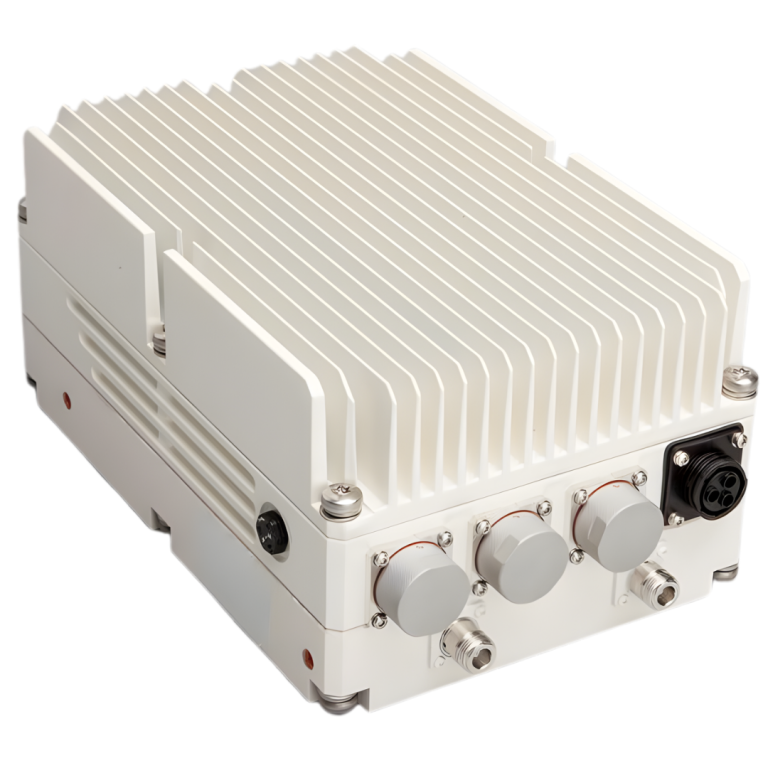

Thermal management relies on passive heat dissipation through aluminum baseplate construction that conducts radio heat to external surfaces. White or light-colored powder coatings with high solar reflectance reduce radiant heating from direct sun exposure at tower tops. Additionally, internal cable routing maintains RF signal integrity through shielded pathways and proper bend radius control for both fiber optic backhaul and coaxial antenna feeders.

Let's Get Started

Need reliable Enclosures for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Telecommunications Tower Networks

Protects multi-carrier radio equipment at shared tower sites serving overlapping coverage zones in competitive wireless markets.

Mountain and Hilltop Installations

Secures radio heads at elevated sites experiencing severe weather including lightning strikes, heavy snow, and hurricane-force winds.

Coastal Base Station Sites

Houses radio equipment in salt-laden environments where standard enclosures corrode rapidly without marine-grade protective measures.

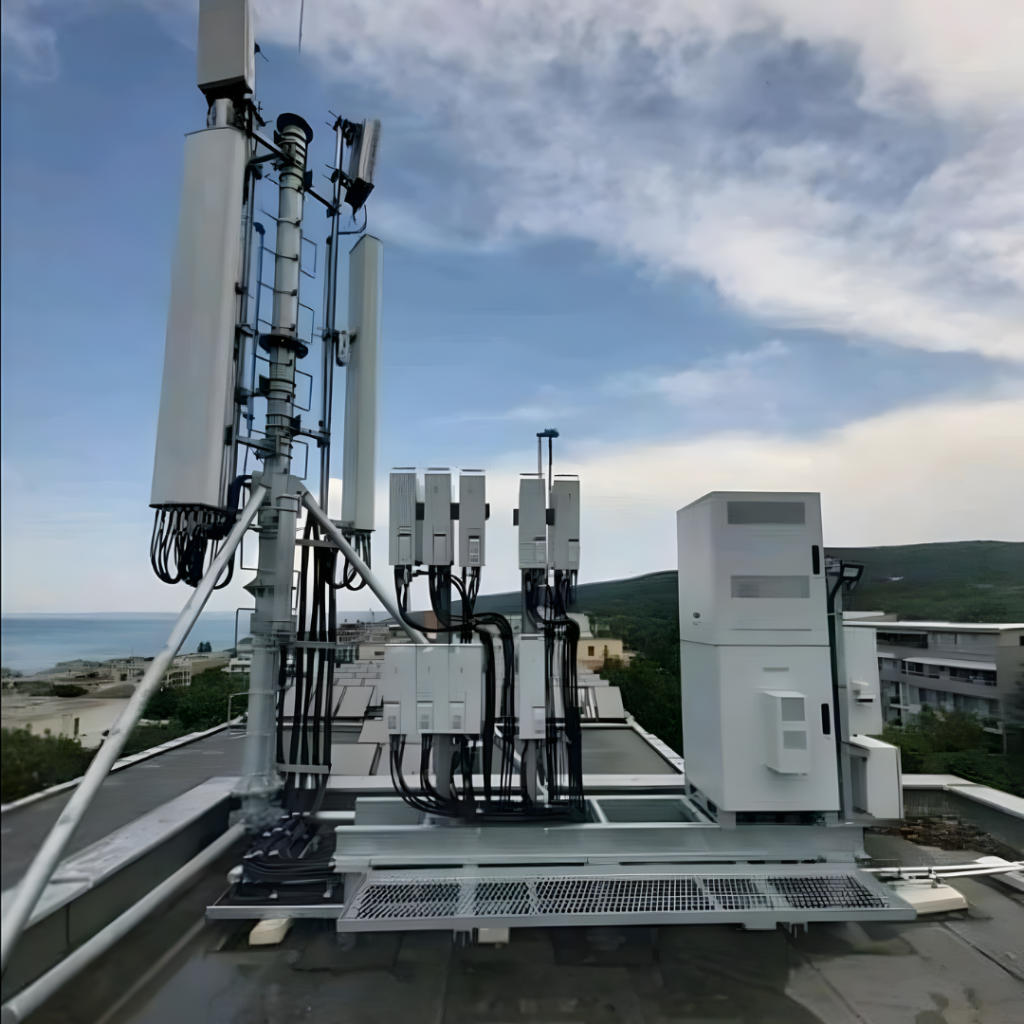

Urban High-Rise Deployments

Manages rooftop radio installations on office towers and residential buildings where aesthetic integration and minimal visual impact are required.

Transportation Hub Coverage

Supports radio heads at airports, train stations, and bus terminals handling high user density and seamless handoff requirements.

Energy Sector Communications

Enables private wireless networks for oil refineries, wind farms, and pipeline monitoring systems requiring dedicated spectrum and infrastructure.

Remote Radio Head (RRH) Enclosures

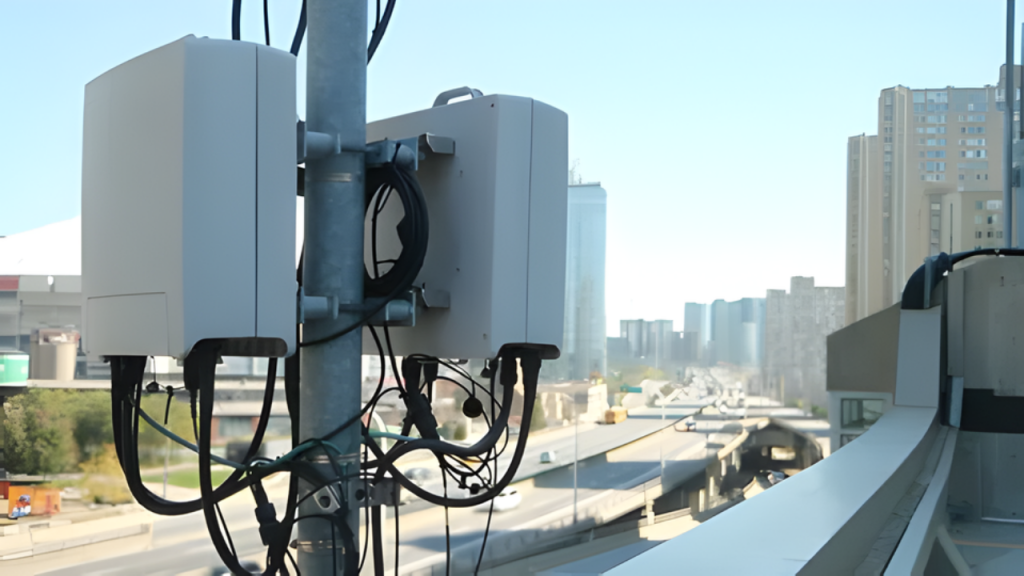

Scalable Tower Deployment

Site conditions range from guyed towers in open terrain to building-mounted installations in congested urban cores, each demanding different mounting approaches. Remote Radio Head (RRH) Enclosures ship in configurations supporting tower leg mounting, face-mounting on monopoles, or wall-mounting on rooftop penthouses with hardware matched to structural attachment points.

Frigate supplies mounting assemblies including adjustable brackets for precise antenna alignment, stainless steel hardware resisting corrosion at tower heights, and integrated grounding connections. Coastal regions receive marine-grade finishes that extend service life in corrosive atmospheres, ensuring enclosure performance aligns with typical radio equipment replacement cycles.

Remote Radio Head (RRH) Enclosures

Related products

  • FAQ

Having Doubts? Our FAQ

Check all our Frequently Asked Questions

Get Quote Now
How does Frigate address wind load resistance in Remote Radio Head (RRH) Enclosures mounted at tower heights?

Frigate designs RRH enclosures to stay stable under tower-level wind forces by using –

  • Reinforced structures and stiffened panel geometry
  • Mounting interfaces designed to distribute load into brackets
  • Hardware options selected for high-vibration environments

Wind-load requirements can be customized based on tower height and local wind zones.

What thermal management strategies prevent radio equipment overheating in sealed RRH Enclosures?

Frigate manages heat while keeping sealed protection intact through –

  • Conduction paths from heat sources to the enclosure body
  • Passive convective dissipation from external surfaces
  • Finish options that reduce solar heat absorption

Thermal layouts are tailored to equipment heat output and site exposure.

Can Remote Radio Head Enclosures accommodate multiple radio units from different equipment vendors?

Yes. Frigate can configure internal layouts, mounting rails, and cable routing to support multiple radio units, including mixed-vendor deployments. The enclosure envelope and access strategy are adapted to equipment size, connector orientation, and service workflow to keep installations maintainable.

How does Frigate maintain RF signal integrity while providing environmental protection in RRH Enclosures?

Frigate preserves RF integrity while sealing the enclosure by incorporating –

  • EMI shielding to reduce interference coupling
  • Controlled cable entry designs that limit leakage paths
  • Grounding continuity strategies for stable RF reference

RF provisions are adapted based on frequency band and equipment interface needs.

What mounting adjustment capabilities do Remote Radio Head Enclosures provide for antenna alignment optimization?

Frigate supports alignment-driven installations by offering –

  • Adjustable bracket options for pole or tower members
  • Multiple mounting hole patterns for placement flexibility
  • Access-friendly layouts to support re-aiming and service

Mounting kits can be configured around tower geometry and antenna positioning constraints.

How does Frigate address ice accumulation and snow loading on tower-mounted RRH Enclosures?

Frigate supports cold-weather deployments by considering –

  • Sloped or shed-friendly external geometry where applicable
  • Material and finish choices suited to freeze-thaw exposure
  • Mounting strategies that maintain stability under added load

Ice and snow assumptions can be aligned to regional climate and tower standards.



Can Remote Radio Head Enclosures support both passive and active antenna system configurations?

Yes. Frigate can tailor enclosure layouts and cable routing to support passive antenna setups or active antenna system configurations, depending on architecture. Cable entry, grounding, and internal segregation can be customized to match the radio-to-antenna interface and maintenance approach.

What grounding and lightning protection provisions are integrated into RRH Enclosure designs?

Frigate integrates protection-oriented grounding features such as –

  • Dedicated grounding points and bonding locations
  • Electrical continuity across doors, panels, and mounts
  • Compatibility with site lightning protection practices

Provisioning is customized to the site grounding topology and operator requirements.

How does material selection affect Remote Radio Head Enclosure performance in coastal or offshore installations?

Frigate matches materials to corrosion exposure by offering –

  • Marine-grade stainless or corrosion-resistant aluminum options
  • Coating systems suited to salt spray and humidity
  • Fastener selections designed to reduce galvanic corrosion risk

Material stacks can be tailored to offshore class and service life targets.

What testing protocols does Frigate employ to validate RRH Enclosure structural integrity under simulated tower conditions?

Frigate validates structural integrity using checks that may include –

  • Load verification on mounting interfaces and enclosure frame
  • Vibration considerations aligned to tower environments
  • Dimensional and fastener integrity inspection after stress exposure

Test scope can be customized based on required standards and deployment severity.
