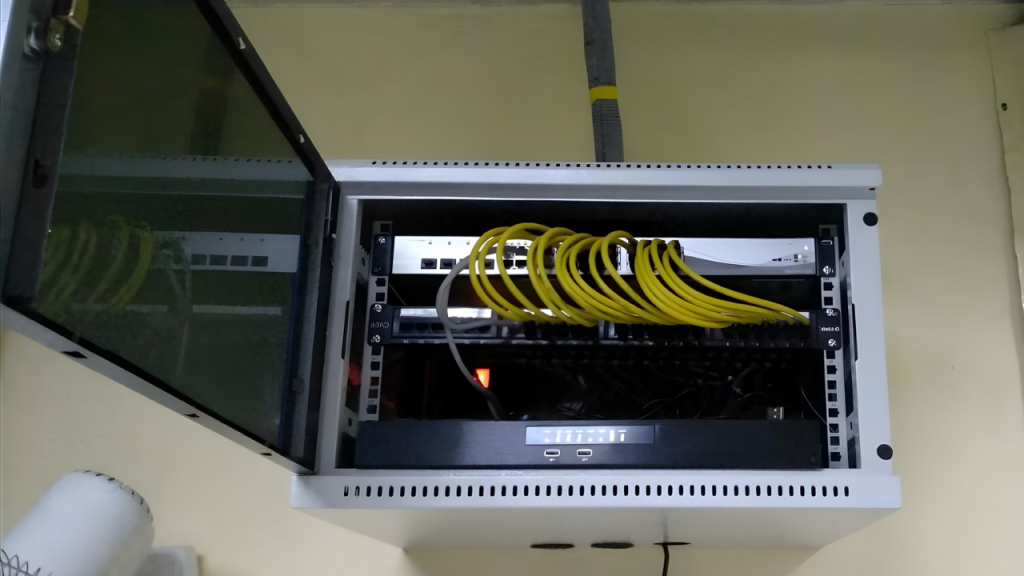

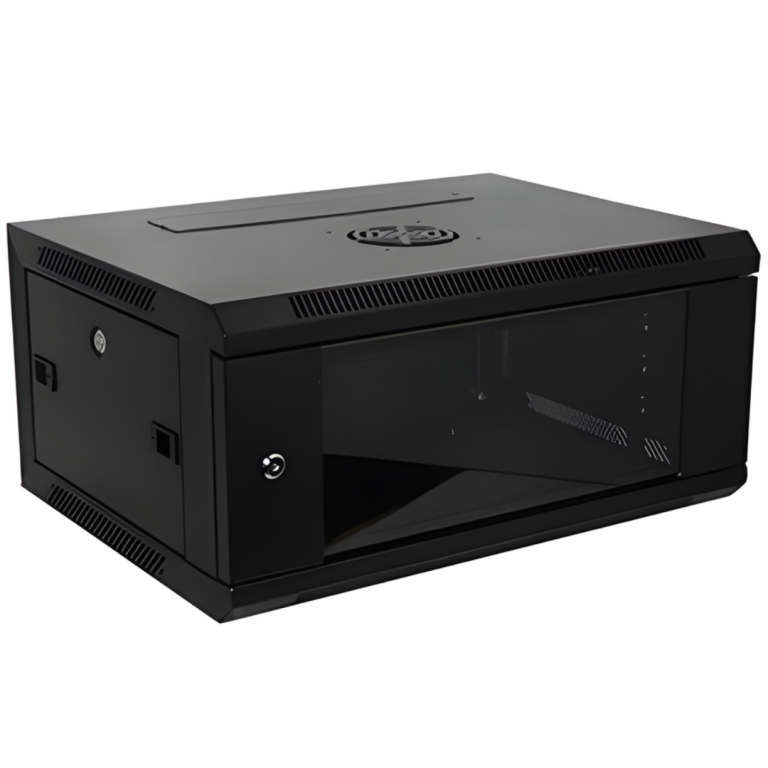

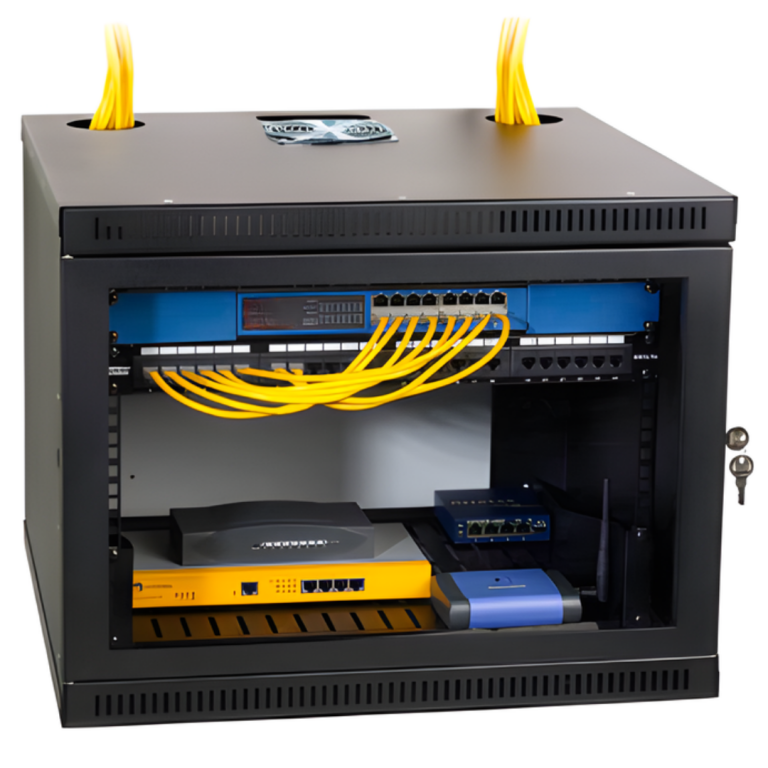

Wall Mount Network Cabinets

Poor cable discipline and scattered equipment in remote closets create maintenance delays and network vulnerabilities. Frigate’s Wall Mount Network Cabinets consolidate switching hardware and patch infrastructure within compact vertical footprints.

Material & Grade

Cold Rolled Steel (CRS)
SPCCStainless Steel – SS304
Aluminum Alloy – 5052
Sheet thickness: Up to 1.5mm capable

Overall Dimensions (H x W x D)

Standard rack heights: 6U to 18U
Width: 600mm (19″ standard), 550mm (compact)
Depth: 300mm to 600mm
Maximum capable: 900mm (H) x 600mm (W) x 600mm (D)
Space-saving designs for wall installation

Finish & Coating

Powder Coating – RAL 7035 (Light Grey), RAL 9005 (Black)
Thickness: 60-80 microns
Zinc Plating + Powder Coating
Electro-galvanized finish
Textured finish (anti-scratch)

Fabrication Process

CNC Punching & Bending
Laser Cutting • Spot Welding
CNC Press Brake Forming
Clinching & Riveting
PEM hardware insertion

Hardware & Fasteners

Cage Nuts & Bolts (M6)
Wall Mounting Brackets (Heavy-duty)
Stainless Steel Hardware
19″ Adjustable Mounting Rails
Anchor Bolts & Wall Plugs (M8, M10)
Tamper-proof screws

Product Description

Ranging from 6U to 18U rack heights with wall-loading tolerance up to 100 kg, these enclosures secure networking gear in space-constrained offices, retail stores, and building distribution points. Swing-out mounting frames combined with perforated ventilation panels eliminate equipment overheating while maintaining accessibility during service windows.

Mounting Type

Fixed Wall Mount (standard brackets)
Swing-Out Wall Mount (for rear access)
Surface Mount on Concrete/Brick
Stud Mount (wood/metal studs)
Vertical or Horizontal Orientation
Wall clearance: 50-100mm for airflow

Load Capacity

Static Load: 50 kg to 100 kg
Wall Mounting Load: 60 kg to 80 kg
Per Rail Capacity: 25 kg to 40 kg

Cable Management

Integrated Cable Management Panel
Side/Rear Cable Entry Knockouts
Horizontal Cable Routing Rings
Velcro Cable Ties included
Top/Bottom Cable Entry (pre-punched)
Cable Routing Depth: 50mm – 80mm

Airflow Design

Perforated Front/Rear Doors
Vented Side Panels
Top/Bottom Ventilation Slots
Passive Cooling Design
Optional Fan Tray (1-2 fans)
Natural Convection Optimized

Door & Panel Access

Front: Perforated/Solid Door options
Rear: Perforated or Solid Metal Door
Side Panels: Removable with key lock
Door Opening: 180° swing
Keyed Locks (standard 2-point)
Quick-release door hinges

Compliance Standards

EIA-310-D (19″ rack standards)
IEC 60297
IP20, IP40
RoHS Compliant
ISO 9001:2015 Manufacturing
CE Marked
UL Listed

Construction Methodology and Performance Standards

Utilizing cold-rolled SPCC steel with thickness specifications reaching 1.5 mm, Frigate manufactures cabinet frames through CNC punching and press brake sequences optimized for weld-free assembly. Design for Manufacturing principles guide knockout placement and bracket geometry to reduce secondary operations while maintaining structural rigidity.

Wall-mounting hardware distributes load across four to six anchor points rated for concrete, masonry, or stud installations. Cabinets accommodate rack-mountable equipment through adjustable 19-inch rails with cage nut compatibility spanning EIA-310-D specifications. Ingress protection levels of IP20 or IP40 shield internal components from particulate intrusion in commercial building environments.

Let's Get Started

Need reliable Enclosures for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Deployment Contexts

Branch Office Networks

Centralizes edge routers and PoE switches serving 20-50 users without dedicating floor space to equipment racks.

Retail Point-of-Sale Systems

Protects payment processing servers and wireless access point controllers in back-of-house areas with limited square footage.

Building Management Systems

Houses HVAC controllers and access control panels in mechanical rooms or utility corridors near service zones.

Healthcare Clinic Networks

Secures patient data switches and UPS backup systems in sterile environments requiring minimal dust accumulation.

Educational Classroom Technology

Organizes AV distribution equipment and network switches in hallway closets serving multiple instructional spaces.

Hospitality Guest Networks

Manages Wi-Fi controllers and VLAN switches on guest floors without occupying revenue-generating floor area.

Configured Solutions Matching Installation Constraints

Space limitations, aesthetic requirements, and existing wall construction vary significantly across deployment sites. Wall Mount Network Cabinets ship in fixed or swing-out configurations with depth dimensions from 300 to 600 mm, accommodating shallow patch panels or deeper switching platforms.

Frigate provides complete installation kits including wall brackets, anchor hardware, and cable management accessories specified for your rack unit selection and equipment depth. Surface finishes in RAL 7035 or RAL 9005 blend with interior design schemes while delivering corrosion resistance, ensuring installations adapt to future technology migrations without cabinet replacement.

Having Doubts? Our FAQ

Check all our Frequently Asked Questions

How does Frigate determine the appropriate wall anchor specifications for different mounting surfaces?

Frigate evaluates wall composition like concrete, brick, drywall over studs, or metal studs to specify anchor type and diameter. Concrete installations use M10 expansion anchors with 80 mm embedment depth rated for 150 kg per point. Stud-mounted cabinets distribute loads across multiple 16-inch centered studs using lag bolts. Load calculations factor in cabinet weight, equipment mass, and dynamic service forces. Wall bracket designs incorporate safety margins exceeding 200% of stated cabinet capacity.

What swing-out mounting advantages does Frigate provide for installations requiring frequent rear access?

Frigate’s swing-out frames pivot 90-180° on reinforced hinge assemblies, exposing rear equipment panels without removing wall anchors. This eliminates the need to disconnect all cabling during patch panel reconfiguration or switch maintenance. Locking detents hold the cabinet in open position during service procedures. Swing mechanisms support full equipment loads throughout the pivot range, maintaining structural integrity during repeated access cycles.

How do Frigate cabinets maintain adequate ventilation when mounted flush against walls?

We engineer rear panel standoffs that create 50-100 mm air gaps between the cabinet back and wall surface. Perforated doors with 60-70% open area enable front-to-rear natural convection currents. Top and bottom ventilation slots facilitate chimney-effect airflow without mechanical fans. Thermal modeling validates passive cooling under 500W heat loads in ambient temperatures reaching 35°C. Optional fan trays provide forced ventilation for high-density switching configurations.

Can Frigate's Wall Mount Network Cabinets accommodate equipment exceeding standard 19-inch widths?

Frigate cabinets use internally adjustable mounting rails positioned at 19-inch EIA spacing, but cabinet exterior dimensions reach 600 mm width. This allows installation of oversized equipment mounting ears, cable management arms, or side-mounted accessories without interference. Depth adjustments from 300 to 600 mm handle shallow patch panels and deep managed switches within the same enclosure. Custom internal configurations address non-standard equipment geometries upon request.

What cable entry methods does Frigate incorporate to minimize installation labor in wall-mounted applications?

Frigate provides multiple cable routing options to suit various installation scenarios:

Top entry knockouts with brush grommets for drop-ceiling conduit access

Bottom entry slots for raised floor or baseboard cable pathways

Side entry pre-punched holes for horizontal conduit runs in existing walls

Rear panel knockouts positioned outside wall-contact zones for through-wall cabling

All entry points include edge protection to prevent jacket abrasion during cable installation.

How does Frigate address security concerns in publicly accessible areas like retail or educational facilities?

Frigate equips wall cabinets with two-point keyed locks on front doors and removable side panels requiring specialized tools for access. Tamper-proof screws secure mounting brackets to prevent cabinet removal without destroying wall anchors. Solid metal door options eliminate equipment visibility while maintaining ventilation through strategic perforation patterns. Optional digital locks or RFID systems integrate with facility access control platforms for audit trail documentation.

What depth selection criteria should guide specification of Frigate's Wall Mount Network Cabinets?

Depth selection depends on equipment requirements and wall protrusion constraints:

300mm depth: Suitable for patch panels, small switches (8-16 ports), and shallow UPS units with minimal wall extension

450mm depth: Accommodates managed switches, cable management arms, and standard network equipment with moderate depth

600mm depth: Supports deep blade switches, redundant power supplies, and equipment requiring rear-mounted accessories

Measure equipment depth including connectors, cable bend radius, and door clearance to determine minimum cabinet depth requirements.

How does Frigate's manufacturing process ensure consistent hole alignment across mounting rails?

Frigate employs CNC punching with sub-millimeter repeatability to maintain 15.875 mm (5/8 inch) hole spacing per EIA-310-D standards. Rail pairs undergo paired machining operations to guarantee left-right symmetry within ±0.3 mm tolerance. Fixture-based welding prevents rail distortion during frame assembly. Final inspection uses go/no-go gauges verifying cage nut insertion and equipment mounting without cross-threading or binding across all rack unit positions.

Can Frigate's Wall Mount Cabinets integrate with existing building management system monitoring?

Frigate offers optional environmental sensor integration including temperature probes, door contact switches, and humidity monitors. Sensor outputs connect to BMS systems via dry contacts or SNMP protocols for centralized facility monitoring. Pre-drilled sensor mounting locations eliminate field drilling that compromises cabinet integrity. These integrations enable proactive alerts when cabinet temperatures exceed thresholds or unauthorized door access occurs during off-hours.

What distinguishes Frigate's aluminum and steel Wall Mount Cabinet construction?

Material selection addresses specific installation priorities:

Cold-Rolled Steel Cabinets: Higher load capacity (80-100 kg), superior electromagnetic shielding, lower material cost, ideal for standard commercial installations, weight: 15-25 kg

Aluminum Alloy Cabinets: Reduced weight (8-15 kg) eases installation on weaker walls, natural corrosion resistance in coastal or humid environments, higher thermal conductivity aids passive cooling, premium aesthetics with anodized finishes

Both materials accept identical mounting hardware and meet EIA dimensional standards for universal equipment compatibility.
