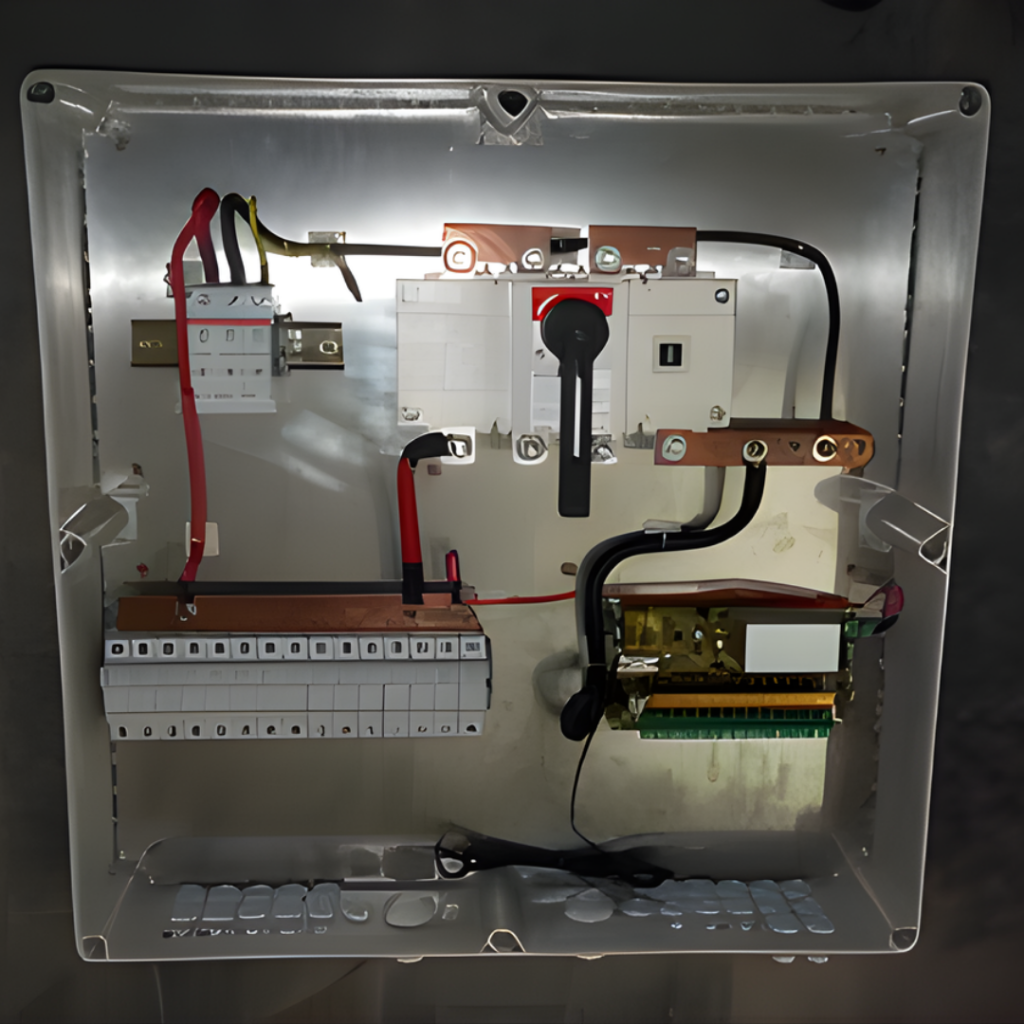

These compact housings range from 150mm panel-mount units to 500mm field junction boxes accommodating 4 to 24 circuit connections. Frigate manufactures IP67-rated enclosures using corrosion-resistant materials that protect electrical terminations from moisture intrusion and UV degradation.
Aluminum or galvanized steel construction provides structural rigidity while minimizing weight penalties on panel mounting frames. Continuous gasket seals compress against precision-machined mating surfaces achieving IP67 immersion protection. Furthermore, UV-stabilized powder coatings withstand direct sunlight exposure without polymer degradation or finish cracking.
Internal terminal blocks accept wire gauges from 14 AWG to 6 AWG with tool-free connection mechanisms. Frigate incorporates bypass diode mounting provisions that prevent reverse current flow during partial shading conditions. Additionally, strain relief features protect cable entries from wind-induced tension that could compromise electrical connections over time.
Need reliable Enclosures for your next project? Get in touch with us today, and we’ll help you find exactly what you need!
Consolidates module-level connections before routing combined strings to roof-mounted optimizers or ground-level inverters.
Houses architectural solar panel connections in facade-mounted installations where aesthetic integration demands low-profile enclosure designs.
Protects moving electrical connections on single-axis and dual-axis trackers experiencing constant motion and flexing throughout daily operation.
Manages dual-sided module wiring in elevated arrays where rear-surface connections require separate junction provisions from front connections.
Secures quick-disconnect junctions in mobile military or emergency response installations requiring rapid deployment and breakdown capabilities.
Shields field-level connections in crop-integrated installations where irrigation spray and agricultural chemicals threaten standard electrical enclosures.

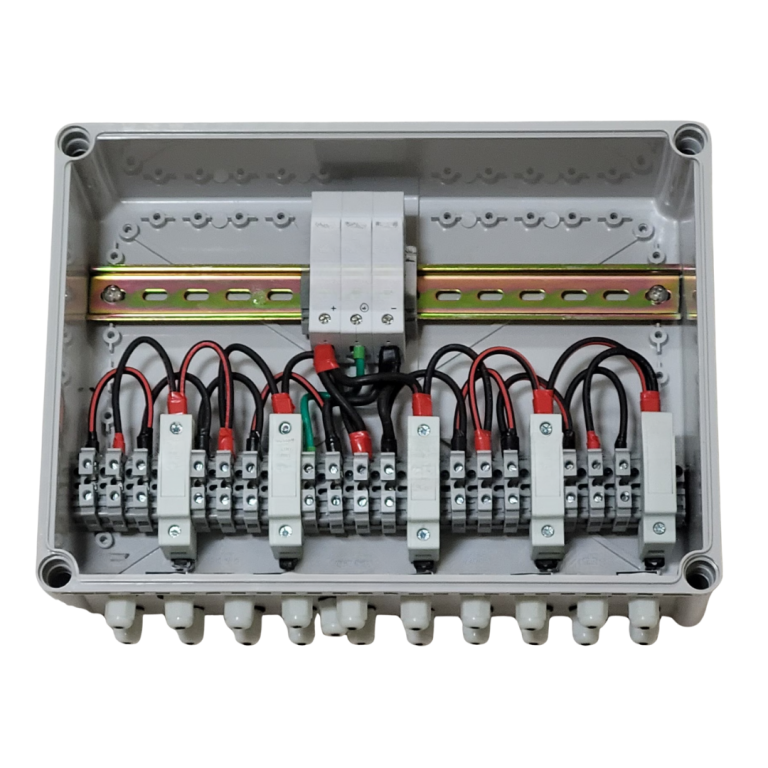

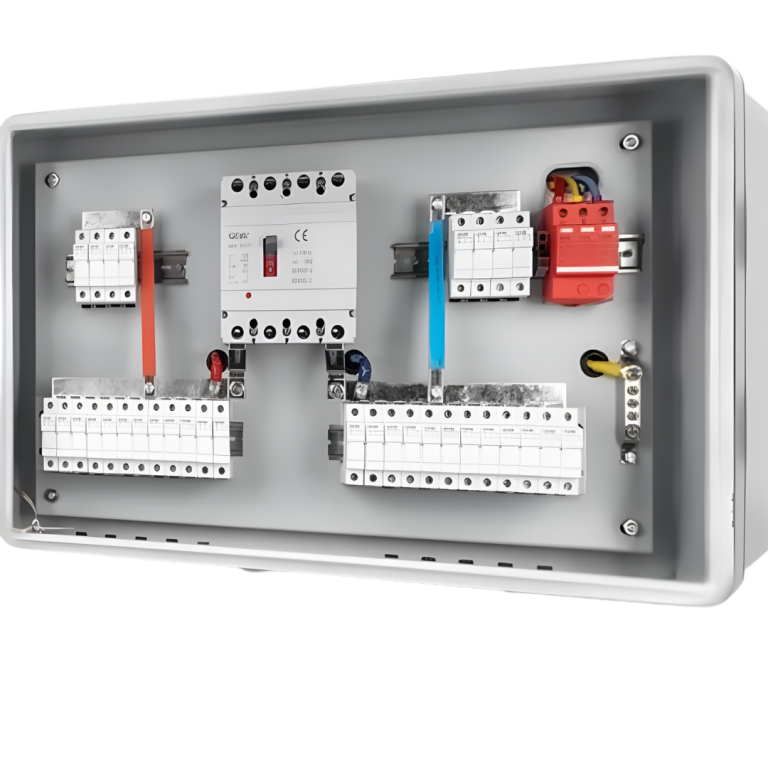

Panel manufacturers, system integrators, and retrofit installers each face distinct mounting constraints and electrical requirements. Our Solar Array Junction Boxes arrive in back-mount, side-mount, or standalone configurations with cable entry provisions matching MC4 connectors or direct wire terminations.

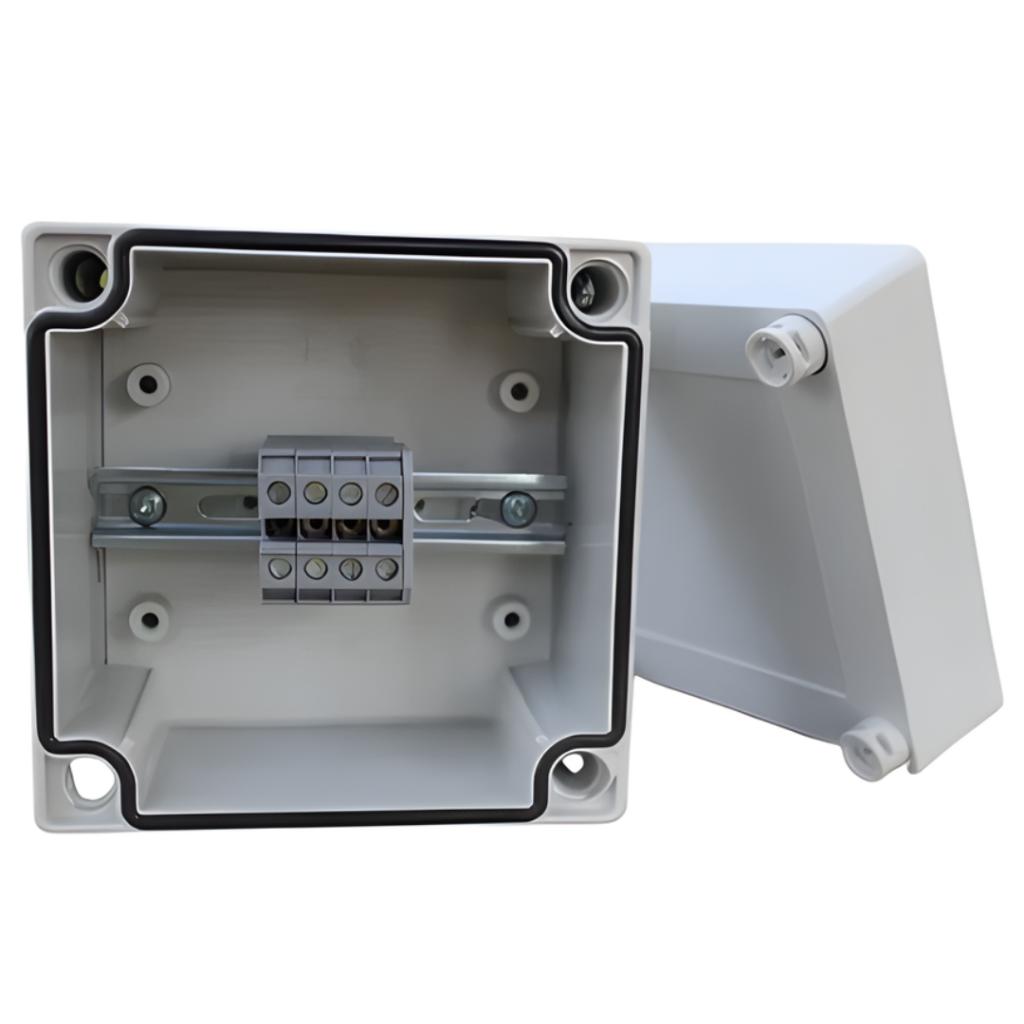

Frigate supplies mounting hardware including adhesive bonding pads for frameless modules, mechanical fasteners for aluminum frames, and pole-mount brackets for field junctions. Transparent cover options enable visual connection verification without breaking environmental seals, ensuring junction boxes adapt to evolving panel technologies and installation methodologies.
Partial shading from trees or chimneys causes shaded cells to act as resistive loads, dissipating power as heat. Frigate provisions diode mounting rails that allow reverse current to bypass shaded module sections rather than forcing current through high-resistance cells. Typically, one bypass diode protects 18-24 cells in standard 60-cell or 72-cell modules. Consequently, unshaded portions continue generating power while shaded sections remain electrically isolated.
Frigate offers multiple cable entry configurations addressing varied installation preferences and field conditions:
This flexibility reduces inventory complexity for installers managing diverse project specifications.
Rooftop installations face direct hail strikes that can crack poorly designed junction box covers. Frigate specifies polycarbonate cover materials with impact resistance exceeding IK08 ratings, withstanding 5-joule impacts without fracturing. Metal enclosure bodies distribute impact energy across mounting surfaces rather than concentrating stress at attachment points. Moreover, testing protocols simulate 25mm hailstones at terminal velocity to validate structural integrity before production release.
Temporary submersion protection requires sealed cable entries and gasketed covers preventing water infiltration under pressure. Frigate machines gasket grooves with continuous profiles that eliminate leak paths at corner transitions or mounting holes. Compression screws apply uniform sealing force across the gasket perimeter maintaining consistent pressure distribution. Additionally, cable glands incorporate multiple compression seals that conform to cable jacket irregularities preventing moisture wicking along conductor strands.

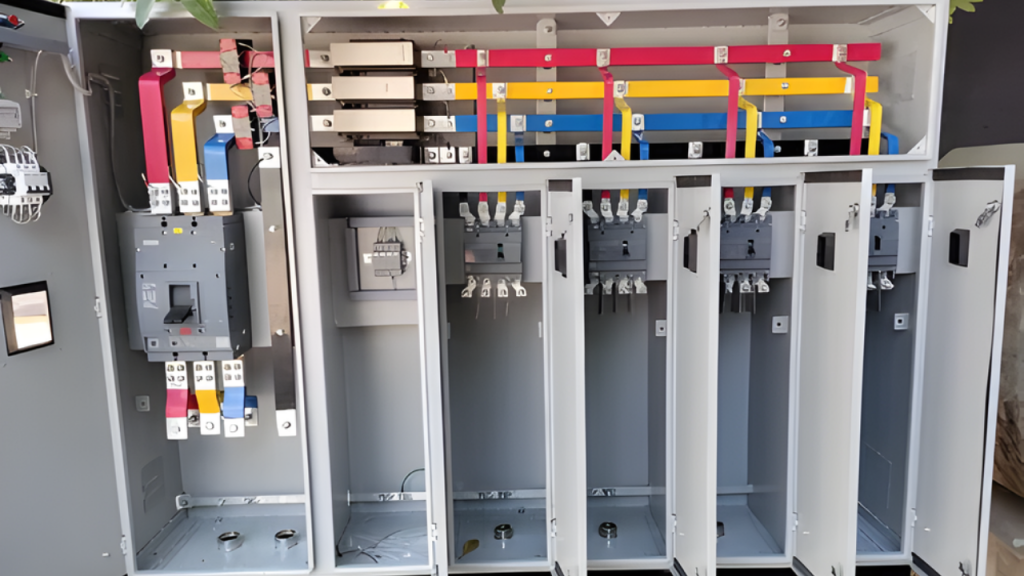

Organized internal layouts accelerate troubleshooting and reduce service time during warranty claims or maintenance procedures:
Clear organization reduces field labor costs significantly compared to unmarked junction boxes.
Panel-back mounting exposes junction boxes to maximum thermal cycling as module temperatures fluctuate 60-80°C daily. Frigate specifies high-temperature gasket materials maintaining seal integrity across -40°C to +90°C operating ranges without hardening or cracking. Conversely, frame-mounted boxes experience reduced thermal stress but require robust mechanical attachment withstanding wind uplift forces. Ultimately, mounting location determines material specifications and fastener requirements for 25-year service life.
Different panel technologies generate varying voltage and current characteristics requiring adaptable junction box designs. Frigate sizes terminal blocks based on maximum string current ratings, accommodating crystalline modules producing 8-12A or thin-film panels generating 15-20A per string. Internal volume scales with bypass diode heat dissipation requirements since thin-film modules often require larger diodes. Therefore, universal junction box platforms support multiple technologies through component selection rather than complete redesigns.
Frigate integrates comprehensive grounding features addressing both equipment safety and code compliance requirements:
Proper grounding prevents shock hazards during insulation failures or lightning strikes.
Frigate selects aluminum construction for superior heat dissipation through thermal conductivity advantages over steel or polymer alternatives. Junction boxes mounted on panel backs experience elevated temperatures from direct solar irradiance plus module heat conduction. White or reflective powder coatings with high solar reflectance indices minimize radiant heat absorption effectively. Additionally, internal component spacing follows derating guidelines ensuring bypass diodes and terminals operate within safe temperature limits during peak production hours.
Accelerated aging simulates decades of outdoor exposure in compressed timeframes identifying potential failure modes before production. Frigate subjects junction boxes to 1000-hour damp heat testing at 85°C and 85% relative humidity per IEC 61215 protocols. Subsequently, thermal cycling between -40°C and +85°C occurs over 200 cycles detecting gasket degradation or cover warping. Finally, UV exposure testing validates powder coating stability and polycarbonate cover clarity after 2000 hours under concentrated radiation.
