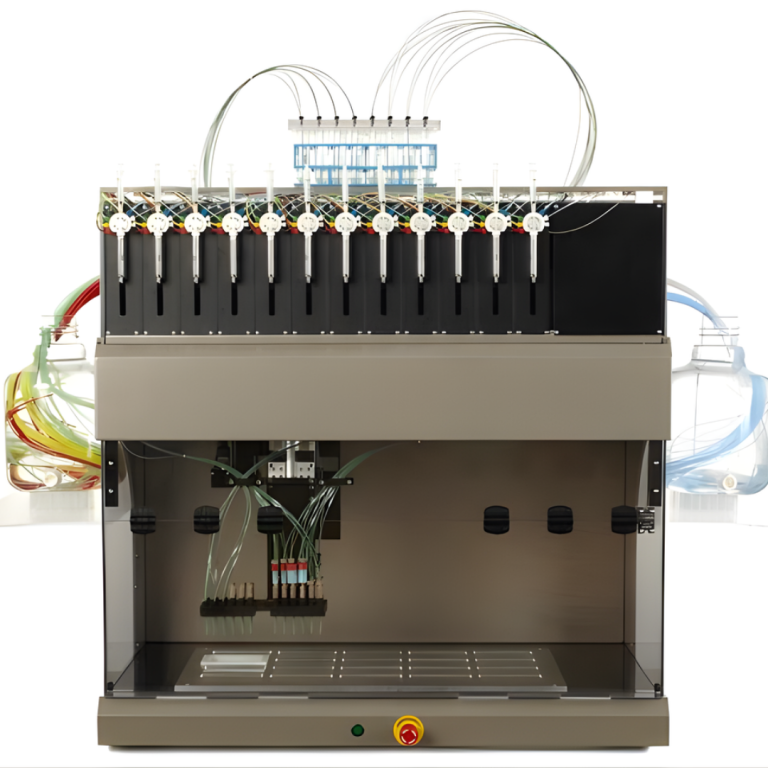

Protein Purification System Panels

Buffer contamination during chromatography runs compromises protein purity causing batch failures and wasted production time in biopharmaceutical manufacturing. Protein Purification System Panels provide organized enclosures for chromatography pumps, fraction collectors, and UV monitors controlling automated purification sequences.
HY D R O L Y SIS RESIS T ANCE
Material & Grade
  • Stainless Steel – SS304, SS316L
  • Medical-grade stainless steel
  • Electropolished stainless
  • Anodized Aluminum – 6061 (non-contact areas)
  • Sheet thickness: Up to 2.5mm capable
  • Maximum capable: 2000mm (H) x 1500mm (W) x 600mm (D)
  • Customizable based on purification system configuration
  • Electropolished (Ra ≤ 0.4 μm)
  • Passivated surface (ASTM A967)
  • Sanitary finish (3A standards)
  • Pharmaceutical-grade finish
  • Chemical-resistant coating
  • CNC Laser Cutting
  • CNC Punching & Bending
  • TIG Welding (sanitary welds)
  • CNC Press Brake Forming
  • Crevice-free construction
  • Hygienic design principles
  • Stainless Steel 316L Hardware
  • Sanitary hinges
  • Quick-release latches
  • Grounding provisions
  • DIN rail mounting (35mm)
  • Chromatography column mounts
Get Latest Price
Get quote

Product Description

Floor-standing configurations accommodate purification equipment with external dimensions reaching 2000mm while maintaining sanitary buffer line routing. We engineer electropolished stainless steel construction preventing microbial growth and enabling validated cleaning between purification campaigns. Through organized cable management and hygienic design, these panels enable compliant protein purification supporting therapeutic antibody production and enzyme manufacturing.

Mounting Type
  • Floor Standing with base frame
  • Wall Mount configurations
  • Cleanroom integration
  • Process skid mounting
  • Mobile cart provisions
  • Modular system connection
  • Standard: IP54 (dust/splash protected)
  • Enhanced: IP65 (dust-tight/water jet protected)
  • Cleanroom: IP66 (washdown compatible)
  • Pharmaceutical: NEMA 4X rated
  • Cable glands: M16, M20, M25, M32
  • Bottom/Side entry configurations
  • Buffer line penetrations
  • Sensor cable provisions
  • Peristaltic pump tubing routing
  • Pressure transducer connections
  • Hinged front door with gasket
  • Transparent viewing window
  • 180° door opening capability
  • Removable panels for installation
  • Tool-required or quick-access
  • UV visualization window
  • Natural convection with venting
  • Forced air cooling
  • Operating Temperature: +4°C to +30°C
  • Cold room compatibility
  • Humidity control provisions
  • Condensation management
  • ISO 13485 (Medical Devices QMS)
  • FDA 21 CFR Part 820 (QSR)
  • EU GMP Annex 1 (Cleanroom Manufacturing)
  • GAMP 5 (Automation Validation)
  • 3-A Sanitary Standards
  • CE Marked
  • ISO 9001:2015 Manufact

Technical Advantages

Chromatography systems process corrosive buffers including high-salt solutions, organic solvents, and acidic cleaning agents requiring chemical-resistant construction. Addressing this demand, electropolished interior surfaces resist pitting corrosion from chloride-containing buffers maintaining surface integrity throughout equipment service life. Sanitary design principles eliminate horizontal surfaces and dead legs where buffer residues could accumulate compromising cleaning validation.

Organized buffer line routing through dedicated penetrations separates high-purity feed streams from waste collection lines preventing cross-contamination during valve switching operations. Frigate engineers transparent viewing windows enabling visual confirmation of fraction collection and column packing quality without opening panels during critical purification steps. Internal mounting provisions accommodate modular chromatography components supporting method development activities and process optimization requiring equipment reconfiguration.

Let's Get Started

Need reliable Enclosures for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Monoclonal Antibody Production

Contains chromatography control systems managing Protein A, ion exchange, and hydrophobic interaction steps during antibody purification campaigns.

Recombinant Protein Manufacturing

Houses automated purification equipment processing therapeutic enzymes, growth factors, and fusion proteins from cell culture harvests.

Vaccine Antigen Purification

Manages chromatography systems isolating viral proteins and polysaccharides during vaccine manufacturing processes.

Research Protein Expression

Consolidates laboratory-scale purification equipment supporting academic research and drug discovery programs requiring pure protein samples.

Plasma Fractionation Facilities

Protects large-scale chromatography control systems processing human plasma into therapeutic protein products.

Industrial Enzyme Production

Secures purification instrumentation concentrating and polishing enzymes for food processing and detergent manufacturing applications.

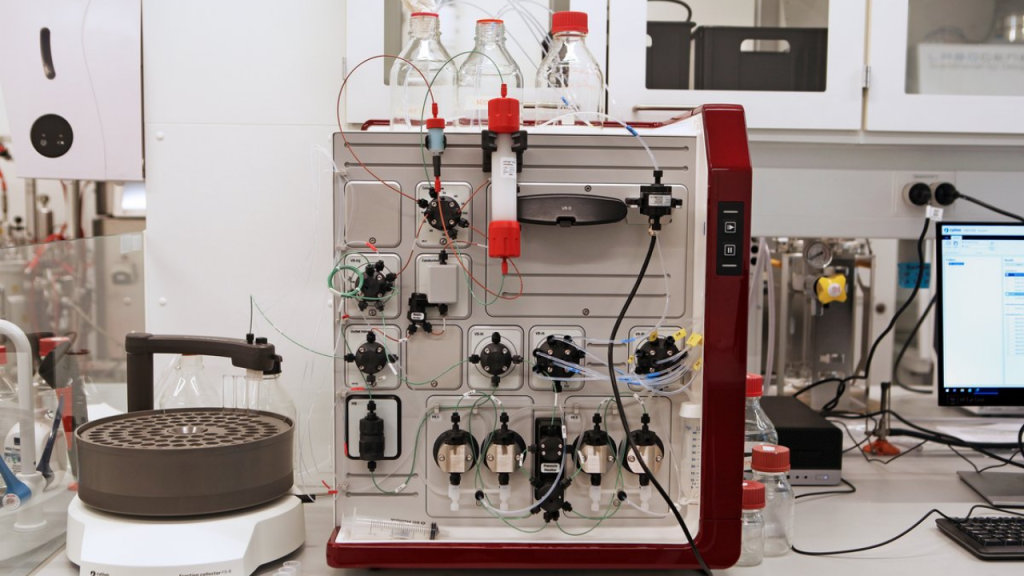

Protein Purification System Panels

Designed for Process Control

Purification system complexity varies from manual laboratory columns to fully automated multi-column systems processing commercial-scale batches. Protein Purification System Panels arrive in configurations supporting basic pump-detector combinations through integrated systems with automated buffer preparation and CIP/SIP capabilities.

Cleanroom-compatible construction with washdown-rated sealing enables installation in controlled manufacturing environments where panels face routine sanitization. Cold room provisions allow operation in refrigerated spaces maintaining protein stability during extended purification sequences preventing degradation that compromises product quality.

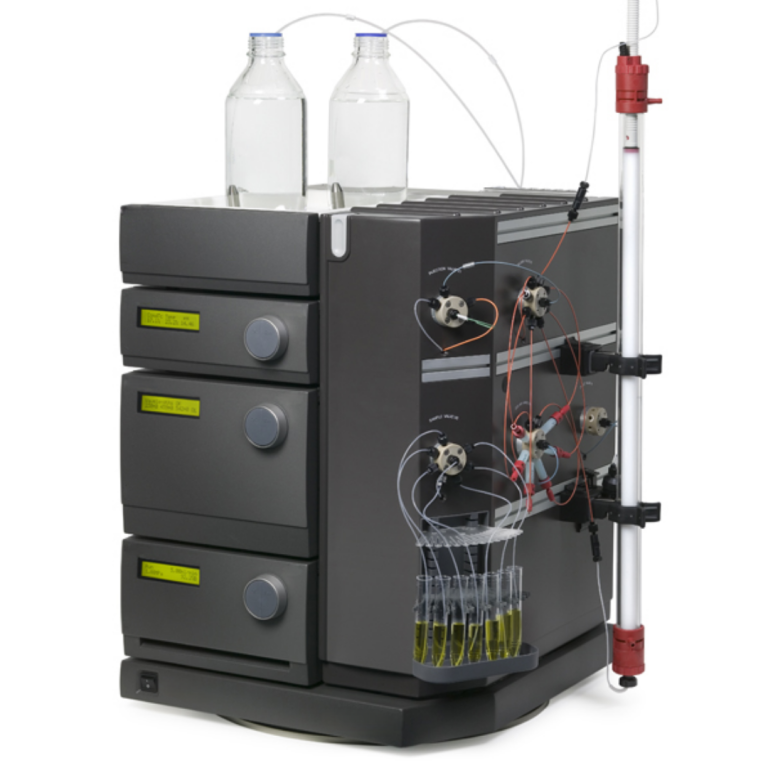

Protein Purification System Panels

Related products

  • FAQ

Having Doubts? Our FAQ

Check all our Frequently Asked Questions

Get Quote Now
How does Frigate engineer electropolished interior surfaces in Protein Purification System Panels resisting pitting corrosion from chloride-containing buffers?

Frigate specifies electropolished stainless steel finishes with controlled surface roughness to reduce chloride ion retention and localized corrosion. Material grade, polish depth, and passivation steps are selected based on buffer chemistry. This supports long-term surface stability and repeatable cleaning validation.

Are sanitary design principles integrated eliminating horizontal surfaces where buffer residues could accumulate compromising cleaning validation?

Yes. Panels are designed with sloped surfaces, minimized ledges, and continuous welds to prevent liquid hold-up. These features reduce residue accumulation and support effective CIP or manual cleaning in regulated purification environments.

How does Frigate organize buffer line routing in Protein Purification System Panels separating high-purity feed streams from waste collection lines?

Fluid segregation is achieved through –

  • Dedicated routing paths for feed and waste tubing
  • Physical separation between high-purity and drain circuits
  • Clear labeling and color-coded guides

Frigate aligns routing layouts to process flow diagrams to reduce cross-connection risk.

Does transparent viewing window integration enable visual confirmation of fraction collection without opening panels during critical purification steps?

Operational visibility is supported using –

  • Flush-mounted transparent panels
  • Chemical-resistant window materials
  • Smooth, cleanable interfaces

Window placement is coordinated so Frigate enables visual checks without disrupting controlled conditions.

How does Frigate address internal mounting provisions in Protein Purification System Panels supporting modular chromatography component reconfiguration?

Internal mounting systems use modular DIN rails and adjustable brackets to support pumps, valves, and detectors. This allows components to be reconfigured as purification schemes evolve. Frigate aligns mounting flexibility with anticipated process changes and expansion needs.

Are cleanroom-compatible construction methods compatible with washdown-rated sealing for installation in controlled manufacturing environments?

Yes. Construction methods combine smooth, non-shedding surfaces with gasketed doors and sealed penetrations. This supports both cleanroom compatibility and washdown requirements without compromising enclosure integrity.

How does Frigate validate cold room operation in Protein Purification System Panels maintaining protein stability during extended purification sequences?

Cold-room suitability is supported by –

  • Material selection rated for low-temperature operation
  • Gasket and seal materials that retain elasticity
  • Thermal layout that avoids condensation on electronics

Frigate reviews operating temperature ranges to ensure stable performance during extended runs.

Does cable entry system accommodate pressure transducer connections, UV detector cables, and peristaltic pump power lines simultaneously?

Mixed-service entry is managed through –

  • Dedicated sealed pass-throughs for fluid-related sensors
  • Retained ingress protection ratings

Entry configuration is planned so Frigate supports multiple services without sealing compromise.

How does Frigate prevent cross-contamination in Protein Purification System Panels during valve switching between purification and cleaning operations?

Cross-contamination risk is reduced by separating fluid paths, organizing valve manifolds clearly, and supporting validated CIP routing. Internal layouts help ensure cleaning solutions do not backflow into product lines. Frigate aligns these measures to your purification and cleaning logic.

Are DIN rail mounting provisions compatible with distributed control modules managing automated multi-column purification systems?

Control integration typically includes –

  • DIN rails sized for PLCs and distributed I/O
  • Space for communication and power modules
  • Allowance for future control expansion

Rail spacing and load capacity are selected so Frigate supports automated, multi-column control architectures.
