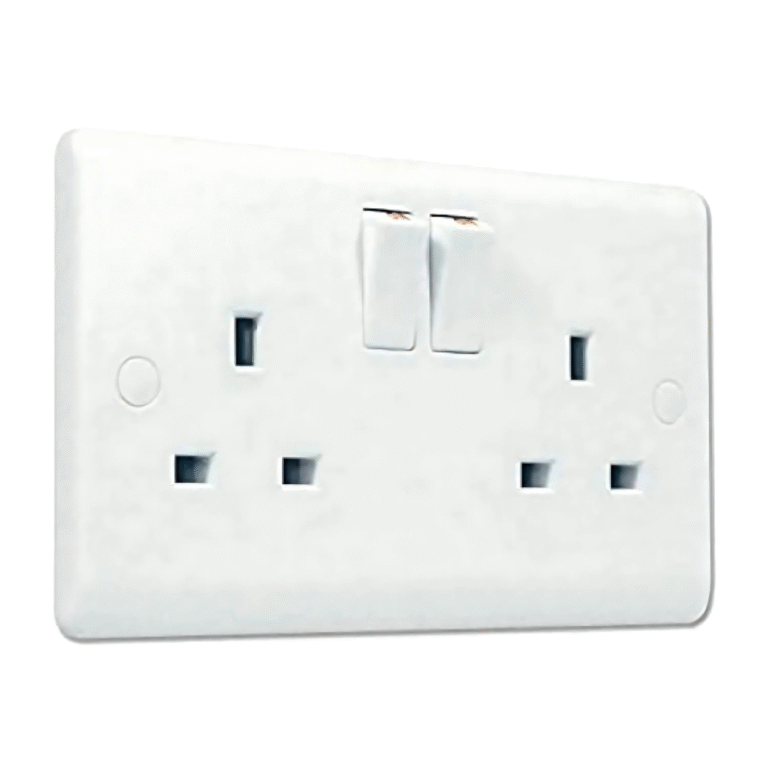

Double-Gang 13A Sockets

When outlet failure risks system downtime or user safety, double-gang solutions must offer more than just added ports. Our Double-Gang 13A Sockets addresses this with dual-outlet capacity, shared-neutral engineering, and optional IP66-rated enclosures that handle residential, commercial, and light industrial loads.

Voltage Rating

220–240V AC, 50/60Hz (higher voltage for industrial use on request)

Current Rating

13A per outlet (26A total, shared neutral; 16A industrial variant available)

IP Rating

IP20 (standard) / Optional – IP66 (weatherproof) or IP54 (splash-proof)

Terminal Type

Screwless clamp (L/N/E per gang) / Heavy-duty screw terminals (custom order)

Material Construction

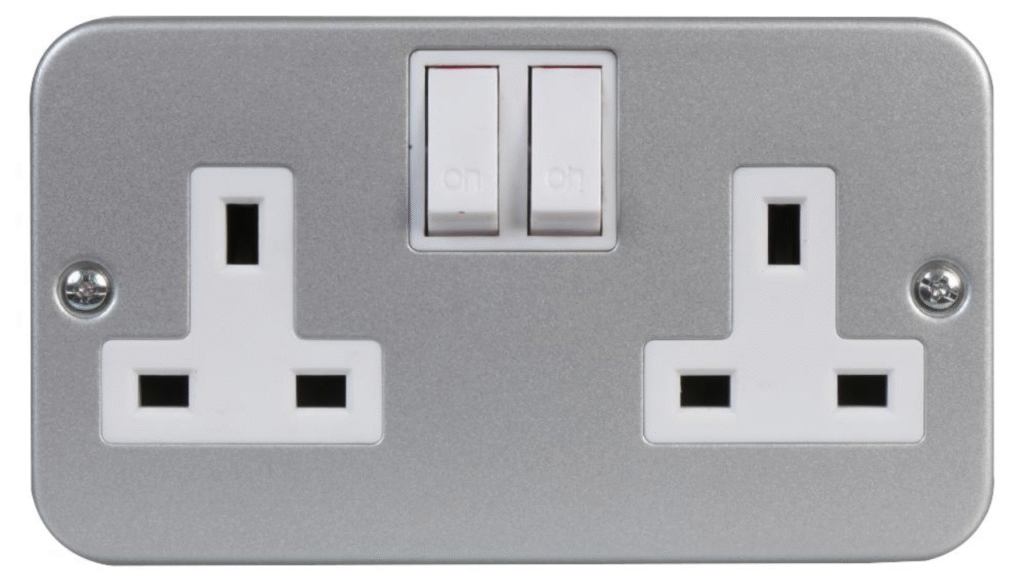

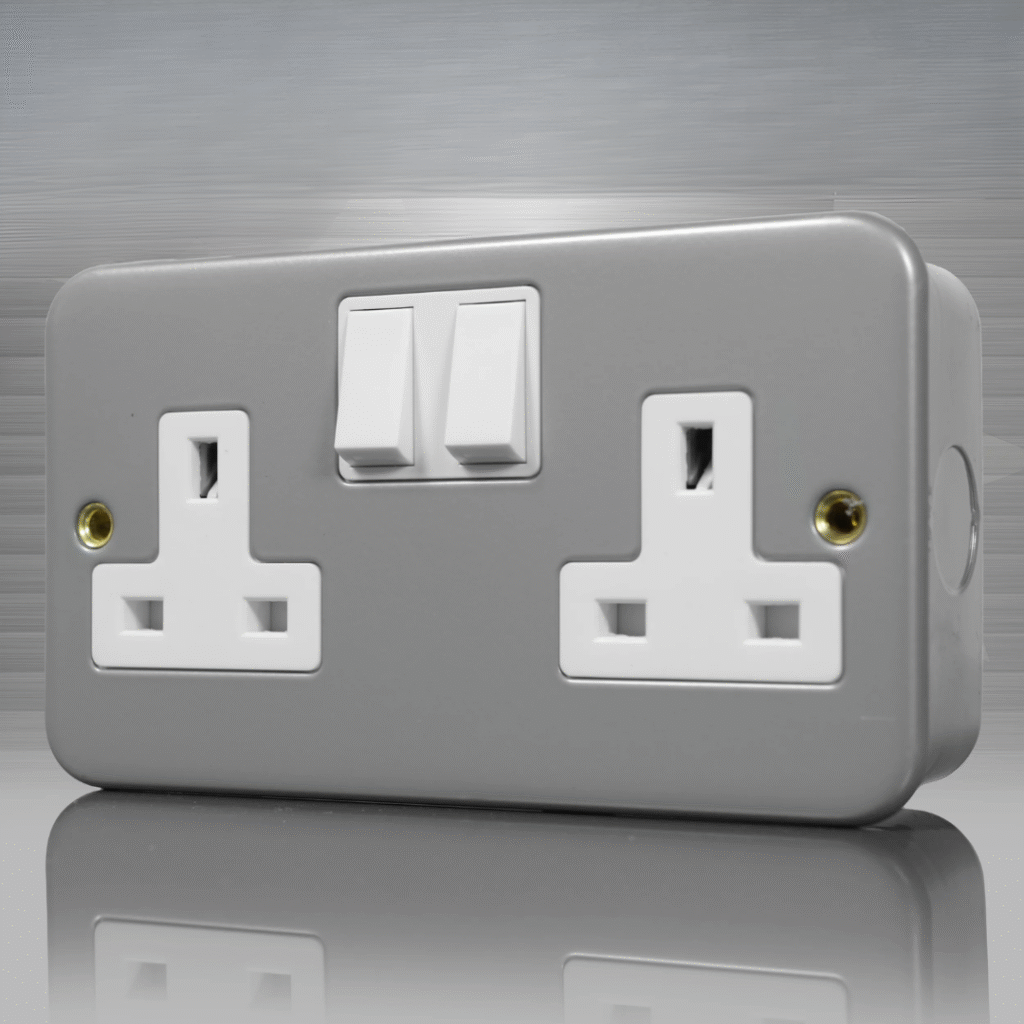

Flame-retardant PC (standard) / Optional – Metal-clad (stainless steel, aluminum) or anti-bacterial coatings
Get Latest Price
Get quote

Product Description

Constructed using flame-retardant polycarbonate or stainless-steel options, it supports 13A per outlet and is tested beyond 10,000 insertions. The screwless clamp system simplifies install time while ensuring stable terminal contact with ≤5 mΩ resistance per gang.

Mounting Type

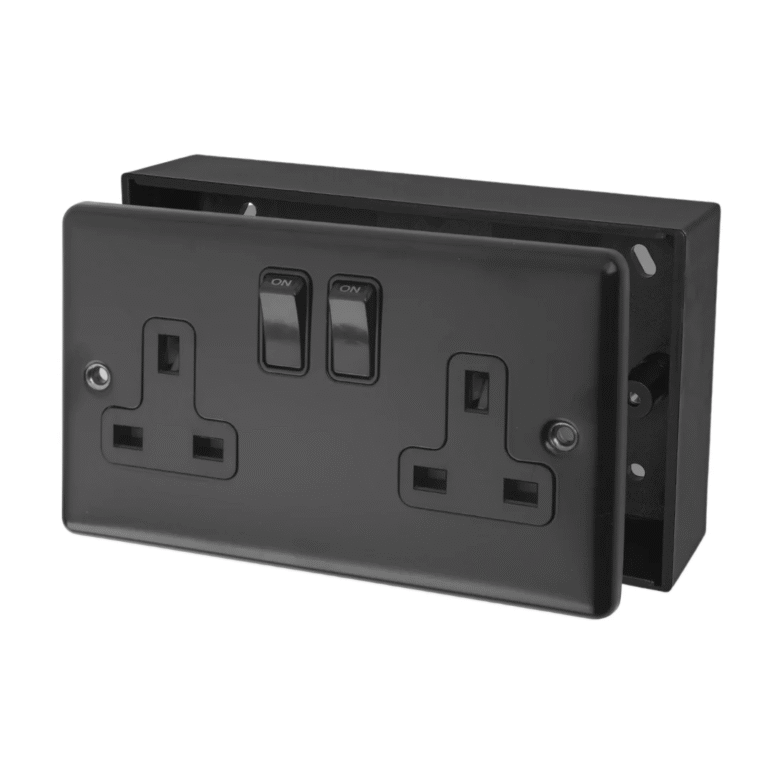

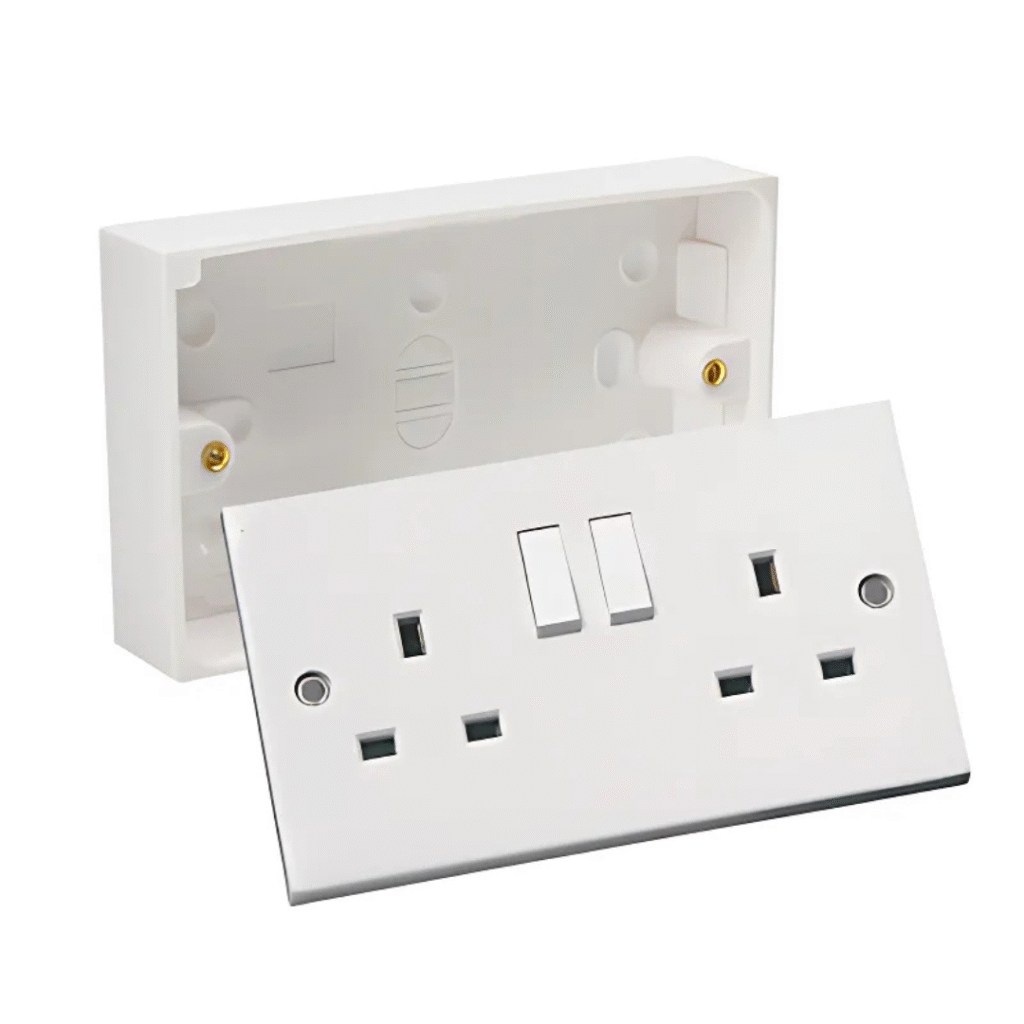

Flush-mounted (standard 2-gang UK/EU backbox) / Surface-mount adapters for retrofits

Safety Certifications

BS 1363-2, CE, RoHS (UL or IS 1293 compliance for regional orders)

Color Options

White, Black, Silver (RAL-matched colors or branding for bulk orders)

Dimensions

146mm (W) × 86mm (H) × 25mm (D) / Slim 20mm depth for tight spaces

Operating Temperature Range

-15°C to +40°C (extended range: -30°C to +60°C for outdoor use)

Lifespan Rating

10,000+ cycles (per outlet, IEC 60669-1 tested)

Country/Region Compatibility

UK, EU, Middle East (US NEMA or JIS pin configurations on demand)

Contact Resistance

≤5 mΩ (per outlet, gold-plated contacts for low-load applications)

Backbox Compatibility

Standard 25mm/35mm backboxes (47mm deep-box support for smart modules)

Breaking Capacity

3kA (6kA high-fault variant for industrial grids)

Fire Resistance

UL94 V-0 (self-extinguishing)

Technical Advantages

While most double sockets duplicate function without improving design, ours addresses real-world installation and load demands. The clamp terminals fit both solid and stranded wires, and flush-mount sizing ensures compatibility with UK/EU 2-gang backboxes.

Surface-mount adapters allow use in legacy builds or concrete walls, while the weatherproof IP66 option expands outdoor usability. From gold-plated low-load variants to stainless housings for rugged areas, every option stays within BS 1363-2 and RoHS limits.

Let's Get Started

Need reliable Sockets for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Modular Furniture & Office Fit-outs

Flush-mounted sockets enable fast installs in desks, partitions, and wall panels, with color-matched finishes for architectural integration.

Retail Display Units

Double outlet capacity supports lighting and POS systems without separate circuits, while optional IP54 ensures safety in splash zones.

Healthcare Rooms

Anti-bacterial coating options and screwless terminals reduce contamination risks and speed up socket replacements.

Hospitality Sectors

Hotels and serviced apartments use metal-clad variants for enhanced durability under high usage and better aesthetics in visible spaces.

Control Room Panels

Shared neutral wiring supports centralized layouts, while gold-plated contact options prevent oxidation under low-current instrumentation

Smart Home Hubs

Slim-depth design (20mm) fits tight enclosures and supports smart modules when paired with deeper 47mm backboxes.

Double-Gang 13A Sockets

Built for Integration and Volume

Bulk buyers need performance with flexibility and our socket delivers. The IP, terminal, and casing variations cover every project type, while color and branding customizations support corporate rollouts without extra tooling costs.

This socket is field-proven across high-traffic zones, retail backends, and panel layouts. Sourcing teams can rely on repeatable build quality, reduced downtime, and smooth assembly that matches industry-specific needs.

Double-Gang 13A Socket

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

Can the socket support mixed wiring types during installation?

Yes, the screwless clamp accepts both solid and stranded copper conductors up to 2.5mm² per terminal. This reduces install errors during field wiring. It also eliminates the need for ferrules or rewiring tools.

Is there a version compatible with industrial panels or outdoor switchboards?

Yes, we offer IP66-rated metal-clad variants with 16A capacity per outlet. These resist water, dust, and impact in harsh-use locations. They’re ideal for enclosures in workshops or temporary outdoor panels.

Can I specify body color or branding for a large volume order

Bulk orders above MOQ can request RAL-matched color bodies or logo embossing. This applies to both polycarbonate and metal-clad versions. It helps maintain brand consistency across commercial projects.

Are the sockets suitable for smart control or energy monitoring modules?

Yes, the 47mm backbox compatibility allows space for smart relays or sensors behind the socket. We also support low-contact-resistance variants for accurate metering. These are suitable for IoT-integrated power panels.

How does the product handle high inrush current from appliances?

The terminals use firm-pressure clamps and low-resistance contacts to maintain stability during start-up surges. Each outlet is tested for 3kA breaking capacity. This prevents arcing or terminal fatigue under inductive loads.
