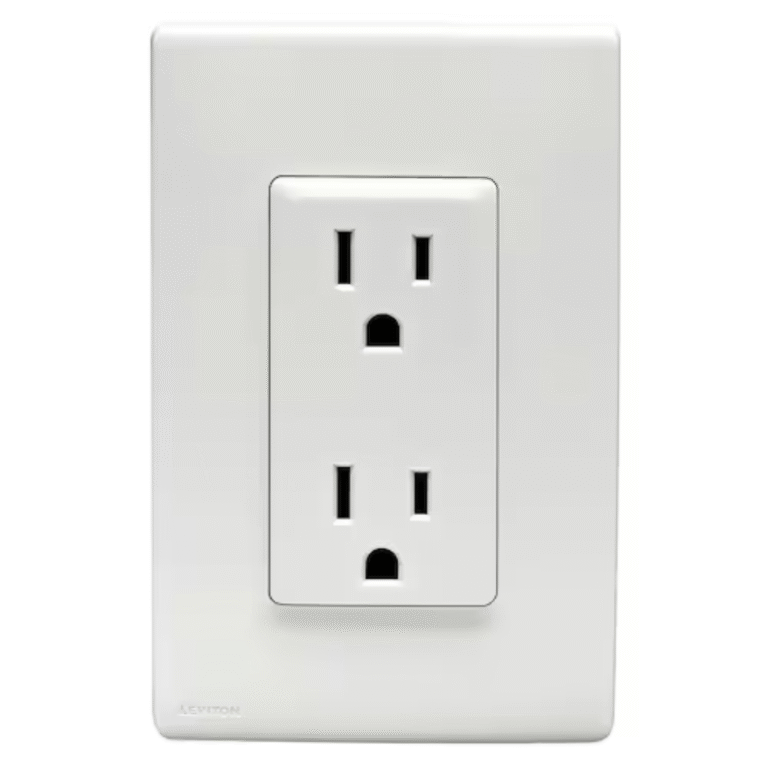

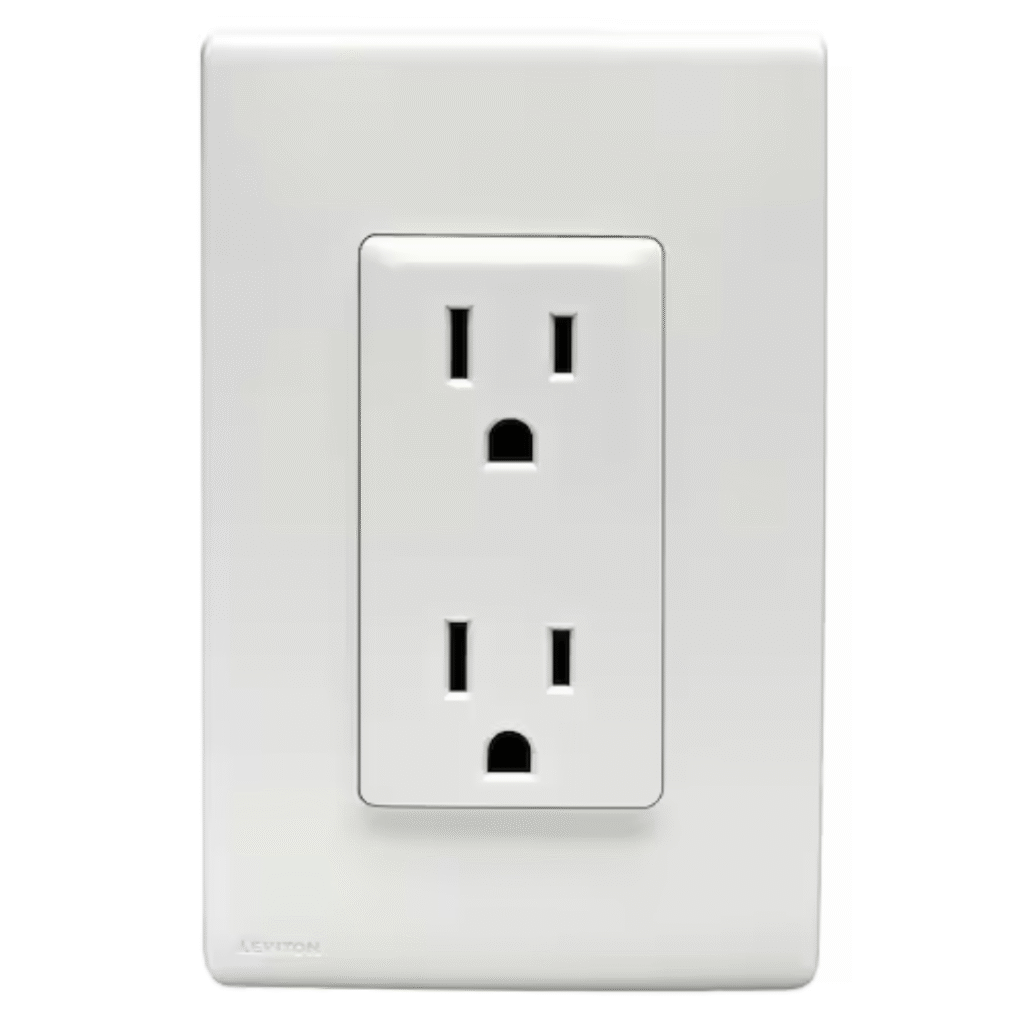

Tamper-Resistant Sockets

Name: Tamper-Resistant Sockets | TR Receptacle Sockets | Child Safe Power Outlet - Frigate
Price: 249.00 USD
Availability: InStock

Installing unreliable sockets leads to safety incidents, warranty claims, and compliance issues during product approvals. Our Tamper-Resistant Sockets solves these issues using a tested shutter design that blocks foreign object entry while maintaining electrical consistency.

Voltage Rating

120V/240V AC, 50/60Hz (dual voltage compatible)

Current Rating

15A (20A T-slot version available)

IP Rating

IP20 (IP44 with weatherproof cover)

Terminal Type

Tamper-proof screw terminals (requires tool access)

Material Construction

Polycarbonate blend (UL94 V-0) + steel shutter mechanism

Product Description

Built with dual-voltage support, region-specific shutter formats, and high-grade thermoplastics, this socket works across residential, commercial, and export-ready applications. Each unit meets UL, BS, and IEC standards, helping OEMs meet local codes without redesigning layouts or altering backbox footprints.

Mounting Type

Standard US 1-gang / EU 60mm backbox

Safety Certifications

UL 498A, BS 1363-3, IEC 60884-1, AS/NZS 3112

Color Options

White, Ivory, Light Almond (custom colors with non-toxic coatings)

Dimensions

86×86×32mm (US), 80×80×30mm (EU)

Operating Temperature Range

-10°C to +60°C (maintains shutter integrity)

Lifespan Rating

8,000 insertion cycles (shutter tested to 15N force)

Country/Region Compatibility

US/EU/UK/AU (region-specific shutter designs)

Contact Resistance

≤5mΩ (shutter-open state)

Backbox Compatibility

Fits standard 25mm+ deep boxes

Breaking Capacity

3kA (10kA with built-in arc-fault detection)

Fire Resistance

Glow-wire 750°C (IEC 60695-2-11)

Technical Advantages

Common wall sockets fail when shutter designs degrade or thermal loads exceed spec. Our Tamper-Resistant Socket solves both using a steel shutter mechanism housed in a UL94 V-0 polycarbonate blend.

Dual voltage compatibility ensures OEMs and panel builders can standardize one part number across US, UK, and EU projects. All contact terminals are tamper-proof screw type, requiring tools to open, adding another safety layer during final assembly.

Let's Get Started

Need reliable Sockets for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Residential Construction Projects

Prevents accidental contact by children or pets, meeting NEC 406.12 and UK BS 1363 regulations in high-risk zones.

Modular Furniture and Interior Fixtures

Flush-mounts into slim furniture profiles and 60mm EU backboxes, ensuring safety without compromising on space or aesthetics.

Hospitality Fit-Outs

Complies with region-specific fire codes while maintaining low-profile form, making it suitable for hotel rooms and common areas.

Commercial Electrical Panels

Supports standard 120V and 240V grid types, allowing easy socket grouping across variable-load environments.

Healthcare Infrastructure

Shutter integrity remains intact up to 60°C, reducing short circuit risk in temperature-sensitive patient rooms or diagnostics labs.

Educational Institutions

Resists tampering attempts in classrooms and labs while maintaining a long mechanical life over 8,000 plug cycles.

Lower Recall Risk and Faster Market Approvals

Socket failures drive field returns, which increase brand liability and slow product launches. Our socket reduces these risks with factory-tested tamper resistance and standard-sized mounting.

By meeting multi-region compliance, we help you consolidate part numbers across geographies. This speeds up spec approvals and lowers project inventory costs.

Having Doubts? Our FAQ

Check all our Frequently Asked Question

Can we get custom colors to match our branded equipment housings?

Yes, we offer white, ivory, and light almond as standard. For volume orders, we supply custom colors using non-toxic coatings. This helps maintain brand uniformity across product lines.

Can we emboss our company logo on the socket faceplate?

We support low-relief branding or pad printing on the socket cover for bulk orders. Placement follows UL visibility rules to avoid blocking rating info. This allows seamless integration into branded assemblies.

Can we request changes in shutter strength or movement resistance?

Yes, we can adjust shutter spring tension or mechanism stiffness based on user segment. This customization supports either high-resistance designs for child safety or smoother motion for ease-of-use in labs. MOQ applies for mechanical tuning.

Do you support different terminal styles for automated wiring setups?

We supply tamper-proof screw terminals as standard. However, push-in or hybrid terminal variants can be developed for specific assembly line processes. This helps OEMs reduce wiring time during large-scale production.

Can we integrate arc-fault protection into the socket design?

Yes, we offer a 10kA-rated arc-fault version with internal trip mechanism. This variant suits high-risk zones or export markets with stricter fault detection rules. Engineering teams can specify trigger conditions during RFQ.
