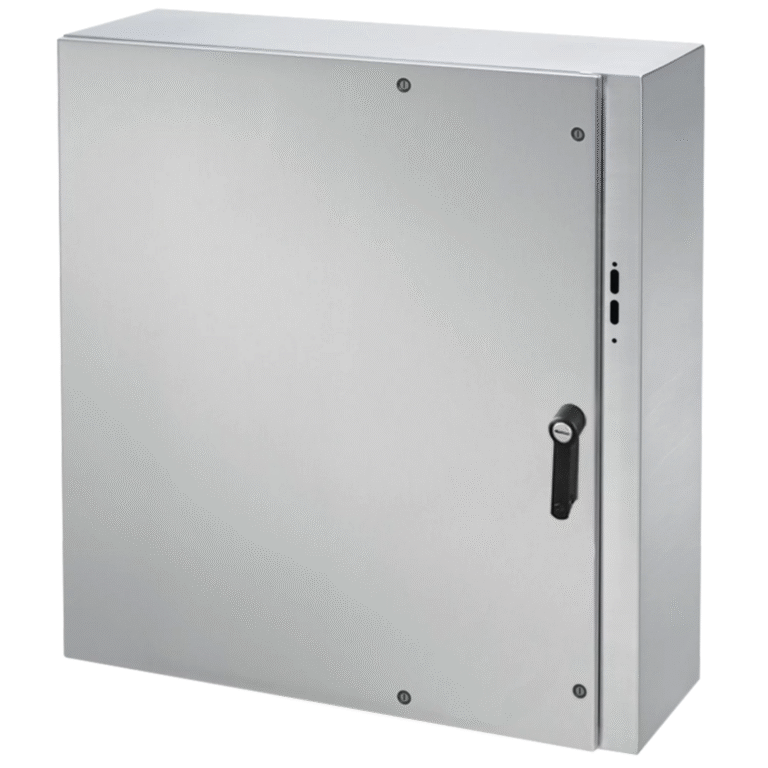

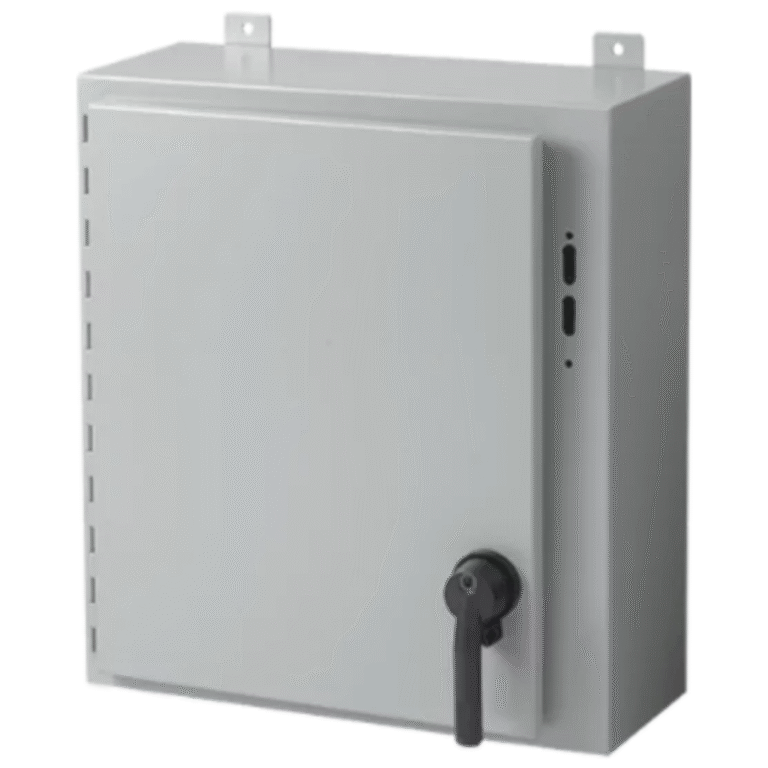

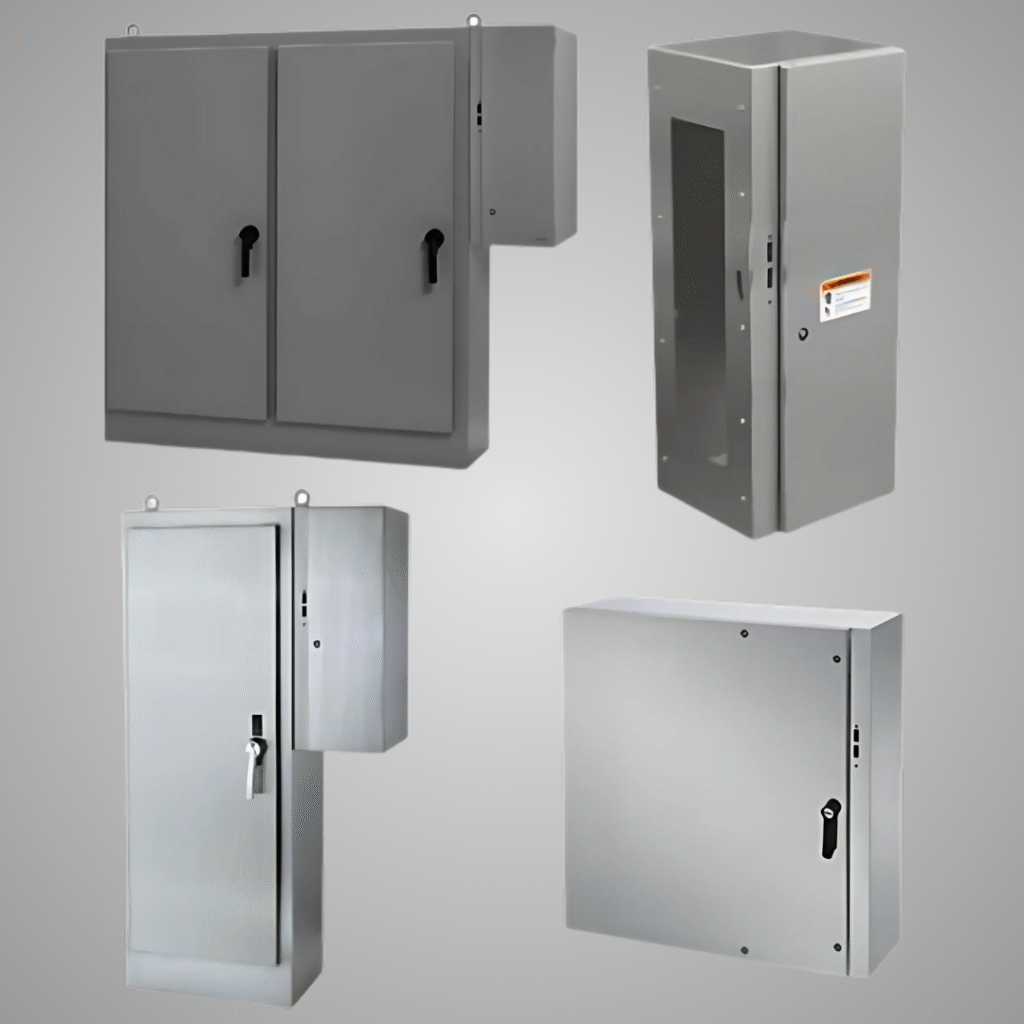

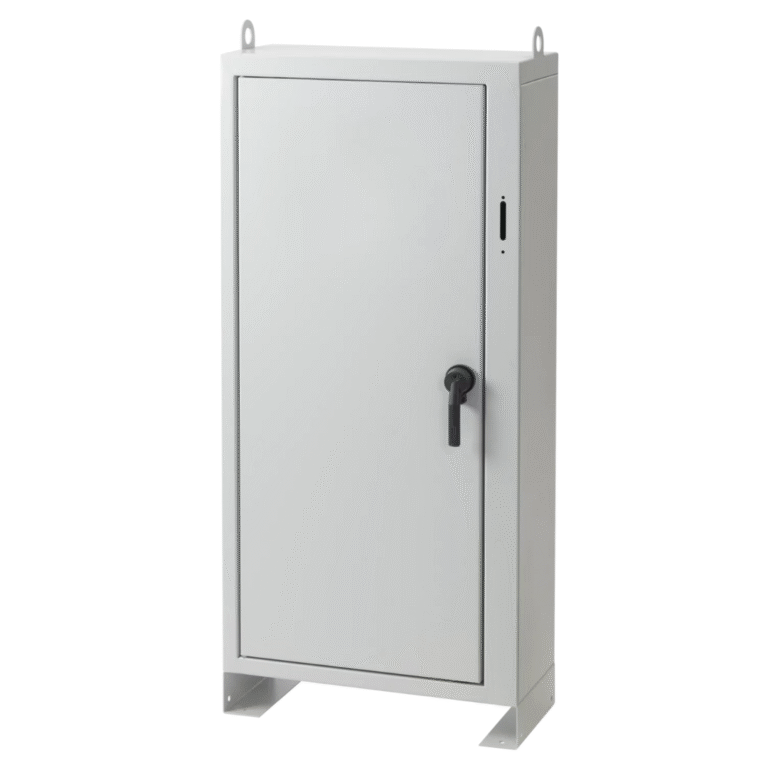

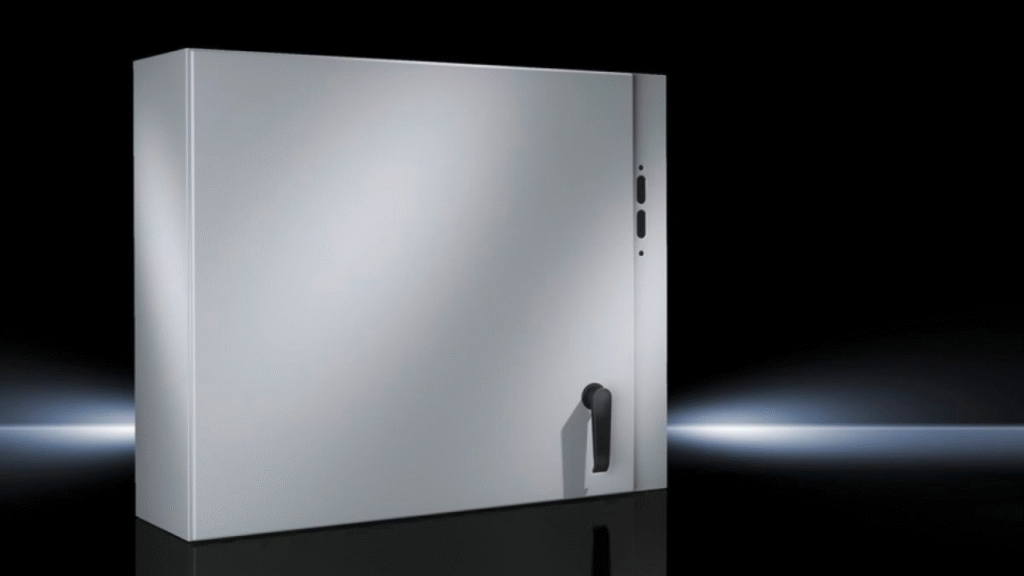

Disconnect enclosures

Disconnect enclosures serve a dual function ensuring personnel safety during service operations and providing environmental protection for power distribution components. Our disconnect enclosures are engineered for integration into complex electrical architectures across industrial and infrastructure-grade environments. These units meet stringent technical requirements where system uptime, fault containment, and regulatory compliance are mandatory.
HY D R O L Y SIS RESIS T ANCE

Material Type & Grade

14-gauge cold-rolled steel / 316L stainless steel / Aluminum 5052-H32

Surface Finish

Polyester powder-coated (RAL 7035) / Brushed finish for stainless steel

IP Rating

IP66 / IP67 (per IEC 60529)

NEMA Rating

NEMA 4, 4X, 12, 13 (application dependent)

Impact Resistance (IK)

IK10 (20 joules impact per IEC 62262)
Get Latest Price
Get quote

Product Description

Our disconnect enclosures support arc-rated construction in accordance with IEEE C37.20.7. Internal compartmentalization is available for line and load isolation, reducing exposure during maintenance. Interlocked mechanisms are integrated with mechanical door systems to prevent access under load, and designs support remote trip functionality where required.

EMI/RFI Shielding

Conductive gasketing with 60 dB attenuation at 1 GHz

Thermal Management

Optional filtered fan kits / heat exchangers / passive venting

Grounding & Bonding Points

Pre-welded grounding studs; copper bonding straps included

Sealing System

Closed-cell polyurethane or silicone gasket; continuous pour-in-place gasket

Fire Resistance Rating

UL 94 V-0 rated components; enclosure meets IEC 60695-2-10 thermal resistance

Environmental Compliance

RoHS, REACH, and WEEE compliant

Load Bearing Capacity

Up to 150 kg static load on door (with reinforced hinges)

Operating Temperature Range

-40°C to +70°C standard; high-temp versions available up to +105°C

UV Stability

UV-resistant coatings and materials per ISO 4892-2; suitable for outdoor use

Salt Spray Resistance

1000+ hours (per ASTM B117 for coated / stainless steel variants)

Seismic Rating

Certified to IBC 2018 / OSHPD pre-approved designs for seismic zones

Mounting Provisions

Wall-mount, floor-mount, or pole-mount; internal DIN rails and back panels

Dimensions

Standard sizes from 400×300×200 mm to 1800×1200×500 mm; custom sizes on request

Weight Capacity

Supports internal load of up to 200 kg with reinforced structure

Lock Type

Quarter-turn, padlockable handle, or 3-point locking with key interlock

Technical Advantages

For corrosive or washdown environments, enclosures are fabricated using 316L stainless steel with electropolished surfaces to minimize microbial retention or chemical attack. Gasket materials are selected based on chemical resistance (EPDM, silicone, or Viton) and validated to IP66/IP69K ingress protection standards. For non-metallic variants, polycarbonate and fiberglass-reinforced polyester models are UL 746C rated for outdoor UV exposure and dielectric strength.

Enclosures are compatible with UL98 or UL508-rated disconnect switches and circuit breakers, ensuring safe load interruption at full rated current. Short-circuit withstand ratings up to 100kAIC are supported, and units are available pre-fitted with fuse blocks or molded case circuit breakers with visible blade technology. Provision for control wiring isolation, terminal segregation, and operator interface devices (e.g., HMI) is provided per IEC 60204-1.

Let's Get Started

Need reliable Sockets for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Manufacturing Plants

Used for motor isolation during maintenance; supports lockout/tagout and line-load disconnection.

Oil and Gas Facilities

Provides hazardous location-rated disconnects for zone-classified electrical equipment isolation.

Water Treatment Plants

Isolates pump and blower systems; enclosures rated for high humidity and corrosive atmospheres.

Power Generation Stations

Enables circuit isolation in medium-voltage auxiliary systems; supports arc flash containment requirements.

Transportation Infrastructure

Disconnects used for trackside or roadside power systems; enclosures designed for vibration and weather exposure.

Food and Beverage Processing

Isolates equipment in washdown zones; enclosures rated IP69K and compliant with sanitary design standards.

Mounting Constraints and Retrofit Adaptability

Procurement for retrofit applications often requires form-factor compatibility and ease of field termination. Enclosure models include detailed 3D CAD data with full dimensional tolerances. Adjustable DIN rail systems, universal back panels, and slotted gland plates support cable routing flexibility and conduit entry. Floor-standing models include integrated base channels and leveling pads; wall-mount variants include heavy-duty brackets engineered for seismic compliance (per OSHPD/IBC zones).

All enclosures are manufactured in accordance with UL 508A, CSA C22.2, and IEC 62208 standards. Materials and components meet RoHS and REACH directives. Full documentation packages are available upon request, including BOM traceability, enclosure heat-rise analysis, electrical schematics for disconnect components, and torque specifications for all terminals and fasteners.

Disconnect Enclosures

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How does Frigate ensure short-circuit protection in custom disconnect enclosures for motor control centers?

Frigate integrates UL 98 or UL 508-rated switches with proper SCCR coordination, based on system fault calculations. Copper busbars are sized using IEC 61439 standards to withstand thermal and mechanical stress. Enclosure reinforcements prevent structural deformation during fault conditions.

What methods does Frigate use to prevent condensation inside outdoor disconnect enclosures?

Frigate uses pressure compensation vents and anti-condensation heaters for humidity control. Desiccant packs and drain holes are added based on site-specific climate data. Thermal simulation is used to predict dew point conditions under load cycles.

How are Frigate’s disconnect enclosures designed to handle high inrush currents in inductive loads?

Switchgear components are selected to tolerate inrush currents based on IEC 60947-3 making/breaking capacity ratings. Frigate incorporates arc-resistant contact systems and pre-charge resistors if needed. Internal layout minimizes loop inductance to reduce transient voltage spikes.

How does Frigate handle grounding continuity in painted or powder-coated enclosures?

Frigate grinds coating at ground lug contact points and uses serrated washers to ensure metal-to-metal bonding. Internal bonding straps connect door and panel grounding. All grounding paths are tested per UL 508A continuity requirements.

What seismic considerations does Frigate include in disconnect enclosures for critical infrastructure?

Frigate designs enclosures with structural bracing and base anchors tested to IBC 2018 and IEEE 693 standards. Component fastening and mounting rails are verified through modal and static load simulations. Certifications are available for Zone 4 seismic compliance.

How does Frigate customize disconnect enclosures for project-specific electrical loads and switching requirements?
  • Frigate evaluates system voltage, current, and fault levels before configuration.
  • Integrates UL98/UL508 switches, MCCBs, or fusible disconnects based on load.
  • Busbars and conductor routing optimized to control heat rise and voltage drop.
  • Layouts adapted for motor controls, pump systems, or distributed power nodes.
  • Factory assembly and testing reduce field installation time.
What manufacturing processes does Frigate use to ensure durability in harsh industrial environments?
  • CNC laser cutting and robotic welding ensure structural precision.
  • Stainless steel units undergo electropolishing and passivation.
  • Steel enclosures receive phosphate treatment and powder coating.
  • Automated pour-in-place gaskets ensure consistent sealing.
  • Units pass dimensional and ingress protection checks before shipment.
How does Frigate support OEMs and EPC contractors during large-scale electrical infrastructure projects?
  • Engineering support during design and specification stages.
  • 3D CAD and STEP models provided for system integration.
  • Support for OEM branding, labeling, and documentation.
  • Scalable production for high-volume infrastructure projects.
  • Project coordination for manufacturing timelines and logistics.
What testing procedures does Frigate perform before shipping disconnect enclosures?
  • Mechanical inspection of doors, hinges, and locking systems.
  • Grounding continuity checks for bonding integrity.
  • Operational testing of switches and interlock mechanisms.
  • Seal and gasket inspection for enclosure protection.
  • Optional test reports and traceability documentation provided.
What documentation and certification packages does Frigate provide with disconnect enclosures?
  • Complete BOM traceability for structural and electrical parts.
  • Electrical schematics, wiring diagrams, and terminal schedules.
  • Compliance documentation for UL, CSA, IEC, RoHS, and REACH.
  • Installation guides, torque values, and maintenance instructions.
  • Optional FAT reports and thermal analysis documentation.
