Commercial Kitchen Equipment Heaters

In commercial kitchens, inconsistent heating and equipment downtime can disrupt operations and drive-up costs. Our Commercial Kitchen Equipment Heaters are engineered to deliver reliable, high-performance heating, tackling these challenges head-on.

Heating Element Material

Nickel-Chromium (NiCr) alloy or Stainless Steel (Grade 304/316) for high heat performance

Sheath/Outer Material

Stainless Steel (SS 304/316) or Incoloy for durability and resistance to grease/moisture

Voltage Rating

208 V – 240 V (single-phase); up to 480 V (three-phase) for industrial kitchen systems

Power Rating

2 kW to 15 kW, scalable based on equipment size and heating demands

Temperature Range

50°C to 300°C for cooking/heating; up to 450°C for specialized high-heat applications
Get Latest Price
Get quote

Product Description

Kitchen equipment often operates in harsh conditions such as grease, moisture, and frequent cleaning can degrade standard heaters. Our solutions counter this with corrosion-resistant sheathing and high-grade insulation, reducing wear and extending service life.

Heat-Up Time

3 to 10 minutes to reach target temperature, depending on power and application

Resistance

4 ohms to 60 ohms, customized to voltage and power specifications

Insulation Material

Magnesium Oxide (MgO) or High-Temperature Ceramic for reliable heat containment

Corrosion Resistance

High resistance to moisture, grease, and cleaning chemicals; ideal for kitchen environments

Dimensions

Length: 250 mm to 1200 mm; Diameter: 8 mm to 25 mm (customizable per equipment design)

Shape/Configuration

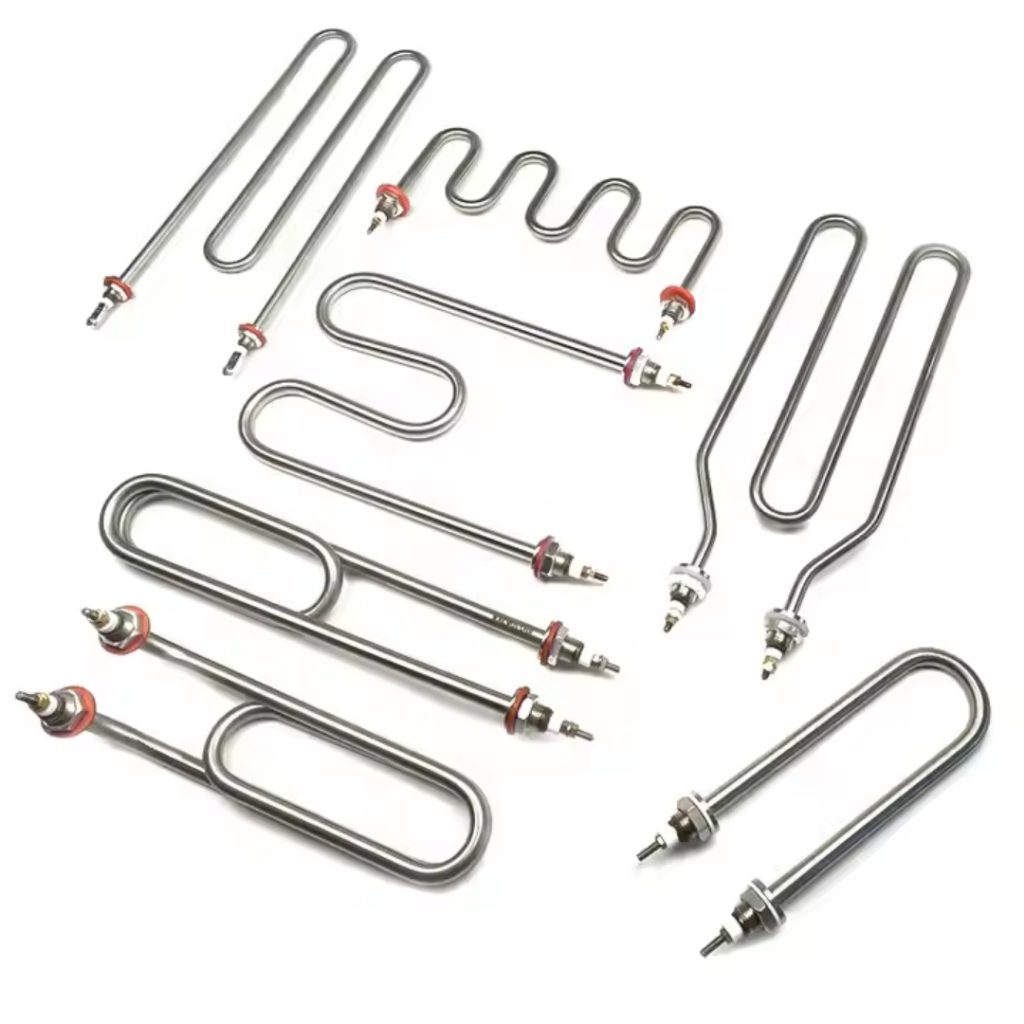

Tubular, flat, or coiled; adaptable to ovens, griddles, fryers, and steamers

Current-Carrying Capacity

10 A to 70 A, based on power rating and conductor specifications

Thermal Efficiency

Up to 90%, optimized for rapid heating and minimal energy loss

Mounting/Fitting Type

Flange, threaded (NPT/BSP), or clamp mounting; designed for easy integration

Safety Features

Overheat protection (thermal fuse), grounded sheath, and anti-dry-run functionality

Standards Compliance

Meets or exceeds UL 197, NSF/ANSI 4, and IEC 60335-2-9 standards for kitchen safety

Technical Advantages

Heaters in commercial kitchens often fail under constant use, leading to costly repairs and production halts. Our commercial kitchen equipment heaters are built for endurance, using nickel-chromium or stainless-steel elements sheathed in SS 316 or Incoloy.

Compatibility with existing designs can complicate sourcing and assembly. Our Commercial Kitchen Equipment Heaters are designed for versatility, offering power ratings from 2 kW to 15 kW and mounting options like flanges or threaded fittings.

Let's Get Started

Need reliable Heating Elements for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Foodservice Chains

Powers ovens and griddles in restaurants and fast-food outlets, ensuring consistent cooking under high-demand conditions.

Catering Equipment

Supports portable steamers and warmers for large-scale events, delivering reliable heating in mobile setups.

Bakery Systems

Drives high-temperature ovens for industrial baking, maintaining precision for uniform product quality.

Institutional Kitchens

Equips hospital and school cafeterias with durable heaters for daily, heavy-use cooking and reheating.

Food Processing Units

Provides efficient heating for fryers and kettles in production lines, meeting stringent output requirements.

Hospitality Buffets

Ensures steady heat in warming trays and bains-marie, supporting seamless service in hotels and resorts.

High-Performance Heating Solutions

Slow or uneven heating can compromise kitchen productivity and food consistency. Our heating elements deliver rapid, uniform heat with current capacities of 10 A to 70 A and precision-engineered resistance (4-60 ohms).

Advanced construction minimizes heat loss and hot spots, supporting high-output applications like frying or baking. This capability ensures your equipment meets demanding performance standards, giving sourcing professionals confidence in a component that drives efficiency and quality.

Commercial Kitchen Equipment Heaters

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

What types of sheathing materials are available for your heaters, and how do they impact performance?

We offer sheathing in stainless steel (SS 304/316) and Incoloy, each designed for specific kitchen conditions. Stainless steel provides excellent durability and resistance to moisture, while Incoloy excels against grease and chemical cleaners. The right sheathing enhances heater longevity and maintains consistent heat output, reducing replacement costs and ensuring reliability—crucial for procurement teams in high-use environments.

How does thermal efficiency in your heaters improve operational performance?

Our commercial kitchen equipment heaters achieve up to 90% thermal efficiency through advanced insulation (e.g., magnesium oxide) and precision-engineered designs that minimize heat loss. This efficiency ensures rapid heating (3-10 minutes) and reduces energy consumption, directly impacting operational costs. For sourcing professionals, this translates to lower utility expenses and higher equipment productivity, aligning with budget and performance goals.

What is the significance of power rating options in commercial kitchen heaters?

Power ratings, ranging from 2 kW to 15 kW, determine the heater’s capacity to meet diverse kitchen demands— from small griddles to large fryers. Higher ratings support faster heat-up and sustained performance under heavy loads, while lower ratings optimize energy use for compact units. Choosing the right rating ensures efficient operation and minimizes over-specification costs, a key consideration for purchasing managers balancing quality and budget.

How do mounting types affect the integration and reliability of your heaters?

Our commercial kitchen equipment heaters come with mounting options like flanges, threaded fittings (NPT/BSP), or clamps, each tailored to specific equipment designs. Flanges ensure secure attachment in ovens, while threaded fittings suit steamers, reducing vibration-related wear. The right mounting type simplifies assembly, enhances durability, and prevents operational failures—offering procurement heads a reliable, easy-to-integrate solution that cuts production time.

What testing standards ensure the quality of your commercial kitchen heaters?

Our commercial kitchen equipment heaters are rigorously tested to meet UL 197 (commercial cooking equipment), NSF/ANSI 4 (food safety), and IEC 60335-2-9 (electrical safety) standards. These benchmarks verify performance under heat, moisture, and mechanical stress, ensuring consistent output and safety in real-world kitchen conditions. For sourcing teams, this compliance guarantees a high-quality component that reduces liability risks and meets regulatory demands.
