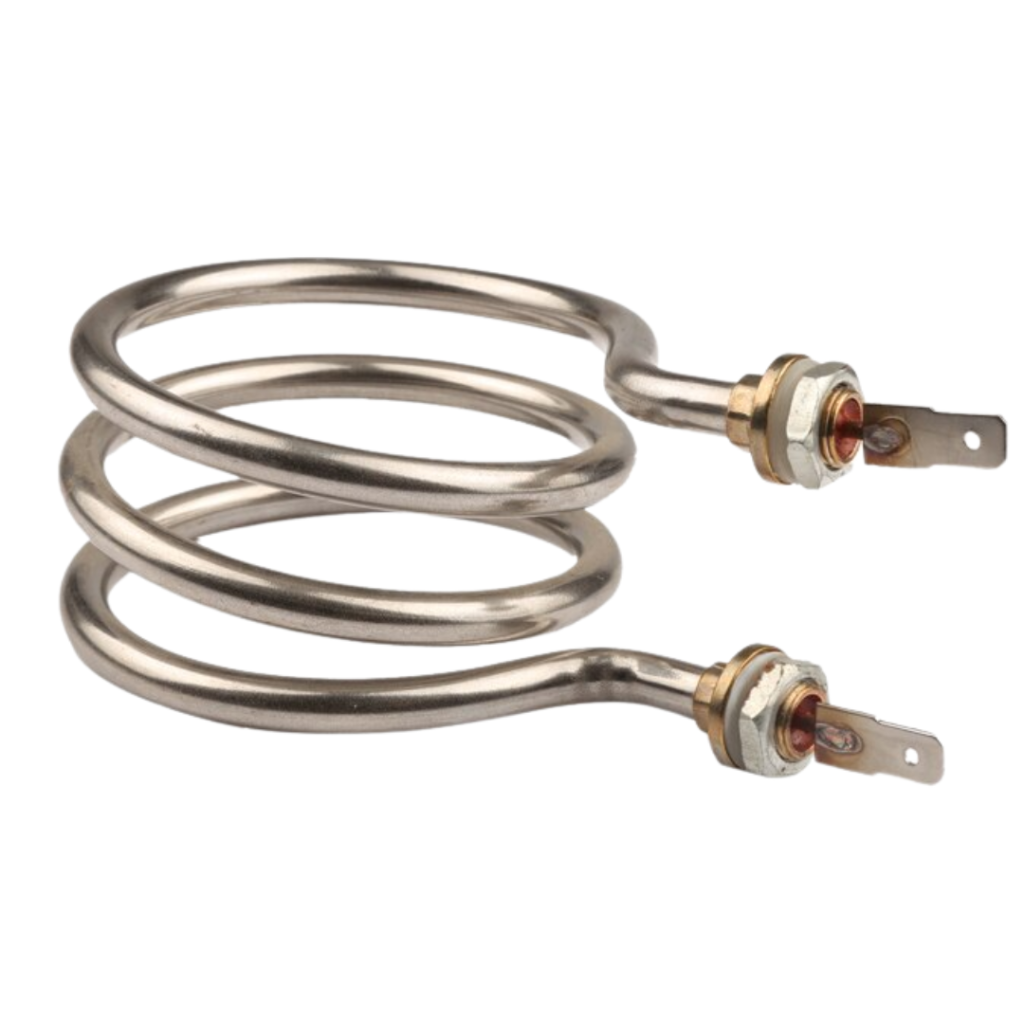

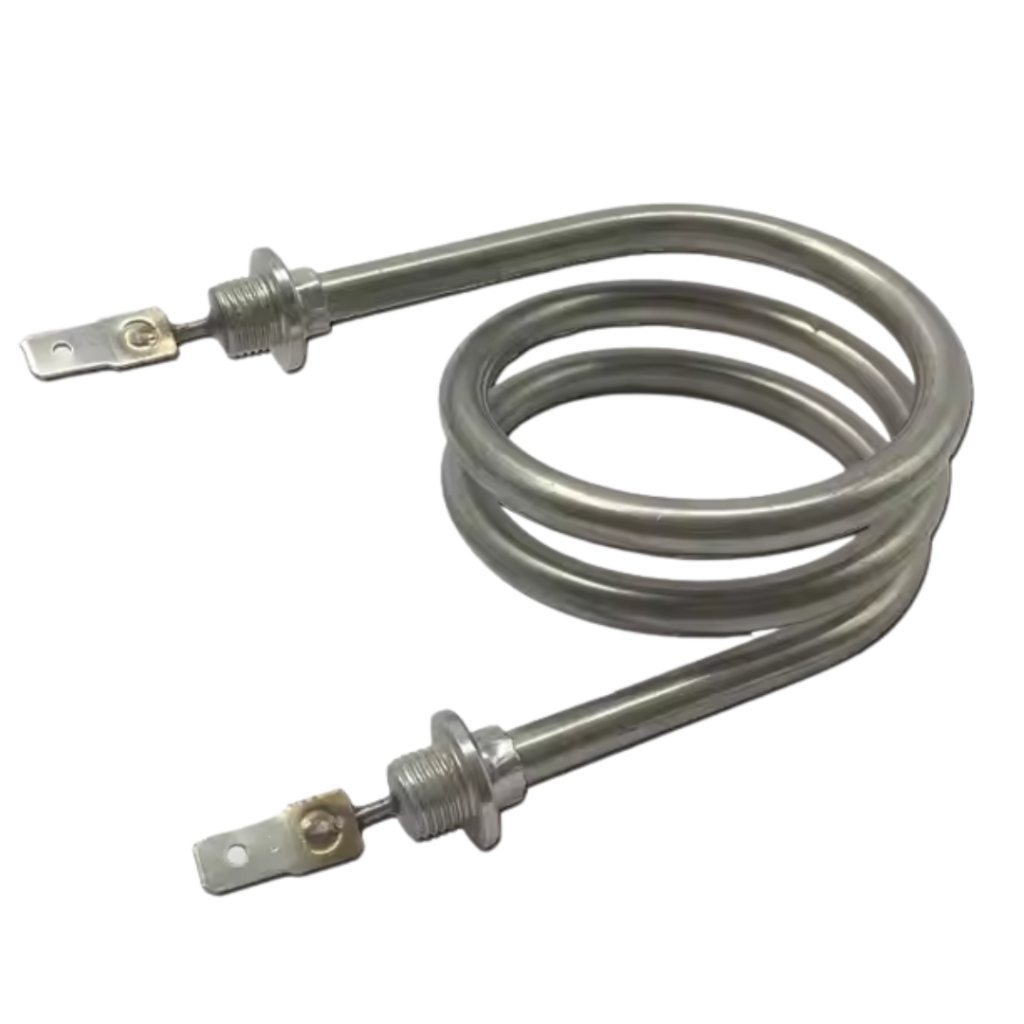

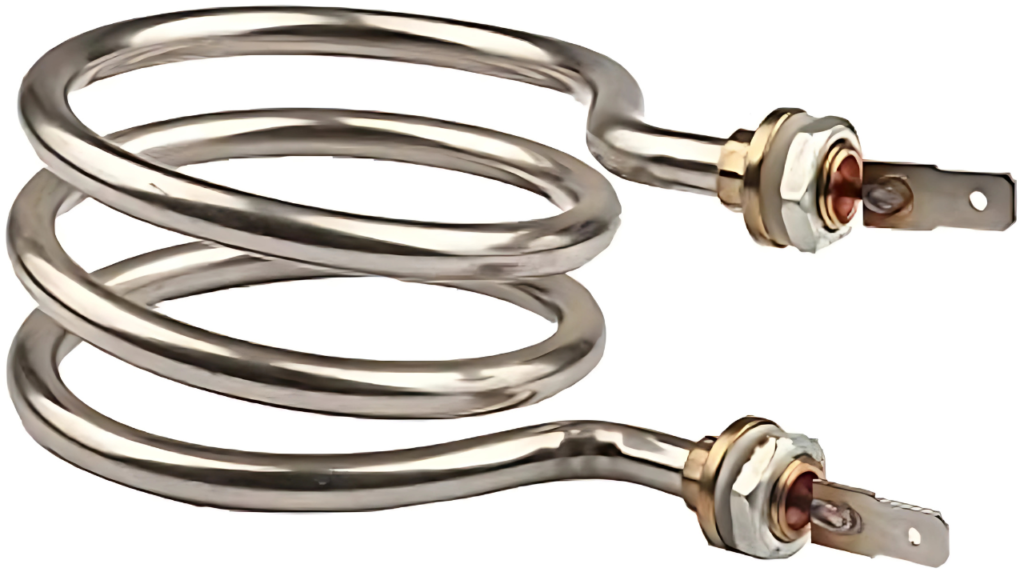

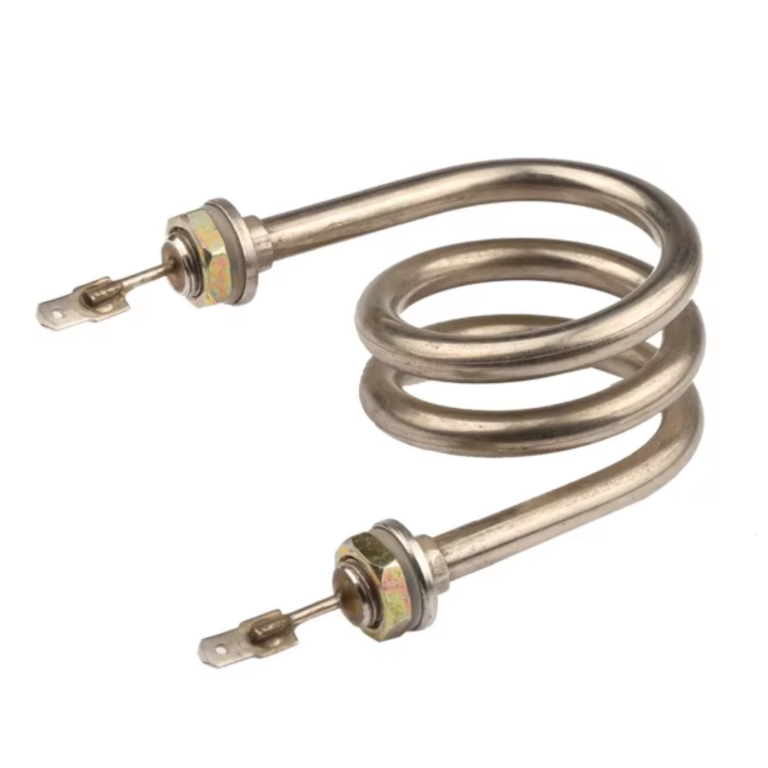

Water Dispenser Heating Elements

If you’re seeking heating elements that ensure consistent performance and meet stringent industry standards, our Water Dispenser Heating Elements deliver advanced solutions to key pain points in water dispensing systems. Engineered for reliability, they enhance operational efficiency, safety, and longevity critical factors for your manufacturing success.

Heating Element Material

Nickel-Chromium (NiCr) alloy or Stainless Steel (Grade 304/316) for efficient heat transfer

Sheath/Outer Material

Stainless Steel (SS 304/316) for corrosion resistance in water-based environments

Voltage Rating

110 V – 240 V (single-phase); customizable up to 380 V for industrial dispensers

Power Rating

500 W to 3 kW, depending on dispenser capacity and heating requirements

Temperature Range

40°C to 100°C for standard hot water dispensing; up to 120°C for specialized units
Get Latest Price
Get quote

Product Description

Slow heating and limescale buildup often plague water dispensers, leading to delays and maintenance headaches. Our water dispenser heating elements are designed to minimize heat-up times (2-5 minutes) and resist corrosion, using high-quality stainless-steel sheathing.

Heat-Up Time

2 to 5 minutes to reach target temperature, based on power and water volume

Resistance

10 ohms to 80 ohms, tailored to voltage and power specifications

Insulation Material

Magnesium Oxide (MgO) or High-Temperature Ceramic for safe, effective heat containment

Corrosion Resistance

High resistance to water, limescale buildup, and humidity; suitable for continuous use

Dimensions

Length: 150 mm to 500 mm; Diameter: 6 mm to 12 mm (customizable per tank design)

Shape/Configuration

Tubular or U-shaped; designed to fit compact water tanks or inline heating systems

Current-Carrying Capacity

5 A to 25 A, depending on power rating and conductor sizing

Thermal Efficiency

Up to 92%, optimized for rapid heating and minimal energy loss

Mounting/Fitting Type

Threaded (NPT/BSP), flange, or immersion mounting; adaptable to dispenser designs

Safety Features

Overheat protection (thermal cutoff), anti-dry-burn design, and grounded sheath

Standards Compliance

Meets or exceeds UL 499, IEC 60335-2-15, and NSF/ANSI 61 standards for water safety

Technical Advantages

Water dispensers face constant exposure to moisture and temperature fluctuations, risking component failure. Our heating elements are built with nickel-chromium or stainless steel (SS 304/316) and insulated with magnesium oxide, maintaining integrity up to 120°C.

Precise temperature control is essential for user safety and energy efficiency. Our water dispenser heating elements feature optimized resistance (10-80 ohms) and thermal efficiency up to 92%, ensuring stable heat output without wasteful overcooking.

Let's Get Started

Need reliable Heating Elements for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Hospitality Beverage Systems

Powers hot water dispensers in luxury hotels and resorts, ensuring consistent heating for high-end tea/coffee stations and guest services.

Food Processing Plants

Integrates into inline water heating systems for food prep and sanitation, delivering precise temperatures in high-throughput production lines.

Pharmaceutical Manufacturing

Supports dispensers in cleanroom environments, providing safe, controlled hot water for lab processes and equipment sterilization.

Commercial Laundry Facilities

Equips water heaters in industrial washing systems, maintaining reliable heat for large-scale laundry operations in hotels and hospitals.

Retail Coffee Equipment

Enhances point-of-sale hot water dispensers for coffee chains and convenience stores, ensuring durability under continuous commercial demand.

Marine Vessel Galley Systems

Provides corrosion-resistant heating for onboard water dispensers in ships and yachts, meeting the needs of crew and passengers in harsh conditions.

Water Dispenser Heating Elements

Corrosion Resistance for Seamless Performance

Every dispenser design demands a tailored heating solution to avoid integration challenges. Our Water Dispenser Heating Elements are custom engineered with flexible configurations of tubular or U-shaped and mounting options like threaded fittings or flanges.

Harsh water conditions and constant use can weaken standard heaters, leading to downtime. Our elements are manufactured with corrosion-resistant sheathing and reinforced safety features, including overheat protection and anti-dry-burn design.

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How do your heating elements reduce maintenance costs for our water dispensers?

Our water dispenser heating elements use stainless steel (SS 304/316) sheathing to resist limescale and corrosion, significantly extending service life in water-based environments. This durability cuts down on replacement frequency and repair downtime, offering procurement teams a cost-effective solution that lowers the total cost of ownership and boosts your product’s appeal to end customers.

What lead times can we expect when ordering custom heating elements for our production runs?

We offer flexible lead times starting at 2-4 weeks for custom orders, depending on specifications like dimensions (150-500 mm) or power ratings (500 W-3 kW). Our streamlined manufacturing process ensures quick turnaround without compromising quality, helping sourcing professionals meet tight production schedules and maintain supply chain efficiency.

How do rapid heat-up times benefit both our manufacturing costs and end-user satisfaction?

With heat-up times of 2-5 minutes and 92% thermal efficiency, our elements reduce energy use during production testing and deliver fast hot water for end users. This dual advantage lowers your operational costs while enhancing product performance, giving purchasing managers a competitive edge in markets where speed and efficiency drive sales.

Can your heating elements be adapted for both small-scale and high-volume dispenser designs?

Yes, our elements are customizable in shape (tubular or U-shaped), size, and mounting (threaded, flange), fitting everything from compact retail units to industrial-scale systems. This versatility simplifies sourcing by providing a single, reliable component across your product line, reducing inventory complexity and costs for procurement heads scaling production.

What safety certifications do your heating elements carry to support our regulatory compliance?

Our elements comply with UL 499, IEC 60335-2-15, and NSF/ANSI 61 standards, ensuring safety for electrical performance and drinking water contact. These certifications minimize regulatory hurdles, accelerate your product approvals, and enhance marketability key benefits for sourcing teams looking to meet client specs and secure contracts with confidence.
