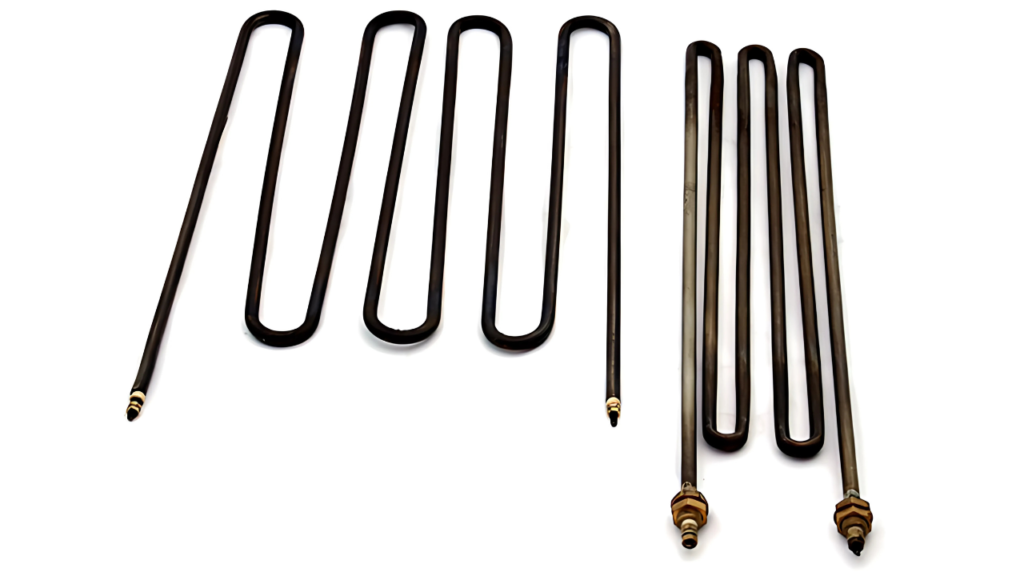

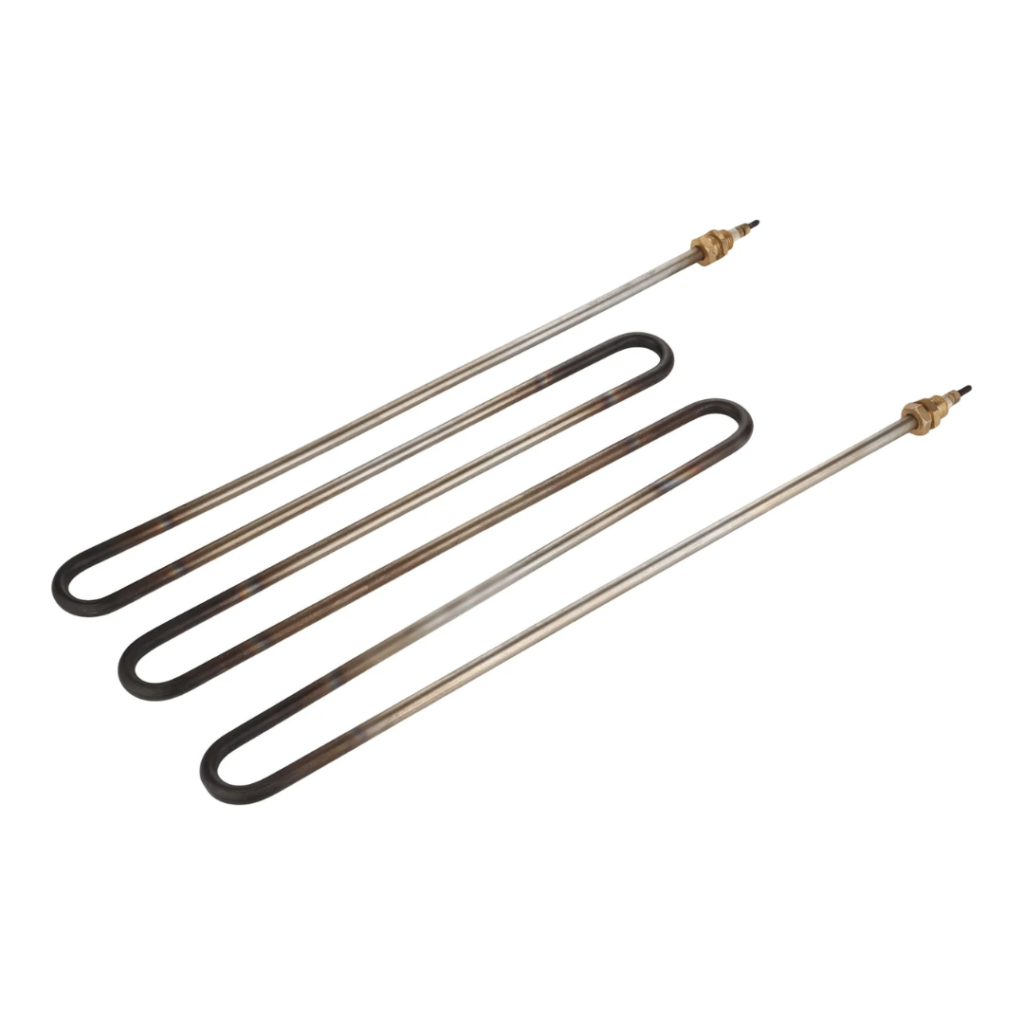

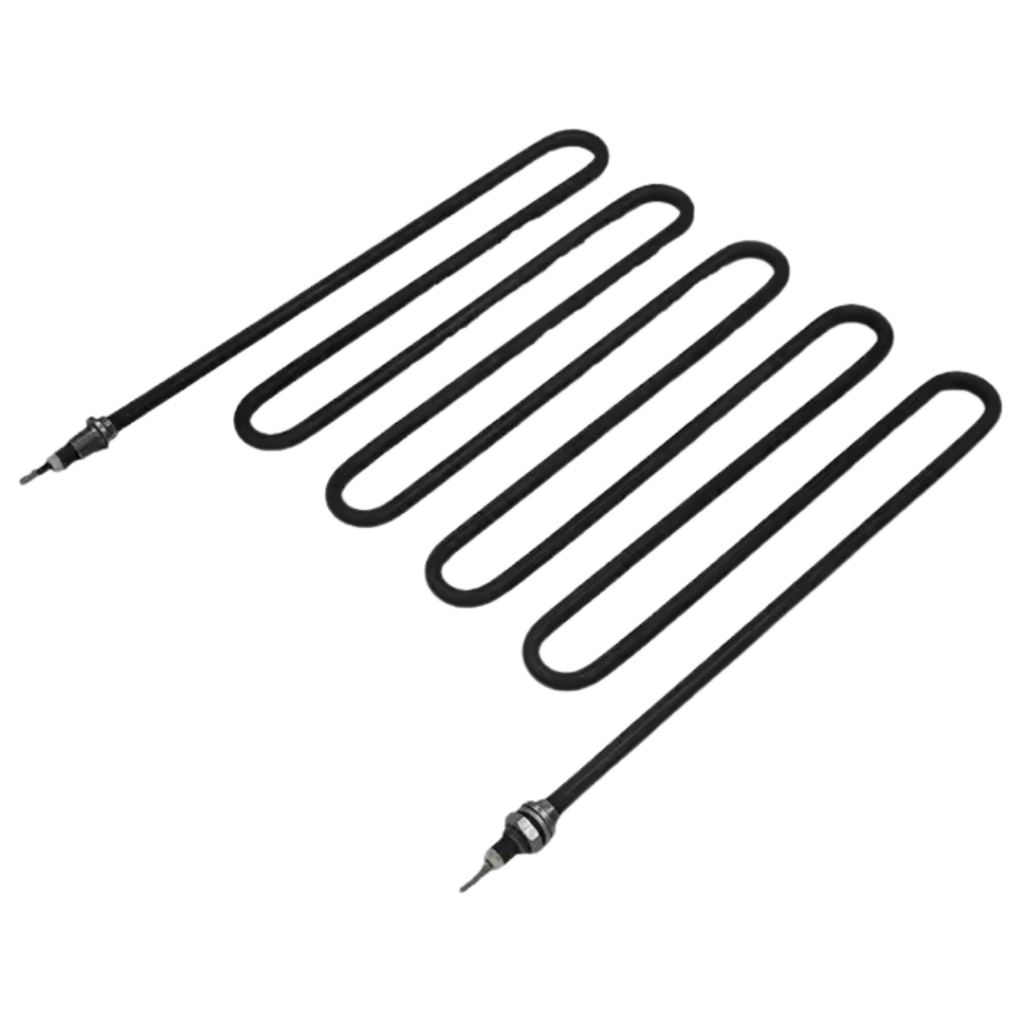

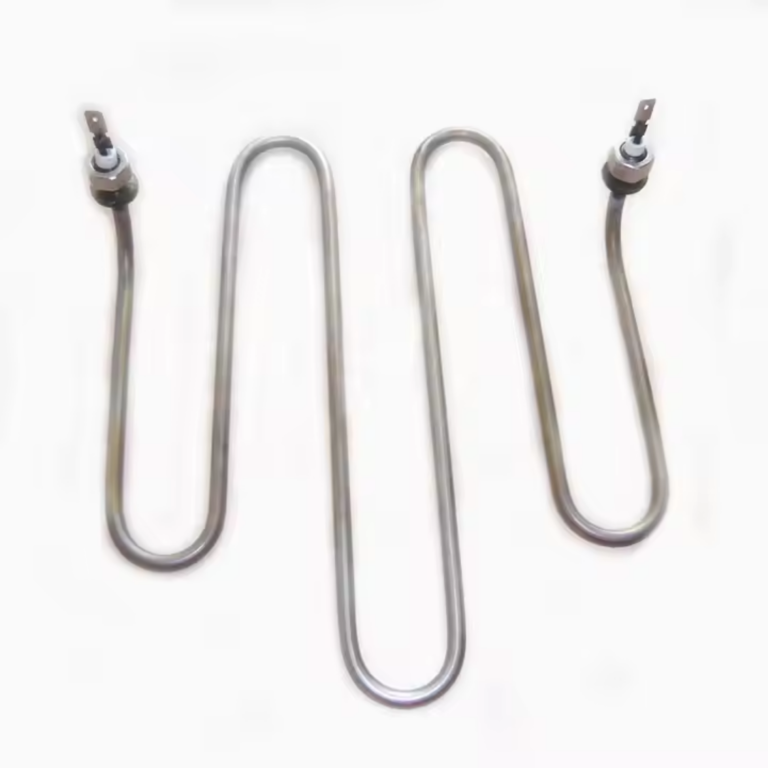

Pizza / Bread Oven Heating Elements

When outfitting pizza and bread ovens, achieving consistent, high-quality heat is a make-or-break factor. Our Pizza / Bread Oven Heating Elements are precision-engineered to tackle the toughest challenges in commercial baking, delivering robust performance that ensures uniform baking, rapid preheating, and lasting durability.

Heating Element Material

Nickel-Chromium (NiCr) alloy or Stainless Steel (Grade 310/316) for high-temperature use

Sheath/Outer Material

Stainless Steel (SS 310/316) or Incoloy for heat and corrosion resistance

Voltage Rating

208 V – 240 V (single-phase); up to 480 V (three-phase) for commercial ovens

Power Rating

3 kW to 20 kW, scalable based on oven size and baking capacity

Temperature Range

50°C to 500°C for baking and high-heat pizza cooking; up to 600°C for specialized units
Get Latest Price
Get quote

Product Description

Uneven heat, slow warm-up, and frequent failures plague many oven designs, driving up costs and frustrating end users. Our heating elements counter these issues with advanced nickel-chromium or stainless steel construction, offering even heat distribution and heat-up times as low as 5-15 minutes.

Heat-Up Time

5 to 15 minutes to reach target temperature, depending on power and oven design

Resistance

3 ohms to 50 ohms, customized to voltage and power specifications

Insulation Material

Magnesium Oxide (MgO) or High-Temperature Ceramic for superior heat retention

Corrosion Resistance

High resistance to moisture, grease, and oven cleaners; suitable for continuous baking

Dimensions

Length – 300 mm to 1500 mm; Diameter – 8 mm to 25 mm (customizable per oven chamber)

Shape/Configuration

Tubular, coiled, or flat; designed for even heat distribution in oven cavities

Current-Carrying Capacity

15 A to 80 A, depending on power rating and conductor sizing

Thermal Efficiency

Up to 90%, optimized for uniform baking and energy efficiency

Mounting/Fitting Type

Flange, threaded (NPT/BSP), or bracket mounting; adaptable to oven designs

Safety Features

Overheat protection (thermal fuse), grounded sheath, and high-temperature cut-off

Standards Compliance

Meets or exceeds UL 197, IEC 60335-2-36, and NSF/ANSI 4 standards for oven safety

Technical Advantages

Oven heaters face relentless heat cycles and harsh conditions, risking burnout and costly repairs. Our elements are forged from SS 310/316 or Incoloy, paired with magnesium oxide insulation, to withstand temperatures up to 500°C (600°C for specialized needs).
High energy costs and inconsistent baking can erode profitability. With power ratings from 3 kW to 20 kW and thermal efficiency up to 90%, our elements deliver rapid, uniform heating tailored to your oven’s specs.

Let's Get Started

Need reliable Heating Elements for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Commercial Pizzeria Chains

Powers high-speed pizza ovens in fast-casual restaurants, ensuring consistent crust quality under tight schedules.

Artisanal Bakery Lines

Supports precision baking in specialty bread ovens for wholesale production, meeting strict temperature demands.

Food Truck Ovens

Equips compact, mobile baking units with durable, efficient heating for on-the-go pizza and pastry prep.

Institutional Catering Systems

Enhances large-scale ovens in schools and prisons, delivering reliable heat for bulk meal production.

Frozen Dough Processing

Integrates into industrial proofing and baking systems, maintaining uniform heat for high-volume frozen goods.

Hospitality Banquet Equipment

Drives buffet ovens in hotels and event centers, ensuring steady performance for continuous service.

Pizza / Bread Oven heating elements

Precision Heating for Optimal Baking

Fitting heaters into unique oven designs shouldn’t slow your assembly line. Our elements come in customizable shapes of tubular, coiled, or flat and sizes (300-1500 mm), with mounting options like flanges or brackets.
Erratic heat ruins batches and reputations. Our Pizza / Bread Oven heating elements feature precise resistance (3-50 ohms) and safety features like overheat protection and grounded sheathing, ensuring stable, even heat across the oven chamber.

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How do your Pizza / Bread Oven heating elements ensure uniform baking across large oven chambers?

Our elements are engineered with nickel-chromium or SS 310/316 materials and available in tubular, coiled, or flat shapes to distribute heat evenly up to 500°C. This consistency eliminates hot spots, ensuring every pizza or loaf meets quality specs. For procurement teams, this reduces waste and enhances end-user satisfaction, strengthening your product’s reliability in competitive markets.

What cost savings can we expect from the durability of your Pizza / Bread Oven heating elements?

Built with corrosion-resistant Incoloy or SS 316 sheathing, our elements withstand grease, moisture, and high heat cycles, minimizing burnout and replacements. This durability slashes maintenance and downtime costs—key for sourcing professionals aiming to lower lifecycle expenses and deliver ovens with a strong ROI for their clients.

Can you meet tight production deadlines with custom heating element orders?

Yes, we offer lead times starting at 3-5 weeks for custom specs (e.g., 300-1500 mm lengths, 3-20 kW power), thanks to our efficient production process. This flexibility ensures you hit manufacturing deadlines without delays, a critical advantage for purchasing managers juggling schedules and supplier reliability in high-volume oven builds.

How do your Pizza / Bread Oven heating elements support energy-efficient oven designs?

With thermal efficiency up to 90% and heat-up times of 5-15 minutes, our elements optimize energy use while delivering rapid, consistent heat. This efficiency cuts operational costs for end users and aligns with sustainability goals, giving procurement heads a selling point that boosts marketability and meets client demands for greener equipment.

What safety features and certifications help us streamline regulatory approval?

Our elements include overheat protection, grounded sheathing, and compliance with UL 197, IEC 60335-2-36, and NSF/ANSI 4 standards. These features ensure safe, reliable operation up to 600°C, reducing risks and simplifying your certification process. For sourcing teams, this means faster market entry and confidence in meeting industry safety requirements without added hassle.
