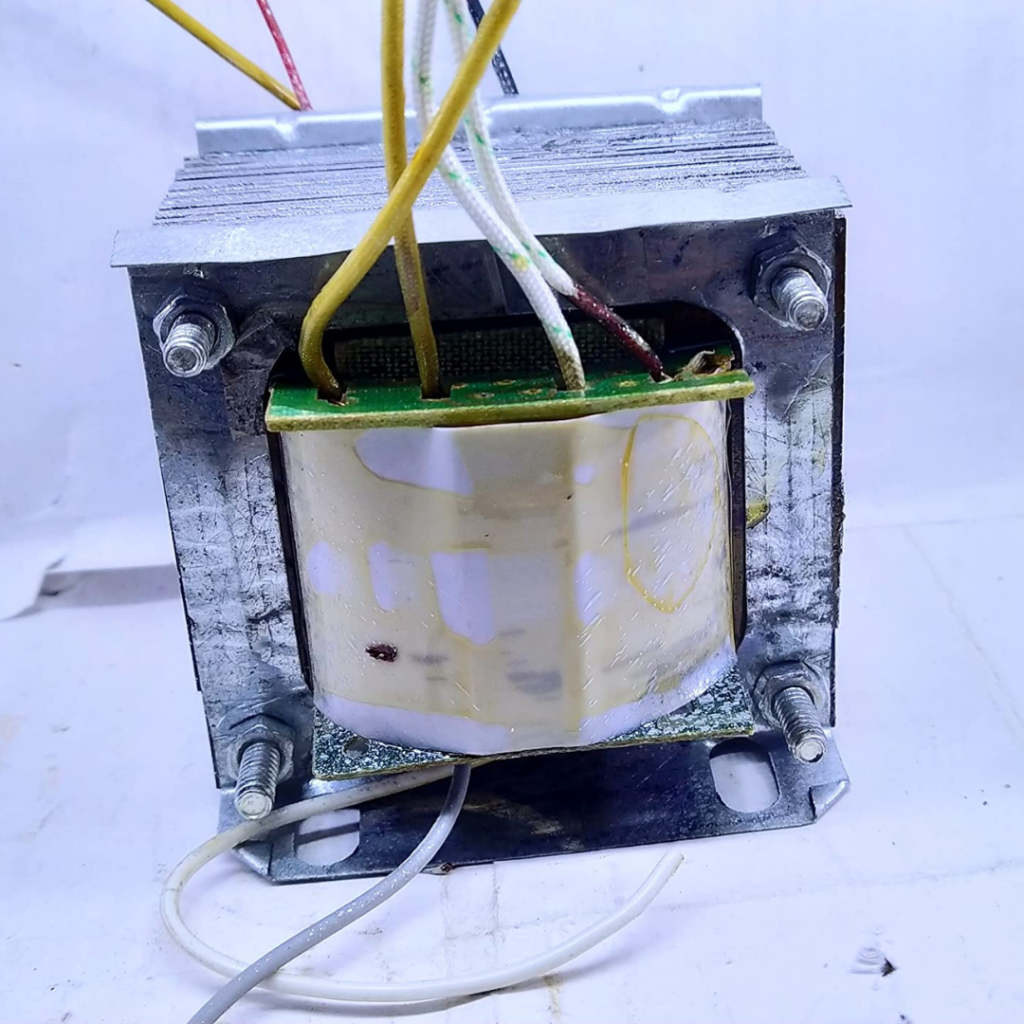

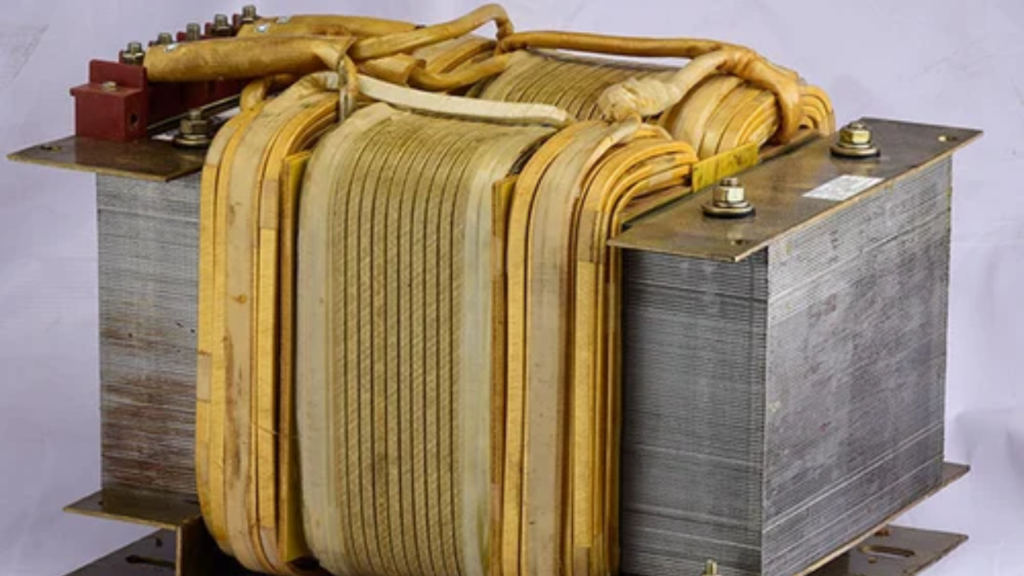

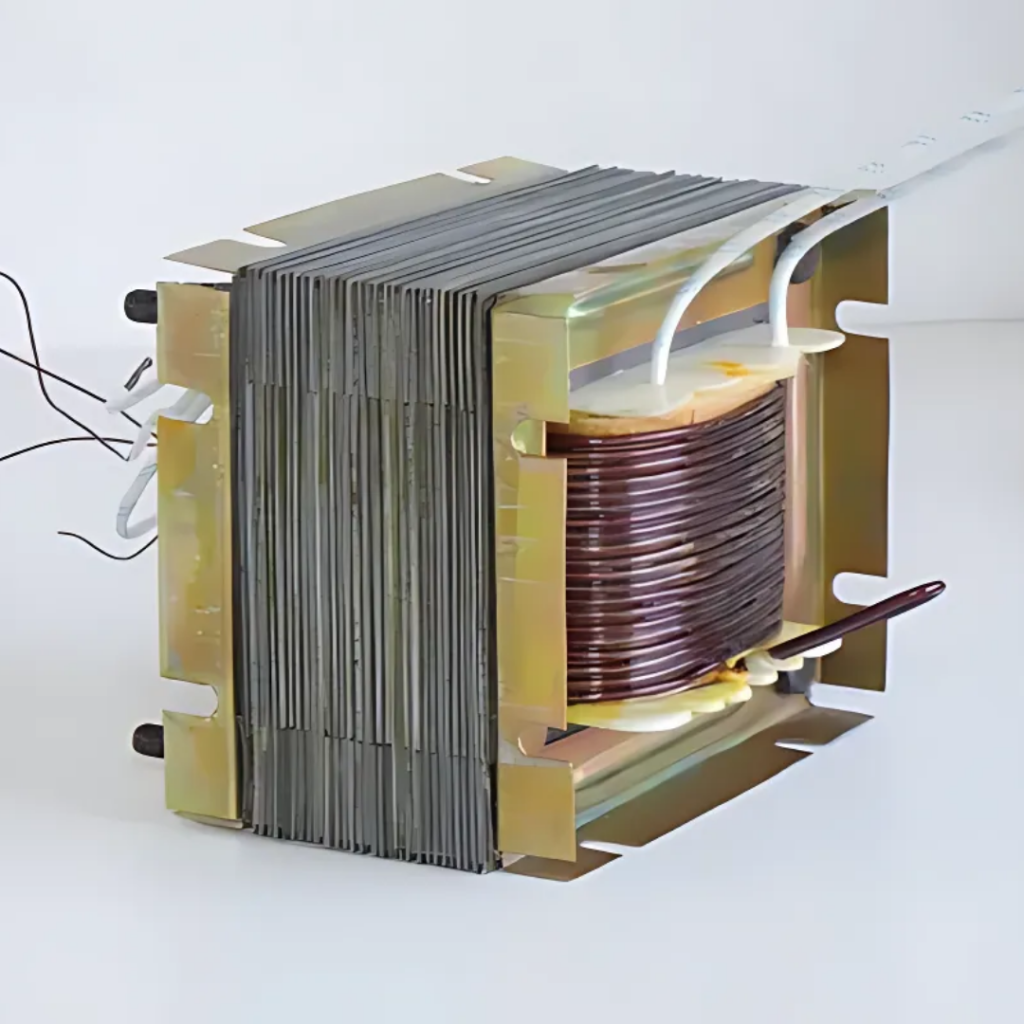

UPS & Inverter Transformers

Power backup systems need transformers that deliver efficient energy conversion and consistent operation for critical applications. Our UPS & Inverter Transformers achieve 92-98% efficiency with silicon steel or amorphous metal cores, ensuring steady power support for your manufacturing requirements.

Core Material

Silicon steel or amorphous metal for high efficiency and low core losses

Winding Material

Copper wire, enamel-coated (aluminum optional) for durability and efficient current flow

Voltage Rating

Primary: 110 V – 480 V; Secondary: 12 V – 240 V (customizable for UPS/inverter designs)

Power Rating

100 VA to 10 kVA, suited for small to large UPS and inverter systems

Frequency Range

50 Hz to 400 Hz, covering standard mains and high-frequency inverter applications
Get Latest Price
Get quote

Product Description

Unstable transformers can disrupt energy flow and compromise your production uptime. We design these units with copper windings to handle frequencies from 50 Hz to 400 Hz, providing dependable performance across your backup systems.

Efficiency

92% to 98%, optimized for power conversion with minimal energy loss

Temperature Range

Operating: -25°C to 100°C; maximum winding temperature rise: 65°C above ambient

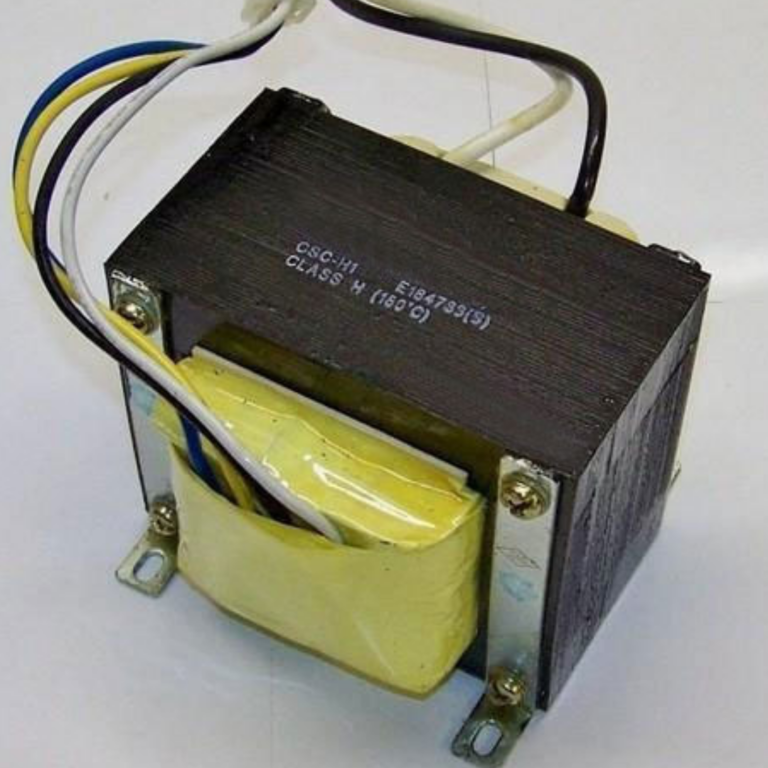

Insulation Class

Class F (155°C) or Class H (180°C), depending on thermal requirements

Leakage Current

<0.5 mA at rated voltage, ensuring safety and low EMI in power backup systems

Dimensions

Width: 50 mm to 300 mm; Height: 40 mm to 200 mm; Depth: 50 mm to 250 mm (customizable)

Weight

0.5 kg to 15 kg, depending on power rating and core size

Mounting Type

Chassis mount or panel mount; adaptable to UPS/inverter enclosure designs

Noise Level

<40 dB at full load, minimized for quiet operation in residential and commercial setups

Protection Features

Overload protection, short-circuit resistance, and thermal overload cutoff (optional)

Environmental Resistance

High resistance to humidity (up to 95% RH) and dust; vibration per IEC 60068-2-6

Standards Compliance

Meets or exceeds UL 5085-2, IEC 62040-1 (UPS), IEC 61558-2-6, EN 55032 (EMI), and RoHS

Technical Advantages

Backup applications depend on transformers that manage heat and maintain power output effectively. Our UPS & Inverter Transformers operate from -25°C to 100°C and handle power ratings from 100 VA to 10 kVA, ensuring robust energy delivery for your systems.

Inefficient power transfer or overheating can shorten equipment lifespan and stall production. Low leakage current below 0.5 mA and overload protection in these units keep your operations steady and secure under demanding conditions.

Let's Get Started

Need reliable Transformers for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

UPS Manufacturing

Powers desktop and server backup units, ensuring uninterrupted energy for IT equipment.

Inverter Production

Supports solar and wind inverters, delivering stable power for renewable energy systems.

Industrial Backup Systems

Operates machinery standby units, maintaining consistent energy during outages.

Telecom Power Supplies

Enhances battery backup circuits, providing steady voltage for communication networks.

Medical Equipment Backup

Drives hospital UPS units, ensuring constant power for life-support devices.

Commercial Power Solutions

Powers lighting and HVAC backups, sustaining operations in office and retail settings.

Audio Transformers with Consistent Signal Integrity

Effective manufacturing hinges on transformers that minimize noise and fit seamlessly into your backup designs. Our UPS & Inverter Transformers operate at under 40 dB with dimensions starting at 50 mm wide, enabling quiet function and smooth integration into your equipment.

Backup systems thrive with equipment that sustains power delivery without frequent oversight. Chassis or panel mounting options in these transformers enhance your production stability, supporting uninterrupted performance over extended use.

UPS & Inverter Transformers

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How well do UPS & Inverter Transformers maintain power during outages?

Our UPS & Inverter Transformers deliver consistent output with power ratings from 100 VA to 10 kVA, ensuring steady energy flow for backup systems. Uninterrupted power keeps your critical equipment operational when it’s needed most.

Are your transformers built to handle thermal stress in our inverter designs?

UPS & Inverter Transformers operate from -25°C to 100°C with Class F or H insulation, designed for high thermal endurance. Robust heat tolerance ensures steady performance in your solar or industrial inverters under demanding loads.

What advantages do we gain from low noise in our UPS production?

Our UPS & Inverter Transformers function at under 40 dB, minimizing noise in sensitive environments like offices or hospitals. Quiet operation enhances your product’s appeal, meeting end-user demands for silent power solutions.

How do your transformers simplify sourcing for our diverse UPS needs?

UPS & Inverter Transformers support a wide voltage range of 110 V to 480 V primary, adaptable to various UPS configurations. Broad compatibility reduces your need for multiple suppliers, streamlining procurement efforts.

Will these transformers protect our systems from power faults?

Our UPS & Inverter Transformers include overload protection and short-circuit resistance, safeguarding your equipment from electrical issues. Enhanced safety features maintain your production uptime, reducing costly disruptions.

How do Frigate UPS & Inverter Transformers ensure stable power delivery during outages?
  • Wide power rating range from 100 VA to 10 kVA to fit small office UPS units, large industrial inverters, and everything in between.
  • High 92–98% energy efficiency ensures minimal power loss, reducing operating costs for your systems.
  • Copper windings provide strong conductivity and long-term performance, even in demanding backup setups.
  • Broad frequency handling from 50 Hz to 400 Hz supports both standard mains and high-frequency inverter operations.
How are Frigate transformers designed to handle thermal stress in inverter systems?
  • Operates in a -25°C to 100°C temperature range, delivering consistent performance in extreme climates.
  • Built with Class F or Class H insulation, capable of enduring high heat without degrading.
  • Maximum winding temperature rise of 65°C above ambient, protecting the unit from overheating during heavy use.
  • Low core loss design prevents excess heat buildup, enhancing service life in continuous-duty applications.



How does low noise from Frigate transformers benefit UPS and inverter production?
  • Maintains noise levels under 40 dB, creating a silent operational profile for sensitive environments.
  • Perfect for medical equipment rooms, data centers, offices, and telecom installations where noise is a concern.
  • Quiet operation improves product value and customer satisfaction, making your solutions more marketable.
  • Eliminates the need for costly soundproofing materials or additional enclosure modifications.
How do Frigate transformers make sourcing easier for multiple backup designs?
  • 110 V to 480 V primary voltage range supports various regional power standards without multiple transformer types.
  • Customizable secondary voltage outputs from 12 V to 240 V to match diverse UPS and inverter models.
  • Multiple mounting choices — chassis or panel — for seamless integration into your designs.
  • One trusted source for varied specifications, reducing procurement complexity and supplier dependency.
How do Frigate transformers protect backup systems from electrical issues?
  • Overload protection ensures your backup units can run continuously without risk of damage.
  • Short-circuit resistance prevents sudden failures that could interrupt production or critical operations.
  • Low leakage current of <0.5 mA keeps your systems safe from unintended current flow.
  • Optional thermal overload cutoff adds another layer of safety, reducing downtime risk.
