Ribbon cables

What pressing challenges do you face in connectivity, including signal integrity, space optimization, high data rates, and durability? Ribbon cables emerge as a robust solution, specifically engineered to meet these demands across various industries, from telecommunications to consumer electronics and industrial applications.

Conductor Material

Copper or tinned copper for optimal conductivity

Insulation Material

PVC, Low-Smoke Zero-Halogen (LSZH), or Polyethylene

Voltage Rating

Up to 300V AC/DC depending on design

Temperature Range

-40°C to +105°C for standard applications

Fire Resistance

UL 94 V-0 rated for flame retardancy

Get Latest Price
Get quote

Product Description

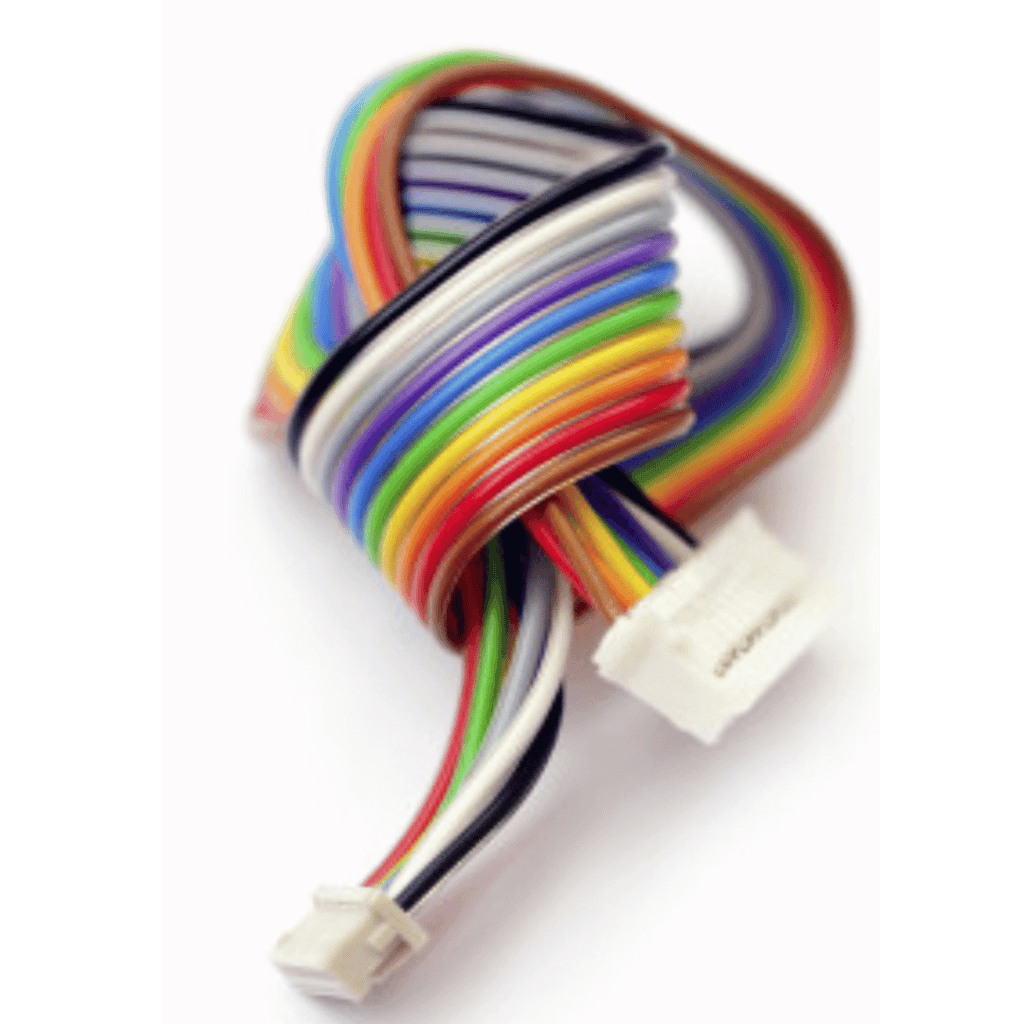

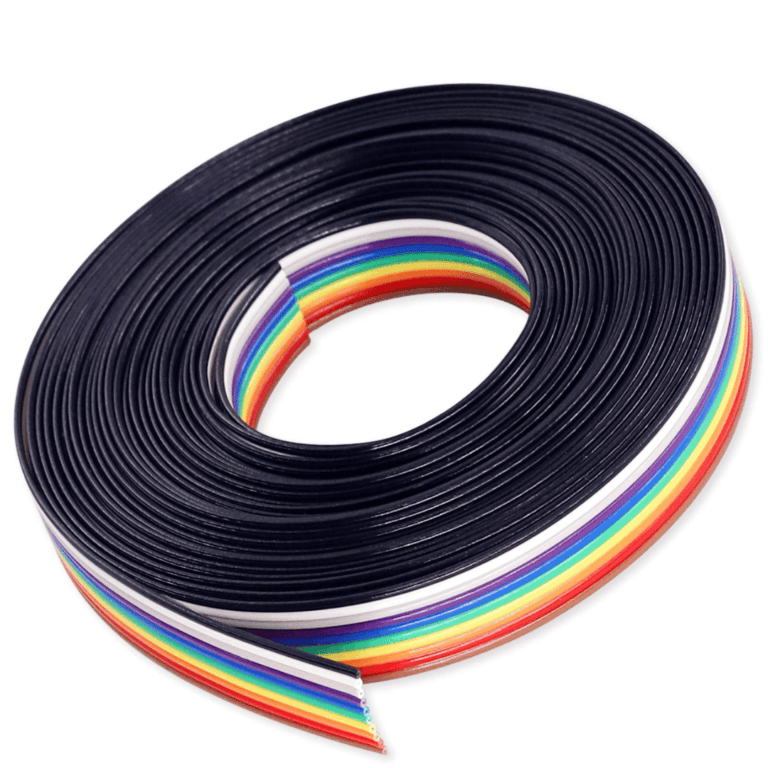

Ribbon cables feature a flat, parallel arrangement of conductors, allowing for streamlined installation in tight spaces. Their compact design minimizes the footprint, making them ideal for enclosure applications where real estate is limited. The inherent flexibility of ribbon cables allows for easy manipulation around corners and within confined areas, facilitating efficient routing and reducing potential mechanical stress on connectors.

Water Resistance

IP67 rating available for moisture protection

UV Resistance

UV-stabilized materials for outdoor applications

Cross-sectional Area

Ranges from 0.14 mm² to 0.50 mm² per conductor

Sheath Material

PVC, LSZH, or Polyurethane for environmental protection

Armoring

Optional steel or aluminum armoring for enhanced protection

Current-Carrying Capacity

Typically ranges from 1A to 15A per conductor

Flexibility

Designed for up to 100,000 flex cycles

Cable Size

Ranges from 10 to 80 cores

Outer Diameter

Varies from 4 mm to 15 mm based on conductor count

Mechanical Protection

Option for reinforced sheath to withstand abrasion

Standards Compliance

RoHS, UL, IEC, and ISO standards as applicable

Technical Advantages

Ribbon cables utilize a tightly woven configuration that significantly reduces crosstalk between adjacent conductors. This is crucial for maintaining signal clarity, especially in high-frequency applications where interference can degrade performance. Many ribbon cables come with options for individual or overall shielding. Foil and braid shields protect against external electromagnetic interference (EMI), ensuring optimal signal fidelity even in electrically noisy environments.

Designed to meet the specifications of high-speed data protocols such as SATA, PCIe, and USB, ribbon cables can handle data rates exceeding several Gbps. This makes them suitable for applications requiring rapid data transfer and low latency.

Let's Get Started

Need reliable wires and cables for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Automotive Systems

Used in Automotive Systems, infotainment systems, and sensor connections, supporting advanced driver-assistance features and diagnostics.

Robotic

Interconnections in Robotic arms and control systems enable precise movement and sensor communication.

Audio/visual equipment

Internal connections in Audio/visual equipment, including professional audio and video systems, ensure high-quality signal transmission without interference.

Military Equipment

Used in Military Equipment like communications and surveillance systems designed to withstand extreme conditions and electromagnetic interference.

Lighting Systems

Interconnections in Lighting Systems, such as LED and smart lighting solutions, allow for control and dimming functionalities in complex setups.

Healthcare

Ensures reliable connections in diagnostic equipment and patient monitoring systems in Healthcare.

Ribbon cables

Empowering Connectivity with Durable Ribbon Cables

Ribbon cables are versatile enough for various applications, including internal connections in computers, printers, medical devices, and industrial machinery. Their adaptability allows them to meet the specific needs of diverse sectors. Many ribbon cables are designed to work seamlessly with standard connectors (e.g., IDC connectors), ensuring ease of integration into existing systems and compatibility with various devices.

Ribbon cables

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How does the pitch size affect ribbon cable performance?

Pitch size refers to the distance between the centers of two adjacent conductors in a ribbon cable. Smaller pitch sizes allow for higher conductor density, which can increase data transfer rates in applications like computers and electronics. However, smaller pitch sizes can also increase signal interference or crosstalk. To minimize this, engineers often use shielding or specific materials that help reduce electrical noise.

What materials are commonly used for ribbon cable insulation, and how do they impact performance?

Ribbon cables typically use materials like Polyvinyl Chloride (PVC), Teflon, or Polyethylene for insulation. PVC is flexible and cost-effective but may degrade over time under high temperatures. Teflon offers better heat resistance and chemical stability, making it ideal for industrial applications. Polyethylene is often used when a low dielectric constant is needed, improving signal transmission over longer distances.

How does cable impedance affect signal integrity in ribbon cables?

Cable impedance refers to the opposition a ribbon cable provides to the alternating current (AC) flow. Maintaining a consistent impedance throughout the cable is critical for preserving signal integrity, especially in high-speed data transmission. Mismatched impedance can lead to signal reflection and loss, resulting in errors or reduced performance in sensitive devices like communication equipment or computer systems.

Can ribbon cables be customized for specific electromagnetic compatibility (EMC) requirements?

Yes, ribbon cables can be designed to meet specific EMC requirements by adjusting factors like conductor spacing, using twisted pairs within the cable, or adding shielding layers. Shielding can be applied to prevent electromagnetic interference (EMI) from external sources, which is crucial in environments with high electrical noise, such as industrial automation systems or medical devices.

What role does conductor plating play in the longevity of ribbon cables?

Conductor plating, such as tin or gold, is applied to the copper wires inside the ribbon cable to improve corrosion resistance and conductivity. Tin plating is more affordable and suitable for most general-purpose applications, but it can oxidize over time, reducing performance. Gold plating, though more expensive, offers superior corrosion resistance and is often used in high-reliability applications, such as aerospace or military electronics.

What performance issues do ribbon cables solve in signal-heavy systems?
  • Maintain consistent impedance for stable transmission
  • Reduce crosstalk between conductors
  • Support multi-Gbps data rates without degradation
  • Improve latency in high-speed protocols
How can ribbon cables be tailored for different application needs?
  • Variable pitch size for conductor density
  • Multiple plating options like tin, silver, or gold
  • Custom conductor size for current capacity
  • Shielding choices for controlled EMI levels
Why are ribbon cables efficient in space-constrained assemblies?
  • Flat geometry reduces overall cable bulk
  • Easy routing in compact enclosures
  • Parallel conductor layout ensures organized wiring
  • Compatible with mass termination IDC connectors
What factors make ribbon cables durable for long-term use?
  • High flex-cycle design for repetitive motion
  • Heat-resistant insulation for stable operation
  • Reinforced sheath for mechanical protection
  • Corrosion-resistant conductor plating
How do ribbon cables simplify integration in complex systems?
  • Standardized pitch for seamless connector fit
  • Simplified routing across PCBs and modules
  • Reduced assembly time with mass termination
  • Lower maintenance due to reliable connections
