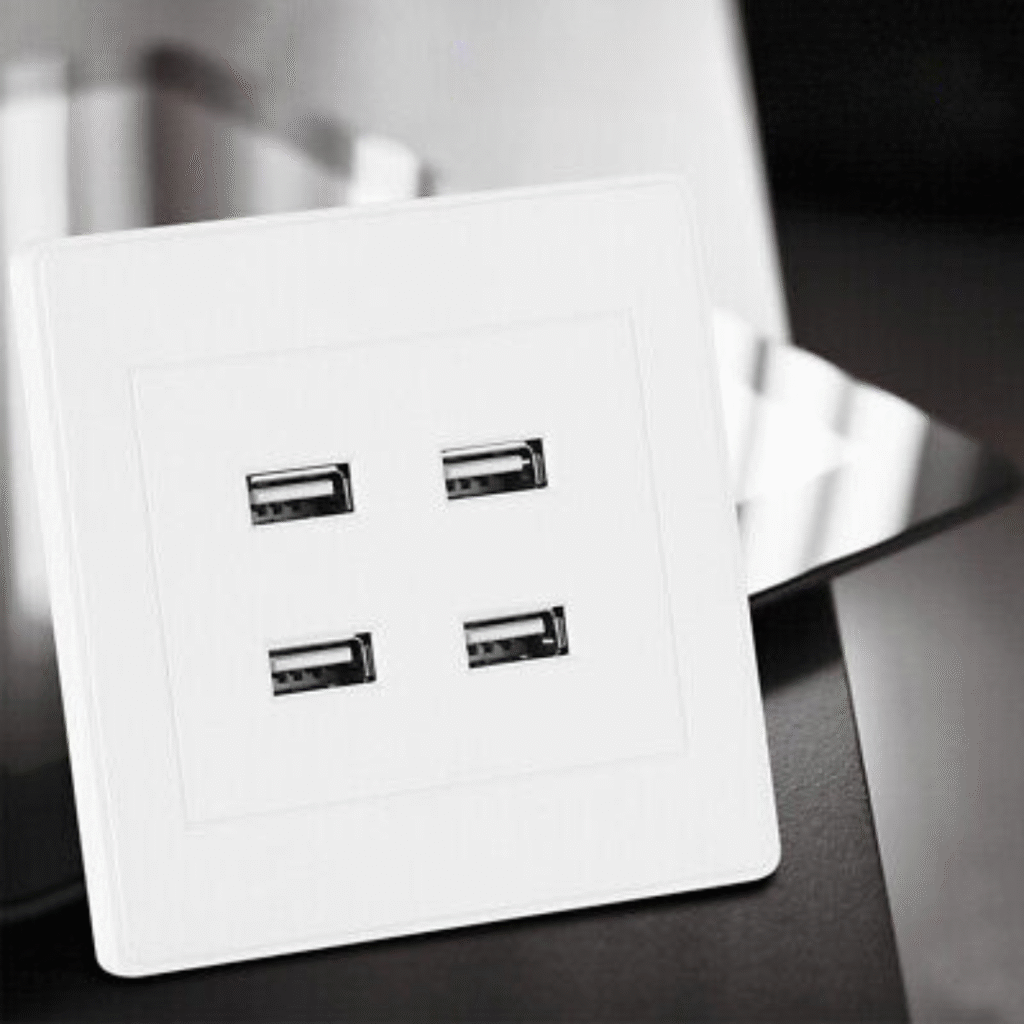

Quad USB Socket Modules

Socket modules often lack high-power USB output or overload under multiple device use. Our Quad USB Socket Modules offers 120W dynamic charging across four ports, with thermal control and independent load balancing.

Voltage Rating

100-240V AC, 50/60Hz (auto-ranging switching mode PSU)

Current Rating

16A AC input / 12A DC combined output (20A peak for 10ms)

IP Rating

IP20 (IP54 industrial version with silicone membrane covers)

USB Output Power

120W total (4×30W ports with dynamic load balancing)

Material Construction

Flame-retardant PC-ABS alloy (UL94 5VB) + phosphor bronze contacts
Get Latest Price
Get quote

Product Description

Most modular sockets struggle with fast-charge support, derating, or backbox incompatibility. This model overcomes those limits with a 16A AC backbone, global certifications, and a flexible form factor built for scale.

Mounting Type

Modular DIN rail (35mm) or 4-gang EU backbox mounting

Safety Certifications

IEC 62368-1, EN 60950-1, CE, UKCA, RCM (3-year warranty)

Color Options

Graphite Black/Industrial Gray (custom powder coating available)

Dimensions

144×90×45mm (4-MCU architecture with thermal separation)

Operating Temperature

-20°C to +55°C (derated output above 40°C ambient)

Lifespan Rating

100,000 cycles (USB ports) @ 15μm gold plating thickness

Country/Region Compatibility

Worldwide approvals (including Saudi SASO, India BIS)

Contact Resistance

≤20mΩ per port (cross-bar busbar design)

Backbox Compatibility

Fits 60mm deep enclosures (requires 50mm clearance for cooling)

Fast Charging Protocols

PD 3.0 PPS, QC4+, AFC 12V, SCP 22W, VOOC 4.0

Fire Resistance

850°C glow-wire (IEC 60695-2-12) + UL94 V-0

Technical Advantages

Multiple high-power ports often create thermal imbalance or signal loss. Our socket unit maintains port integrity through cross-bar busbar routing and 15μm gold plating for long service life.

We use a flame-retardant PC-ABS housing rated UL94 5VB, built to withstand daily insertions and heat without fatigue. With global certifications and DIN or backbox mounting, it integrates easily into local and export builds.

Let's Get Started

Need reliable Sockets for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Factory Control Panels

Supports factory floor tablets and PLC diagnostics by powering multiple devices directly from the panel board without extra adapters.

Data Center Racks

Charges tablets, wireless scanners, or configuration tools, providing clean, stable power inside network or control racks.

Retail Display Units

Powers POS terminals, customer tablets, and signage displays with fast charging and minimal cabling in crowded retail spaces.

EV Charging Cabinets

Supplies auxiliary charging for service tools and handhelds inside EVSE enclosures without drawing from the vehicle line.

Medical Workstations

Fits into mobile carts and wall-mounts in hospitals, delivering safe, derated USB output in shared diagnostic or nurse station setups.

Broadcasting Units

Provides direct device power in outdoor OB vans or AV racks, where fast charging and high-current USB are both critical.

Designed to Withstand Daily Electrical Demands

Generic USB modules tend to overheat or lose efficiency under full load. This unit maintains 120W output across four ports, even in mixed-use or high-duty cycles.

Certified to IEC, CE, and other global marks, it fits projects with strict compliance requirements. Optional IP54 version and powder-coated variants suit both indoor panels and rugged site conditions.

Quad USB Socket Modules

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

Can all four USB ports deliver fast charge at the same time?

Yes, the module uses dynamic load balancing to manage 120W across all four ports. It supports PD 3.0 PPS, QC4+, AFC, and SCP protocols on every port. No drop in speed even under full load.

Is this module suitable for countries with fluctuating mains voltage?

It runs on an auto-ranging 100–240V AC input, which handles wide voltage swings without performance loss. The switching PSU ensures consistent DC output across global grid conditions. No extra stabilizer is needed.

Can we customize the color or finish to match our brand panels?

Absolutely, the housing supports custom powder coatings apart from standard black and gray. We can match your RAL code for consistent branding. MOQ applies for custom finishes.

Can this module be installed in industrial or field setups?

Our module offers an IP54 variant with silicone membrane seals for dust and splash resistance. The flame-retardant housing passes 850°C glow-wire and UL94 V-0 standards. It’s safe for rugged zones or outdoor panels.

Can the USB power profile be customized for specific device types?

Yes, port behavior can be factory-tuned for preferred fast-charge profiles or limited current modes. Useful for battery-safe environments or device-specific compatibility. Configuration is locked during production.
