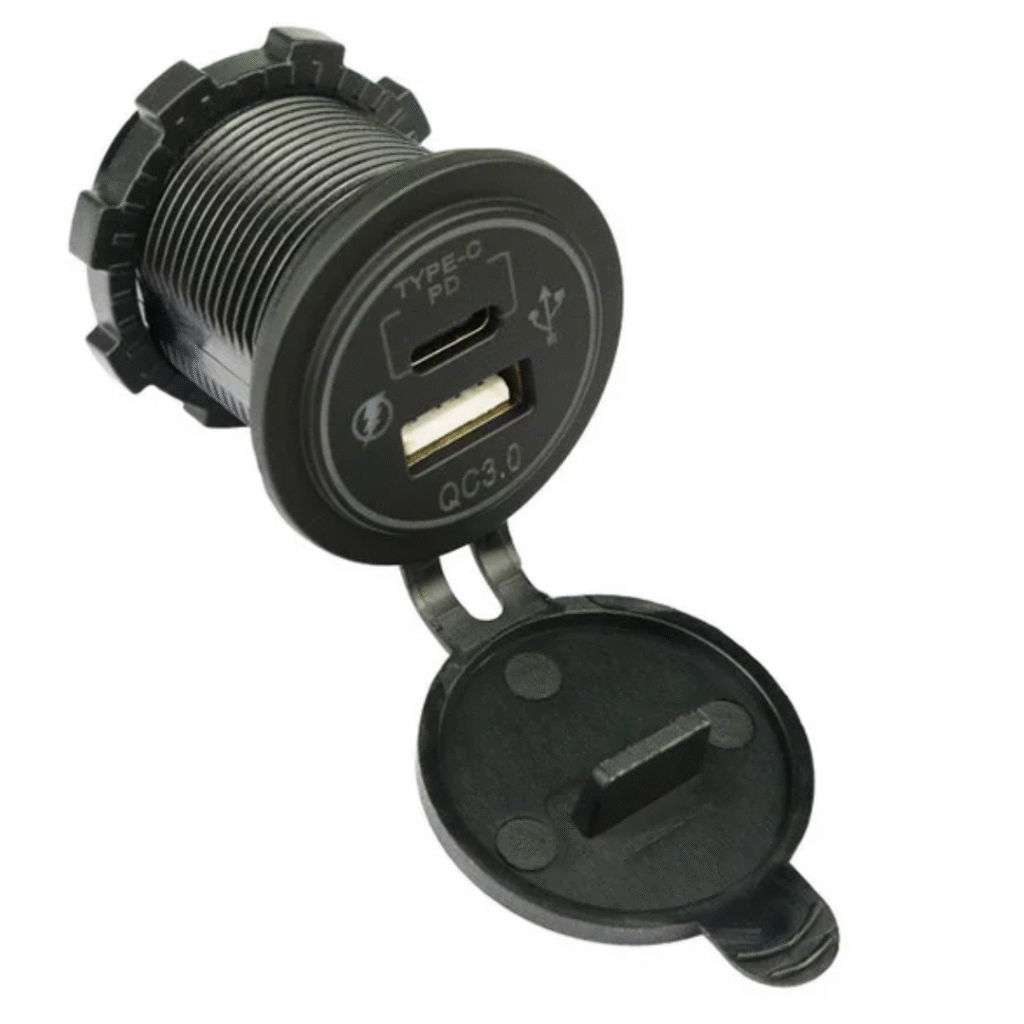

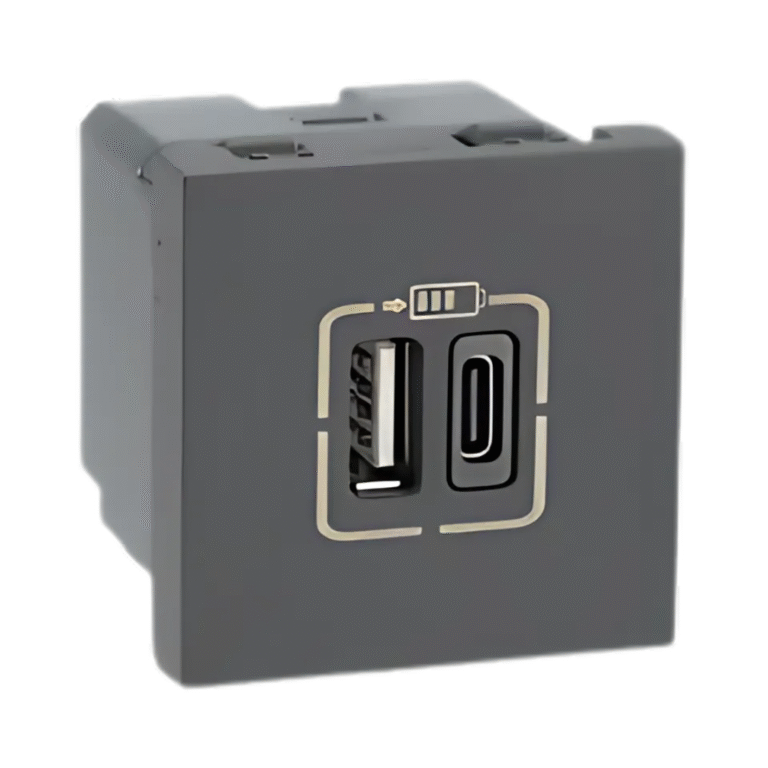

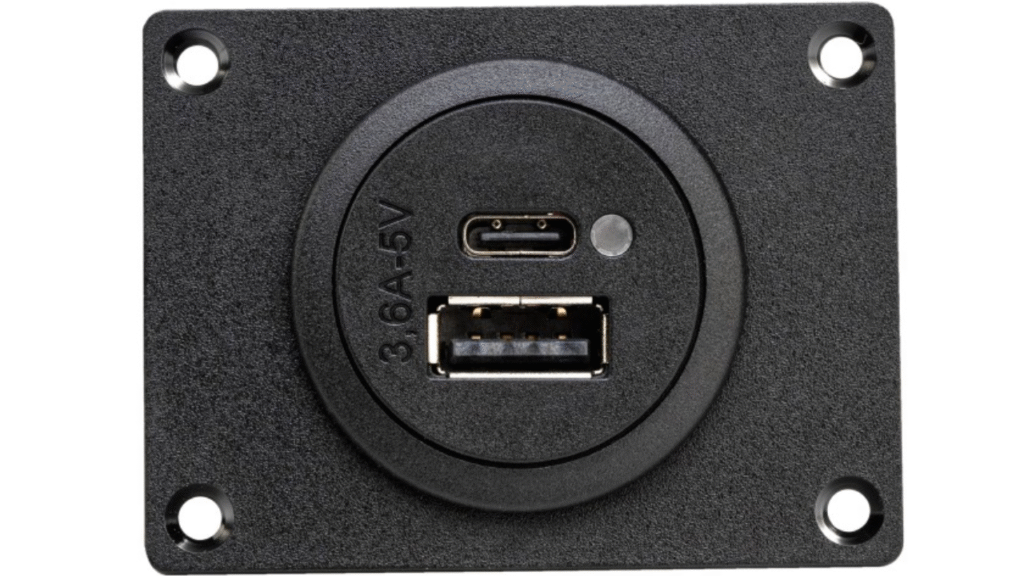

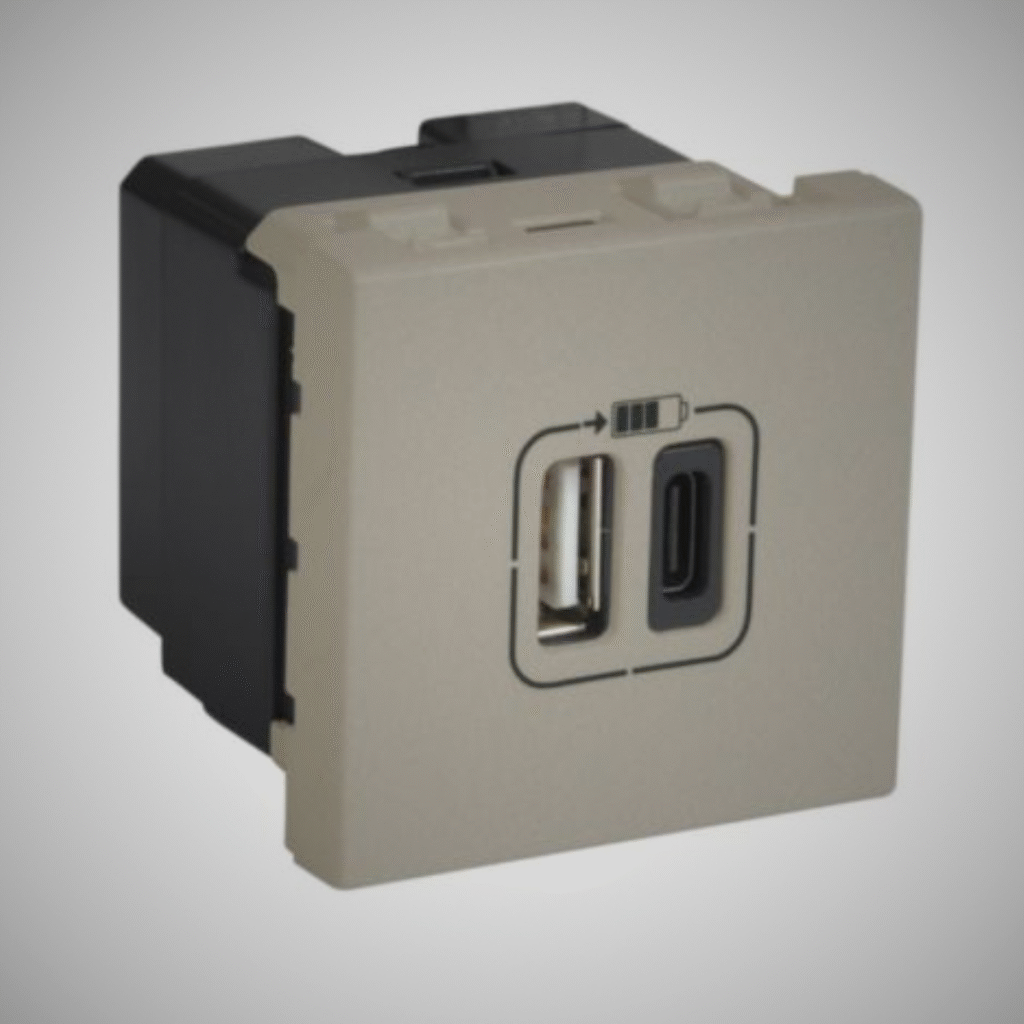

High-Power USB-C Sockets

Low-output USB ports fail to meet power-hungry device needs, slowing function in commercial setups. Our High-Power USB-C Sockets delivers up to 100W, covering laptops, tablets, and industrial handhelds with ease.

Voltage Rating

100-250V AC, 50/60Hz (wide range SMPS design)

Current Rating

16A AC + 5A DC combined (dedicated 20A circuit recommended)

IP Rating

IP20 (IP65 dust/waterproof variant with gasket seal)

USB Output Power

100W max (5V/3A, 9V/3A, 15V/3A, 20V/5A PPS)

Material Construction

Glass-reinforced PBT housing (UL94 V-0) + oxygen-free copper contacts
Get Latest Price
Get quote

Product Description

Tight spaces and varying wall standards delay integration during site installation. This model fits standard EU backboxes and supports retrofit US frames for smooth mounting across locations.

Mounting Type

Standard EU 60mm round backbox (US 2-gang retrofit frame optional)

Safety Certifications

CE, UL 62368-1, EN 62684, Qi 1.3 (wireless charging models)

Color Options

Space Gray/Matte Black (custom anodized finishes available)

Dimensions

90×90×42mm (low-profile 28mm depth configuration)

Operating Temperature

-25°C to +60°C (derate above 45°C ambient)

Lifespan Rating

50,000 mating cycles (USB-C port) with 12μm gold plating

Country/Region Compatibility

Global certifications (including China CCC, Korea KC)

Contact Resistance

≤15mΩ (USB-C port) / ≤3mΩ (AC terminals)

Backbox Compatibility

Requires minimum 50mm deep backbox (heat dissipation)

Fast Charging Protocols

PD 3.1, PPS 3.3-21V, QC5, SCP 40W, VOOC

Fire Resistance

960°C glow-wire (IEC 60695-2-13 compliant)

Technical Advantages

Weak USB-C sockets wear out fast and interrupt high-traffic usage. This unit withstands 50,000 USB insertions using 12μm gold-plated contacts for better conductivity and wear resistance.

Low-grade plastic can deform under heat, risking fire hazard. We use UL94 V-0 rated PBT housing with a 960°C glow-wire rating and oxygen-free copper for lasting safety.

Let's Get Started

Need reliable Sockets for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Modular Office Desks

Powers high-demand devices without bulky adapters, keeping workspaces clean.

Airport Charging Stations

Delivers fast charge across device types, turning waiting areas more productive.

Hospital Bedsides

Supports 24/7 device power with medical-grade stability and safety.

Retail POS Units

Feeds power to tablets and handheld scanners with no performance lag.

Workshop Tool Stations

Runs high-load battery packs or test gear straight from socket output.

Public Transport Interiors

Charges passenger devices safely in buses, metros, or coaches across regions.

Stable Charging Across High-Load Installations

Unstable power delivery can disrupt device uptime in commercial and industrial use. This socket supports 100W USB-C output and 16A AC loads without overheating or port drop.

 Its gold-plated contacts and reinforced PBT housing maintain stability under long-hour usage. Optional IP65 sealing and multi-certification make it suitable for global rollouts without revalidation delays.

High-Power USB-C Sockets

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

Can this socket support both charging and AC power simultaneously?

Yes, the socket delivers up to 100W via USB-C while also handling 16A AC loads in parallel. The internal SMPS design isolates both outputs safely. This ensures no performance drop during dual operation.

Is this compatible with global fast-charging standards?

It supports PD 3.1, PPS, QC5, SCP 40W, and VOOC protocols for fast charging across major devices. The USB-C port adjusts output voltage based on real-time device negotiation. This ensures safe, efficient charging for phones, tablets, and laptops.

What mounting options are available for non-EU installations?

The base design fits EU 60mm round backboxes, while an optional US 2-gang retrofit frame is also available. This allows seamless installs in both residential and commercial builds. No modification is needed for either standard.

How does it manage thermal load during peak use?

The socket uses heat-spreading copper plates and requires a 50mm deep backbox for airflow. Thermal derating starts above 45°C to protect both USB and AC functions. This helps avoid shutdowns in compact or high-temperature setups.

Can this be used in dust- or moisture-prone areas?

The standard model has IP20 protection, while the IP65 variant includes gasket sealing for added safety. This variant is suitable for semi-outdoor, kitchen, or workshop applications. It protects against ingress while maintaining full performance.
