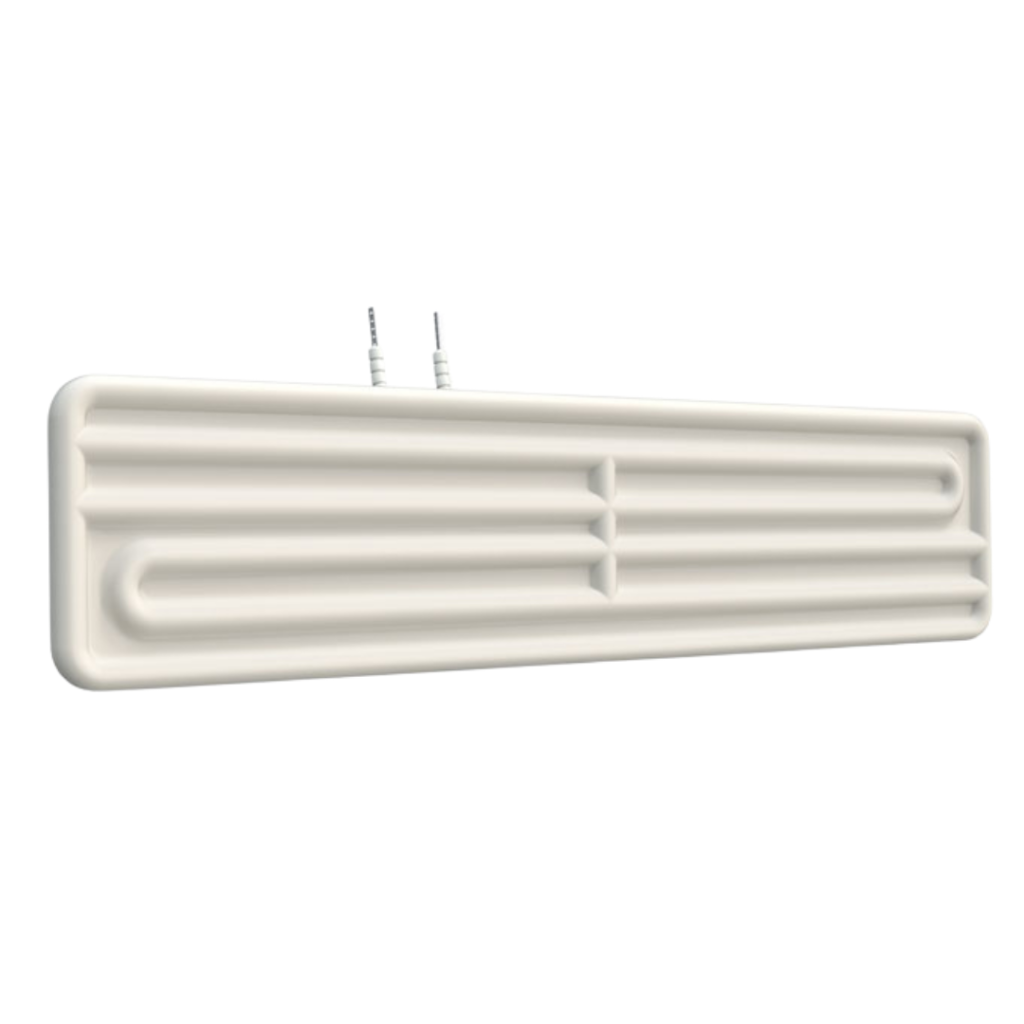

Infrared Heating Elements

Using radiant heat in manufacturing can stumble over issues like high energy use or uneven results that hurt efficiency and product quality. Our Infrared Heating Elements are built to address these struggles, delivering fast, precise warmth for drying, curing, and heating tasks.

Heating Element Material

Quartz, Ceramic, or Tungsten filament for efficient radiant heat emission (customizable based on requirement)

Sheath/Outer Material

Quartz Tube, Ceramic Coating, or Stainless Steel (SS 304) reflector for heat direction

Voltage Rating

110 V – 240 V (single-phase); up to 480 V (three-phase) for industrial applications

Power Rating

100 W to 10 kW, scalable based on element type and application

Temperature Range

100°C to 1200°C (surface temperature), depending on material (e.g., quartz, tungsten)
Get Latest Price
Get quote

Product Description

Wasted energy or spotty heat can lead to higher bills and inconsistent output in radiant processes. We’ve equipped our infrared elements with materials like quartz or ceramic and power up to 10 kW, ensuring efficient, even heating that cuts costs and steadies your results.

Heat-Up Time

10 seconds to 5 minutes, depending on element type and power (e.g., quartz vs. ceramic)

Watt Density

5 W/in² to 50 W/in², customizable for radiant output and application efficiency

Insulation Material

Ceramic or None (exposed filament in quartz tubes); depends on design

Corrosion Resistance

Moderate to high resistance to moisture and air exposure; material-dependent

Dimensions

Length – 100 mm to 2000 mm; Diameter/Width – 10 mm to 150 mm (customizable per design)

Shape/Configuration

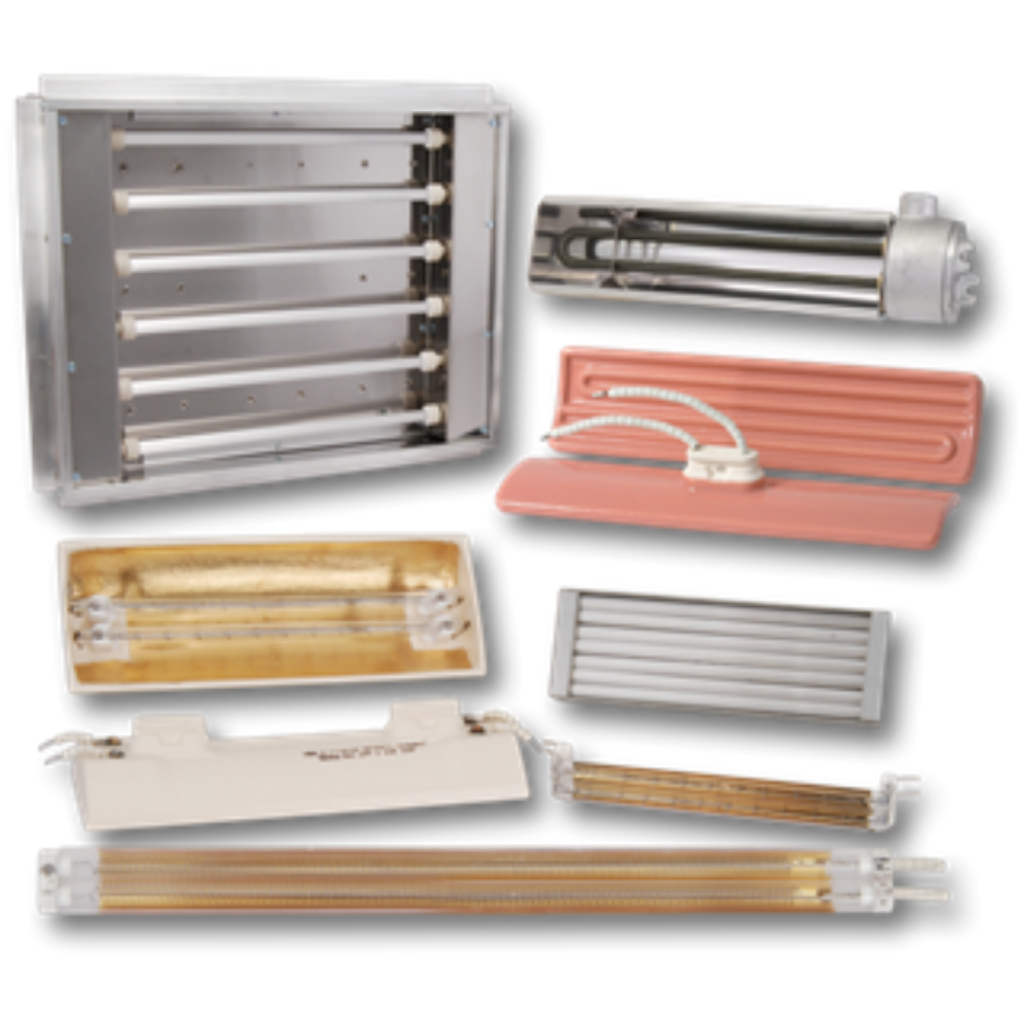

Straight tube, panel, or coiled filament; optional reflector for directional heating

Current-Carrying Capacity

1 A to 40 A, depending on power rating and conductor sizing

Heat Transfer Method

Radiation; emits infrared waves for direct surface or air heating

Mounting/Fitting Type

Clips, brackets, or frame mounts; suits ovens, dryers, or standalone radiant setups

Safety Features

Overheat protection (optional thermostat), grounded connections, non-contact design

Standards Compliance

Meets or exceeds UL 1030, IEC 60335-1, EN 60519-1 (electric heating), EN 60204-1 (electrical safety), and EN 62471 (photobiological safety)

Technical Advantages

Radiant systems need power and consistency to avoid energy loss and uneven performance. Our infrared elements heat up in 10 seconds to 5 minutes and come in tubes or panels, directing radiant warmth right where it’s needed.



Quick performance needs to pair with lasting reliability in radiant systems. These elements run on voltages up to 480 V and offer options like overheat protection, keeping heat steady and safe across tough tasks.

Let's Get Started

Need reliable Heating Elements for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Paint Curing

Speeds up drying on coated surfaces, ensuring uniform heat for flawless finishes in automotive or furniture production.

Textile Drying

Warms fabrics in processing lines, delivering fast radiant heat for quick drying without damage.

Plastic Forming

Heats sheets or molds, providing precise warmth for shaping plastic products efficiently.

Food Dehydration

Powers dryers for fruits or grains, offering consistent heat to preserve quality in food processing.

Paper Production

Dries ink or coatings on paper rolls, supporting rapid, even warmth in high-speed printing.

Space Heating

Warms industrial workspaces, using radiant energy for effective comfort in large areas.

Fast Radiant Heating Anywhere

 Placing heating elements in drying or curing setups shouldn’t mean long waits or high costs. Our infrared heating elements mount easily with clips or brackets, fitting into ovens, lines, or open spaces without hassle.

Uneven heat or fragile designs can throw off quality and slow your progress. We’ve shaped these elements to deliver steady radiant warmth up to 1200°C using durable materials and a smart build, ensuring top-notch results every cycle.

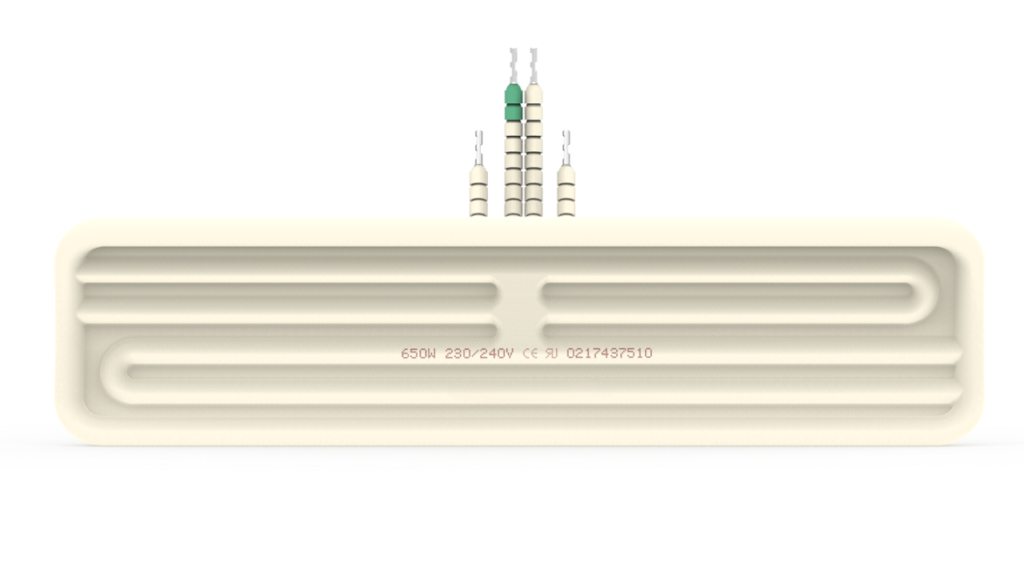

Infrared heating elements

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How fast do your infrared elements heat up for quick drying jobs?

Our elements start radiating heat in as little as 10 seconds to 5 minutes, depending on the type like quartz or ceramic. You’ll get drying or curing done fast, keeping your production on pace without long delays.

Can your heaters work for both small and large heating tasks?

Yes, with power from 100 W to 10 kW and lengths from 100 mm to 2000 mm, they handle everything from tiny parts to big surfaces. That range makes them a versatile pick for varied manufacturing needs without extra equipment.

How do your elements hold up in dusty or humid environments?

Made with tough quartz or ceramic, our infrared heaters resist moisture and dust while delivering steady heat up to 1200°C. They keep performing reliably, cutting down on cleanup or repair hassles in tough settings.

What sets your infrared heaters apart for drying or curing lines?

Our heaters use radiant waves and optional reflectors to focus heat exactly where it’s needed, unlike standard convection options. Sourcing persons benefit from this precision, ensuring consistent quality with less energy waste in production runs.

How easy is it to replace your elements if one wears out?

They mount with simple clips or brackets, so swapping one out takes minimal time and effort, no major system overhaul needed. Quick replacements like that keep your downtime low, letting you stay on schedule affordably.
