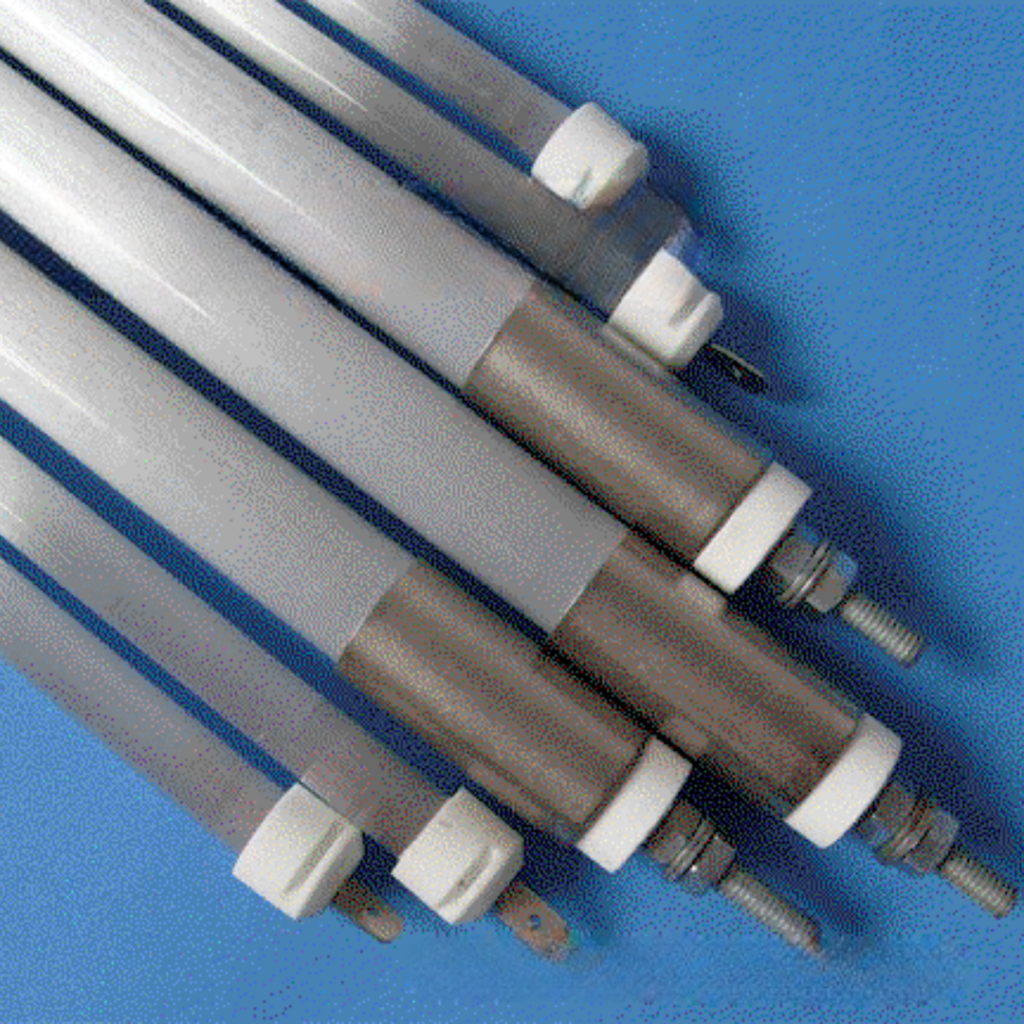

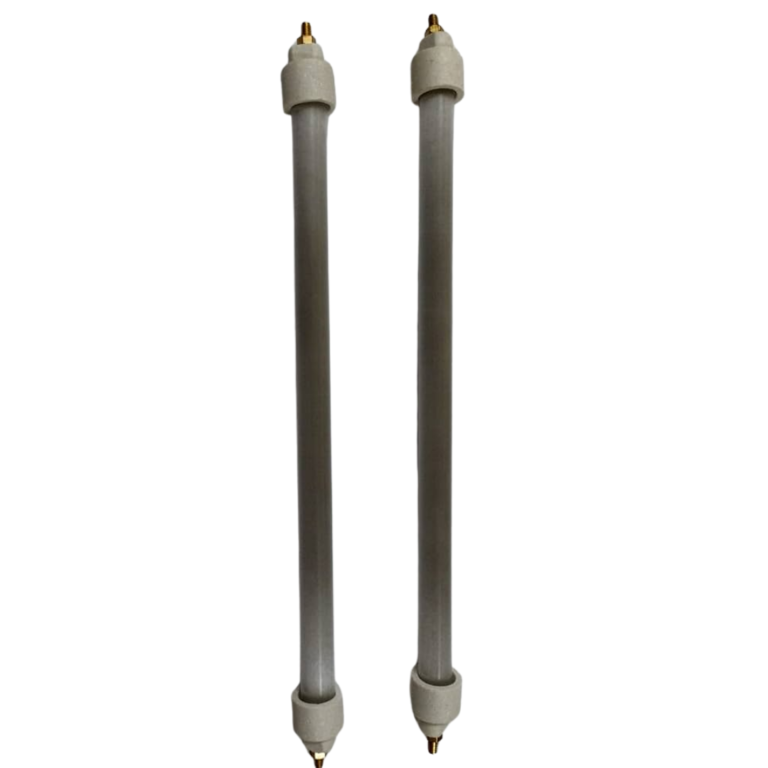

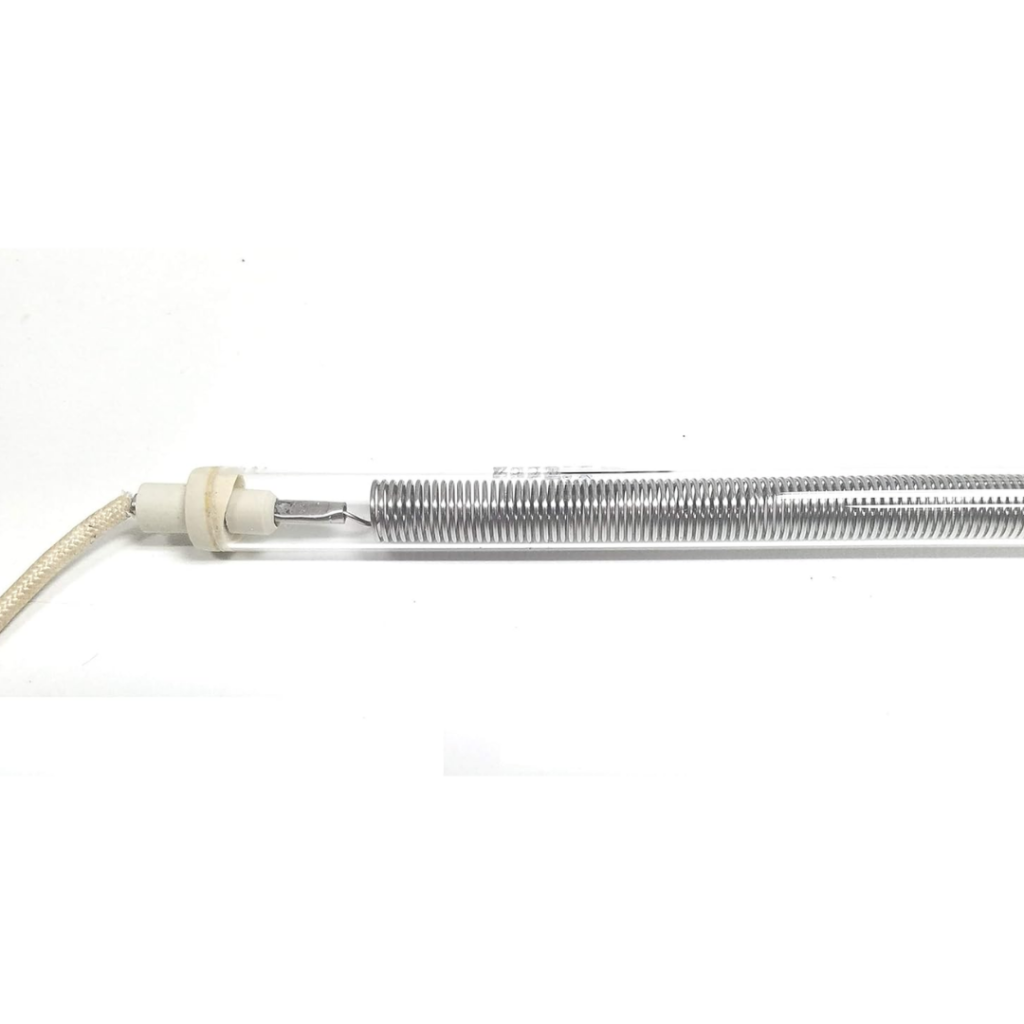

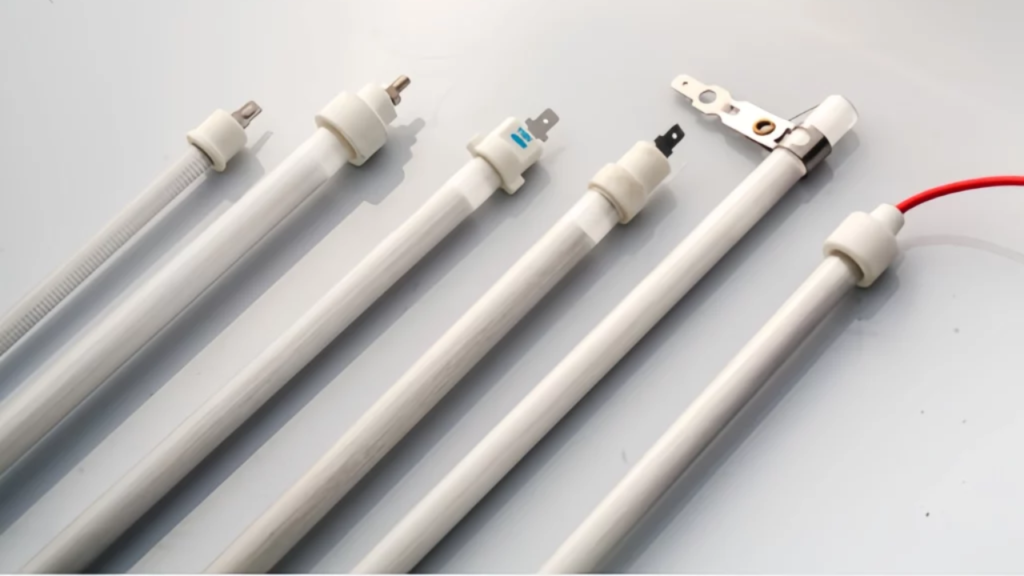

Quartz Heating Elements

Handling radiant heat in manufacturing can run into troubles like high operating costs or uneven warmth that cut into profits and quality. Our Quartz Heating Elements are designed to fix these issues, delivering quick, radiant warmth for drying and curing tasks.

Heating Element Material

Tungsten filament or Nickel-Chromium (NiCr) alloy for high-efficiency radiant heat (customizable based on demand)

Sheath/Outer Material

Quartz Tube (fused silica) with optional Stainless Steel (SS 304) reflector

Voltage Rating

110 V – 240 V (single-phase); up to 480 V (three-phase) for industrial applications

Power Rating

100 W to 12 kW, scalable based on element length and application

Temperature Range

200°C to 1000°C (element surface temperature), depending on filament and application
Get Latest Price
Get quote

Product Description

A sluggish start or wasteful energy use can slow your lines and hurt your bottom line. We’ve made our quartz elements with a high watt density of 10-60 W/in², sending out strong infrared heat that gets to work fast.

Heat-Up Time

5 seconds to 3 minutes, depending on filament type (e.g., tungsten vs. NiCr)

Watt Density

10 W/in² to 60 W/in², customizable for radiant output and application efficiency

Insulation Material

None (quartz acts as insulator); optional Ceramic terminals for electrical connections

Corrosion Resistance

High resistance to oxidation and moisture; limited resistance to harsh chemicals

Dimensions

Length – 100 mm to 2500 mm; Diameter – 8 mm to 20 mm (customizable per design)

Shape/Configuration

Straight tube, U-shape, or coiled; optional reflector for directional heating

Current-Carrying Capacity

1 A to 50 A, depending on power rating and conductor sizing

Heat Transfer Method

Radiation; emits infrared waves for direct surface or material heating

Mounting/Fitting Type

Clips, brackets, or end-cap mounts; suits infrared panels, ovens, or standalone setups

Safety Features

Overheat protection (optional thermostat), grounded connections, non-contact design

Standards Compliance

Meets or exceeds UL 1030, IEC 60335-1, EN 60519-1 (electric heating), EN 60204-1 (electrical safety), and EN 62471 (photobiological safety)

Technical Advantages

Radiant heating needs speed and toughness to avoid delays and wear. Our quartz elements use a clear quartz tube that resists corrosion, paired with tungsten or NiCr filaments for lasting performance.

High upkeep or weak designs can drain your resources in radiant systems. These elements come in straight tubes or U-shapes with built-in safety features, staying strong and simple to manage across tough jobs.

Let's Get Started

Need reliable Heating Elements for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Coating Drying

Speeds up paint or varnish curing, ensuring fast, even heat for smooth finishes in production.

Textile Processing

Dries fabrics or dyes, providing quick radiant warmth for efficient textile lines.

Plastic Curing

Heats plastic coatings or films, delivering steady infrared for consistent hardening.

Food Warming

Powers infrared ovens, offering rapid heat for drying or roasting food products.

Paper Drying

Warms paper rolls or ink, supporting fast drying in high-speed printing setups.

Industrial Heating

Drives radiant panels, heating workspaces or materials with reliable warmth.

Quick Heating for Steady Results

 Setting up radiant heaters can run into high costs or tricky fixes that slow your start. Our quartz heating elements mount easily with clips or brackets, keeping installation simple and expenses down.

These elements use quartz’s natural strength to deliver steady infrared warmth every time, resisting wear in busy runs. Your production stays smooth and dependable with this performance, meeting goals without unexpected costs.

Quartz Heating Elements

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How do your quartz heaters resist wear in humid conditions?

Our heaters use quartz tubes that stand up to moisture and oxidation without breaking down. You’ll spend less on repairs, keeping your systems running smoothly even in damp settings.

What makes your heaters a good fit for tight budgets?

They deliver strong radiant heat with a watt density of 10-60 W/in², cutting energy use compared to less efficient options. Sourcing persons save money over time with this efficiency, making them a smart buy for cost-conscious projects.

Can your heaters handle high-power demands safely?

Yes, they support current capacities up to 50 A with optional thermostats to prevent overheating risks. That safety keeps your high-output jobs steady, avoiding costly interruptions.

How customizable are your quartz heaters for unique heating needs?

We offer shapes like straight tubes or U-shapes, adjustable to fit specific ovens, dryers, or panels you’re building. That flexibility ensures you get heat exactly where it’s needed, matching your system’s design perfectly.

What’s the benefit of using your heaters for consistent drying results?

Their clear quartz design spreads infrared heat evenly across surfaces like coatings or fabrics. Steady quality from this evenness helps you meet client standards without extra rework.
