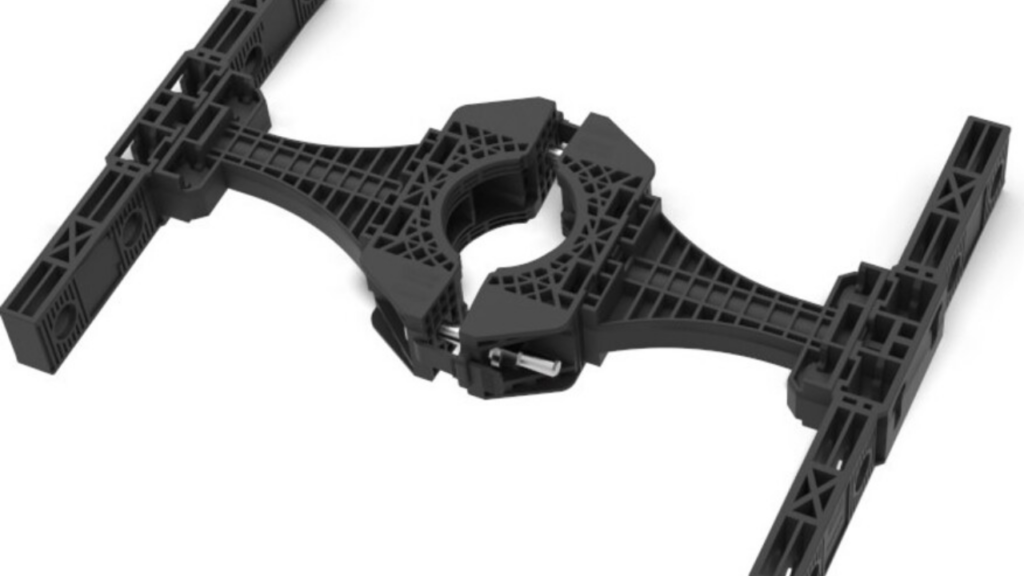

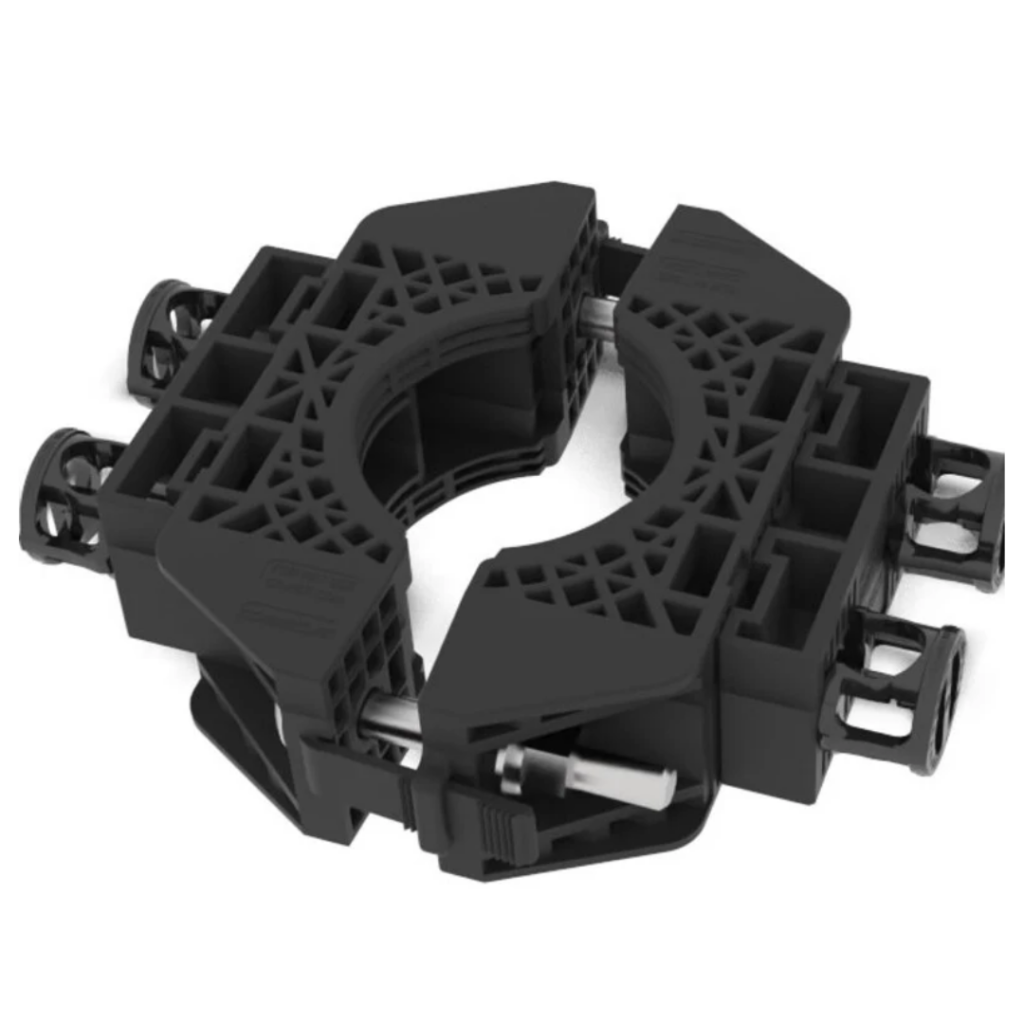

Pim Guard Cable Support Kits

Marine applications often experience extreme temperature variations. Pim Guard Cable Support Kits are engineered with high-temperature resistant materials, such as cross-linked polyethylene (XLPE) or fluoropolymer insulations, that can withstand temperatures ranging from -40°C to +90°C without degrading. This ensures reliable operation in engines, power systems, and other heat-intensive marine environments.

Material

High-Strength Polycarbonate (UV-resistant, flame retardant)

Cable Diameter Range

4mm to 15mm

Maximum Cable Load Capacity

120 N (Newton) per cable

Operating Temperature Range

-40°C to +85°C

Mounting Type

Surface Mount with 2 Screw Holes, or Snap-on Mounting Brackets
Get Latest Price
Get quote

Product Description

Proper cable placement is crucial for system efficiency and safety. Improperly routed cables can lead to overheating, signal loss, or fire hazards. Pim Guard Cable Support Kits provide an organized and secure structure for cable routing, allowing for neat and efficient setups. With adjustable mounts and robust holding mechanisms, the kit ensures that cables are positioned optimally to minimize the risk of damage, improving the overall performance of your electrical systems.

Shock Resistance

30J (Joules) impact resistance

Vibration Resistance

10-2000Hz frequency range, <0.5mm amplitude shift at 30g acceleration

Waterproof Rating

IP68 (submersible up to 2 meters depth)

Chemical Resistance

Resistant to oils, fuels, acids, and bases (up to 10% concentration)

Fire Resistance

UL 94 V-0 flame retardant

Cable Retention Mechanism

Spring-loaded locking clips with optional screw locks

Durability

50,000 cycles of use without degradation of material integrity

Compliance Standards

UL 2238, RoHS, REACH, ISO 9001:2015, CE Certified

Technical Advantages

Cable safety is non-negotiable, especially in high-voltage environments. Pim Guard Cable Support Kits are engineered with safety in mind, offering fire-resistant and insulating properties to prevent short circuits or electrical fires. By securely supporting cables and preventing them from tangling or coming into contact with hazardous surfaces, these kits reduce the risk of electrical hazards, contributing to a safer workspace.

Installation time can be a pain point for many systems, but with Pim Guard Cable Support Kits, you can experience a fast and hassle-free setup. The modular design allows quick adjustments and integration into existing infrastructure, minimizing downtime and disruption. The kits are designed to be easy to install with minimal tools required, reducing labor costs and installation complexity.

Let's Get Started

Need reliable wires and cables for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Power Generation

Supports cables in high-voltage systems, ensuring safe routing and preventing wear in power plants.

Mining

Secures cables in mining equipment, protecting them from abrasions, heavy machinery, and extreme conditions.

HVAC Systems

Organizes and secures control wiring in HVAC installations, reducing wear caused by heat and vibration.

Railway Systems

Ensures reliable cable support in trains and trackside systems, preventing damage from vibrations and external forces.

Pharmaceutical Manufacturing

Keeps cables organized and protected in sterile environments, preventing contamination and wear in production lines.

Semiconductor Manufacturing

Minimizes static and electrical interference while protecting cables in sensitive, high-precision environments.

Customizable for Your Specific Needs

The upfront investment in Pim Guard Cable Support Kits pays off over time by reducing the need for frequent replacements, repairs, and safety upgrades. Enhanced protection, easy maintenance, and improved cable lifespan significantly reduce overall operational costs. In addition, by preventing cable-related incidents and failures, Pim Guard helps avoid costly downtime and potential legal issues related to safety violations.

Every installation is unique, and Pim Guard Cable Support Kits offer the flexibility to adapt to various environments and cable types. Whether you are working with industrial machinery, large electrical panels, or commercial power systems, the kit can be customized to fit your requirements. This ensures you get a solution that’s effective and tailored to your specifications.

pim guard cable support kits

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How does the Pim Guard Cable Support Kits enhance cable integrity in seismic or earthquake-prone areas?

The Pim Guard Cable Support Kits is engineered with seismic-resistant features. It utilizes flexible yet sturdy materials that absorb shock and vibrations during seismic events. This reduces the risk of cable displacement, breakage, or damage, ensuring that cables remain securely in place even under extreme conditions. The design also includes reinforced support brackets that minimize movement, preventing structural failures during earthquakes or tremors.

How does Pim Guard ensure that cables remain insulated from electrical interference in sensitive environments?

Pim Guard Cable Support Kits incorporate specialized insulating materials and designs that shield cables from electrical interference, electromagnetic fields (EMF), and radio-frequency interference (RFI). The kit uses dielectric materials and proper cable spacing to prevent signal degradation or data loss, making it ideal for environments with high-frequency signals or sensitive electronic systems, such as telecommunications or medical equipment installations.

Can the Pim Guard Cable Support Kits withstand exposure to extreme chemical environments, such as corrosive or acidic substances?

Yes, the Pim Guard Cable Support Kits is made from corrosion-resistant materials, including stainless steel and high-grade thermoplastics. These materials are engineered to withstand exposure to corrosive chemicals, acids, and solvents. They are also resistant to chemical degradation, ensuring that cables are protected in industries such as chemical processing, pharmaceuticals, or oil and gas, where chemical exposure is frequent.

How does the Pim Guard Cable Support Kit maintain structural integrity under high tensile forces or load-bearing applications?

The Pim Guard Cable Support Kits is designed with high-tensile strength materials that can withstand substantial mechanical loads without failure. The support brackets and mounts are reinforced to distribute load evenly across the system, preventing cable strain and ensuring that cables remain securely supported in heavy-duty applications such as automotive, manufacturing, and power distribution.

How does the Pim Guard Cable Support Kit contribute to fire safety in hazardous locations?

The Pim Guard Cable Support Kits utilizes fire-retardant materials and coatings to significantly reduce the risk of cable fires. The kit is tested for flame resistance and meets stringent safety standards, preventing the spread of flames in high-risk areas such as industrial plants, refineries, and electrical substations. Additionally, the design keeps cables from overheating or coming into contact with heat-sensitive surfaces, further reducing fire hazards.

How can I ensure the Pim Guard Cable Support Kit meets my specific system requirements?
  • Assess cable type, diameter, and load requirements.
  • Choose adjustable mounts and modular components for seamless integration.
  • Utilize reinforced brackets for high-tensile or load-bearing applications.
  • Opt for customizable layouts to reduce downtime and maintenance needs.
What factors should I consider to optimize cable lifespan using Pim Guard Kits?
  • Proper cable routing to avoid overheating and mechanical stress.
  • Use abrasion-resistant materials for long-term durability.
  • Integrate shock-absorbing features to prevent displacement.
  • Maintain consistent tension and secure locking mechanisms for stability.
How do I verify that the kit supports high-performance and sensitive electronics?
  • Check for dielectric materials to prevent signal interference.
  • Ensure proper cable spacing to avoid degradation of data transmission.
  • Use clamps that hold cables firmly without compressing conductors.
  • Select kits designed for high-frequency or critical electronic systems.
How does the Pim Guard Kit simplify installation and reduce operational costs?
  • Modular and snap-on designs enable quick installation.
  • Minimal tools required for setup and adjustments.
  • Reduces labor time and complexity during retrofits or upgrades.
  • Lowers replacement frequency through durable components.
How can I ensure long-term durability and reliability in high-load applications?
  • Choose materials with high tensile strength for heavy-duty support.
  • Reinforced brackets distribute load evenly across cables.
  • Locking mechanisms prevent slippage and maintain positioning.
  • Supports repeated mechanical cycles without loss of integrity.
