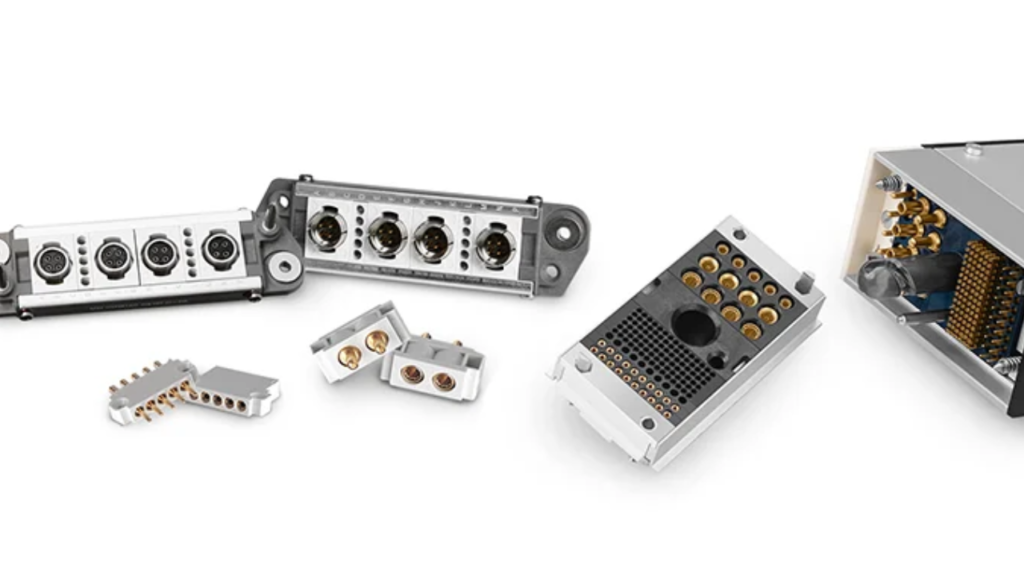

High Speed/Modular Connectors

High speed/Modular connectors are meticulously engineered to minimize signal degradation over distance, ensuring efficient data flow even at elevated frequencies. These connectors incorporate impedance-controlled designs to match the characteristics of the PCB trace, reducing reflections and signal loss. Shielding technologies such as individual contact or multi-layer shields further reduce electromagnetic interference (EMI) and crosstalk, ensuring reliable high-speed data transfer in high-frequency analog and digital circuits. The optimized contact geometry enhances the signal integrity, making these connectors ideal for 10G Ethernet, PCIe, and other data-intensive applications.

Contact Pitch

0.50 mm to 2.00 mm (depending on connector type)

Contact Size

22 AWG to 10 AWG (varies by configuration)

Maximum Contact Density

Up to 1,000 contacts per square inch (depends on design and type)

Maximum Power Contact Current

40A (depends on contact size and configuration)

Signal Contact Current

0.5A to 10A (depending on signal type and application)
Get Latest Price
Get quote

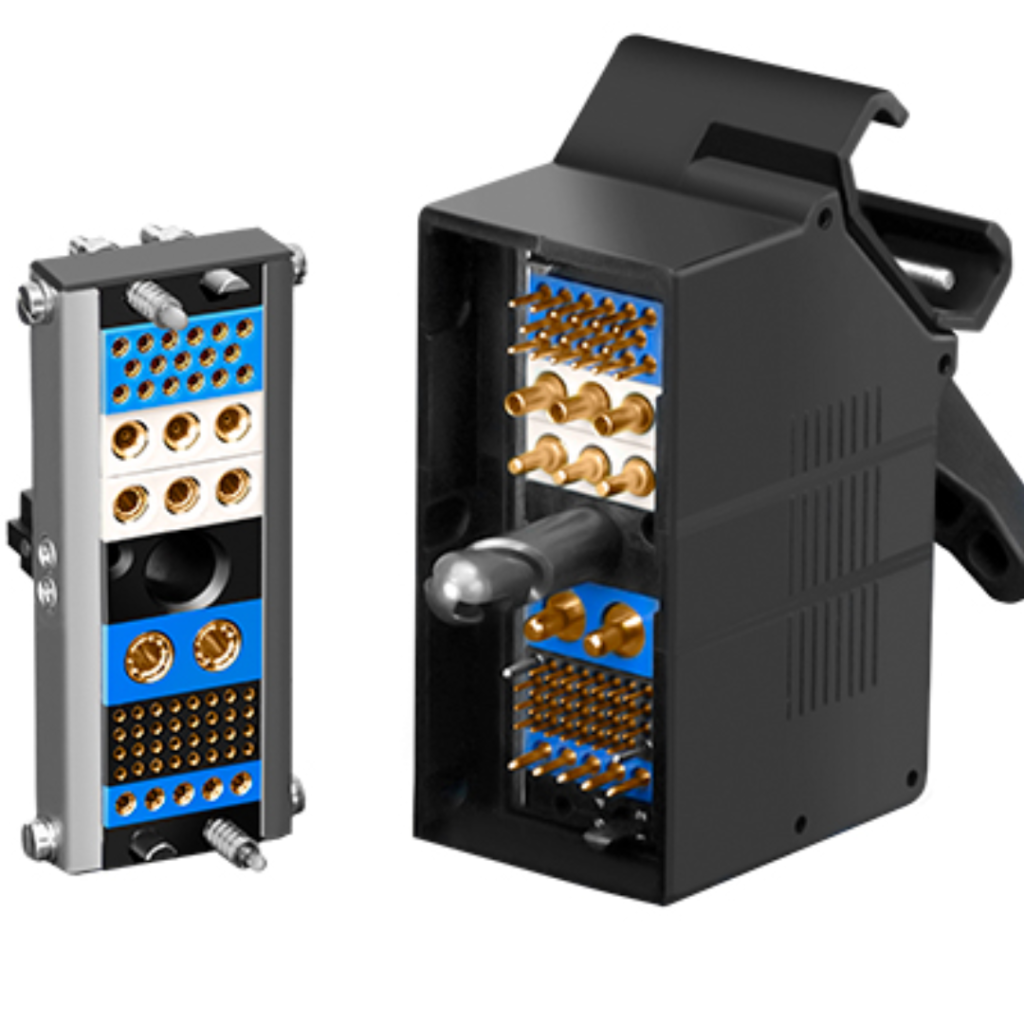

Product Description

Modular Connectors are designed with flexibility, allowing users to tailor the number of contacts and form factor according to specific requirements. Advanced miniaturization techniques, such as high-density contact layouts and precision manufacturing, allow connectors to fit into smaller spaces while maintaining high current-carrying capacity and high-speed performance. These connectors ensure reliability in small-scale systems without the typical drawbacks of oversized connectors, such as high inductance and capacitance.

Insertion Force

20 N to 50 N (depending on connector size and design)

Withdrawal Force

10 N to 30 N (depending on connector type and application)

Contact Resistance

≤ 5 mΩ (depending on contact material and plating)

Insulation Resistance

≥ 1,000 MΩ (at 500V DC)

Voltage Withstand

Up to 1,000 V (depending on insulation and configuration)

Temperature Range

-55°C to +125°C (standard range, extended options available)

Flammability Rating

UL94 V-0 or better (depends on insulating materials)

Mechanical Life (Cycles)

1,000 to 10,000 cycles (depending on application and usage conditions)

Shell Material

Aluminum, Stainless Steel, or Thermoplastic (depending on application)

Contact Material

Copper Alloy, Beryllium Copper, or Phosphor Bronze (depending on current)

Contact Plating Thickness

3 µm to 30 µm (typically gold, silver, or palladium)

Sealing Option

Gasket-sealed, Overmolded, or IP-rated (depends on application)

Maximum Axial Load

15 N to 100 N (depends on connector size and mounting configuration)

Vibration Resistance

20 G to 50 G (depending on design and material)

Shock Resistance

50 G to 100 G (depends on connector type and configuration)

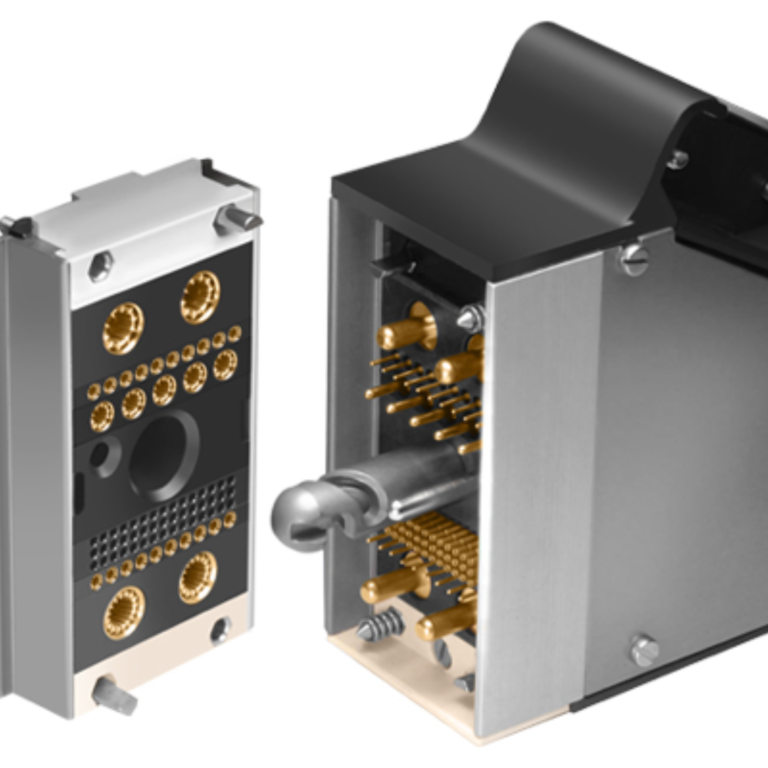

Technical Advantages

High speed/Modular Connectors are constructed using high-performance thermoplastics or metal alloys like stainless steel and aluminum, providing exceptional resistance to corrosion, wear, and thermal expansion. Contact materials like gold, silver, or copper alloys are carefully selected for their oxidation resistance, ensuring low contact resistance and stable performance over the long term. Sealing systems using elastomers or gaskets create airtight barriers, preventing contaminants such as moisture, dust, and corrosive substances from compromising connector performance. This ensures that the connectors maintain their reliability in harsh environments.

For high-current applications, multi-point contacts distribute the current load evenly, reducing the risk of overheating or contact degradation. Contact resistance is minimized through the use of precision-machined contacts with tight tolerances, ensuring optimal performance even at high current levels. These connectors are designed for use in systems with demanding mechanical vibration and shock resistance, using locking mechanisms or positive latching systems that prevent accidental disengagement.

Let's Get Started

Need reliable Connectors for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

High-Performance Computing (HPC)

Supports interconnects in supercomputing systems, ensuring fast and reliable data exchange between nodes.

Robotics

Provides high-bandwidth connections for real-time data processing in autonomous robots and drones.

Scientific Research Instruments

Ensures fast data transfer in particle accelerators, spectrometers, and other high-precision scientific measurement systems.

Radar & LIDAR Systems

Delivers reliable, high-speed interconnects in advanced radar and LIDAR technology in autonomous vehicles and aerospace.

Semiconductor Manufacturing

Supports high-precision, high-speed connections in wafer inspection, photolithography, and other semiconductor fabrication processes.

Smart Grids

Enables high-speed data transmission between grid components, optimizing real-time monitoring and control in energy distribution systems.

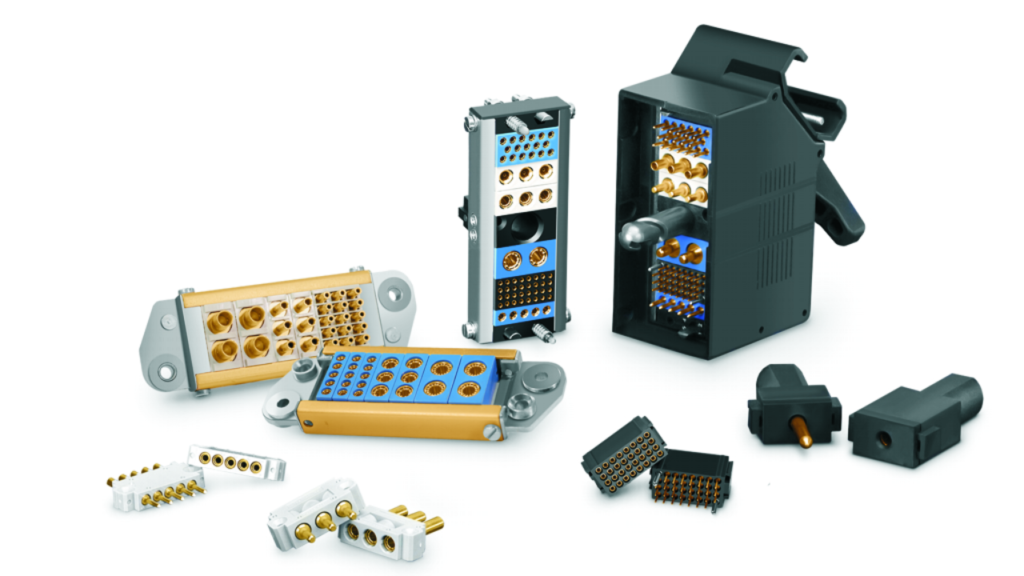

Effective EMI Shielding and Thermal Control

High Speed/Modular Connectors are designed to mitigate these challenges. Advanced shielding solutions, such as over-molded or shielded connectors, ensure electromagnetic fields are contained within the connector housing. These connectors employ conductive materials like copper or aluminum to create an effective shield that blocks unwanted signals and prevents external noise ingress.

High speed/Modular Connectors handle high current loads with minimal temperature rise. Features like thermal vias or heat sinks integrated into the connector housing facilitate the effective management of heat. Gold-plated contacts or high-conductivity materials optimize power delivery while reducing the potential for thermal damage.

high speed/modular connectors

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How does Frigate ensure signal integrity in high-speed connectors for aerospace applications?

Frigate uses precision-machined contacts and impedance-controlled designs in their high-speed connectors, minimizing signal reflections and attenuation in demanding aerospace environments. High-quality shielding and low-inductance materials are also employed to ensure reliable performance in critical avionics systems.

What materials does Frigate use to enhance thermal management in high-speed connectors for industrial automation?

Frigate utilizes high-conductivity copper alloys and integrated thermal vias in their connectors to manage heat in high-power industrial automation systems. Combined with thermal expansion compensation, these materials ensure optimal performance without thermal degradation, even in continuous operation.

How does Frigate's modular connector design support scalability in data centers?

Frigate’s modular connectors feature customizable configurations, allowing for scalable solutions that accommodate evolving data center needs. With high-density pin layouts and multiple contact options, these connectors can handle increasing data rates and power requirements as data center infrastructure grows.

What steps does Frigate take to ensure high-speed connector reliability in harsh automotive environments?

Frigate employs ruggedized materials like stainless steel and high-performance thermoplastics, which resist temperature fluctuations, vibration, and chemicals in automotive environments. Over-molded seals and gold-plated contacts provide consistent performance, reducing the risk of failure in mission-critical automotive systems.

How does Frigate address EMI and RFI shielding in high-speed connectors for military applications?

Frigate integrates multi-layer shielding and conductive gaskets in their high speed/modular connectors, ensuring protection against electromagnetic interference (EMI) and radio-frequency interference (RFI). These connectors provide secure, noise-free communication in military systems, adhering to strict defense standards.

How does Frigate support custom high-speed connector development for specialized applications?
  • Frigate collaborates with OEM teams to design connectors tailored to system requirements.
  • Contact geometry and impedance are optimized for signal integrity.
  • Rapid prototyping and validation testing support early design evaluation.
  • Complete engineering documentation and production-ready specifications are provided.
What manufacturing capabilities enable Frigate to deliver high-precision modular connectors?
  • CNC machining and micro-stamping ensure tight dimensional tolerances.
  • Supports high-density, miniaturized connector designs.
  • Automated inspection ensures accurate contact alignment and plating quality.
  • Strict process control ensures consistent performance.
How does Frigate ensure consistent quality in large-volume connector manufacturing?
  • Multi-stage inspections from raw materials to final assembly.
  • Electrical and dimensional performance testing for each production batch.
  • Manufacturing aligned with international quality standards.
  • Batch traceability systems track materials and production history.
What value-added services does Frigate provide to simplify connector procurement?
  • Engineering consultation for optimal connector selection.
  • Support for custom assemblies and cable harness integration.
  • Design-for-manufacturability guidance to improve cost efficiency.
  • Scalable production and global supply support.
How does Frigate help customers accelerate time-to-market for high-speed connector programs?
  • Fast prototyping and pilot production runs.
  • Seamless transition from design to production.
  • Support with testing, documentation, and compliance validation.
  • Dedicated project coordination for faster delivery timelines.
