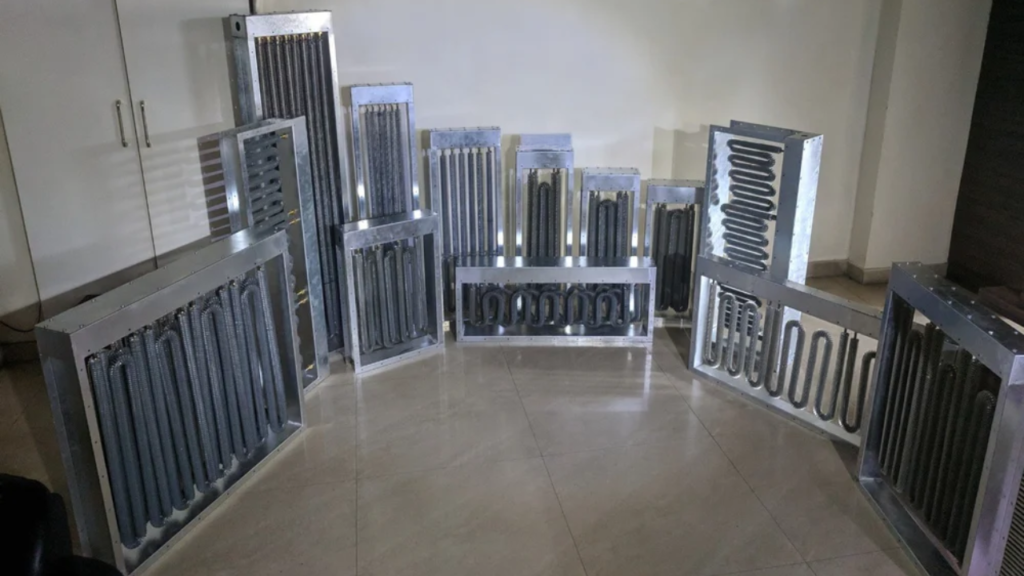

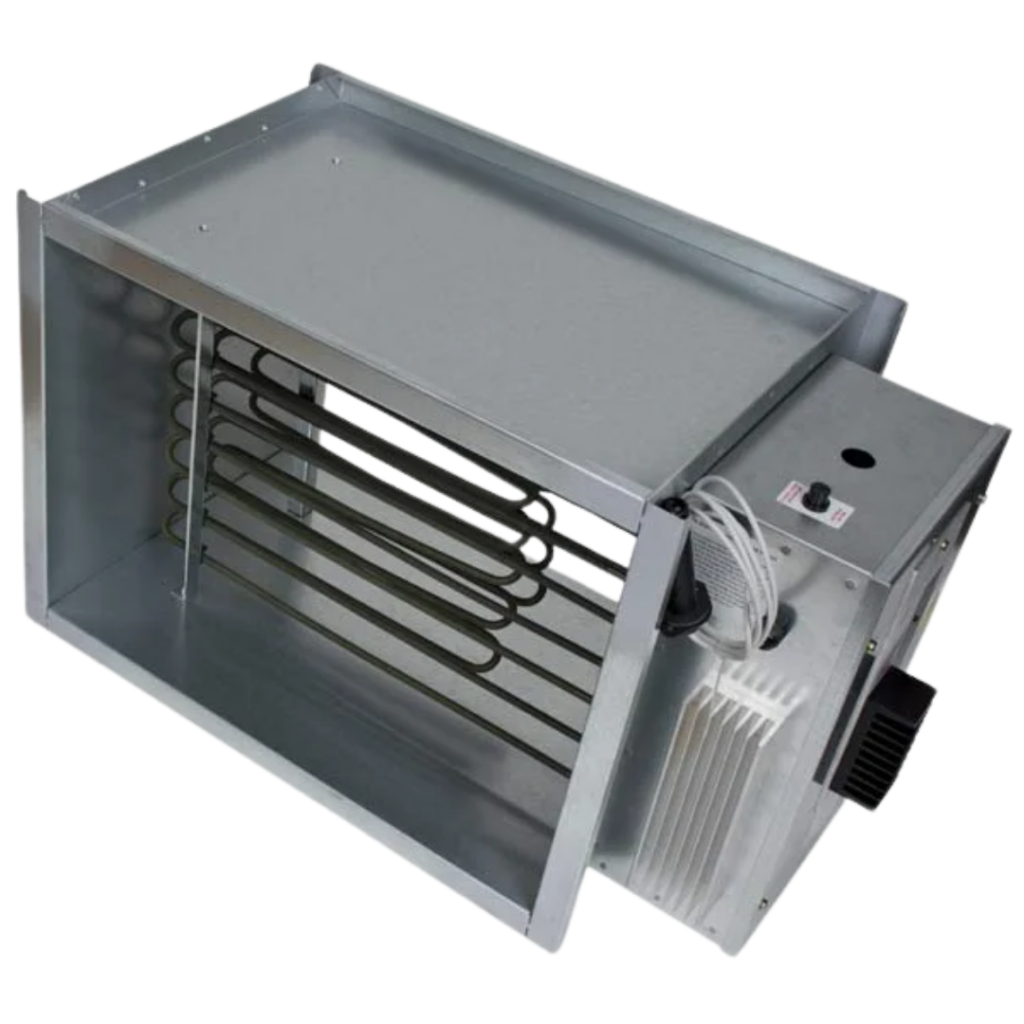

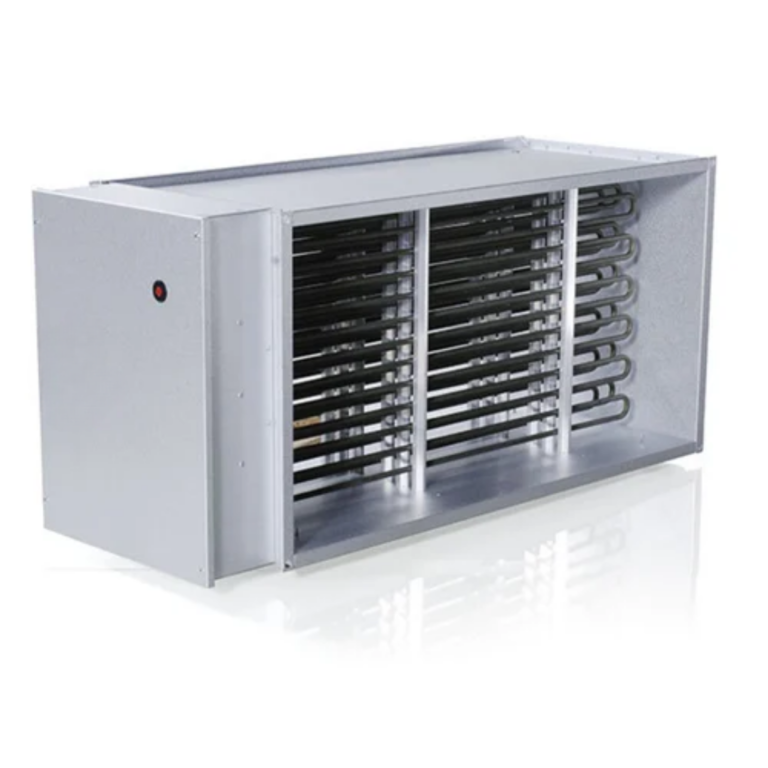

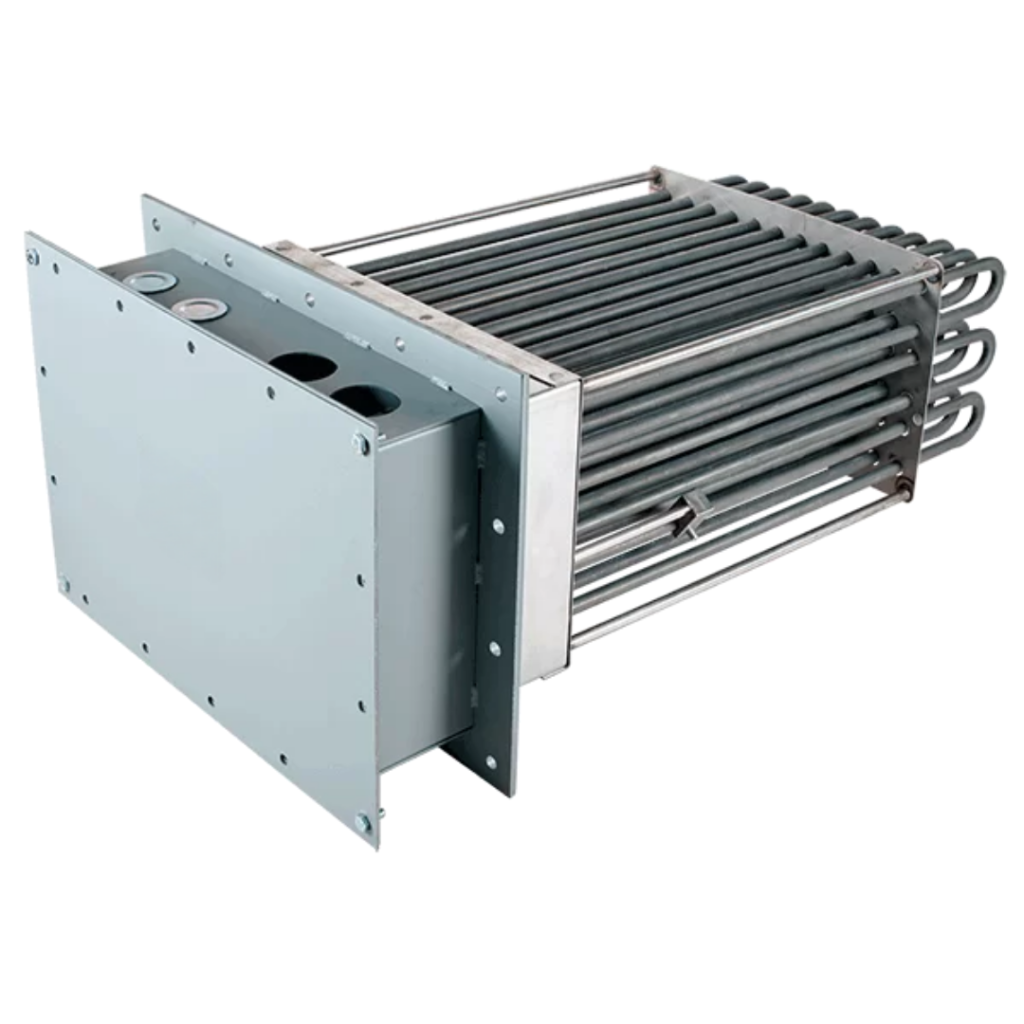

Duct Heaters

Our Duct Heaters are engineered to solve the trickiest issues in air heating systems, delivering robust, uniform heat that ensures optimal airflow and system performance. Crafted for manufacturers, these heaters offer a versatile, dependable solution that enhances your ducted systems across a range of industrial and commercial applications.

Heating Element Material

Nickel-Chromium (NiCr) alloy or Stainless Steel (Grade 304/321) for consistent heat output

Sheath/Outer Material

Stainless Steel (SS 304/321) or Galvanized Steel for durability and corrosion resistance

Voltage Rating

120 V – 240 V (single-phase); up to 480 V (three-phase) for industrial duct systems

Power Rating

1 kW to 100 kW, scalable based on duct size and airflow heating requirements

Temperature Range

20°C to 300°C for standard duct heating; up to 450°C for high-temperature applications
Get Latest Price
Get quote

Product Description

Uneven heating, corrosion from damp air, and slow response times can disrupt duct systems, raising costs and compromising efficiency. Our duct heaters counter these challenges with sturdy construction and a rapid heat-up time of 5-15 minutes, achieving temperatures from 20°C to 300°C.

Heat-Up Time

5 to 15 minutes to reach target temperature, depending on power and airflow volume

Watt Density

5 W/in² to 40 W/in², customizable based on heat transfer needs and safety limits

Insulation Material

Magnesium Oxide (MgO) or Ceramic for effective heat containment and electrical isolation

Corrosion Resistance

High resistance to humidity, dust, and mild corrosives; suited for HVAC and industrial ducts

Dimensions

Length – 300 mm to 4000 mm; Width – 200 mm to 1200 mm (customizable per duct dimensions)

Shape/Configuration

Open coil, tubular with fins, or rectangular frame; optimized for airflow heating

Current-Carrying Capacity

10 A to 250 A, depending on power rating and conductor sizing

Heat Transfer Method

Forced convection; efficient heat transfer to moving air in duct systems

Mounting/Fitting Type

Flange, slip-in, or custom duct frame mounting; adaptable to standard or bespoke ducts

Safety Features

Overheat protection (thermal cutoff), airflow sensors, and grounded design

Standards Compliance

Meets or exceeds UL 1030, IEC 60335-1, and ASHRAE 90.1 standards for duct heating safety

Technical Advantages

Duct systems face tough conditions such as moist air, dust, and constant airflow that wear down lesser heaters. Our duct heaters are built with high-grade materials like stainless steel or galvanized steel, standing up to these stresses with lasting durability.

Inefficient heat transfer or oversized designs can drain energy and performance. With power ratings from 1 kW to 100 kW and a forced convection design, our heaters provide swift, even heating tailored to your duct size and airflow needs.

Let's Get Started

Need reliable Heating Elements for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Commercial HVAC Systems

Powers duct heaters in office buildings and malls, ensuring consistent air warming for occupant comfort.

Industrial Ventilation

Integrates into factory exhaust systems, delivering reliable heat for process air management.

Food Processing Dryers

Supports ducted drying systems for grains or snacks, maintaining steady heat for high-volume production.

Pharmaceutical Air Handling

Enhances cleanroom ventilation ducts, providing controlled heating for sterile environments.

Automotive Test Chambers

Equips climate simulation ducts, ensuring precise heat for vehicle testing and validation.

Warehouse Space Heating

Drives duct heaters for large storage facilities, offering efficient warmth in expansive areas.

Powerful Heat for Seamless Systems

Adding heaters to your duct designs shouldn’t complicate your workflow. Our duct heaters come in adaptable configurations such as open coil, finned tubular, or rectangular frames and mounting options like slip-in or flange styles, ensuring an effortless fit into any duct layout.

Erratic heat or safety lapses can stall airflow and trust. Our heaters feature safeguards like airflow sensors and thermal cutoffs, delivering steady, safe warmth even in high-volume ducts.

duct heaters

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How do your duct heaters adapt to fluctuating airflow in our systems?

Our heaters are designed to maintain stable heat output across varying airflow rates, ensuring consistent performance whether ducts run at full blast or low speed. This adaptability gives sourcing teams a flexible solution that keeps systems efficient without constant adjustments, saving time and effort in production.

What’s the long-term benefit of choosing your heaters over budget options?

Our heaters, made with durable materials like stainless steel, outlast cheaper alternatives in humid or dusty ducts, reducing replacement frequency. For procurement heads, this durability means lower lifecycle costs and fewer service interruptions, offering a smarter investment that pays off in reliability and savings.

Can your heaters handle the noise and vibration of industrial duct systems?

Yes, built with robust construction and secure mounting options like flanges, our heaters resist wear from vibration and airflow noise, maintaining performance in tough settings. This resilience provides sourcing professionals with a dependable component that ensures system longevity in high-stress environments.

How do your duct heaters help us meet tight production deadlines?

With pre-configured designs and power ratings up to 100 kW, our heaters integrate quickly into your duct builds, cutting assembly time without sacrificing quality. This speed-to-market advantage helps purchasing managers deliver systems faster, keeping projects on schedule and clients happy.

What options do we have for scaling heater sizes across our product line?

Our heaters range from 1 kW for small ducts to 100 kW for large industrial systems, with customizable dimensions and configurations to match your specs. This scalability simplifies sourcing for procurement teams, letting you standardize components across diverse models while meeting varied client needs.
