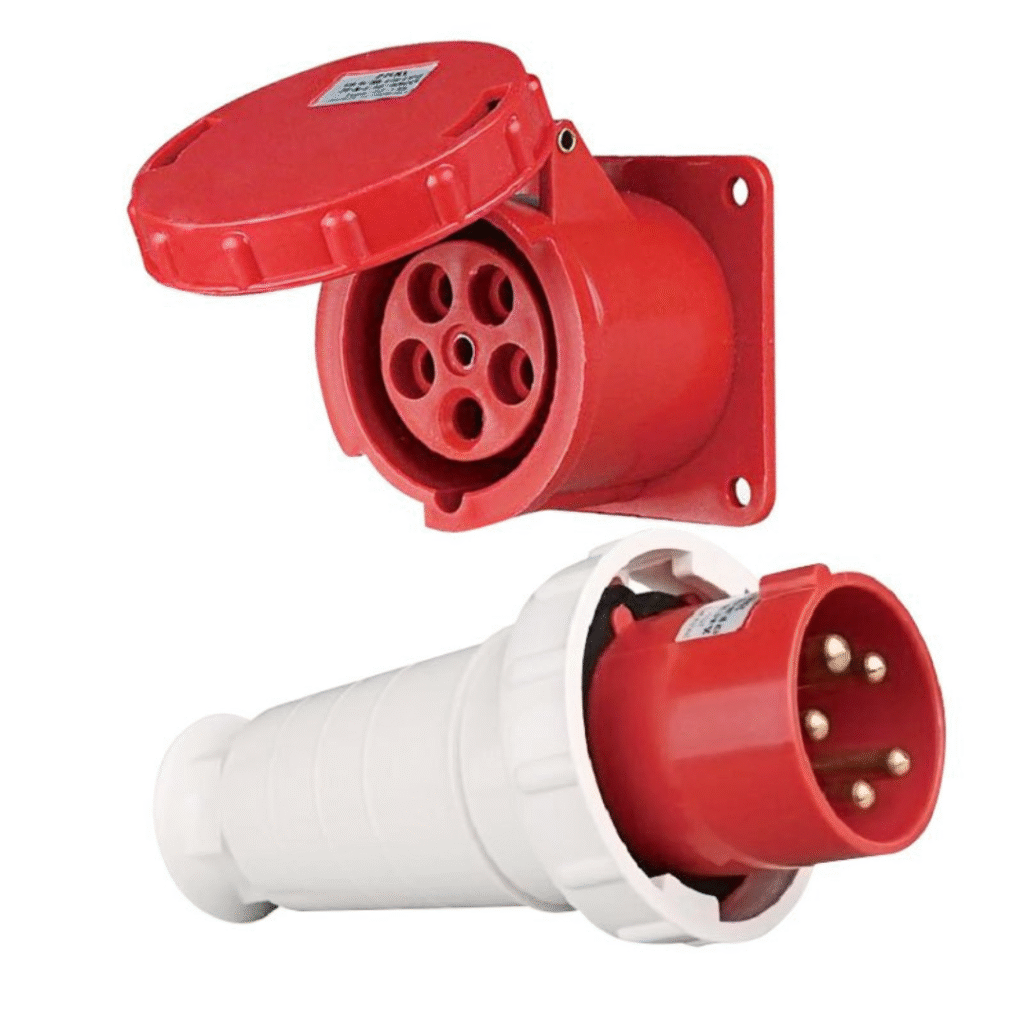

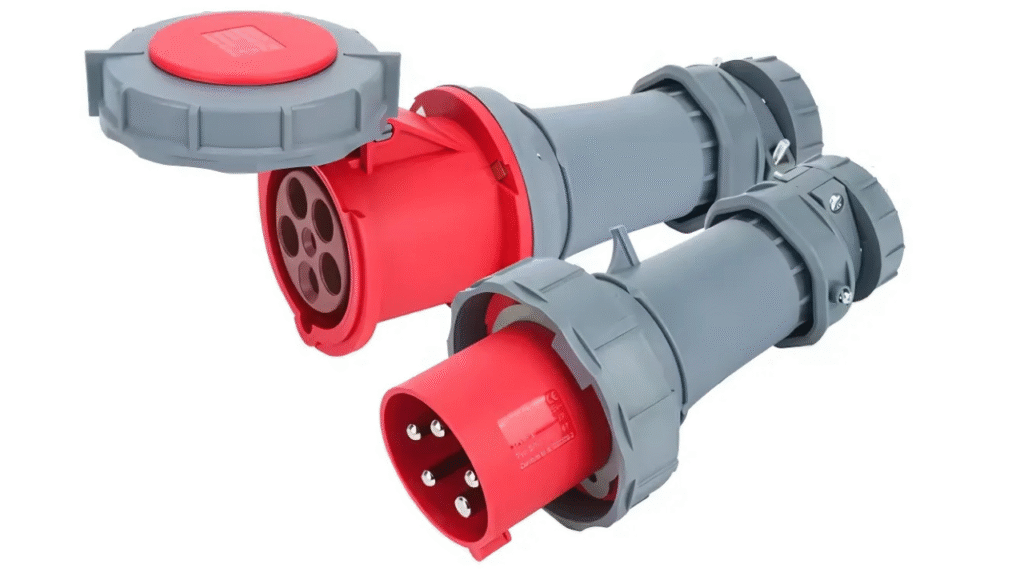

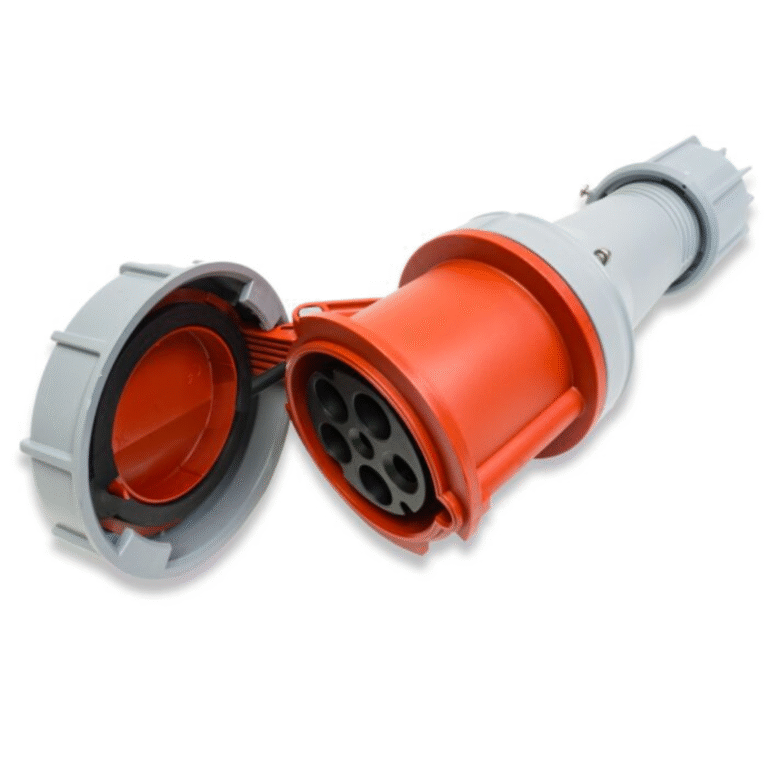

63A Industrial Sockets (IP67)

Heavy electrical loads in exposed environments often cause premature socket failure or approval delays. Our 63A Industrial Sockets (IP67) meets global standards while handling high current without compromise.

Voltage Rating

690V AC, 50/60Hz (1000V DC mining variant available)

Current Rating

63A continuous (80A peak for ≤5 minutes)

IP Rating

IP67 (submersible to 1m for 1 hour) + IP69K pressure wash option

Terminal Type

Bolted copper busbars (16-50mm²)

Material Construction

Glass-fiber reinforced Duroplast (UL94 V-0) + silver-nickel contacts (99.9% purity)
Get Latest Price
Get quote

Product Description

Power fluctuations, mechanical stress, or seal failures can affect uptime and safety. We solve these issues with sealed construction, certified design, and low-resistance contact paths that maintain system integrity.

Mounting Type

Flange mount (M63×1.5 thread) with anti-rotation tabs

Safety Certifications

IEC 60309-4, EN 60309-1, ATEX Zone 2, UL 1682, CSA C22.2 No. 182.3

Locking Mechanism Type

Motorized quarter-turn bayonet (24V DC actuator) with mechanical override

Dimensions

Ø82mm × 120mm depth (custom 70-100mm diameters available)

Operating Temperature

-60°C to +125°C (maintains IP67 at all temps)

Lifespan Rating

5,000 mating cycles (MIL-DTL-5015 Method 203A tested)

Country/Region Compatibility

Global (IEC 60309-4 6h configuration)

Contact Resistance

≤1.5mΩ initial (≤2mΩ after 5000 cycles)

Impact Resistance

IK10+ (30J protection – exceeds IEC 62262)

Breaking Capacity

25kA (current-limiting design)

Fire Resistance

1000°C glow-wire (IEC 60695-2-13) + UL94 5VA

Technical Advantages

Frequent disconnections, voltage surges, or sealing failure can compromise connector performance. This socket combines a 24V motorized bayonet lock and IP69K sealing to eliminate loose contact and water ingress.

Its glass-filled Duroplast body resists flame, deformation, and impact beyond IK10 standards. Low contact resistance remains stable over 5,000 cycles, even in corrosive or abrasive environments.

Let's Get Started

Need reliable Sockets for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Shipyard Distribution Boards

Supports portable and fixed distribution units exposed to saltwater and impact in shipbuilding and repair zones.

Mining Load Points

Connects mobile and stationary equipment in mining operations, handling DC loads and shock in ATEX Zone 2 environments.

Modular Power Cabins

Enables plug-and-play connections in containerized substations, backup generators, and mobile power shelters.

Oil and Gas Platforms

Used for offshore electrical supply in hazardous areas, maintaining sealing and fire resistance under thermal stress.

Construction Equipment Panels

Feeds concrete mixers, cranes, and tower lighting units in temporary job sites with high current reliability.

Airport Ground Power Units

Integrates into mobile or fixed power delivery units on tarmac or under harsh outdoor conditions.

High Current Handling with Long-Term Value

Sourcing durable sockets for outdoor or harsh electrical panels can be difficult when specs vary across regions. We provide a global-fit form factor, thread options, and compliance certificates ready for export.

You get reliability without secondary protection needs or extra weatherproofing. This reduces part counts, simplifies approvals, and speeds up integration across high-load zones.

63A Industrial Sockets

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

Can this 63A socket support both AC and DC systems?

Yes, the standard model handles 690V AC at 50 or 60Hz. We also offer a 1000V DC variant for mining or hybrid systems. Both maintain low contact resistance and safety certifications.

Is the motorized locking system reliable in case of power failure?

The 24V DC actuator includes a manual override for emergencies or power loss. This prevents downtime in field panels and mobile equipment. It also ensures secure disconnection during maintenance.

Will the socket body degrade in chemical-heavy environments?

The Duroplast housing resists oils, solvents, and cleaning agents used in industrial sites. Its composition meets UL94 V-0 and 5VA flame ratings. Field tests confirm stability in corrosive and high-washdown areas.

Can we request a different flange diameter or mounting type?

Yes, custom flange diameters between 70mm and 100mm are available. We also support changes in thread type and entry orientation. This helps fit existing panel cutouts without redesigns.

How do you validate durability across electrical cycles?

Each socket undergoes MIL-DTL-5015 Method 203A testing up to 5,000 cycles. Post-cycle contact resistance remains below 2mΩ. This confirms reliable connection under repeated use.
