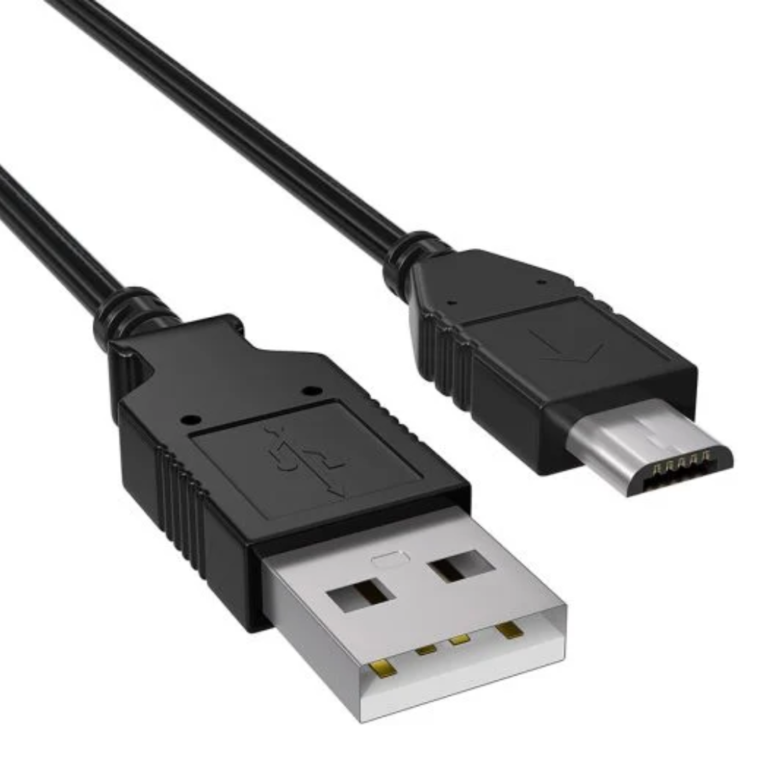

Type A 2.0 to Micro B 2.0 Signal Transmission Cables

Type A 2.0 to Micro B 2.0 signal transmission cables are designed to eliminate these issues by ensuring superior signal integrity through advanced engineering. Featuring precision-molded copper conductors and multi-layer shielding, they minimize electromagnetic interference (EMI) for a stable and uninterrupted data flow. With high-speed USB 2.0 capabilities supporting transfer rates up to 480 Mbps, these cables ensure rapid and accurate data sharing.

Conductor Material

High-purity oxygen-free copper ensures superior signal conductivity.

Conductor Resistance

≤ 28 Ω/km for reduced power loss and enhanced efficiency.

Insulation Resistance

≥ 100 MΩ·km prevents leakage, ensuring secure signal transmission.

Dielectric Constant (εr)

≤ 2.2 minimizes signal distortion, ensuring clear data flow.

Capacitance

40 pF/m (typical) supports stable performance at high frequencies.
Get Latest Price
Get quote

Product Description

Gold-plated connectors enhance reliability by preventing oxidation and maintaining low-resistance connections, even under continuous use. Our Type A 2.0 to Micro B 2.0 cables are more than just a product—they are a reliable solution to your connectivity challenges. Engineered with precision and built to last, they are trusted by professionals across industries for their robust performance and exceptional durability.

Inductance

0.6 µH/m ensures minimal electromagnetic interference during operation.

Shielding Effectiveness

≥ 85 dB blocks external EMI for reliable signal transmission.

Jacket Material

Thermoplastic Elastomer (TPE) resists abrasion and adds flexibility.

Max. Operating Frequency

480 MHz (USB 2.0 standard) supports high-speed data transfers.

Jacket Flammability Rating

UL94 V-0 ensures high safety with fire-resistant material.

Maximum Signal Velocity

70% of the speed of light for high data speed.

Peak Operating Voltage

30 V DC ensures compatibility with low-voltage device standards.

Tensile Strength

≥ 3000 psi ensures durability under mechanical stress and strain.

Dynamic Flex Life

≥ 20,000 cycles for long-lasting performance in moving applications.

Temperature Range

-20°C to 80°C ensures performance in extreme environments.

Cable Impedance

90 Ω ± 10% (differential) ensures proper signal matching.

Bandwidth

480 Mbps (USB 2.0 high-speed) ensures fast and efficient transfers.

Technical Advantages

Incompatibility between cables and devices can cause unnecessary delays and frustration. Our Type A 2.0 to Micro B 2.0 cables address this by being universally compatible with USB 2.0-enabled devices, including external hard drives, cameras, smartphones, and industrial equipment. They also offer backward compatibility with USB 1.1 devices, making them versatile for legacy systems. The connectors are precision-molded for a secure and snug fit, ensuring consistent connectivity and eliminating the risk of intermittent disconnections during use.

Frequent cable failure due to wear and tear can disrupt workflows and increase replacement costs. Our cables are built with durability in mind, featuring high-tensile-strength jackets that resist fraying and breakage. The flexible strain relief design prevents internal wire damage at stress points, extending the cable’s operational life. Furthermore, using temperature-resistant materials ensures the cables perform efficiently in demanding environments, making them a reliable choice for industrial and commercial applications.

Let's Get Started

Need reliable Signal Cables for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Automated Optical Inspection (AOI) Systems

Facilitates high-bandwidth communication between cameras and inspection units for real-time image processing.

Robotic Control Systems

Provides precise data transfer for communication between robots’ motion controllers and external devices in automated manufacturing lines.

Medical Imaging Devices

This process transfers large image files from diagnostic equipment like MRI and ultrasound systems to external storage or processing units.

Power Distribution and Monitoring Systems

Connects measurement instruments to central control units for real-time data transmission in smart grids.

Field Programmable Gate Arrays (FPGA) Communication

This technology supports high-speed signal and data transmission between FPGA-based processing units and peripheral devices.

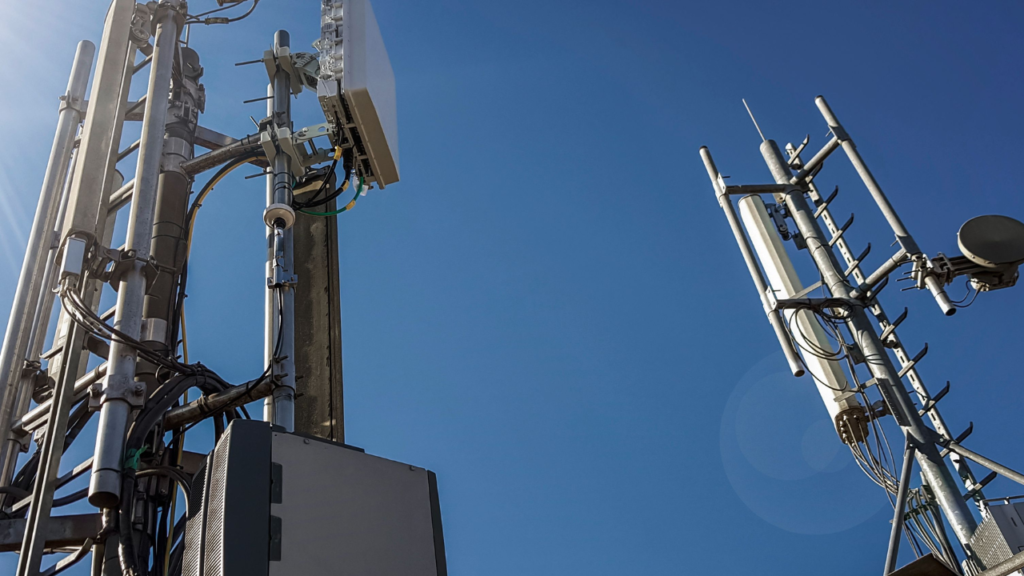

Telecommunications Network Testing

Facilitates data transfer between network analyzers and testing equipment for telecom infrastructure diagnostics.

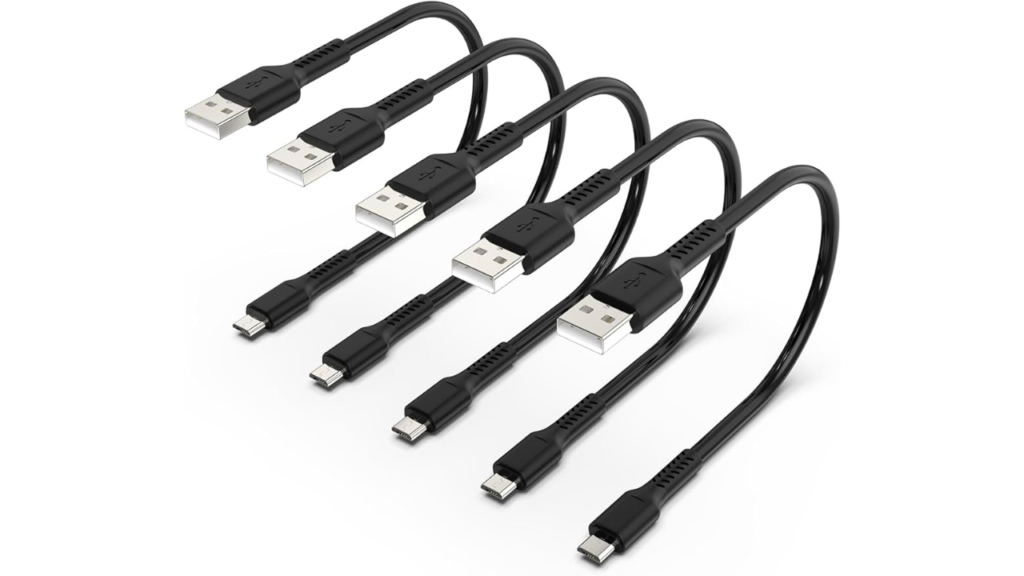

Adaptable Lengths and Eco-Friendly Packaging

Cables that are too short or excessively long can hinder convenience and efficiency in setups. To address this, we offer a variety of cable lengths to suit different needs. Whether you require compact 1-foot cables for portable setups or longer 10-foot options for fixed installations, our range is designed to optimize usability. We also provide customizable options for unique configurations or specialized setups, ensuring that you have the perfect length for your specific requirements.

Buyers today are increasingly concerned about the environmental impact of their purchases. Our cables are manufactured sustainably, using RoHS-compliant materials free from hazardous substances. This ensures a reduced environmental footprint without compromising on quality or performance. Additionally, our recyclable packaging supports eco-conscious practices, providing a responsible choice for environmentally aware buyers.

Type A 2.0 to Micro B 2.0 signal transmission cables

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How does the Type A 2.0 to Micro B 2.0 cable maintain high signal integrity under heavy data loads?

The cable utilizes differential pair wiring and advanced impedance matching to reduce crosstalk and maintain high signal integrity. This ensures precise signal transmission, even during high-bandwidth operations, minimizing data packet errors.

What ensures the precise alignment of the connectors in this cable?

The connectors are engineered with tight dimensional tolerances and a micro-aligned plug interface. This guarantees a perfect fit with USB ports, reducing the risk of signal loss due to improper alignment or loose connections.

How is thermal management handled in the cable design for industrial-grade use?

The cable is constructed with thermally conductive materials and heat-dissipating layers within the jacket. This design prevents thermal buildup during prolonged use, maintaining performance stability in demanding applications.

What makes this cable suitable for high-vibration environments?

The cable features reinforced connector assemblies and vibration-resistant soldering techniques, ensuring mechanical stability. This makes it highly durable in environments where vibrations might disrupt connections or damage internal components.

How is the cable optimized for low power loss during charging applications?

The cable incorporates low-resistance, high-purity copper conductors and precision-tuned insulation. This minimizes power loss, ensuring efficient energy delivery during charging while complying with USB 2.0 power specifications.

How do these cables reduce operational downtime risks?
  • High-purity copper conductors for stable signal flow.
  • Multi-layer shielding to block electromagnetic interference.
  • Precision-molded connectors for consistent fit and secure connection.
  • Extended flex life design to handle continuous motion without failure.



What makes these cables a better sourcing choice than generic options?
  • Engineered impedance control for reliable high-speed data.
  • Gold-plated contact surfaces for consistent conductivity.
  • Tight dimensional tolerances for repeatable performance in every unit.
  • Industrial-strength jackets for long-lasting durability.



How are these cables designed to handle industrial-grade demands?
  • Tensile strength ≥ 3000 psi for resistance to mechanical stress.
  • Reinforced connector assemblies for vibration-heavy environments.
  • Thermally optimized jacket materials for stable long-term use.
  • High-cycle flex life tested for robotic and automation setups.



How do these cables ensure wide device compatibility in sourcing projects?
  • Backward-compatible with USB 1.1 while supporting USB 2.0 speed.
  • Universal fit with cameras, external drives, industrial systems, and medical devices.
  • Differential pair wiring to minimize crosstalk across multiple devices.
  • Customizable lengths to suit compact or large-scale installations.



Why are these cables reliable for long-term deployment in critical systems?
  • Low conductor resistance for minimal energy loss.
  • Precision insulation to maintain stable signal integrity.
  • Vibration-resistant soldering for connector stability over time.
  • Designed with performance margins beyond standard USB 2.0 specs.
