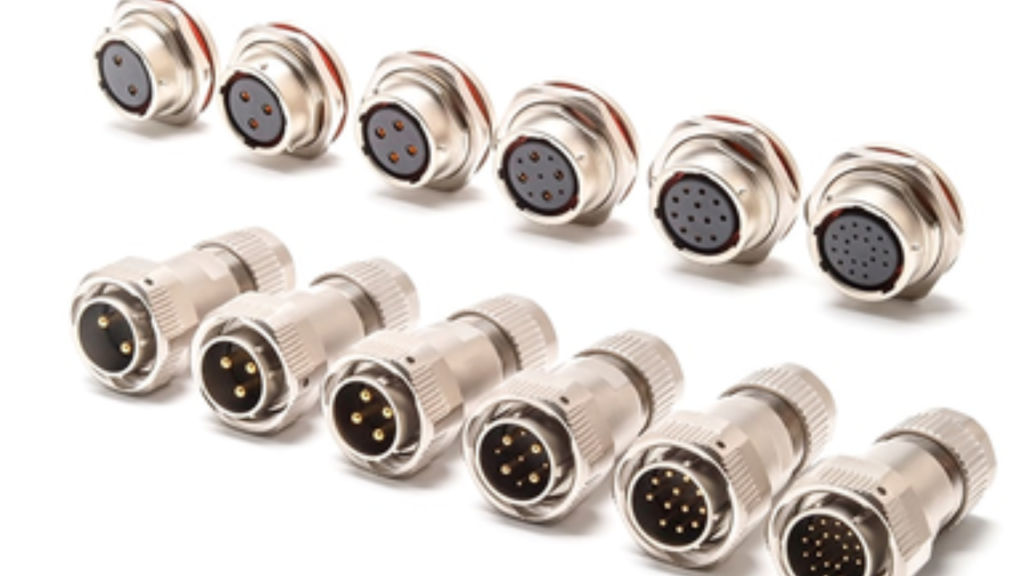

Metal layer Plug

Signal degradation is a major issue in high-speed communication systems. Metal Layer Plugs are designed precisely to maintain signal integrity, even in environments with high electromagnetic interference (EMI). The metal shielding minimizes signal loss and noise, delivering clear, uninterrupted performance. This ensures your systems operate with the utmost reliability, from data transmission in telecommunications to critical control systems in manufacturing.

Material Options

Stainless Steel, Titanium, Brass, Aluminum Alloy

Cable Diameter Range

2 mm to 50 mm

Temperature Range

-40°C to 200°C

Load Capacity

Up to 50 A (depending on cable size and material)

Vibration Resistance

Up to 30 G (depending on mounting and material)
Get Latest Price
Get quote

Product Description

Traditional cables often fail in environments with extreme temperatures, high pressures, and corrosive elements, causing downtime and costly repairs. Metal Layer Plugs offer superior protection, with a tough outer casing that resists wear and corrosion. Whether working in aerospace, automotive, or industrial machinery, these plugs stand up to the harshest conditions, ensuring your systems remain operational and cost-effective.

Corrosion Resistance

Resistant to saltwater, acids, and other corrosive elements

EMI Shielding

90% shielding efficiency or higher

Mounting Options

Screw-in, push-fit, snap-on, and flange mounting

Compliance Standards

RoHS, UL, ISO 9001, IEC 61076

Custom Features

Custom cable lengths, connectors, and housings available

UV Resistance

UV-resistant coatings for outdoor applications

Fire Resistance Rating

UL94 V-0 or higher

Chemical Resistance

Resistant to oils, fuels, solvents, and other industrial chemicals

Thermal Expansion Tolerance

≤ 0.0015% per °C at 100°C

Dynamic Load Testing

Rated for dynamic testing under continuous load up to 50,000 cycles

Precision Tolerances

Tolerances of ±0.05 mm for cable connectors and interfaces

Technical Advantages

Switching to new systems or upgrading cables can be a major headache. Metal Layer Plugs are designed to seamlessly integrate existing systems, making them ideal for retrofitting projects. With standard connections and compatibility with existing infrastructure, these plugs provide a hassle-free solution that saves time and money, all while improving system performance.

Whether you’re dealing with high-power applications or high-speed data transfers, Metal Layer Plugs provide efficient and stable connections. Their design optimizes power delivery and data throughput, reducing the risk of overheating or signal loss. This makes them an ideal choice for industries where consistent power delivery is critical, like power grids, automotive electronics, and telecommunications.

Let's Get Started

Need reliable Connectors for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Smart Grid Systems

Ensures efficient and safe power distribution for smart grids, maintaining communication and data flow in real time.

HVAC Systems

Ensures reliable electrical connections in heating, ventilation, and air conditioning systems, withstanding temperature fluctuations and vibration.

Automation in Manufacturing

Delivers reliable, low-loss electrical connections in robotics and assembly lines, crucial for precision and system longevity.

Renewable Energy

Provides reliable connections for solar and wind power systems, ensuring efficient energy transmission in variable environmental conditions.

Railway Systems

Ensures stable power and data transmission for signaling and control systems, resistant to vibrations and temperature extremes.

Consumer Electronics

Offers durable, high-performance connections for devices requiring robust signal integrity, like wearables and advanced computing devices.

Enhanced Safety and Long-Term Cost Efficiency

Safety is non-negotiable in high-voltage and sensitive environments. Metal Layer Plugs have robust safety features to protect against electrical faults and hazards. With insulation exceeding industry standards and built-in protection mechanisms, these plugs help ensure your equipment operates safely, preventing costly failures and potential risks.

While the upfront cost may be higher than traditional options, Metal Layer Plugs offer substantial long-term savings. Their durability, low maintenance requirements, and ability to withstand extreme conditions ensure they will outlast cheaper alternatives, reducing the need for replacements and lowering overall system maintenance costs.

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How does the metal shielding in Metal Layer Plugs reduce electromagnetic interference (EMI)?

Metal Layer Plugs are designed with a conductive metal shield that encapsulates the internal cables. This shield effectively blocks external electromagnetic fields, preventing interference from disrupting data signals or power transmission. The metal layer acts as a Faraday cage, ensuring your system’s signals remain clear and stable, even in environments with high EMI.

What materials are used in the insulation of Metal Layer Plugs to ensure high-temperature resistance?

The insulation in Metal Layer Plugs is made from high-performance polymers and ceramics that can withstand extreme temperatures. Materials like PTFE (Polytetrafluoroethylene) and silicone rubber are commonly used for their excellent heat resistance and stability, ensuring the plugs maintain functionality even in environments exceeding 200°C without degrading or losing their insulating properties.

How do Metal Layer Plugs prevent signal degradation in high-frequency applications?

Signal degradation is a major concern in high-frequency applications. The design of Metal Layer Plugs includes a precision-engineered conductive path and optimized shielding, which minimizes signal loss. The metal shielding protects the signal from external noise, while the quality of the internal conductors ensures minimal resistance, allowing for high-speed, distortion-free transmission over long distances.

Can Metal Layer Plugs be used in underwater or highly corrosive environments?

Metal Layer Plugs are engineered to withstand challenging environments such as underwater or corrosive industrial settings. The outer metal casing is often made from corrosion-resistant alloys like stainless steel or titanium, which protect against saltwater, chemicals, and other harsh elements, ensuring long-lasting performance and reliability in these extreme conditions.

How does the built-in overcurrent protection mechanism in Metal Layer Plugs work?

Overcurrent protection in Metal Layer Plugs is achieved through built-in fuses or circuit breakers that automatically disconnect the circuit if the current exceeds a safe threshold. This feature helps prevent overheating, reduce the risk of electrical fires, and protect sensitive components from damage, ensuring the longevity and safety of your equipment.

How can Frigate support OEM or bulk procurement requirements for Metal Layer Plugs?
  • High-volume manufacturing for OEM and industrial buyers.
  • Engineering consultation before production.
  • Custom materials, connectors, and housings available.
  • Strict quality control and batch traceability.
  • Global logistics support for smooth procurement.
Can Frigate customize Metal Layer Plugs for specific industrial applications?
  • Custom cable sizes, materials, and connectors.
  • Options for enhanced EMI shielding and coatings.
  • Design optimization for harsh or high-frequency environments.
  • Prototype development and validation support.
  • OEM branding and packaging available.
What quality assurance processes does Frigate follow during manufacturing?
  • Manufacturing aligned with RoHS, UL, ISO 9001, and IEC standards.
  • Testing for electrical performance, EMI shielding, and temperature resistance.
  • Precision manufacturing for tight connector tolerances.
  • Durability checks for vibration, corrosion, and mechanical strength.
  • Inspection reports and documentation provided.
How quickly can Frigate deliver Metal Layer Plug orders for industrial projects?
  • Efficient production timelines with modern facilities.
  • Short lead times for standard designs.
  • Structured process for custom design and prototyping.
  • Global shipping coordination.
  • Reliable delivery schedules for large orders.
Why should industries choose Frigate as their Metal Layer Plug manufacturer?
  • Expertise in precision industrial electrical components.
  • Designed for high signal integrity and durability.
  • Engineering support from design to production.
  • Cost-efficient manufacturing with strict quality standards.
  • Scalable production for global industrial demand.
