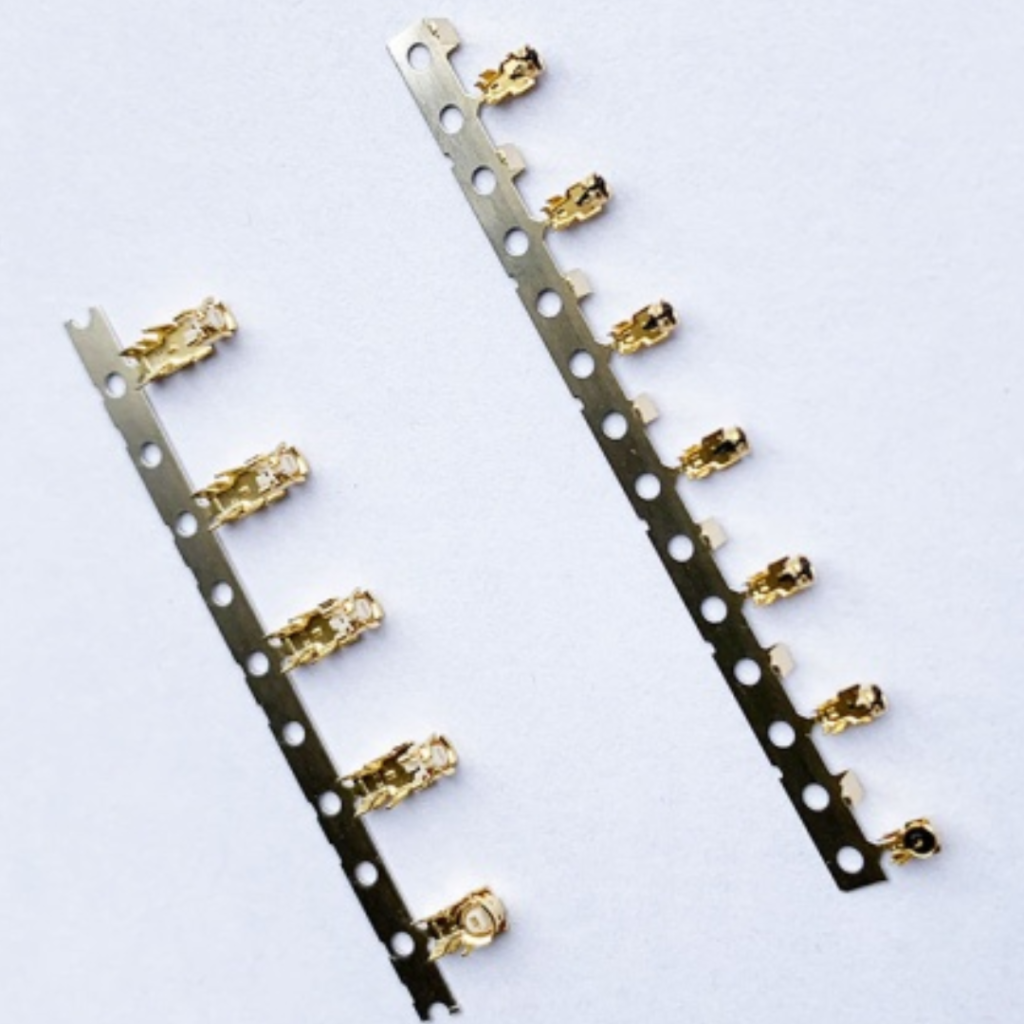

IPEX RF Coaxial Connectors

IPEX RF coaxial connectors are meticulously designed to achieve minimal insertion loss over a wide frequency range. Using advanced materials and precision manufacturing techniques, these connectors ensure that signal attenuation is kept to an absolute minimum, critical for applications in RF communication systems where every decibel counts. This is especially important for high-bandwidth, high-speed data transmission, where even slight losses can significantly affect performance.

Material Options

Copper alloys, stainless steel, gold plating, nickel plating, brass

Cable Diameter Range

1.13 mm to 10 mm

Temperature Range

-40°C to +125°C

Load Capacity

Up to 200 N (depending on connector type)

Vibration Resistance

10-100 Hz, up to 30 g in harsh environments
Get Latest Price
Get quote

Product Description

A key technical consideration in RF coaxial connectors is maintaining consistent impedance to avoid signal reflections that can lead to data loss and distortion. IPEX connectors are engineered to match precise impedance across a broad frequency spectrum, ensuring optimal signal transmission and minimizing return loss. This feature is critical for applications like antenna systems and satellite communication, where signal integrity is non-negotiable.

Corrosion Resistance

High resistance to salt spray, moisture, and industrial chemicals

EMI Shielding

>90% shielding effectiveness at high frequencies (up to 6 GHz)

Mounting Options

PCB mount, panel mount, cable mount, through-hole, surface-mount

Compliance Standards

RoHS, CE, UL, IPC-2221, MIL-PRF-39012

Custom Features

Customizable length, impedance, and termination options

UV Resistance

UV-stabilized materials for outdoor and exposed applications

Fire Resistance Rating

UL 94 V-0 flame retardant rating

Chemical Resistance

Resistant to oils, solvents, and a wide range of industrial chemicals

Thermal Expansion Tolerance

Coefficient of thermal expansion: 16 to 24 µm/m°C (depending on material used)

Dynamic Load Testing

Tested for dynamic loads up to 300 cycles of mating/unmating under vibration

Precision Tolerances

±0.05 mm for all critical dimensions, ensuring high-performance signal integrity

Technical Advantages

IPEX RF connectors are engineered to operate efficiently across a broad temperature range, often exceeding the capabilities of standard connectors. The materials used in the connectors ensure that they retain their mechanical integrity and electrical performance even under prolonged exposure to high or low temperatures, making them ideal for aerospace and defense applications where environmental extremes are a constant.

Many RF applications involve significant mechanical stresses and vibrations, particularly in the aerospace and automotive sectors. IPEX connectors are designed with high mechanical robustness, employing advanced locking mechanisms and vibration-resistant contacts to ensure reliable electrical contact and prevent failure due to mechanical shock or vibration.

Let's Get Started

Need reliable Connectors for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Satellite Communication

Utilized in satellite terminals for high-bandwidth signal transmission in satellite uplink and downlink systems.

Wireless Infrastructure

Integrated into wireless backhaul systems, providing stable, low-loss connections for point-to-point communication.

Radar Systems

Employed in radar equipment for precise detection and tracking, ensuring high-frequency signal clarity and accuracy.

Optical Networks

Used in RF-to-optical converters and fiber-optic communication systems to ensure reliable RF signal integration.

High-Speed Data Links

Deployed in high-speed data transmission systems for data centers and cloud infrastructure applications.

RF Testing Equipment

Incorporated into testing and calibration equipment to ensure precise signal integrity for electronic devices and systems.

Ensuring Longevity and Reliability Through Premium Materials and Testing

High-quality materials such as stainless steel, brass, and copper alloys, combined with high-precision molding and machining techniques, guarantee excellent conductivity, mechanical strength, and long-term reliability.

IPEX connectors undergo stringent quality assurance processes to meet the highest industry standards. Each connector is subjected to extensive testing, including electrical testing for continuity, impedance, and insertion loss, as well as mechanical tests to verify durability under vibration, thermal cycling, and mating/unmating cycles.

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How does Frigate ensure high-precision casting for IPEX RF Coaxial Connector components?

Frigate uses state-of-the-art die-casting techniques with tight tolerance control to ensure high precision in connector components, minimizing variations that could impact signal integrity.

What role does Frigate’s material selection play in the performance of IPEX RF Coaxial Connectors?

Frigate sources premium materials, including copper alloys and stainless steel, critical in maintaining conductivity, corrosion resistance, and performance under extreme conditions for IPEX connectors.

How does Frigate test the durability of IPEX connectors in high-vibration environments?

Frigate conducts extensive mechanical testing, including vibration and shock resistance tests, to ensure IPEX connectors can withstand demanding industrial environments without compromising electrical performance.

What specific quality control measures does Frigate implement for IPEX RF Coaxial Connectors?

Frigate employs comprehensive inspection protocols, including dimensional accuracy checks, impedance testing, and visual inspections, to ensure that each IPEX connector meets industry standards before shipment.

How does Frigate’s die-casting process optimize the performance of IPEX connectors in high-frequency applications?

Frigate’s advanced die-casting process ensures uniformity in connector components, reducing gaps and irregularities that could lead to signal loss and ensuring consistent high-frequency performance.

How does Frigate support OEMs with custom IPEX RF Coaxial Connector manufacturing?
  • Collaborates with OEM teams to develop custom connector designs and impedance configurations.
  • Provides DFM optimization for reliable high-frequency performance.
  • Supports rapid prototyping and scalable production.
  • Assists with housing design, plating selection, and termination options.
What manufacturing capabilities does Frigate offer for large-scale production of IPEX RF connectors?
  • Uses automated die-casting, CNC machining, and precision molding.
  • Ensures high-volume production with tight tolerance control.
  • Provides gold and nickel plating for conductivity and corrosion resistance.
  • Applies lean manufacturing to reduce lead times.
How does Frigate ensure consistent RF performance in high-frequency connector manufacturing?
  • Maintains tight machining tolerances for stable impedance.
  • Uses advanced inspection for geometry and contact alignment.
  • Performs insertion loss, return loss, and impedance testing.
  • Optimizes connector interface designs for high-frequency signals.
How does Frigate support global supply chains for IPEX RF Coaxial Connectors?
  • Maintains reliable sourcing for RF-grade metals and materials.
  • Supports stable supply for telecom, aerospace, and electronics sectors.
  • Offers flexible production scheduling for large deployments.
  • Ensures timely global delivery through logistics coordination.
What post-production services does Frigate provide for IPEX RF connector assemblies?
  • Provides connector assembly, cable integration, and termination.
  • Offers custom packaging and labeling for easy installation.
  • Supports integration into RF modules and antenna systems.
  • Supplies traceability documents and compliance certifications.
