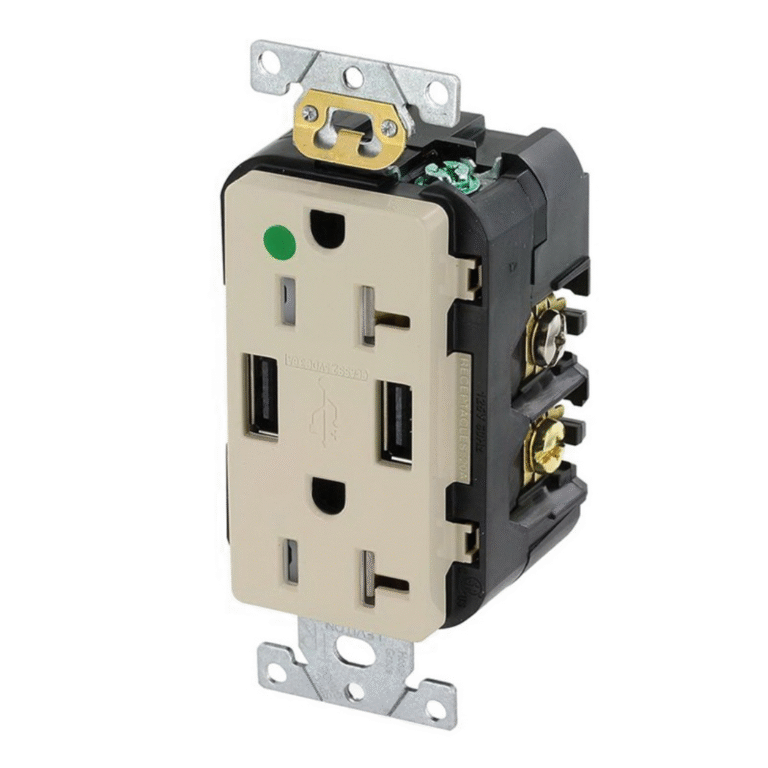

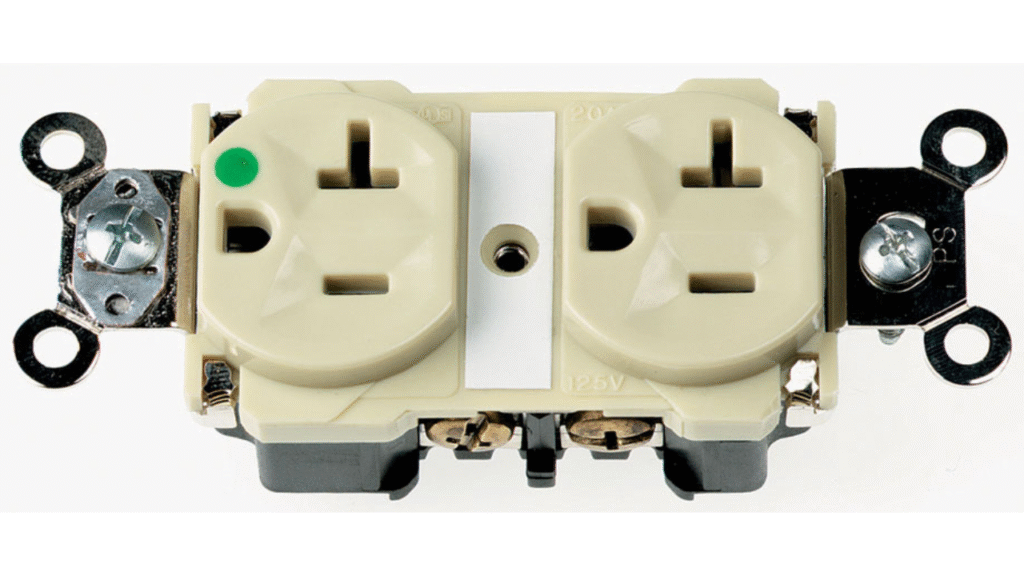

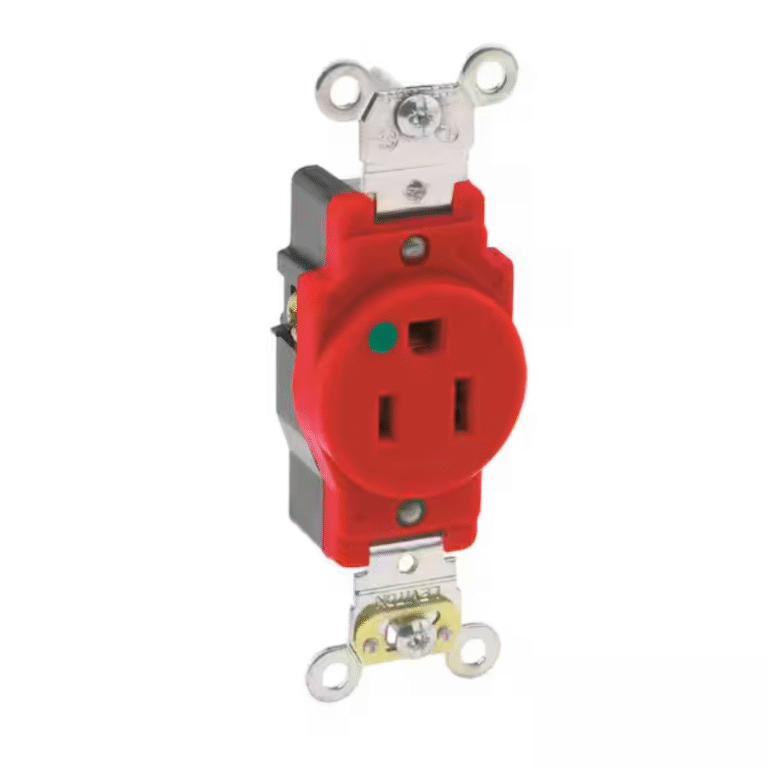

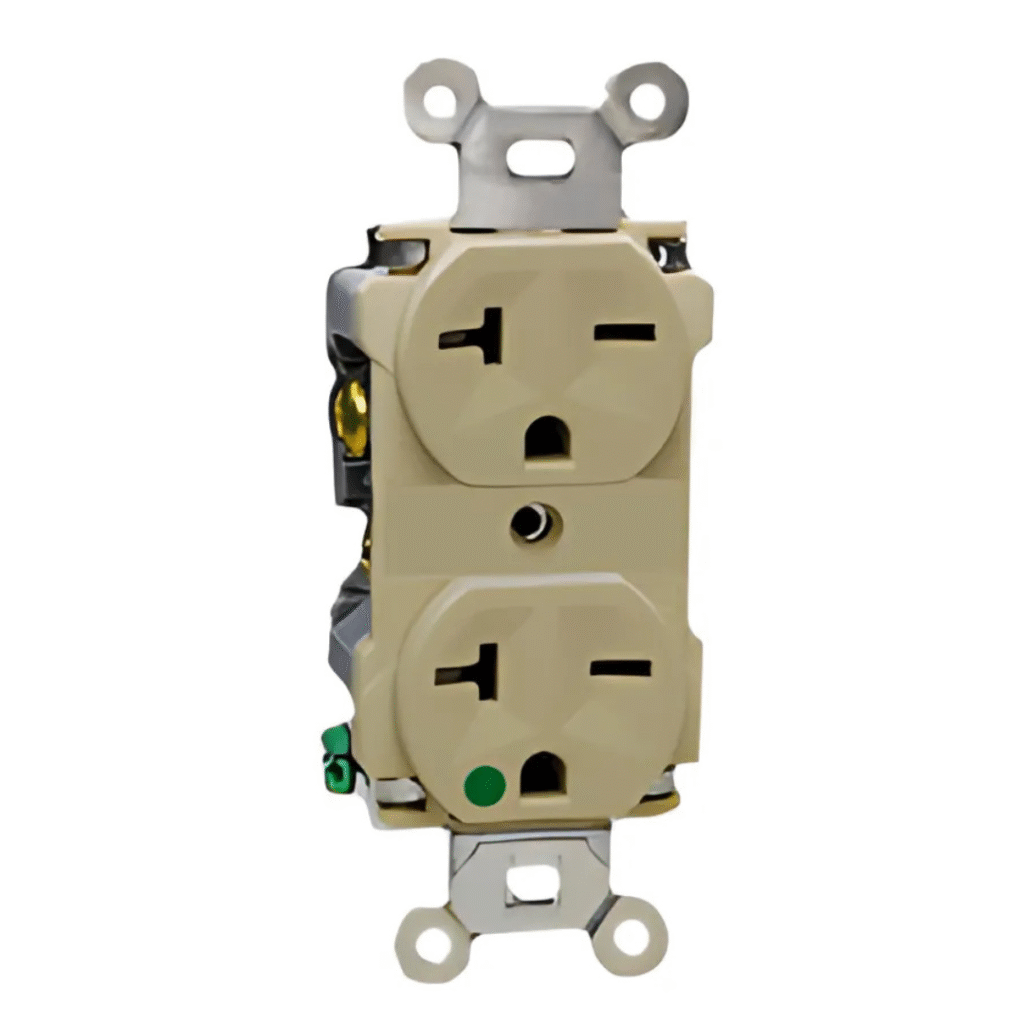

Hospital-Grade Sockets

If medical facilities demand stable output in mission-critical zones, sockets must perform under strict hygiene and electrical norms. Our Hospital-Grade Sockets deliver steady power with antimicrobial builds and safety-rated components for surgical, diagnostic, and life-support setups.

Voltage Rating

230V AC ±10%, 50/60Hz (Isolated Ground version available)

Current Rating

16A continuous (20A peak for 5 minutes)

IP Rating

IP21 (IP44 with protective cover)

Terminal Type

Dual-screw brass terminals (2.5-6mm² conductors) with torque limiter

Material Construction

Antimicrobial polycarbonate (ISO 22196 compliant) + nickel-plated contacts
Get Latest Price
Get quote

Product Description

Low-quality sockets can interrupt care and cause downtime in sterile environments. We use ISO 22196-compliant housings and high-grade terminals to meet international standards while supporting uninterrupted operation in clinical areas.

Mounting Type

Flush-mounted (35mm+ deep backbox) / Surface-mount option

Safety Certifications

IEC 60601-1, UL 498A (Hospital Grade), ANSI/NFPA 99

Color Options

Hospital Green (RAL 6032), White (custom colors with antimicrobial additive)

Dimensions

86×86×35mm (slim 25mm ICU version available)

Operating Temperature Range

+5°C to +40°C (extended range +5°C to +60°C for sterilization areas)

Lifespan Rating

25,000 insertion cycles (tested with alcohol wipes)

Country/Region Compatibility

Global (IEC/UL/NEMA configurations)

Contact Resistance

≤3mΩ (≤5mΩ after 1000 sterilization cycles)

Backbox Compatibility

Standard hospital backboxes (35-50mm depth)

Breaking Capacity

10kA (with arc-fault detection)

Fire Resistance

UL94 5VA (plenum-rated versions available)

Technical Advantages

Medical-grade systems need sockets that meet hygiene and electrical codes under long usage cycles. Our units withstand 25,000 insertions and resist surface wear from alcohol-based cleaners.

Torque-limited brass terminals ensure tight fits without conductor strain or slippage.
Flush and surface-mount options allow flexible installation in existing hospital grids.

Let's Get Started

Need reliable Sockets for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

ICU Equipment Power Supply

Maintains reliable power for ventilators, infusion pumps, and monitors in intensive care units without voltage drops.

MRI & Imaging Rooms

Provides clean output with isolated ground options, minimizing electromagnetic interference during scans and diagnostics.

Operating Theaters

Antimicrobial casing withstands harsh disinfectants, keeping surfaces sterile during continuous high-load use.

Patient Room Outlets

Slim sockets fit behind beds or bedside units while supporting frequent plug/unplug cycles without damage.

Pharmaceutical Labs

Nickel-plated terminals and sealed backs maintain clean connections under regulated conditions.

Sterilization Zones

Handles elevated temperatures with IP44 covers, ensuring stable function post-autoclave or disinfection cycles.

Clean Output for Clinical Continuity

Critical environments require sockets that stay reliable after hours of active use and cleaning. Our hospital sockets run at 230V with low contact resistance, helping medical devices perform as expected without noise or flicker.

We use polycarbonate housings rated UL94 5VA for fire safety in plenum zones or ceiling cavities. Sourcing becomes simpler with color-coded builds and plug compatibility across global healthcare systems.

Hospital-Grade Sockets

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

Can this socket maintain connection reliability after repeated disinfectant exposure?

Yes, the housing uses ISO 22196-tested polycarbonate that resists chemical breakdown from alcohol wipes. We tested it for 25,000 insertions under sterile conditions. This helps maintain long-term grip strength and stable contact without internal wear.

Is it compatible with both new builds and retrofit hospital projects?

Yes, it fits standard 86mm backboxes and allows flush or surface installation. The design supports 35–50mm box depths for various panel types. This helps simplify integration into existing hospital rooms or new medical zones.

Can I request terminals pre-configured for specific wire types or conductor sizes?

Yes, we can preset the dual-screw terminals for stranded or solid conductors within 2.5–6mm² range. Pre-configuring reduces installation time and minimizes wiring errors. We can also provide torque settings for each configuration.

Can I get versions that meet US and EU code standards?

Yes, we offer models built to IEC, UL 498A, and ANSI/NFPA 99 standards. Each version uses region-matched plug profiles and terminal layouts. That ensures compatibility with local regulations and inspection protocols.

Can I get different packaging formats based on our warehouse or site rollout needs?

Yes, we support bulk packs, single-unit cartons, or department-wise labeling. We also add barcodes and part numbers per your supply chain system. This helps with faster unpacking, stock tracking, and staged installations.
