Desk Power Socket Modules

Tired of cluttered desks and unsafe plug access that slows your team down? Our Desk Power Socket Modules combines universal inputs, USB support, and low-contact resistance in a compact unit.

Voltage Rating

230V AC, 50Hz (100-240V auto-sensing for global use)

Current Rating

16A total (10A AC + 6A DC combined)

IP Rating

IP20 (IP54 spill-resistant variant available)

Terminal Type

Push-wire terminals (1.5-2.5mm²) / Optional screw terminals

Material Construction

Powder-coated steel frame + flame-retardant PC face (UL94 V-1)
Get Latest Price
Get quote

Product Description

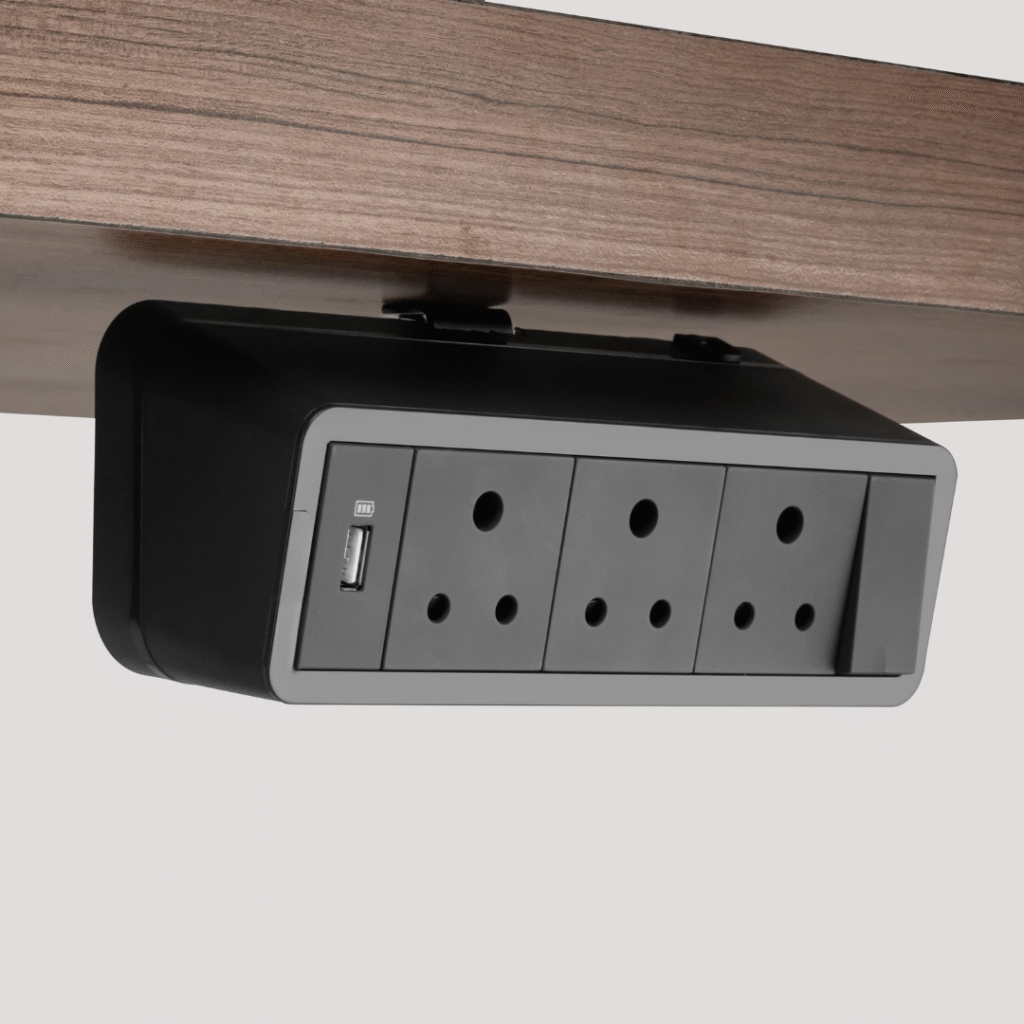

Messy cable setups often cause heat buildup or installation delays. We solve that with a pre-wired module that clamps under desks or flush mounts cleanly, supporting smart workspace planning.

Mounting Type

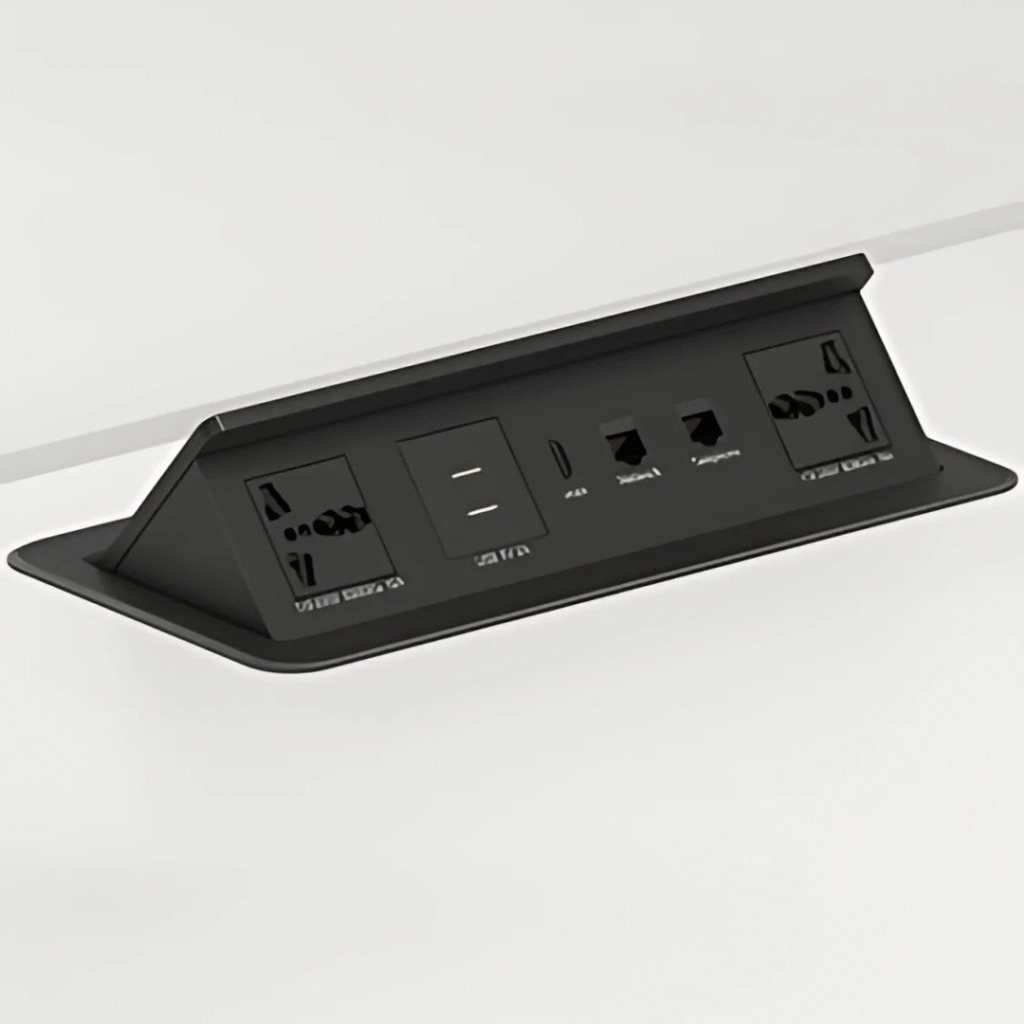

Under-desk clamp mount / Flush recessed installation

Safety Certifications

EN 60669-1, CE, UKCA, RoHS, REACH

Color Options

Graphite Black, Silver White (custom RAL/Pantone matching)

Dimensions

200×60×25mm (custom lengths 150-300mm available)

Operating Temperature Range

0°C to +40°C (office environment rated)

Lifespan Rating

15,000 AC insertions / 50,000 USB cycles

Country/Region Compatibility

Universal input (interchangeable plug modules)

Contact Resistance

≤5mΩ (AC) / ≤40mΩ (USB-C)

Backbox Compatibility

Integrated cable channels (no external box required)

Breaking Capacity

3kA (6kA with built-in MCB option)

Fire Resistance

Glow-wire 750°C (IEC 60695-2-11)

Technical Advantages

Desk setups benefit from compact units that handle high cycles and reduce heat at connection points. Our module uses gold-plated AC contacts with ≤5mΩ resistance, while USB-C maintains ≤40mΩ.
Push-wire or screw terminals simplify setup with 1.5 to 2.5mm² conductors. We pre-fit integrated cable channels for backbox-free installation, reducing onsite wiring complexity.

Let's Get Started

Need reliable Sockets for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Workstations in Offices

Provides plug-and-charge support for laptops, monitors, and desk lighting in tight shared desk spaces.

Modular Conference Tables

Enables direct device connectivity with universal outlets and USBs, streamlining meeting room setups.

Retail POS Stations

Supplies secure AC and DC access for printers, scanners, and display devices with minimal footprint.

Shared Co-Working Environments

Offers high cycle-rated sockets and clean cable management to support constant use.

Library and Study Zones

Allows safe plug-in of personal laptops and phones, minimizing cable mess around shared tables.

Educational Lab Furniture

Delivers reliable charging points for instruments, sensors, and tablets in training and technical setups.

Built for Practical Workspace Power

Flexible desk areas demand power units that fit cleanly and perform without failure under frequent use. Our Desk Power Socket Module meets this with 15,000 AC and 50,000 USB cycles, using flame-rated materials and tested thermal limits.
Custom faceplate sizes and plug modules allow regional or project-specific adjustments, helping reduce sourcing time. You get both standard and IP54 splash-resistant options, making this a suitable fit for semi-open environments.

Desk Power Socket Modules

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

Can I switch plug types for different regions in a single order?

Yes, we offer interchangeable plug modules that match country-specific standards. You can specify the required configurations at the order stage. This avoids sourcing delays for multinational deployment.

How does this unit handle high plug-in frequency in shared workspaces?

The module supports 15,000 AC insertions and 50,000 USB cycles, tested under continuous usage. We use flame-retardant PC and gold-plated terminals to maintain conductivity and reduce wear. This ensures fewer replacements over time.

Is the module easy to install without desk modification?

Yes, the under-desk clamp requires no drilling, and the flush mount fits standard furniture cutouts. Integrated cable channels eliminate the need for external backboxes. This helps reduce labor hours during setup.

What happens if liquid spills near the unit?

We offer an IP54 spill-resistant version designed for semi-open or café-style spaces. It prevents minor spills from entering the contact zone. This adds an extra layer of safety in informal settings.

Can I get this in a custom finish to match our furniture?

Yes, we provide RAL or Pantone-based color matching on bulk orders. The steel frame and PC face accept surface coatings without affecting fire safety ratings. This gives you visual consistency across workspaces.
