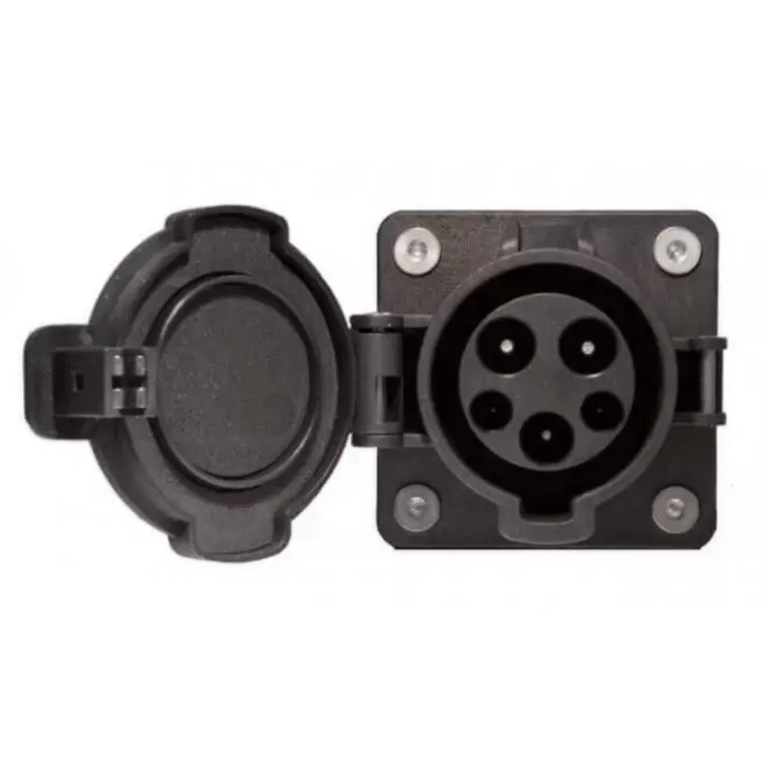

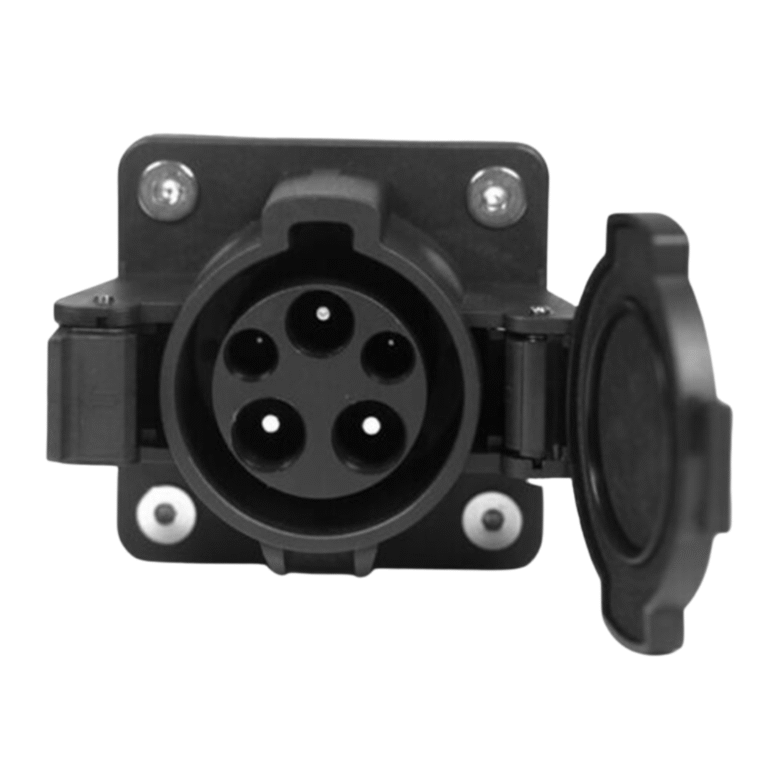

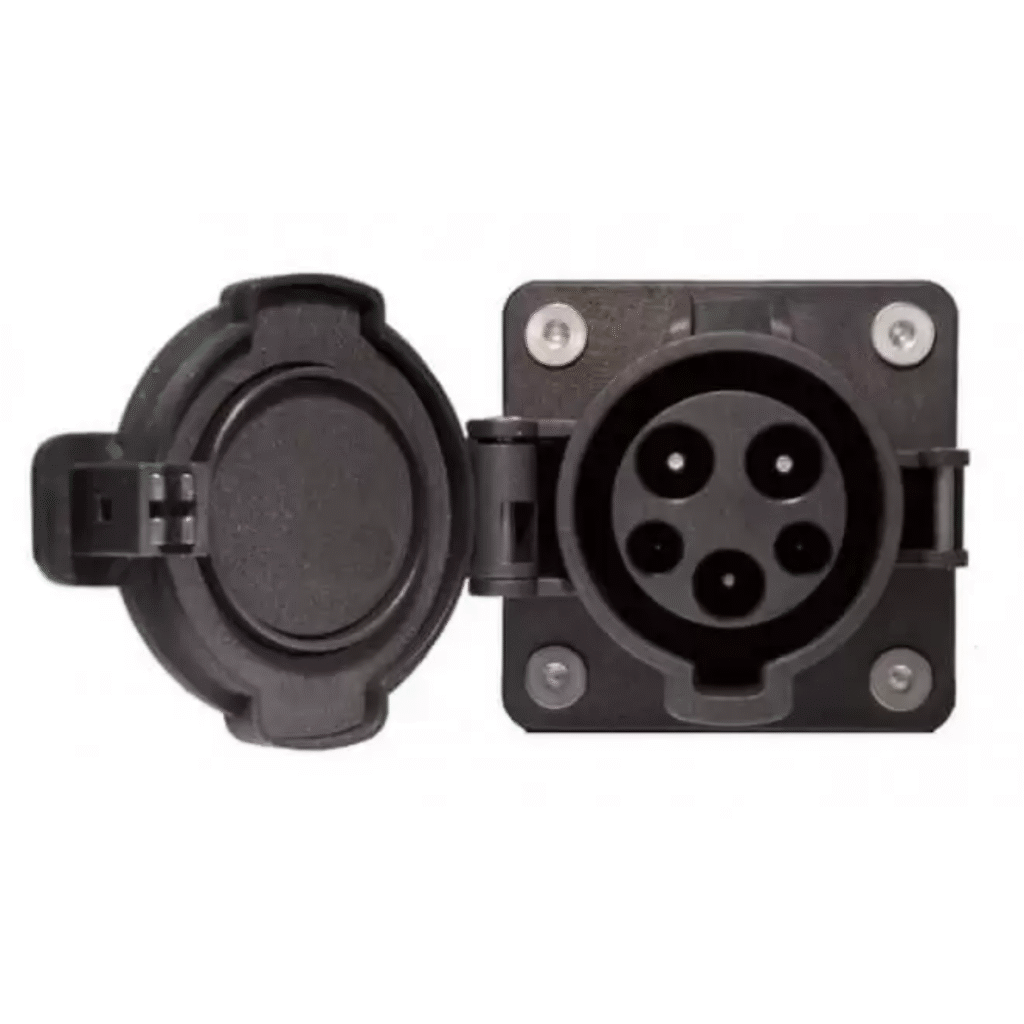

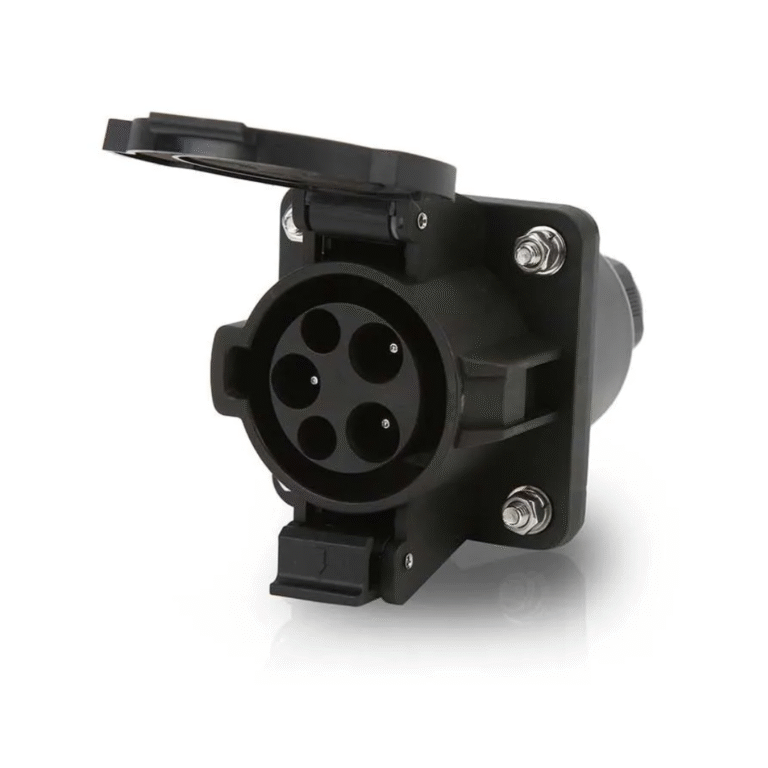

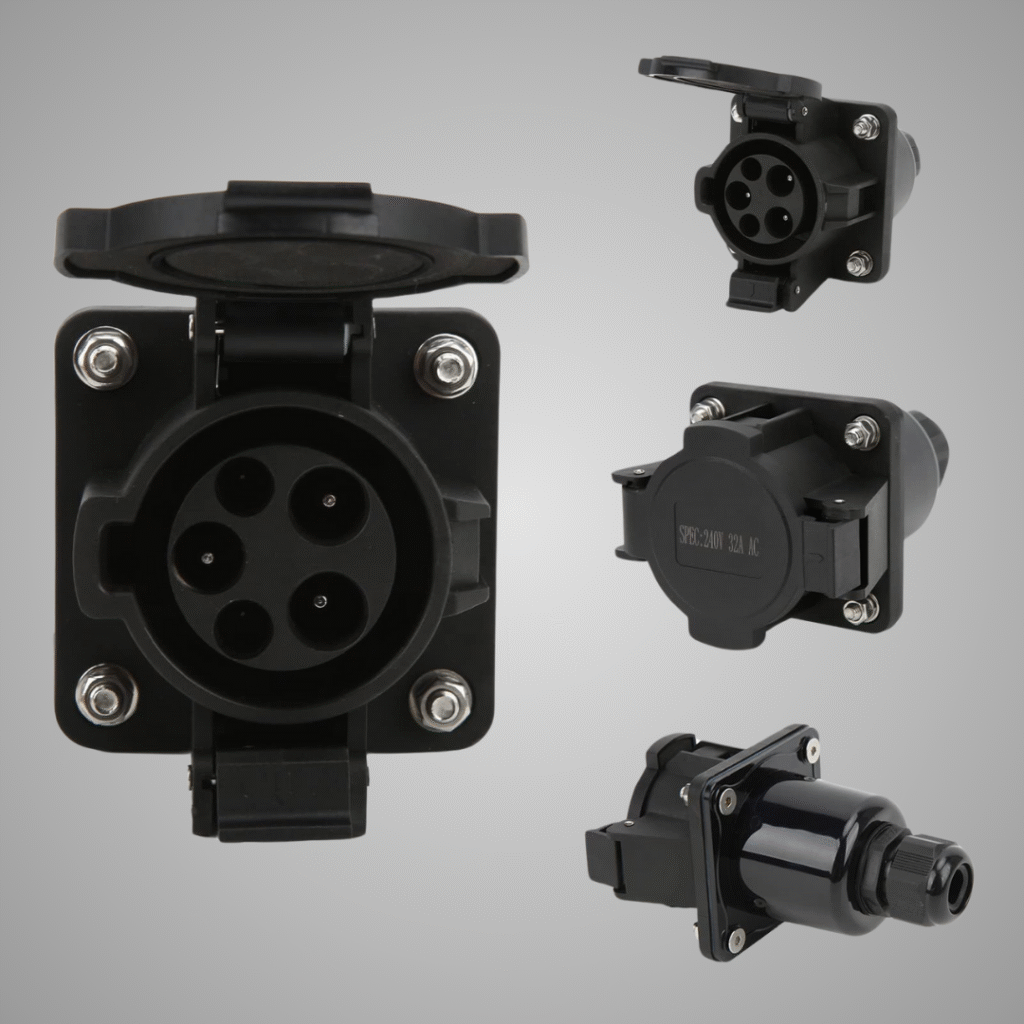

EV Charging Type 1 Sockets

Are unreliable EV charging sockets disrupting your build quality or product compliance? Our Type 1 EV Charging Socket meets SAE J1772 standards and supports up to 80A continuous at 240V, ensuring safe charging for North American and Asian markets.

Voltage Rating

120V AC (L1) / 240V AC (L2)

Current Rating

16A (L1) / 80A (L2) continuous

IP Rating

IP55 (operational) / IP67 (when closed)

Terminal Type

Silver-plated pins (SAE J1772 compliant)

Material Construction

High-impact nylon (UL94 V-0) + stainless steel latch
Get Latest Price
Get quote

Product Description

Subpar materials or loose fittings in sockets can trigger overheating and liability issues.
We use high-impact nylon with silver-plated pins and a self-locking stainless steel latch for long, reliable use in demanding setups.

Mounting Type

Wall/pedestal mount (NEMA 4X enclosure)

Safety Certifications

SAE J1772, UL 2251, CE, NEC 625

Color Options

Black, White (custom colors with UV stabilizer)

Dimensions

100×80×45mm (socket face)

Operating Temperature Range

-30°C to +50°C (liquid-cooled version to +70°C)

Lifespan Rating

10,000 mating cycles (with <5mΩ degradation)

Country/Region Compatibility

North America, Japan, Korea (SAE J1772 markets)

Contact Resistance

≤2mΩ per pin (initial)

Maximum Charging Power

19.2kW (240V @ 80A)

Breaking Capacity

10kA (with DC arc-fault detection)

Fire Resistance

UL94 V-0 (self-extinguishing)

Technical Advantages

We manufacture this socket with silver-coated contact pins to reduce resistance and thermal rise across repeated connections. The IP67 seal when closed protects terminals from dust and water, meeting outdoor and semi-industrial use cases.

It performs across a broad ambient temperature and maintains <2mΩ pin resistance for high charging efficiency. Rated for 10,000 cycles, it resists degradation and supports uninterrupted energy flow without premature wear.

Let's Get Started

Need reliable Sockets for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Residential Charging Stations

Supports up to 19.2kW single-phase output for wall-mounted EV chargers with tamper-resistant enclosures.

Commercial Parking Infrastructure

Works with smart pedestal stations in malls or public areas, integrated into NEMA 4X housings.

Fleet Depots

Suitable for depot-based AC chargers for electric trucks or vans, with locking interface for secure charge cycles.

EVSE Manufacturing

Fits directly into new AC Level 2 charger designs, complying with NEC 625 and UL 2251 standards.

Smart Grid Solutions

Enables bidirectional charging setups, functioning under utility protocols for demand-side energy load control.

Residential Builders

Seamlessly mounts into garages or driveways as part of energy-efficient home charging provisions.

Durable Charging Socket for Long-Term EV Projects

Substandard connectors can trigger warranty claims or recalls in EV projects. Our Type 1 socket maintains mechanical strength and stable contact resistance even under high current stress.

We support custom enclosure fittings and UV-stabilized color options to match your system design. With strong certifications and NEMA 4X-compatible mounting, it suits both legacy and next-gen charging platforms.
