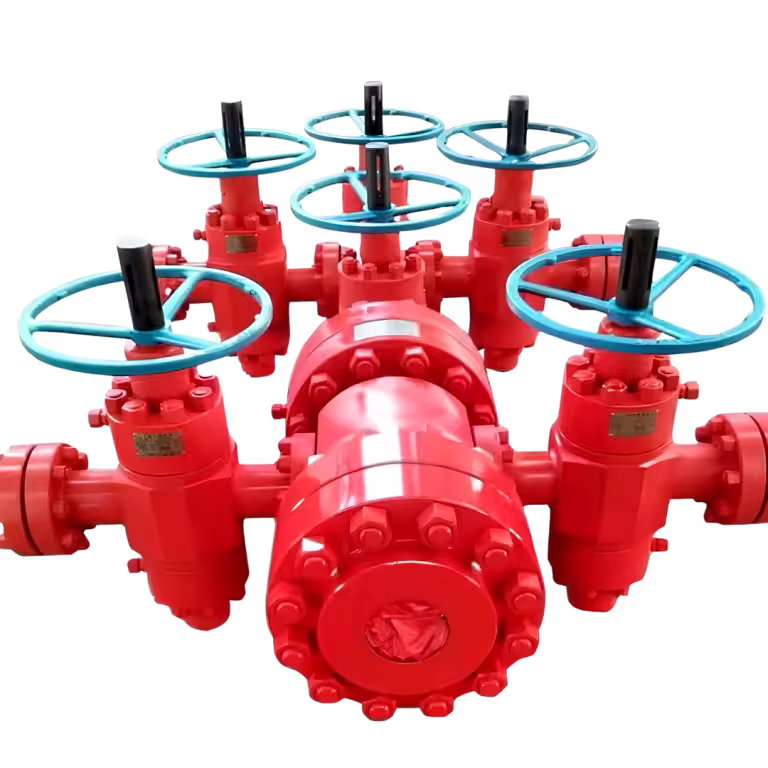

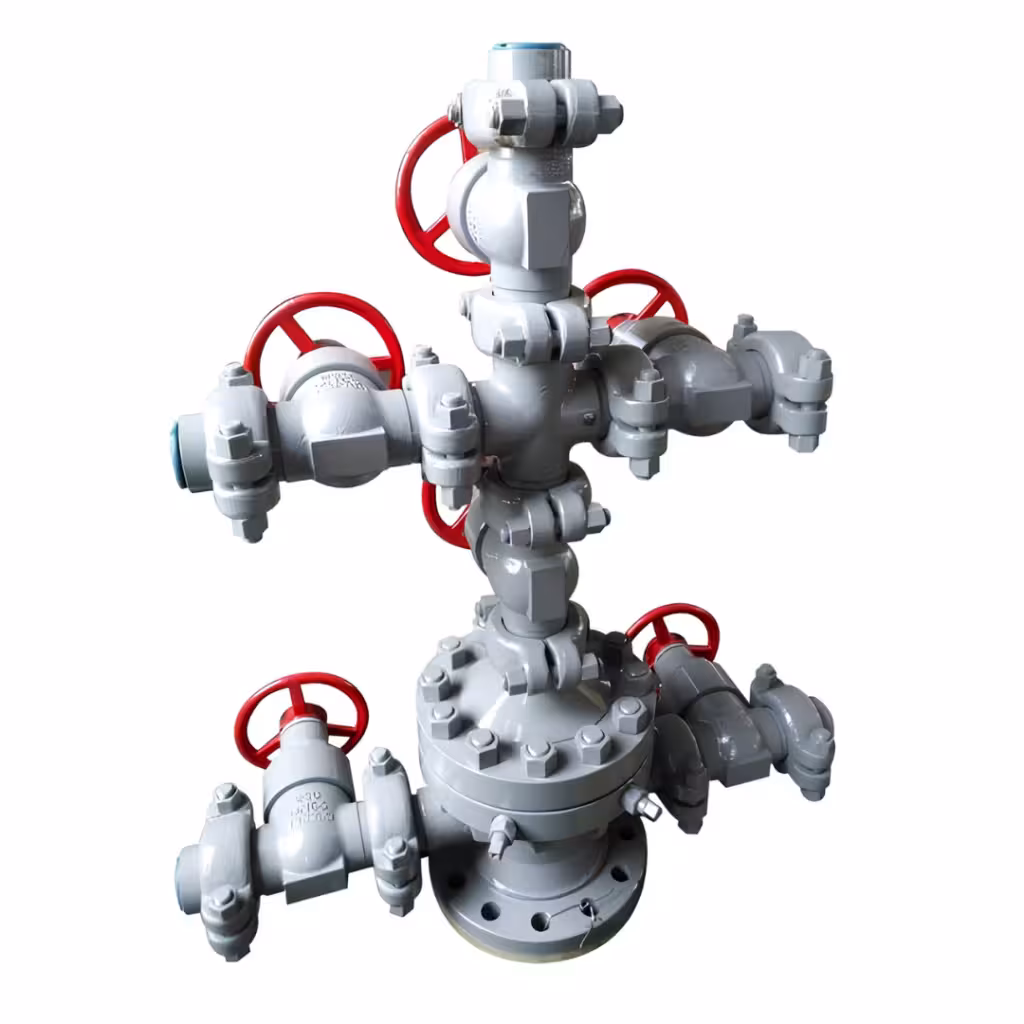

Wellhead Components

Precision-Engineered Wellhead Components for High-Pressure, Critical-Service Oil & Gas Operations. Frigate delivers API 6A-compliant wellhead infrastructure designed to withstand extreme sour, corrosive, and high-temperature environments, ensuring uninterrupted uptime and absolute pressure containment.

Equipment Type

Conventional & Multi-Bowl Wellhead Systems, Tubing Heads, Casing Heads

API Standards

API Spec 6A, API Spec 16A, and API Spec 17D (where applicable)

Material Performance

Carbon Steel, Low Alloy Steel, Stainless Steel, and Inconel 625/825 Cladding

Material Class (API 6A)

AA, BB, CC, DD, EE, FF, HH (Critical Sour & Corrosive Services)

Temperature Ratings

K, L, N, P, S, T, U, V (Operating range from -60°C to 180°C / -76°F to 350°F)

Order Type

Quantity Range

Lead Time*

Standard Configuration

1 – 5 Units

6 – 8 Weeks

Batch Production

6 – 20 Units

10 – 12 Weeks

Custom / High-PSL Projects

20+ Units or Bespoke Cladding

14 – 18 Weeks

Fast-Track Sourcing

MRO / Emergency Spares

2 – 4 Weeks (Subject to raw forge availability)

*Delivery windows are indicative estimates based on current forging availability. Exact schedules will be finalized upon technical review and order lock-in.

Product Description

Frigate’s wellhead components provide the structural and pressure-containing interface for surface exploratory and development wells. Engineered for absolute operational integrity, these components manage casing suspension, tubing isolation, and well-intervention access under the harshest field conditions.

Working Pressure Ratings

2,000 PSI, 3,000 PSI, 5,000 PSI, 10,000 PSI, and 15,000 PSI

Product Specification Level

PSL 1, PSL 2, PSL 3, PSL 3G, and PSL 4

Performance Requirement

PR1 and PR2 (Validated through rigorous thermal and pressure cycling)

Casing & Tubing Sizes

Compatible with standard API casing strings from 4 1/2″ to 30″

Hanger Types

Mandrel-style Hangers and Slip-type (WD/W/WE) Casing Hangers

Sealing Technology

Elastomeric (NBR/HNBR), Metal-to-Metal (S-Seal, P-Seal), and FS-Seals

NACE Compliance

Fully compliant with NACE MR0175 / ISO 15156 for H2S sour gas environments

Non-Destructive Testing

UT, MPI, LPI, Radiography, and Hydrostatic testing up to 1.5x working pressure

Surface Coating

Zinc/Manganese Phosphating, Epoxy Primer, or Custom Marine-Grade Coating

Traceability

100% material heat-traceability with certified MTRs (EN 10204 3.1/3.2)

Technical Advantages

Our components feature field-proven metal-to-metal sealing technology that eliminates leak paths and significantly lowers your Total Cost of Ownership (TCO). By utilizing optimized forging metallurgy and precise CNC machining, Frigate maximizes component fatigue life while reducing field maintenance intervals.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Onshore Drilling Blocks

Heavy-duty casing and tubing heads optimized for rapid installation on conventional land rigs, minimizing NPT during complex multi-string operations.

Offshore Fixed Platforms

Compact, space-saving multi-bowl wellhead assemblies designed to withstand high cyclic structural loads and structural weight limitations.

High-Pressure, High-Temperature (HPHT)

Specialized heavy-wall components engineered for volatile reservoirs demanding reliable pressure containment up to 15,000 PSI.

Sour Gas & Corrosive Reservoirs

Inconel-clad wellhead infrastructure built specifically to resist severe hydrogen sulfide (H2S) and carbon dioxide (CO2) induced cracking.

Subsea Tied-Back Wells

High-integrity mudline suspension components that bridge subsea casings back to surface platforms with zero-deviation structural alignment.

Enhanced Oil Recovery (EOR)

Thermal-rated wellhead components designed to handle high-temperature steam injection or corrosive gas injection profiles without seal degradation.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Does Frigate provide full material traceability for API 6A components?

Yes. All Frigate wellhead components are accompanied by complete Mill Test Reports (MTRs) compliant with EN 10204 3.1 or 3.2. We provide 100% heat-traceability from the initial forging melt to final hydrostatic pressure testing.

Can you manufacture clad wellhead parts for high-H2S (sour gas) environments?

Absolutely. We specialize in CRA (Corrosion Resistant Alloy) cladding, using automated hot-wire TIG welding to overlay Inconel 625 or 825 on critical sealing surfaces and bores, fully conforming to NACE MR0175/ISO 15156.

What Product Specification Levels (PSL) can Frigate support?

We manufacture components across the entire spectrum from PSL 1 up to PSL 4. Our PSL 3G and PSL 4 components undergo additional volumetric non-destructive examination (NDE) and gas-pressure verification testing.

How does Frigate minimize lead times for custom casing or tubing heads?

By maintaining strategic partnerships with tier-1 API-certified forging mills and utilizing optimized multi-axis CNC machining workflows, we compress raw material procurement and machining lead times significantly compared to traditional global supply chains.

Are your wellhead components interchangeable with existing legacy infrastructure?

Yes. Our components are designed strictly around API Spec 6A dimensional criteria. This ensures seamless flange-to-flange and hanger-to-bowl compatibility with standard OEM equipment already deployed in the field.
