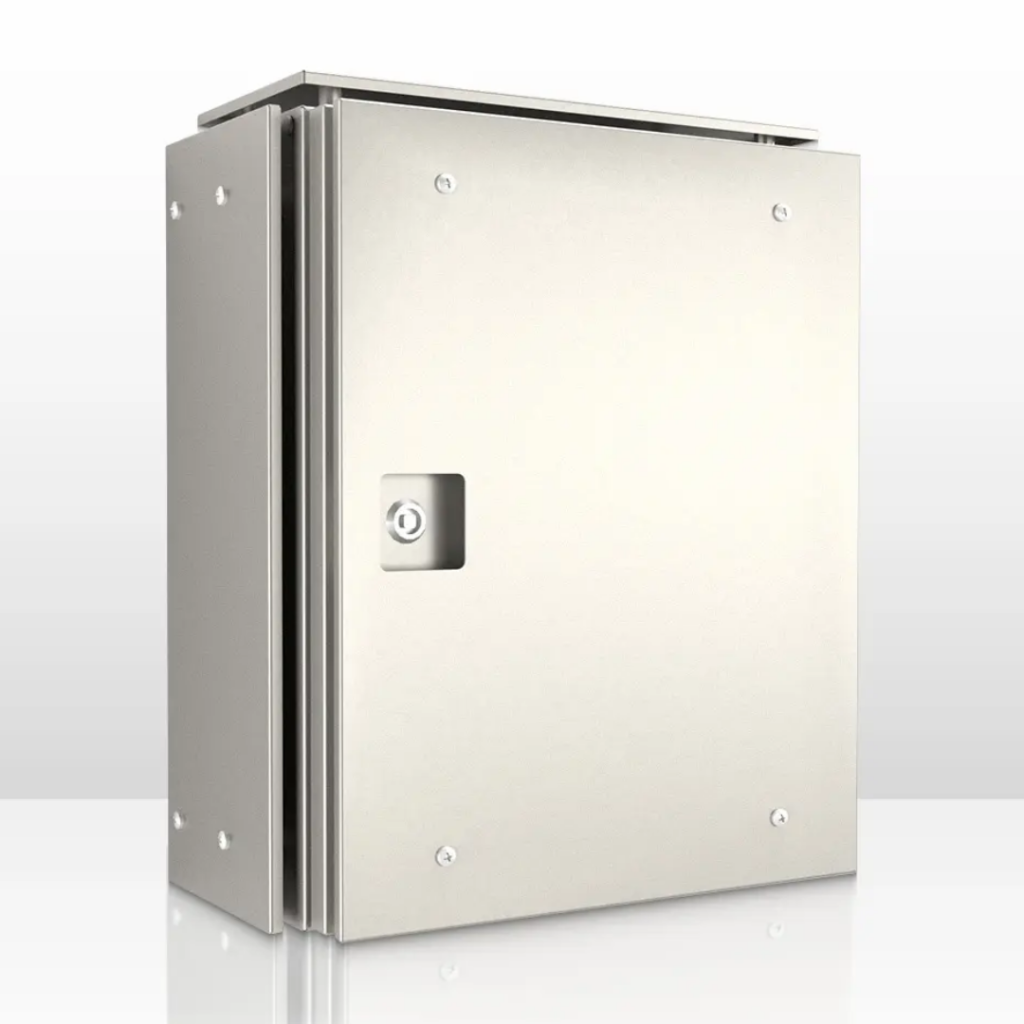

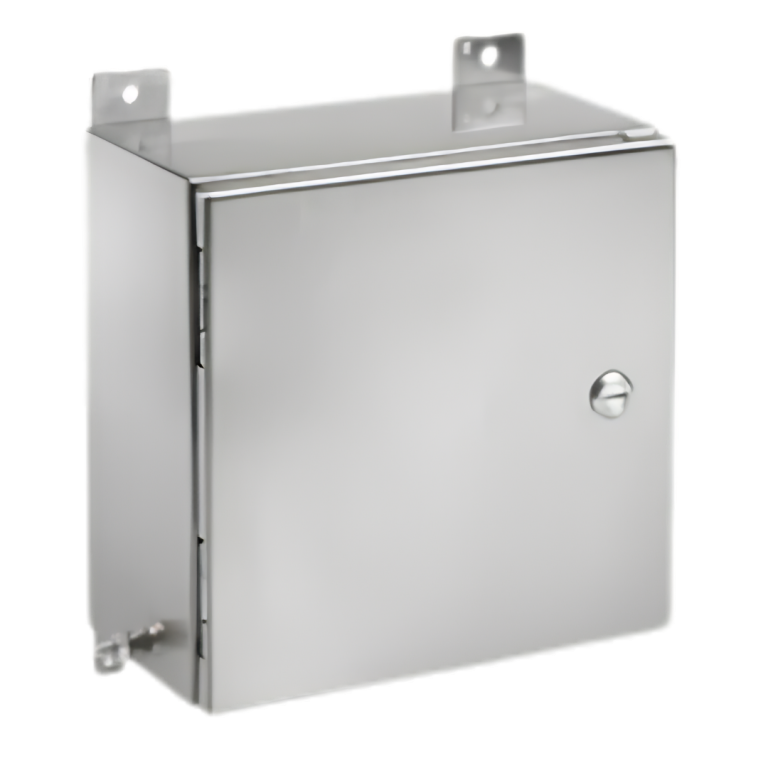

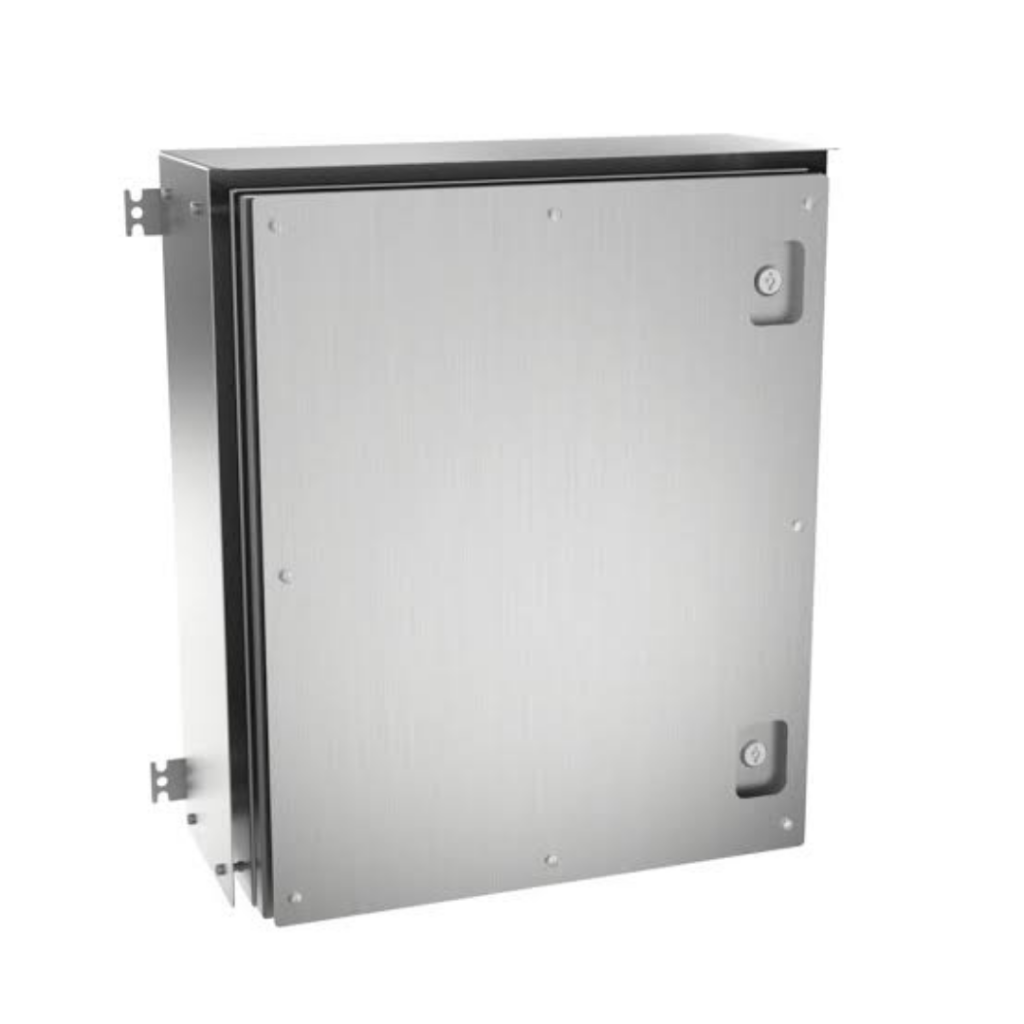

Thermal Shielding Enclosures

Engineered for ultimate thermal management, Frigate’s Aerospace Thermal Shielding Enclosures deliver flight-critical protection against extreme thermal cycling and atmospheric re-entry conditions. Our custom-fabricated enclosures ensure absolute operational reliability for sensitive avionics, defense propulsion systems, and deep-space instrumentation payloads.

Primary Core Material

Space-grade Inconel 625, Titanium Grade 5 (Ti-6Al-4V), and ODS Alloys

Thermal Insulation Core

Aerogel matrix, Micro-porous Silica, and Multi-Layer Insulation (MLI) blankets

Maximum Operating Temperature

Continuous: up to 1150°C (2102°F); Peak Transient: up to 1350°C

Thermal Conductivity (k)

Ultra-low ≤ 0.024 W/m.K at ambient; ≤ 0.045 W/m.K at elevated temperatures

Surface Coating / Finish

High-emissivity ceramic matrix composites (CMC) and gold/silver vacuum metallization

Order Type

Quantity Range

Lead Time*

First Article / Sample (DFM Verified)

1 – 3 Units

3 – 5 Weeks

Low-Rate Initial Production (LRIP)

4 – 25 Units

6 – 8 Weeks

Full-Rate Series Production

26 – 100+ Units

10 – 14 Weeks

AOG / Fast-Track Expedited Service

Custom Request

2 – 3 Weeks

*All delivery timelines are indicative estimates. Actual lead times depend on material supply chains, complex design features, and specific NDT validation rules.

Product Description

Frigate’s Aerospace Thermal Shielding Enclosures represent the pinnacle of precise thermodynamic engineering, custom-built to shelter critical electronics from mission-destroying heat fluxes. By integrating low-density insulative cores with robust, high-emissivity structural shells, we deliver flight-ready components that dramatically lower Total Cost of Ownership (TCO) while guaranteeing absolute structural integrity.

Vibration & Shock Resistance

MIL-STD-810H Compliant (Random vibration up to 20g RMS, 20-2000 Hz)

Acoustic Attenuation

High-density attenuation up to 145 dB overall sound pressure level (OASPL)

Thickness Configurations

Customizable profile ranges from 1.5 mm to 25 mm micro-structures

Structural Seals & Gaskets

High-temperature elastomeric silicone and metal O-rings for hermetic sealing

Outgassing Compliance

NASA SP-R-0022A Standard; TML ≤ 1.0%, CVCM ≤ 0.1%

Corrosion / Oxidation Resistance

Passivated surfaces resistant to atomic oxygen (AO), UV degradation, and salt spray

Weight-to-Strength Optimization

High specific strength optimized via advanced lightweight honeycomb geometries

Machining Tolerances

Ultra-precise CNC fabrication down to ±0.025 mm (±0.001 inches)

Non-Destructive Testing (NDT)

Radiographic (X-ray), Ultrasonic (UT), and Liquid Penetrant inspection verified

Quality Certifications

Fully traceable manufacturing aligned with AS9100 Rev D and ISO 9001:2015 standards

Technical Advantages

Our enclosures leverage advanced, multi-layer insulation matrices that achieve unparalleled thermal resistance with minimal mass penalties, optimizing total payload capacity. Through strict DFM-driven CNC machining and laser-welding protocols, Frigate guarantees zero structural deformation under extreme, rapid thermomechanical stress cycles.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Avionics & Flight Control Bays

Safeguards mission-critical flight computers, telemetry units, and navigation subsystems from localized engine compartment heat and external thermodynamic friction.

Satellite & Deep Space Payloads

Provides precise, passive thermal equilibrium for sensitive optical sensors, scientific payloads, and batteries during extreme solar exposure and deep-space eclipses.

Hypersonic & Re-entry Vehicles

Defends nose cones, control surfaces, and black-box data recorders against catastrophic aerodynamic heating profiles encountered during high-Mach atmospheric entry.

Launch Vehicle Propulsion & Stages

Shields stage-separation electronics, hydraulic actuators, and fuel delivery manifolds situated in close proximity to main rocket engine exhaust plumes.

Unmanned Aerial Vehicles (UAVs)

Delivers lightweight, low-signature thermal isolation for military-grade surveillance cameras, radar arrays, and electronic warfare payload systems.

Defense Missiles & Guidance Systems

Ensures long-term structural survivability and target-acquisition reliability for critical solid-propellant missile guidance computers and tracking sensors.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

How does Frigate optimize the weight of thermal shielding enclosures without compromising structural integrity?

We utilize high-strength-to-weight ratio aerospace alloys, such as Titanium Grade 5 and specialized aluminum lithium, combined with internal honeycomb cores or micro-porous aerogels. This allows us to minimize wall thickness and overall mass while meeting rigorous load-bearing and vibration requirements.

Can you manufacture custom shapes and internal configurations based on existing CAD models?

Yes. Frigate specializes in complex, custom-engineered geometries. Our engineering team conducts comprehensive Design for Manufacturing (DFM) reviews on your 3D CAD files to optimize component placement, integrated mounting tabs, Feed-through ports, and sealing channels.

What outgassing and environmental standards do your aerospace enclosures adhere to?

All insulation and sealing materials are verified to meet NASA SP-R-0022A and ESA PSS-014-702 standards, ensuring Total Mass Loss (TML) is below 1% and Collected Volatile Condensable Material (CVCM) is below 0.1%. Enclosures also undergo testing to comply with MIL-STD-810H environmental constraints.

What raw material traceability and quality documentation do you provide upon delivery?

Every shipment includes a comprehensive aerospace-grade documentation package. This consists of Mill Material Test Reports (MTRs), Certificate of Conformance (CoC), AS9102 First Article Inspection Reports (FAIR), and detailed non-destructive testing (NDT) records such as ultrasonic or X-ray reports.

How do you manage lead times for high-priority or Aircraft on Ground (AOG) situations?

For critical timelines, Frigate maintains dedicated emergency manufacturing capacity. By utilizing pre-vetted raw material stock and prioritizing fast-tracked CNC programming and NDT execution, we can compress standard production timelines down to 2–3 weeks for qualified custom orders.
