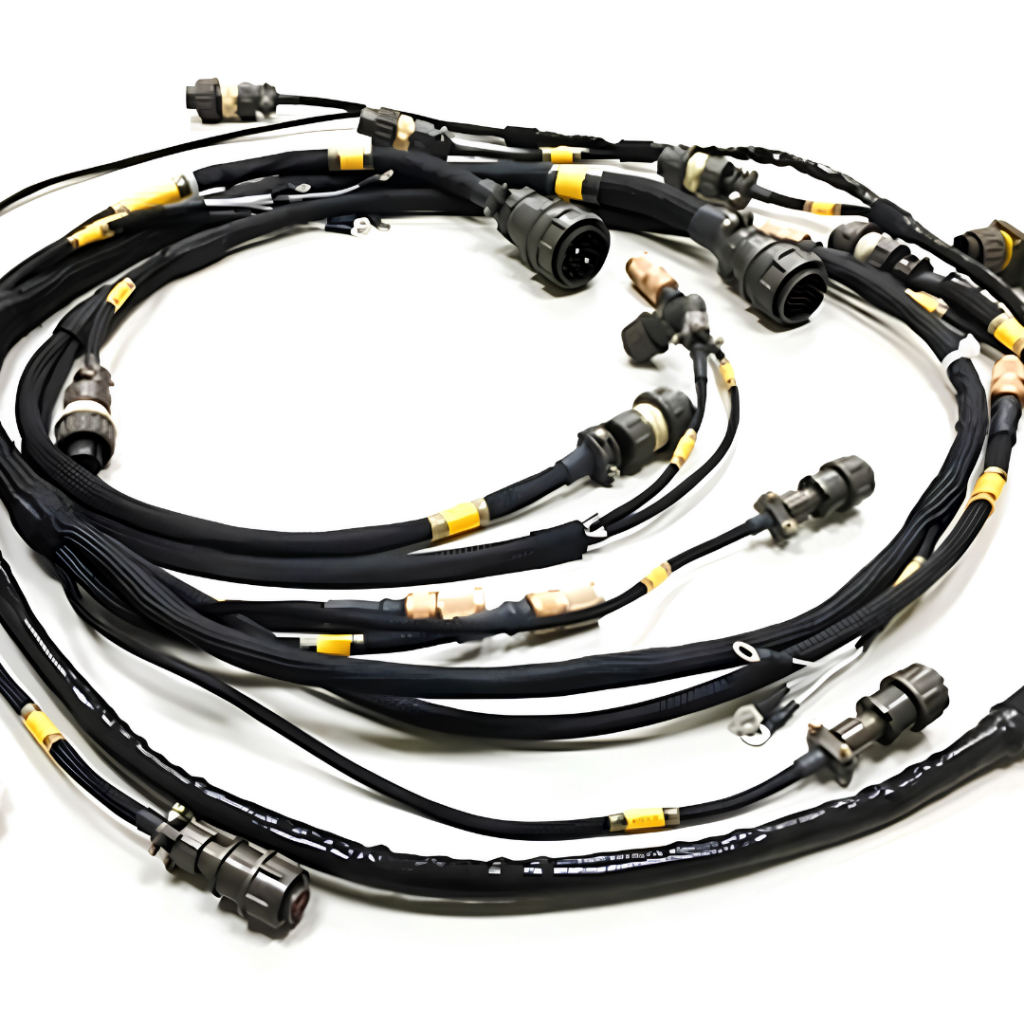

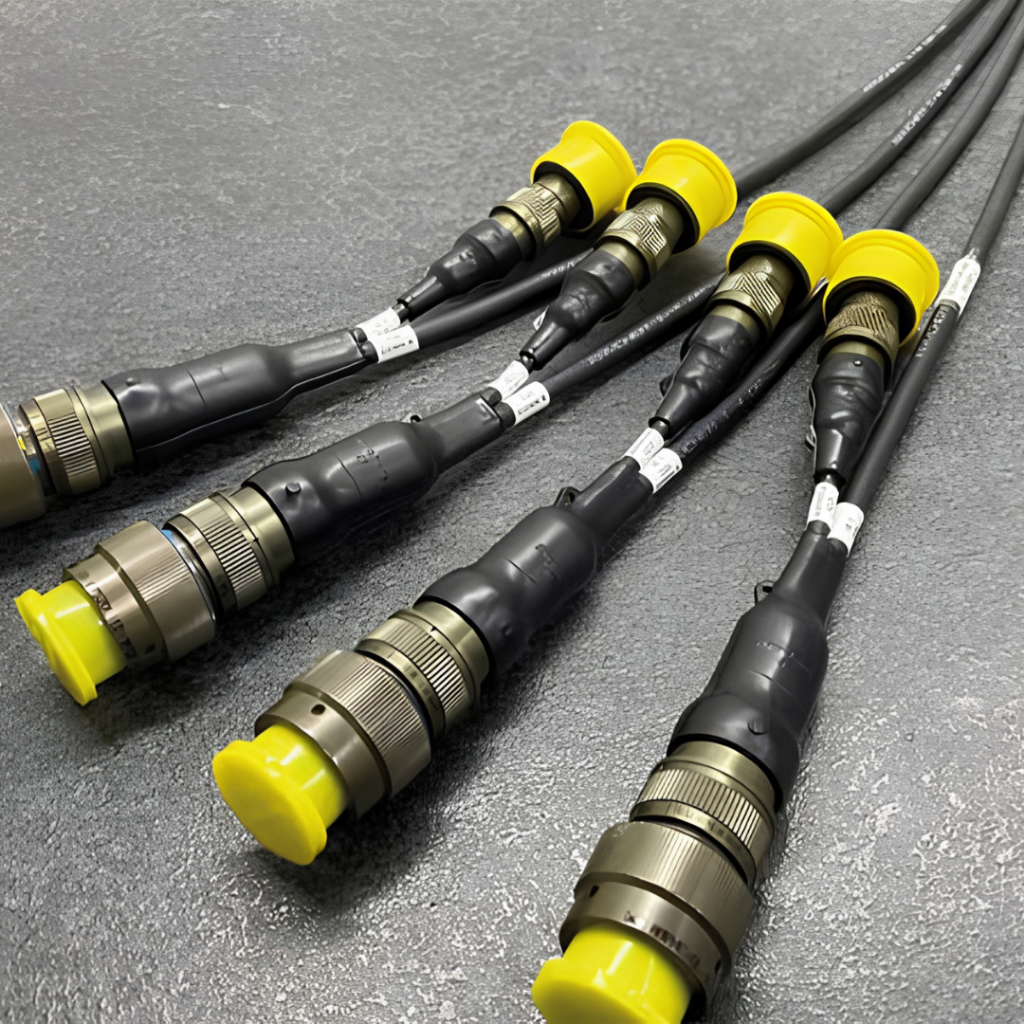

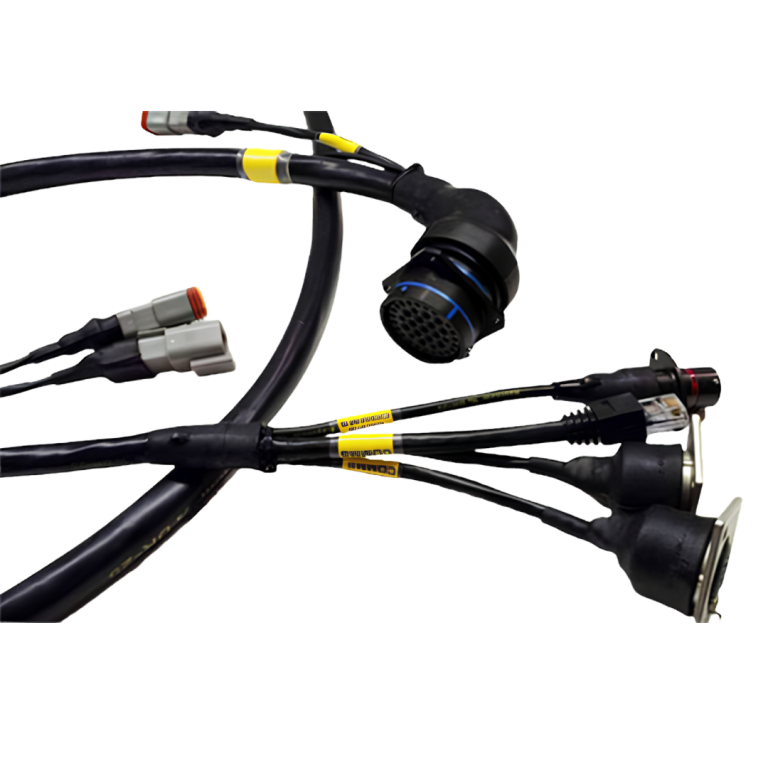

Tactical Wiring Harness Looms

Partner with Frigate for mission-critical, high-reliability tactical wiring harness looms designed to withstand extreme combat environments and severe mechanical stress. Engineered to stringent military standards, our custom ruggedized solutions guarantee uninterrupted signal integrity and power distribution for advanced defense systems.

Military Standard Compliance

MIL-DTL-38999, MIL-STD-810G, MIL-STD-461G

Conductor Material

High-strand silver-plated or nickel-plated copper

Insulation Material

Cross-linked ETFE (Tefzel) / PTFE / Kapton

Outer Shielding & Braiding

Tin-plated copper EMI/RFI shielding with >95% optical coverage

Protective Jacketing

Viton, Neoprene, or Nomex heavy-duty abrasion-resistant sleeving

Order Type

Quantity Range

Lead Time*

Sample / NPI

1 – 10 Units

3 – 5 Weeks

Low-Rate Initial Production (LRIP)

11 – 50 Units

6 – 8 Weeks

Full-Rate Production (FRP)

51 – 500+ Units

10 – 14 Weeks

Urgent Operational Requirement (UOR)

Case-by-Case Basis

Expedited (TBD)

*Timelines are indicative and depend on component sourcing, design complexity, and material availability; exact schedules are finalized during technical evaluation.

Product Description

Frigate’s tactical wiring harness looms serve as the ruggedized nervous system for modern defense architecture, delivering unfailing power and data transmission under intense operational deployment. Customized precisely to your layout schematics, these high-density interconnect assemblies minimize space, optimize total cost of ownership, and mitigate the risk of field failure.

Connector Backshells

AS85049 compliant aluminum alloy / stainless steel strain reliefs

Operating Temperature Range

-55°C to +200°C

Voltage Rating

Up to 1000V AC/DC (dependent on application requirements)

Insulation Resistance

≥ 5000 MΩ at 500V DC

Dielectric Withstanding Voltage

1500V AC at sea level; no flashover or breakdown

Ingress Protection Rating

IP67 / IP68 / IP69K (fully sealed against water submersion)

Environmental Resistance

CBRN (Chemical, Biological, Radiological, Nuclear) and NBC resistant

Flammability Rating

Self-extinguishing, low-smoke zero-halogen (LSZH) compliant

Testing Protocols

100% continuity, high-pot testing, and automated cirris pull tests

Quality Certifications

AS9100D certified, ISO 9001:2015, IPC-WHMA-A-620 Class 3

Technical Advantages

By utilizing advanced cross-linked polymer insulation and precision multi-layer EMI/RFI shielding, our tactical looms eliminate signal degradation and crosstalk even in highly congested electromagnetic battlefields. Furthermore, Frigate’s automated IPC-WHMA-A-620 Class 3 testing protocols guarantee that every harness exhibits exceptional resistance to extreme shock, vibration, and chemical exposure.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Military Ground Vehicles

Engineered for main battle tanks, IFVs, and armored personnel carriers to ensure reliable power distribution and secure intercom communication lines.

Unmanned Aerial Systems (UAS)

Ultra-lightweight, high-density wire routing for surveillance drones and loitering munitions, maximizing payload capacity and flight endurance profiles.

Naval & Marine Systems

Corrosion-resistant assemblies designed for naval vessels and submarines, featuring saltwater-impermeable jacketing to protect against harsh maritime deployment.

Missile & Weapon Guidance

Precision-engineered micro-miniature wiring capable of handling severe g-forces and thermal spikes during weapon launch and mid-course tracking.

C4ISR Command Systems

High-bandwidth data harnesses built for mobile tactical command centers, ensuring zero packet loss during critical satellite and radio communication.

Avionics & Aerospace

Aerospace-grade wiring structures designed to fit tight fuselage constraints while maintaining complete signal integrity across complex cockpit instruments.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Does Frigate manufacture wiring harnesses to IPC-WHMA-A-620 Class 3 standards?

Yes. All defense and tactical wiring harnesses built by Frigate strictly adhere to IPC-WHMA-A-620 Class 3 criteria, ensuring the highest reliability and performance standards required for critical life-support and military applications.

Can you assist with component substitution for hard-to-source military connectors?

Absolutely. Our engineering team specializes in DFM (Design for Manufacturability) and can recommend ITAR-compliant, high-availability alternatives for backshells, wires, and connectors to significantly reduce your procurement lead times.

How does Frigate ensure the EMI/RFI shielding effectiveness of the tactical looms?

We implement multi-layered tin-plated or silver-plated copper braiding alongside specialized conductive tapes, providing comprehensive shielding attenuation that complies with MIL-STD-461G requirements for electromagnetic compatibility.

Do you support First Article Inspection (FAI) reporting for defense contracts?

Yes. We provide comprehensive AS9102 First Article Inspection reports, complete with material traceability certificates, co-relation testing data, and complete compliance documentation requested by defense procurement authorities.

What capabilities do you have for ruggedizing harnesses against environmental hazards?

We offer extensive overmolding, heavy-duty heat-shrink boot sealing, and specialized cross-linked jackets (like Tefzel and Viton) to protect assemblies from fluid ingress, chemical exposure, extreme abrasion, and CBRN decontamination protocols.
