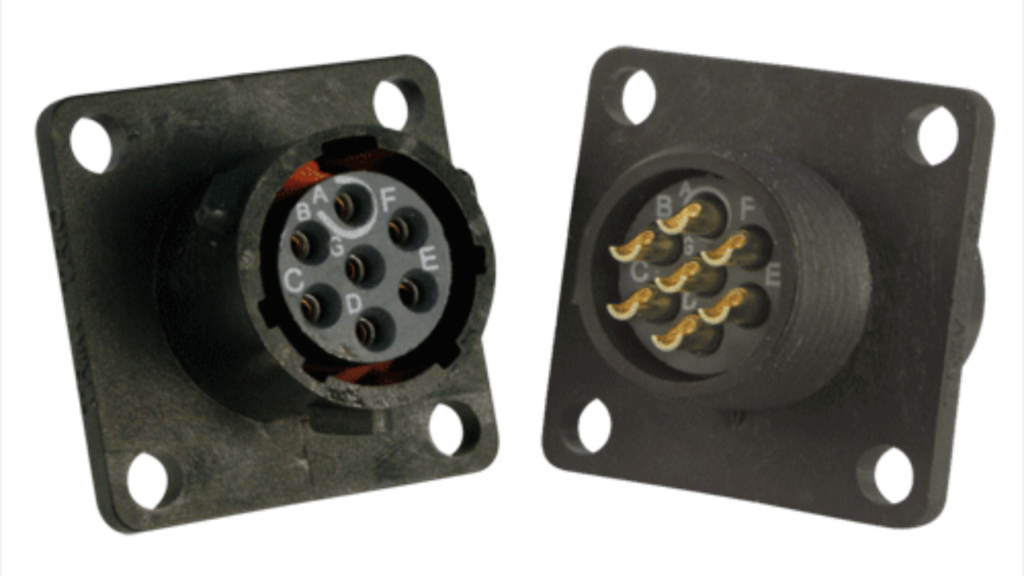

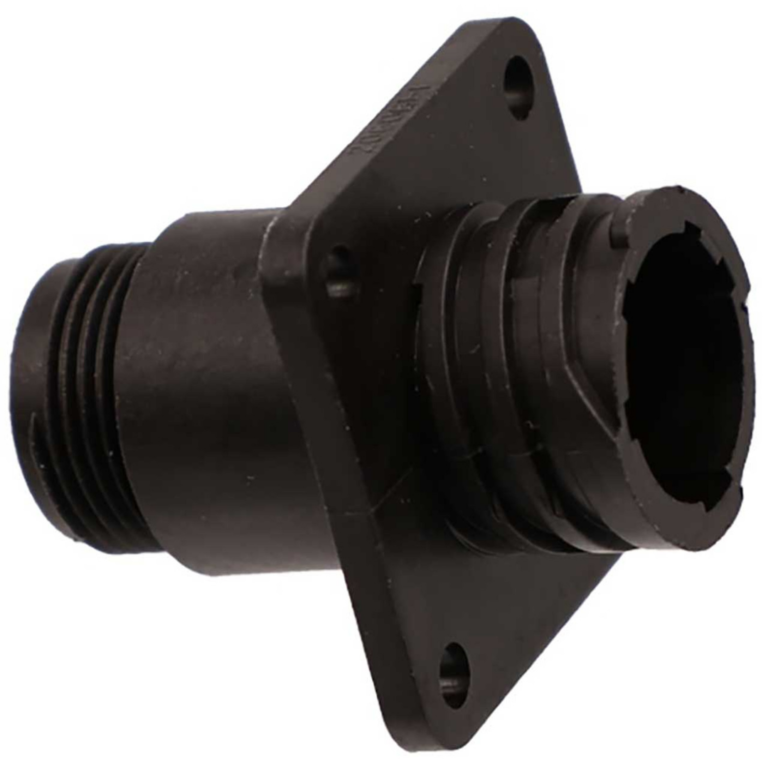

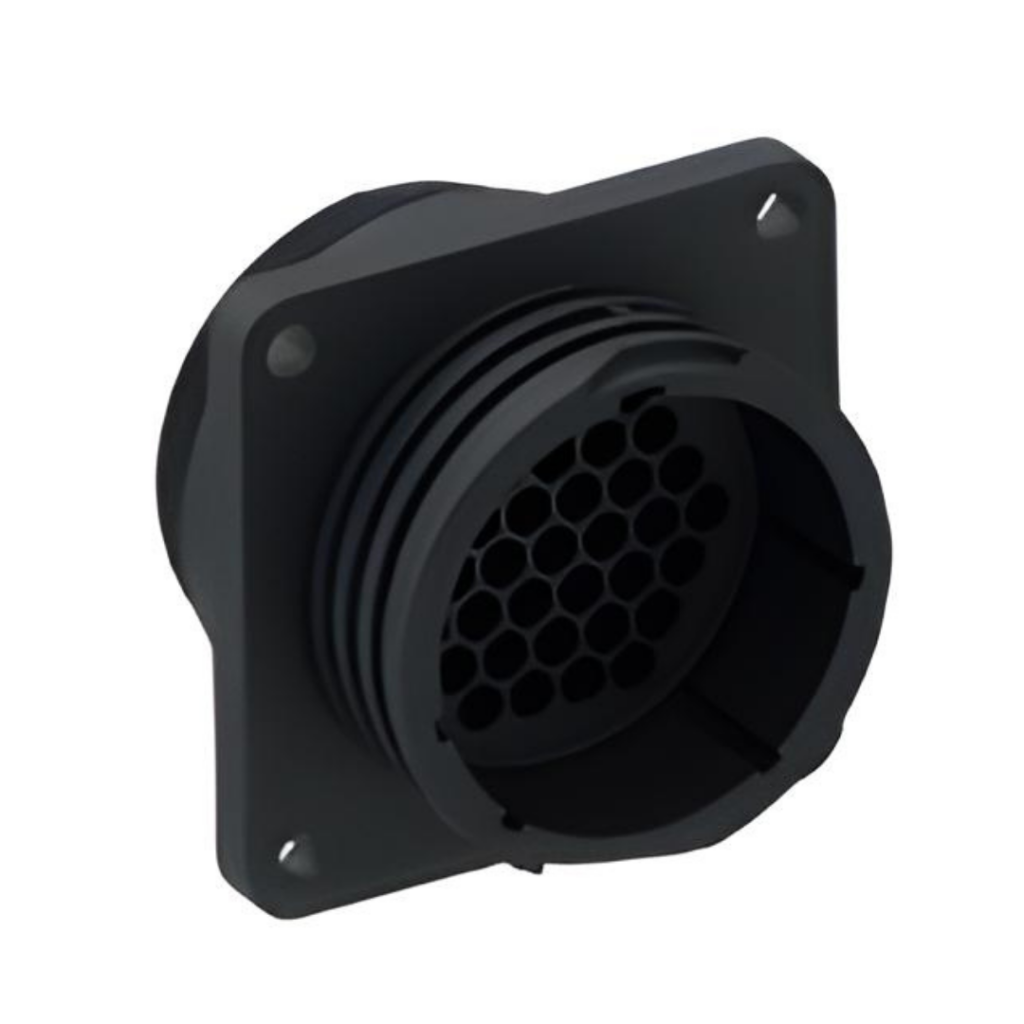

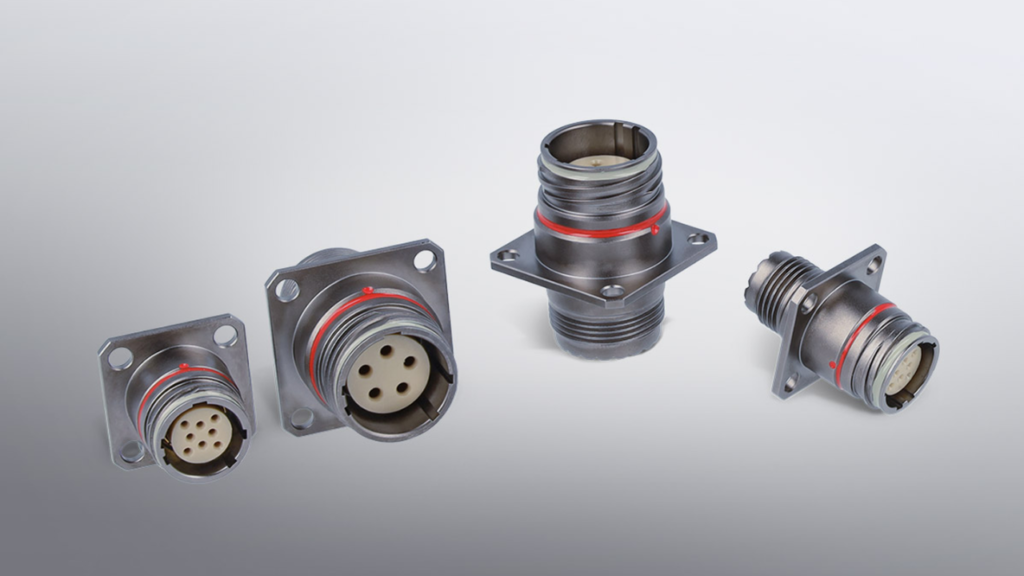

Square Flange Receptacle

Square Flange Receptacles simplify complex wiring challenges with their user-friendly design and precise alignment features. The flange mount ensures a secure fit, preventing loose connections that can disrupt performance in critical systems. These receptacles are engineered to handle high-density pin configurations, reducing the risk of misalignment or connection failure.

Material Options

Stainless steel, anodized aluminum, high-performance polymers

Cable Diameter Range

3 mm to 25 mm

Temperature Range

-55°C to +150°C

Load Capacity

Up to 15A for signal, 50A for power

Vibration Resistance

Withstands up to 20 g in high-frequency vibration environments
Get Latest Price
Get quote

Product Description

Square Flange Receptacles are built to withstand harsh environments and feature robust housing materials such as corrosion-resistant stainless steel or aerospace-grade aluminum. They are equipped with IP-rated seals to protect against dust, moisture, and extreme temperatures, ensuring consistent aerospace, defense, and heavy machinery performance.

Corrosion Resistance

Salt spray tested for up to 1,000 hours

EMI Shielding

Full shielding with up to 60 dB attenuation

Mounting Options

Pre-drilled flange, threaded inserts, and customizable patterns

Compliance Standards

MIL-DTL-38999, IP68, RoHS, and REACH

Custom Features

Pin count, plating types, and flange dimensions tailored to application

UV Resistance

UV-stable materials rated for outdoor environments

Fire Resistance Rating

UL 94 V-0 flame-retardant materials

Chemical Resistance

Resistant to fuels, oils, and industrial solvents

Thermal Expansion Tolerance

Compatible with differential expansion of connected materials (-40°C to +120°C)

Dynamic Load Testing

Endurance tested for 10,000 mating cycles

Precision Tolerances

±0.05 mm on critical dimensions

Technical Advantages

With low-resistance contacts and EMI shielding, these receptacles ensure flawless signal transmission, even in high-noise environments. Whether for high-frequency data or power applications, their precision-engineered components maintain uninterrupted communication and energy transfer.

Square Flange Receptacles feature streamlined mounting designs, reducing installation time and complexity. Pre-drilled flanges and standard mounting dimensions allow for seamless integration into your system, minimizing downtime during upgrades or repairs.

Let's Get Started

Need reliable Connectors for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Contact us

Industry Applications

Oil and Gas Exploration

Ensures reliable performance in downhole tools, subsea control modules, and drilling equipment.

Semiconductor Manufacturing

Provides secure connections in wafer fabrication tools, photolithography systems, and cleanroom automation systems.

Defense Aircraft

Ensures stable operation in avionics, radar systems, and electronic warfare equipment under extreme conditions.

Electric Vehicle (EV) Charging Stations

Supports high-current connections for fast charging modules and power distribution units.

Power Distribution Systems

Facilitates robust connections in switchgear, circuit breakers, and transformer monitoring equipment.

Space Exploration

Ensures secure data and power links in satellites and rovers and launch vehicle instrumentation.

Square Flange Receptacle

Engineered for Durability and Operational Excellence

Square Flange Receptacles are engineered for longevity, reducing the need for frequent replacements. Their rugged design resists wear and tear, while high-cycle durability ensures reliable performance over extended usage. This minimizes maintenance costs and boosts operational efficiency.

Square Flange Receptacles are not just components but solutions engineered to enhance your operations. Contact us today to learn how these high-performance receptacles can elevate your system’s reliability and solve connectivity challenges.

Square Flange Receptacle

Related products

Having Doubts? Our FAQ

Check all our Frequently Asked Question

How does the flange design improve mechanical stability in high-vibration environments?

The flange design ensures a secure mounting interface, distributing mechanical stress evenly across the structure. This reduces strain on the connector pins and prevents disconnections caused by vibrations. The robust construction is ideal for aerospace, automotive, and industrial machinery applications where vibrations are common.

What materials are used for Square Flange Receptacles to resist harsh environmental conditions?

Square Flange Receptacles are typically made from corrosion-resistant materials like stainless steel or anodized aluminum. These materials offer excellent resistance to moisture, chemicals, and temperature extremes. In addition, high-performance polymer seals protect against dust and water ingress.

Can Square Flange Receptacles support mixed-signal and power connections?

These receptacles are available in configurations that combine signal and power contacts within the same housing. Precision engineering ensures minimal crosstalk between signal lines and high current-carrying capacity for power lines, making them suitable for compact, multi-functional systems.

What features ensure reliable performance in high-frequency signal transmission?

Square Flange Receptacles are equipped with low-resistance gold-plated contacts and EMI shielding. These features minimize signal loss and protect against electromagnetic interference, ensuring stable and high-speed data transmission even in electrically noisy environments.

How are Square Flange Receptacles tested for long-term durability?

These receptacles undergo rigorous testing, including high-cycle mating and unmating simulations, thermal cycling, and exposure to corrosive environments. These tests verify their mechanical integrity, electrical performance, and longevity, ensuring they meet the demands of high-stress industrial and military applications.
