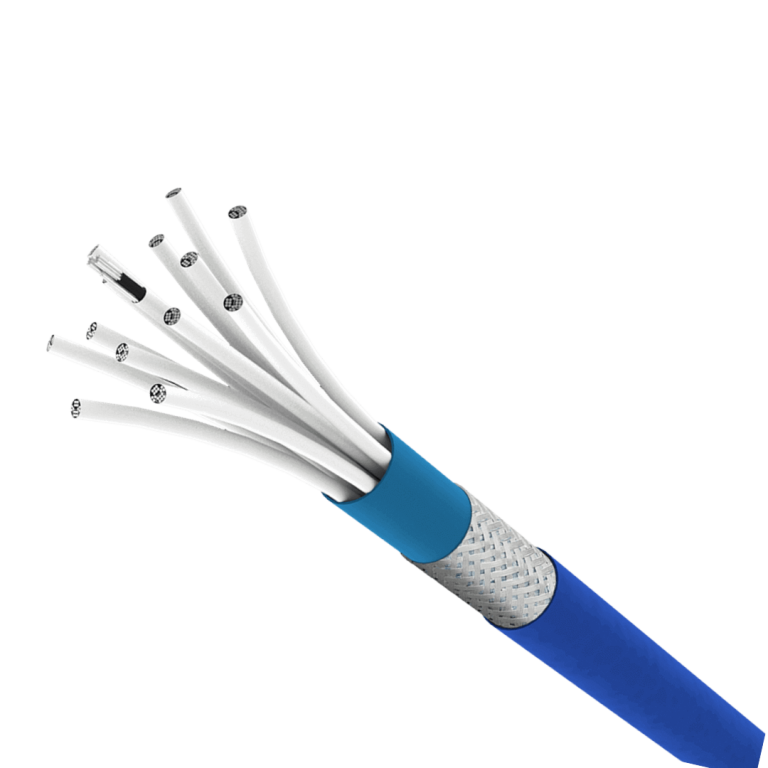

Specialty Cables

Engineered to withstand ultra-high temperatures, aggressive chemical exposure, and continuous mechanical stress, Frigate’s custom specialty cables deliver uninterrupted power and signal integrity where standard cables fail. From aerospace telemetry to heavy metallurgical processing, we design and manufacture application-specific cabling solutions that meet your exact operational tolerances.

Conductor Materials

High-purity Electrolytic Tough Pitch (ETP) Copper, Silver-Plated Copper, Nickel-Plated Copper, or Aluminum Alloys

Conductor Configuration

Class 5 (Flexible) or Class 6 (Highly Flexible) stranding per IEC 60228

Insulation Compounds

PTFE, ETFE, FEP, PFA, Silicone Rubber, or Cross-linked Polyethylene (XLPE)

Jacket Material Options

Polyurethane (PUR), Thermoplastic Elastomers (TPE), Fluoropolymers, or LSZH (Low Smoke Zero Halogen)

Voltage Rating (U₀/U)

300/500V, 450/750V, up to Medium Voltage variants (3.6/6kV to 18/30kV)

*Note: Delivery Windows are indicative and based on material availability. Exact schedules are confirmed upon technical drawing sign-off and RFQ finalization.

Product Description

Frigate’s specialty cables are custom-built interconnect solutions designed to maintain cross-sectional consistency and signal fidelity under extreme operational duress. By integrating advanced shielding techniques with high-grade polymer and fluoropolymer jackets, these cables eliminate electromagnetic interference and mechanical wear in high-duty cycle applications.

Operating Temperature Range

-65° C to +260° C (Continuous); intermittent peaks up to +1000° C for fire-rated lines

Dielectric Strength

≥ 5.0kV AC for 5 minutes (per IEC 60502-1)

Insulation Resistance

≥ 20,000 M Ω · km at 20° C

Minimum Bending Radius

Static: $4 \times D$

Shielding Efficiency

Braid coverage ≥ 85% (Tinned Copper or Stainless Steel); Al-Mylar foil wrapping with 100% coverage

Flame Retardancy Standards

IEC 60332-1-2, IEC 60332-3-24 (Category C), and UL 1581 (VW-1)

Chemical & Oil Resistance

Excellent resistance to hydraulic fluids, hydrocarbons, ozone, UV radiation, and bio-lubricants per EN 50363-4-1

Tensile Strength / Load Capacity

Integrated aramid yarn (Kevlar) or center steel strain-relief members supporting up to 5000N dynamic load

Continuous Flex Life

Qualified for up to 10 million bending cycles in dynamic drag chain applications

Compliance & Certifications

CE, RoHS, REACH, UL/CSA recognized components, and ISO 9001:2015 manufacturing traceability

Technical Advantages

Our proprietary compounding and precise extrusion processes guarantee superior flexibility and a tighter bend radius, significantly reducing spatial footprints within complex machinery layouts. Furthermore, Frigate’s rigorous testing framework ensures long-term resistance to thermal cycling and chemical degradation, drastically lowering total cost of ownership by eliminating unexpected downtime.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industrial Applications

Aerospace & Defense Avionics

Lightweight, low-outgassing signal cables engineered for high-altitude telemetry, radar systems, and flight deck instrumentation operating in extreme thermal gradients.

Robotic Sub-Assemblies & Automation

High-flex drag chain cables optimized for continuous torsional and multi-axis bending stresses on automated assembly lines and articulated robotic arms.

Marine & Offshore Exploration

Mud-resistant, halogen-free, and watertight umbilical cables built to withstand harsh saltwater corrosion and high hydrostatic pressure in subsea applications.

Metal Processing & Foundry Equipment

Ultra-high-temperature power and sensor cables designed to operate reliably in close proximity to blast furnaces, slag lines, and hot rolling mills.

Renewable Energy Systems

UV-stabilized, ozone-resistant, and weather-proof torsion cables tailored for wind turbine nacelles and high-voltage solar array tracking systems.

Oil, Gas & Petrochemical Refining

Armored, chemical-impermeable control cables designed to resist hydrocarbon saturation, aggressive solvents, and explosive atmospheres in processing plants.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

What customization options does Frigate offer for low-volume specialty cable runs?

We provide full engineering support for low-volume production, allowing you to customize conductor configurations, AWG sizes, insulation materials, shielding types, and outer jacket compounds. Our team works directly from your specification sheets or reverse-engineers an existing sample to match your exact environmental and mechanical constraints.

Can you manufacture specialty cables that comply with specific international standards like UL, CSA, or CE?

Yes. Frigate designs and manufactures cables to align with major international regulatory frameworks, including UL/CSA component recognition, CE marking, RoHS compliance, and REACH directives. Please specify your required regional certifications during the initial RFQ phase so we can select pre-qualified compounds and testing protocols.

How do your custom cables handle combined mechanical stress, such as simultaneous twisting and bending?

For complex dynamic applications, we engineer specific “torsion-rated” or “robot-grade” lay-ups. This involves utilizing specialized short-pitch bundling techniques, low-friction separating tapes, and highly elastic jacket materials (like specific formulations of PUR or TPE) that allow internal conductors to glide smoothly without binding or fatiguing under multi-axis strain.

What is the minimum order quantity (MOQ) for a completely custom specialty cable design?

Because custom extrusion setups require significant material purging and calibration, our standard MOQ typically starts at 500 meters per unique configuration. However, for highly specialized material combinations or high-value cross-sections, we can review and accommodate lower run lengths on a case-by-case basis.

How does Frigate ensure signal integrity and EMI protection in high-noise industrial environments?

We utilize a multi-layered shielding approach customized to your specific noise profile. Depending on whether you face high-frequency or low-frequency interference, we implement combinations of aluminum-mylar foils (for 100% coverage), high-density tinned copper braids (for physical strength and low-frequency attenuation), or twisted-pair architectures with individual and overall shields to guarantee clean data transmission.
