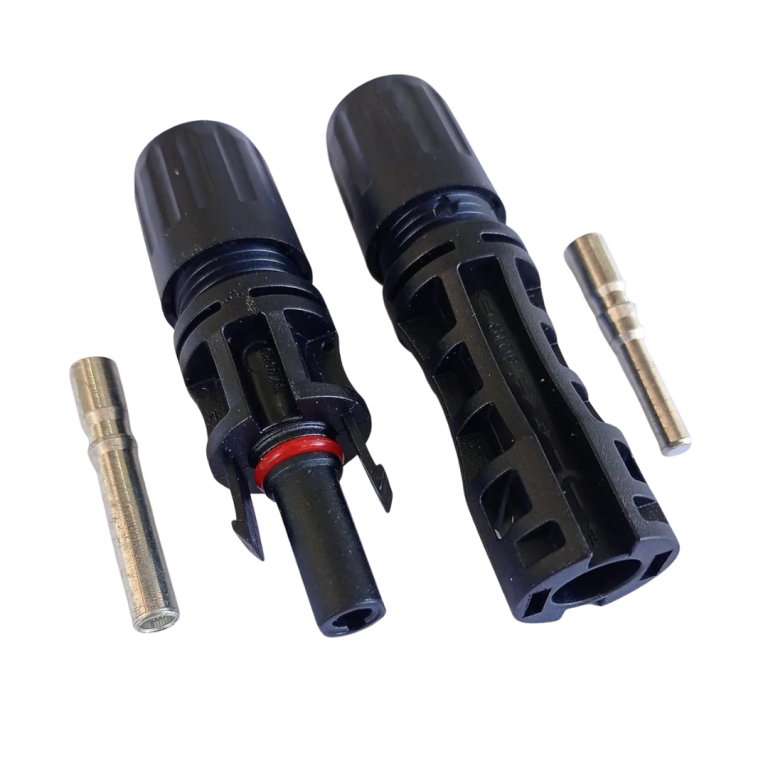

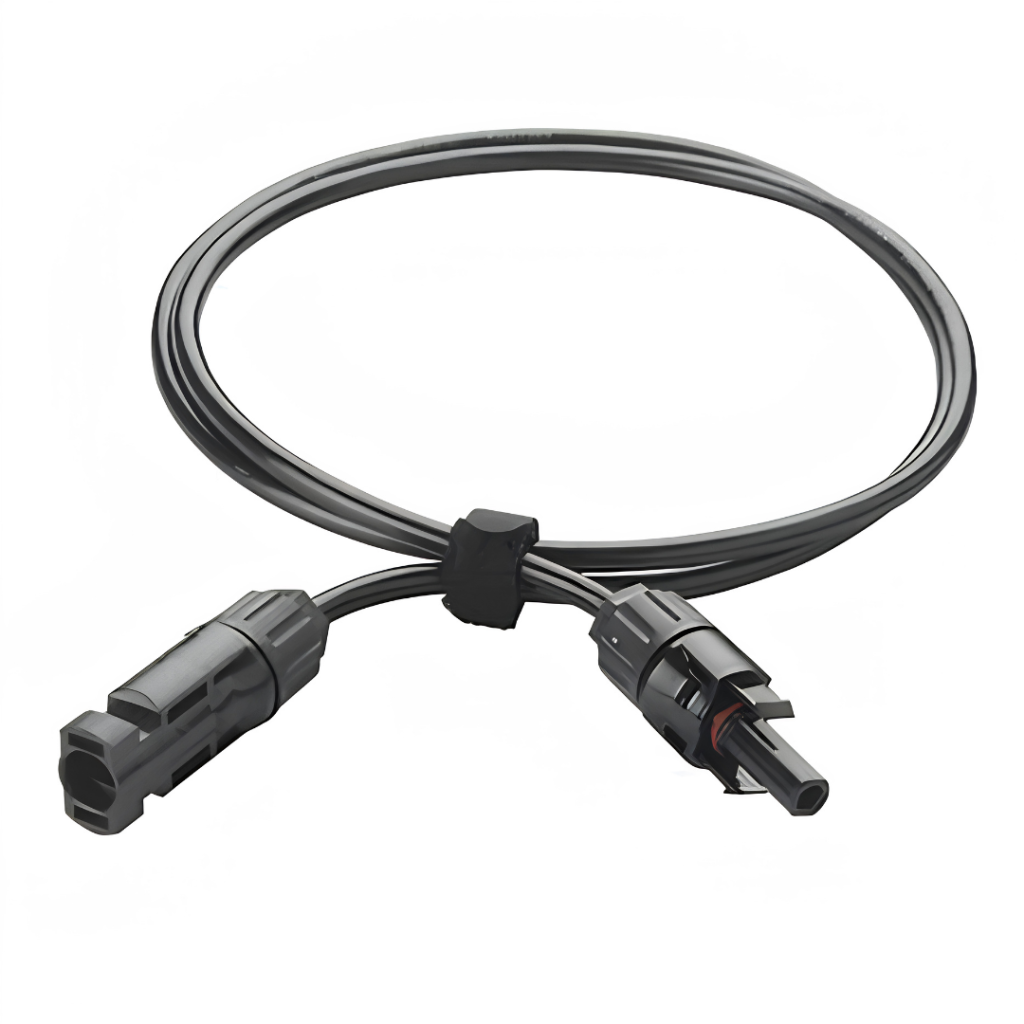

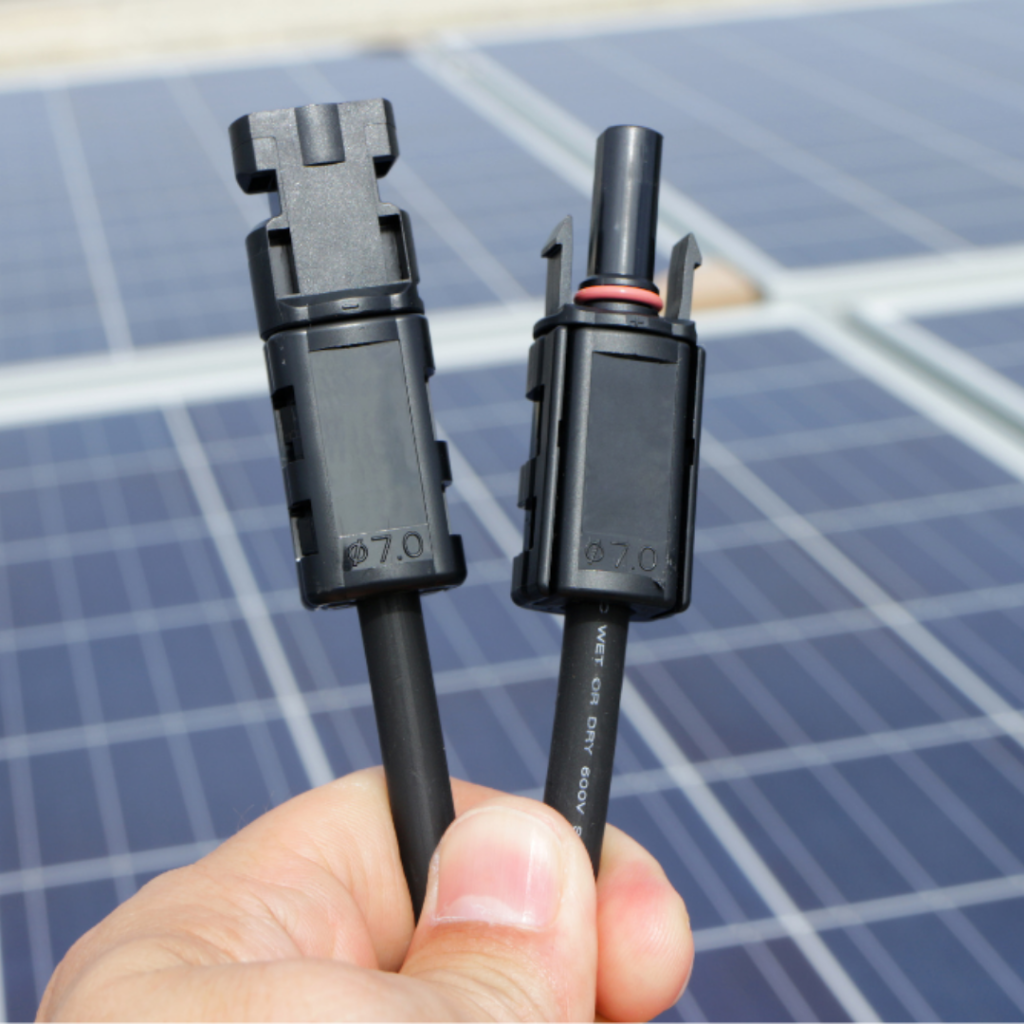

Solar MC4 Connector Assemblies

Frigate’s heavy-duty Solar MC4 Connector Assemblies deliver seamless, weatherproof electrical connectivity engineered to maximize energy yield and eliminate field failures in utility-scale photovoltaic installations. Designed for rapid deployment, these pre-assembled solutions ensure low contact resistance and long-term durability under extreme environmental stress.

Rated Voltage

1000 V DC / 1500 V DC

Rated Current

30 A (2.5 mm ² / 4 mm ²), 45 A (6 mm ²)

Contact Resistance

≤ 0.25 m Ω

Insulation Resistance

> 500 M Ω

Conductor Material

Tinned Copper

*Note: Timelines are indicative and depend on raw material availability and custom wire lengths. Contact our engineering desk for firm project schedules.

Product Description

Built to handle the rigorous demands of high-voltage DC architectures, Frigate’s MC4 connector assemblies deliver the scalability and structural resilience required for massive commercial arrays. This pre-engineered solution eliminates manual crimping errors in the field, paving the way for flawless electrical continuity and rapid grid integration.

Insulation Material

Polycarbonate (PC), UV-stabilized and flame-retardant

Locking System

Snap-in (locking click mechanism)

Protection Degree

IP68 (1m, 1h) / IP6x (mated)

Flame Class

UL94-V0

Safety Class

Class II

Ambient Temperature Range

-40° C to +85° C (IEC)

Upper Limiting Temperature

+105° C

Suitable Cable Cross-Sections

2.5 mm ², 4.0 mm ², 6.0 mm ² (14, 12, 10 AWG)

Insertion / Withdrawal Force

≤ 50 N / ≥ 50 N

Certification Standards

TÜV Rheinland (IEC 62852) / UL 6703

Technical Advantages

Engineered with a secure snap-in locking mechanism, these assemblies eliminate accidental disconnections and maintain an IP68 waterproof seal to prevent moisture ingress and subsequent ground faults. Furthermore, their exceptionally low contact resistance (≤ 0.25 m Ω) minimizes power dissipation, maximizing overall system efficiency and long-term ROI for project developers.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Utility-Scale Solar Farms

Optimized for high-voltage commercial grids, ensuring robust, low-loss power transmission across vast arrays.

Commercial Rooftop Arrays

Provides safe, reliable, and flame-retardant connections for corporate buildings, meeting strict urban safety codes.

Floating Solar (FPV) Systems

Features superior IP68 waterproofing, preventing moisture-induced degradation in high-humidity and water-surface environments.

Solar Tracker Integration

Built with highly flexible cabling that easily withstands continuous mechanical stress and regular angular tracking movements.

BESS (Battery Energy Storage)

Facilitates secure, high-current DC links between solar inverters and industrial battery containment units seamlessly.

Off-Grid Industrial Power

Delivers maintenance-free, rugged connectivity for remote telecommunication towers and remote oil, gas, or mining operations.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

What cable sizes are compatible with Frigate’s MC4 connector assemblies?

Our assemblies are fully compatible with industry-standard solar DC cables, accommodating cross-sections of 2.5 mm ², 4.0 mm ², and 6.0 mm ² (14, 12, and 10 AWG), allowing for seamless integration into diverse project layouts.

Are these connectors compatible with third-party MC4 brands?

Yes, they are engineered to intermate reliably with standard MC4-style connectors according to IEC 62852. However, for maximum efficiency and to ensure complete IP68 protection.

How do these assemblies hold up against severe outdoor weather conditions?

Frigate assemblies are constructed using UV-stabilized, UL94-V0 flame-retardant polycarbonate materials and premium internal seals. They carry an IP68 rating, meaning they are completely dust-tight and resistant to continuous water immersion.

Can Frigate customize the lead wire length and configuration?

Absolutely. We can provide tailored wire lengths, specialized wire types (such as electron-beam cross-linked solar cables), and pre-terminated harness configurations based on your design blueprints.

What certifications do your solar connector assemblies carry?

Our products are manufactured in compliance with international performance and safety benchmarks, adhering closely to TÜV Rheinland (IEC 62852) and UL 6703 standard guidelines for photovoltaic systems.
