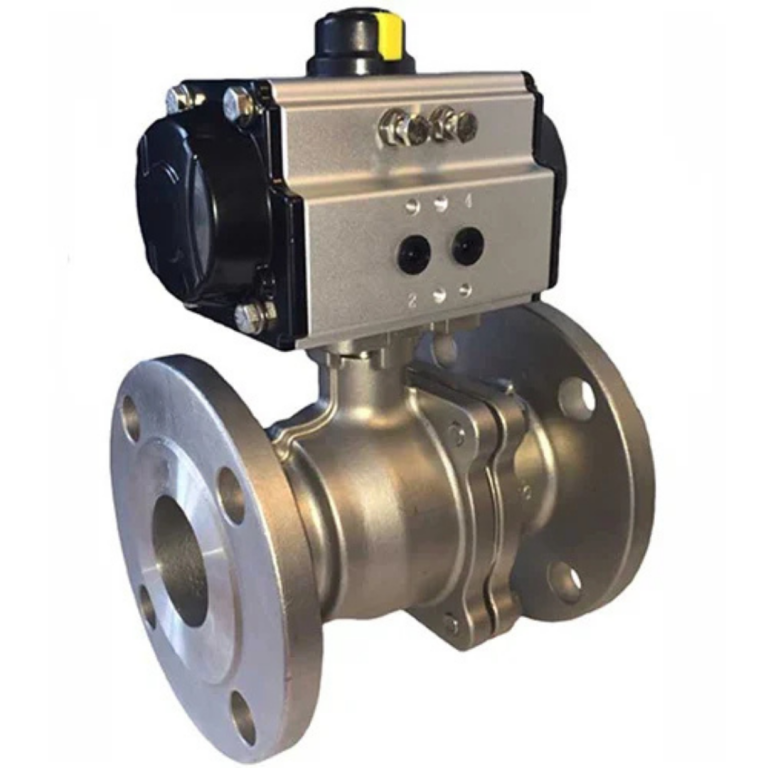

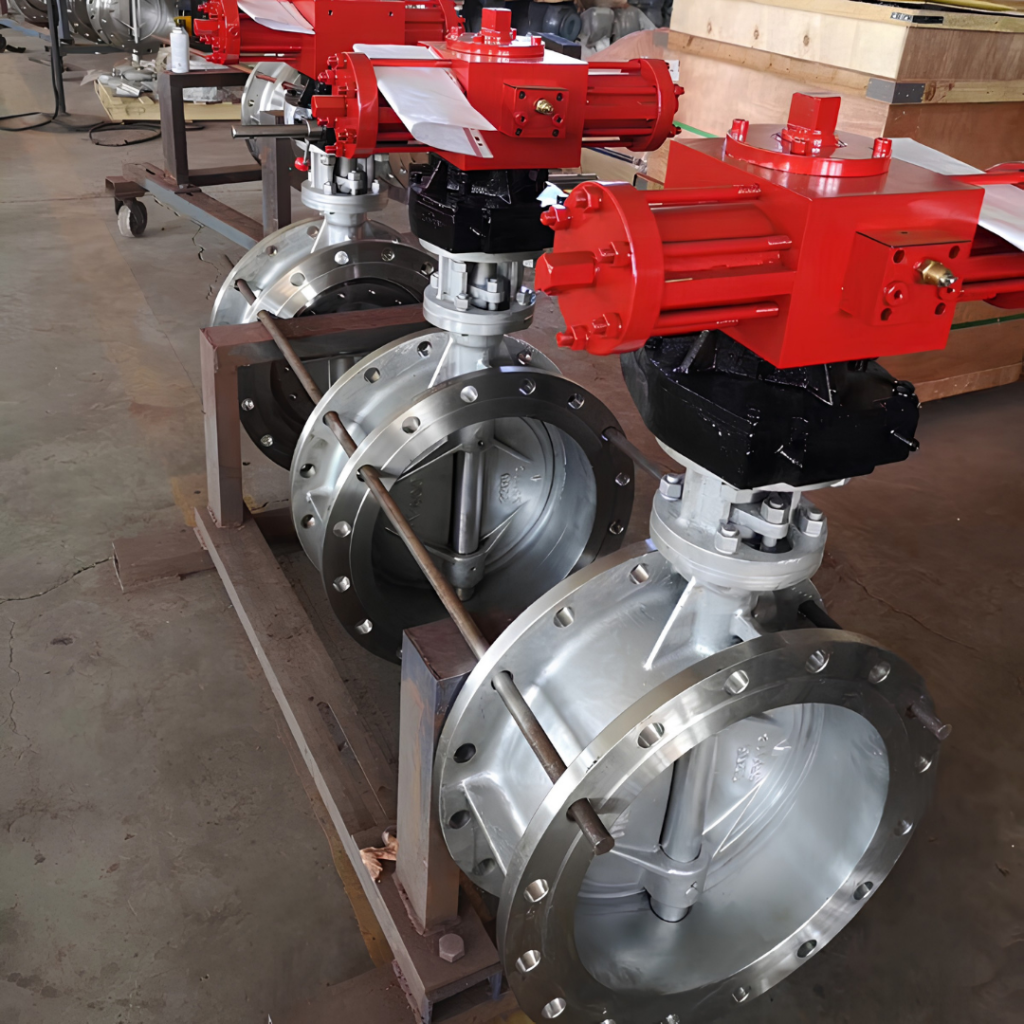

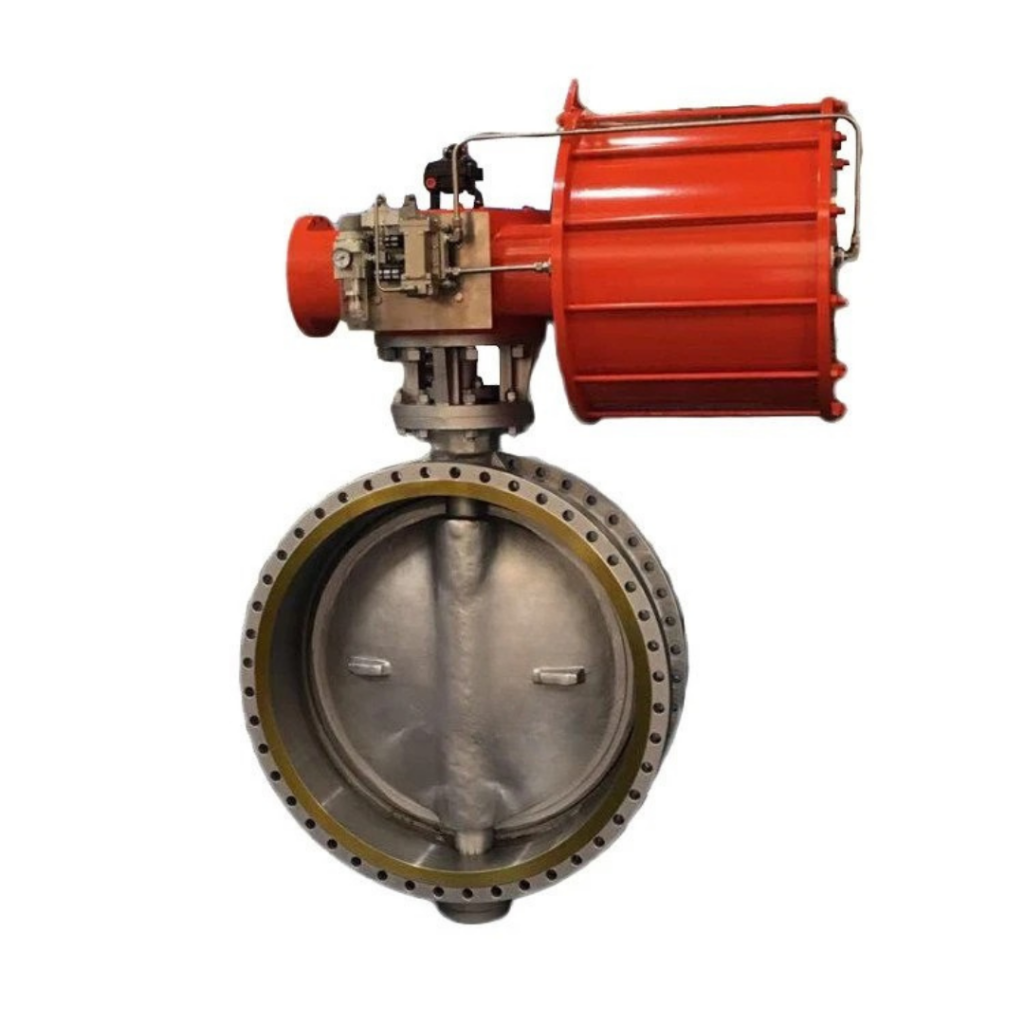

Pneumatic Actuated Valves

Engineered for high-cycle automation and uncompromising reliability, Frigate’s pneumatic actuated valves deliver precise flow control in the most demanding industrial environments. Our robust assembly combines premium valve bodies with cutting-edge pneumatic actuators to guarantee rapid response times and failsafe performance.

Actuator Type

Rack and pinion / Scotch yoke (Double acting or Spring return)

Valve Body Materials

316L Stainless Steel, Carbon Steel, WCB, CF8M, Hastelloy

Available Sizes

DN15 to DN600 (1/2″ to 24″)

Pressure Ratings

ASME Class 150 to Class 2500, PN16 to PN420

Operating Temperature

-40°C to +250°C (Extended options for cryogenic/high temp)

*Timelines are indicative and depend on raw material availability and custom testing requirements; final delivery schedules are confirmed upon engineering review.

Product Description

Frigate’s pneumatic actuated valves are purpose-built to automate the isolation and throttling of aggressive media, gases, and high-pressure steam. Featuring modular configurations, these assemblies integrate seamlessly with positioners, limit switches, and solenoid valves to form a fully responsive flow control loop.

Control Media

Clean, dry, filtered compressed air (Instrument air)

Supply Pressure Range

2.5 bar to 8 bar (36 psi to 116 psi)

End Connections

Flanged (RF, RTJ), Threaded (NPT/BSP), Socket Weld, Butt Weld

Sealing Materials

PTFE, RTFE, Peek, Devlon, Metal-to-Metal (Stellite)

Leakage Class

ANSI/FCI 70-2 Class VI (Soft seated) or Class IV/V (Metal seated)

Angular Rotation

90° (Quarter-turn) with ±5° travel adjustment

Accessory Interface

NAMUR VDI/VDE 3845 for positioners, limit switches, and solenoids

Design Standards

API 6D, ASME B16.34, ISO 5211 (Actuator mounting)

Certifications

CE, ATEX (Explosion-proof), SIL 3 Capable, Fire-Safe (API 607)

Duty Cycle

100% Continuous duty

Technical Advantages

The low-friction actuator design drastically minimizes breakaway torque requirements, ensuring swift, repeatable millisecond actuation over millions of cycles. Additionally, our inherently explosion-proof pneumatic systems eliminate electrical spark hazards, offering a highly reliable and safe solution for hazardous environments.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Chemical & Petrochemical Processing

Handles aggressive acids, corrosive solvents, and volatile organic compounds with zero-leakage stem packing and specialized alloy configurations.

Oil & Gas Downstream & Refining

Automates critical emergency shutdown (ESD) pathways and high-pressure manifold isolation in explosive refinery atmospheres.

Water & Wastewater Treatment

Manages high-volume water treatment lines, chemical dosing, and sludge handling with robust, corrosion-resistant valve body linings.

Power Generation & Utilities

Controls high-temperature boiler feed water, steam distribution networks, and cooling water circuits with high thermal stability.

Food, Beverage & Pharmaceutical

Deploys high-purity, mirror-polished sanitary valves with FDA-compliant seats to prevent media contamination during batching.

Pulp, Paper & Mining Slurries

Provides rugged knife gate or ball valve configurations that easily cut through abrasive fibers, scaling fluids, and heavy mineral slurries.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Can you configure these valve assemblies to fulfill custom face-to-face dimensions or retrofitting requirements?

Yes. Frigate specializes in custom engineering; we can modify the end connections, face-to-face lengths, or actuator mounting brackets to match your existing piping layout exactly. Simply provide your current system drawings, and our engineering team will handle the dimensional matching.

We handle high-viscosity media that tends to polymerize. How do your assemblies prevent valve seizure?

For media prone to buildup, we offer cavity-free designs, specialized internal coatings, and high-torque actuators that overcome initial static friction. We will review your media data sheet to select the optimal seat material and torque safety factors.

What testing documentation do you provide before our quality engineering team signs off on the shipment?

Every automated valve assembly undergoes mandatory hydro, pneumatic, and seat-leakage testing per API 598 or EN 12266-1. We provide full material traceability (MTRs to EN 10204 3.1), pressure test certificates, and functional torque diagnostic logs upon request.

Are the positioners and limit switches pre-wired and calibrated, or do we handle that on-site?

We completely assemble, wire, and calibrate all accessories including positioners, solenoids, and limit switches at our facility. Your team only needs to connect the primary air supply and instrument signals on-site, minimizing installation down.

How do you ensure the actuator torque is properly matched to our specific line pressure conditions?

We never use generic sizing. Our engineers calculate the required breakout, running, and closing torques based on your specific maximum differential pressure (DP) and media characteristics, then apply a minimum 30% safety factor to select the actuator.
