Plug valve

Name: Plug Valves | Quarter-Turn Valves | Rotary Control Valves - Frigate
Price: 249.00 USD
Availability: InStock

Partner with Frigate for precision-engineered Expanding Plug Valves designed to deliver zero-leakage isolation in the most demanding industrial environments. Our robust manufacturing capabilities ensure custom material configurations and rigorous quality control for seamless operational integrity.

Design Standard

API 6D / ISO 14313

Face-to-Face Dimensions

ASME B16.10

Flange Drilling & Dimensions

ASME B16.5

Pressure Temperature Ratings

ASME B16.34

Pressure Class Range

ASME Class 150, 300, 600, 900

Order Type

Quantity Range

Lead Time*

Sample

1 – 5 Units

4 – 6 Weeks

Low-Volume Production

6 – 25 Units

8 – 10 Weeks

Commercial Batch

26 – 100 Units

12 – 14 Weeks

High-Volume Contract

100+ Units

Custom Schedule

*All listed delivery timelines are indicative ranges based on current foundry capacity. Actual schedules may vary depending on material selection and custom testing protocols.

Product Description

Frigate’s high-performance expanding plug valves feature a dual-action sealing mechanism that provides mechanically tight shut-off without relying on line pressure. Engineered from premium castings and forgings, these heavy-duty components ensure maximum structural durability and long-term wear resistance under high-torque conditions.

Testing & Inspection Standard

API 598 / API 6D

Fire Safety Certification

API 607 / API 6FA

Sealing / Shut-off Integrity

Zero Leakage / Bubble Tight (Bi-directional)

Bore Configuration

Full Bore (FB) / Regular Bore (RB)

End Connections

Flanged (RF, RTJ) / Butt-Weld (BW)

Fugitive Emissions Compliance

ISO 15848-1 / API 622

NACE Compliance

MR0175 / ISO 15156 (Sour Gas Service available)

Operation Mechanisms

Handwheel, Worm Gearbox, Electric/Pneumatic Actuator

Bleed System System

Inbuilt Double Block & Bleed (DBB) with thermal relief

Nominal Valve Size (Inches)

Stem Diameter (∅A)

Body Height (B)

Total Component Length (C)

2″

225

3″

225

4″

127

333

6″

230

487

8″

302

565

10″

362

627

12″

454

765

16″

568

974

Technical Advantages

By utilizing high-grade ASTM materials and precision-machined internal components like worm gear shafts and robust plugs, our valves minimize frictional wear during operation. The mechanical retraction of the slips away from the body seat prior to rotation significantly reduces torque requirements and extends the service life of the sealing elements.

Compliances

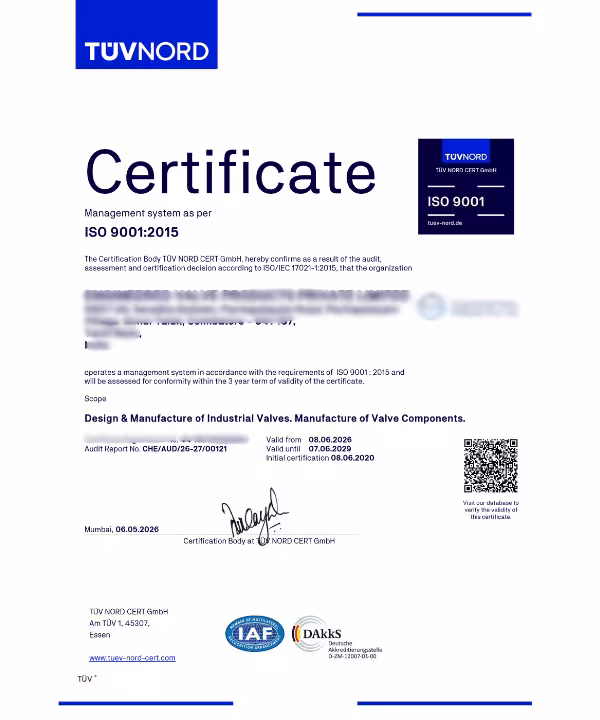

ISO - 9001 2015

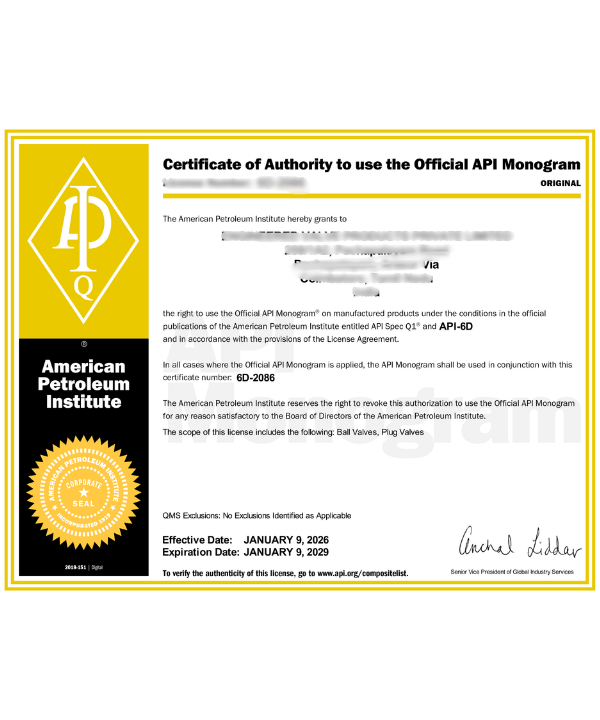

API

Let's Get Started

Need reliable valve for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Oil & Gas Transmission

Provides positive, bubble-tight double block and bleed isolation for custody transfer metering systems, tank farms, and transport pipeline networks.

Chemical Processing

Ensures highly secure containment of volatile organic compounds, corrosive acids, and hazardous polymers throughout severe service chemical refinery lines.

Aviation Fueling Systems

Delivers contamination-free, rapid-isolation performance across airport fuel hydrants, storage manifolds, and distribution loading racks.

Power Generation Facilities

Manages high-pressure cooling water loops, boiler feed systems, and steam condensate isolation workflows with absolute mechanical reliability.

Water & Wastewater Treatment

Controls high-grit slurry flows, sludge processing lines, and chemical dosing systems without suffering from scale build-up or seat degradation.

Marine & Offshore Platforms

Resists harsh saltwater environments to provide dependable top-side process fluid control and ballast water isolation on offshore rigs.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

What materials does Frigate use for critical expanding plug valve internals?

Critical drive internals, such as the lower stem, slip, and worm gear shaft, are manufactured from high-tensile ASTM A322 Grade 4140 bar stock and forgings. Pressure-containing boundaries like the plug, bonnet, and lower plate utilize durable carbon and low-alloy steels including ASTM A216 WCB, A350 LF2, and A352 LCC.

Can these valves handle low-temperature industrial operations?

Yes. By opting for material grades like ASTM A350 Gr. LF2 and ASTM A352 Gr. LCC for your plugs, bonnets, and lower plates, our valves are fully optimized to retain impact toughness and structural integrity in low-temperature applications.

How does Frigate ensure dimensional accuracy across custom manufacturing runs?

Every expanding plug valve component undergoes rigorous coordinate measuring machine (CMM) inspections and geometric dimensioning and tolerancing (GD&T) validation. This ensures that critical tolerances on mating parts such as the plug slots, slips, and lower stem keys perfectly match our engineering schematics to eliminate field assembly friction.

Are custom dimensions available beyond the standard 2" to 16" matrix?

Yes. Frigate provides comprehensive contract manufacturing services. While our standard engineering catalog spans from 2-inch to 16-inch nominal sizes, our technical team can adjust casting patterns and machining profiles to fit custom infrastructure requirements.

What standard quality documentation is provided with a Frigate valve shipment?

We provide a comprehensive quality documentation package with every order. This typically includes Mill Test Certificates (MTC) per EN 10204 Type 3.1, Hydrostatic and Pneumatic Pressure Test Reports compliance certificates (API 6D/API 598), Non-Destructive Testing (NDT) reports if requested, and standard warranty certificates.
