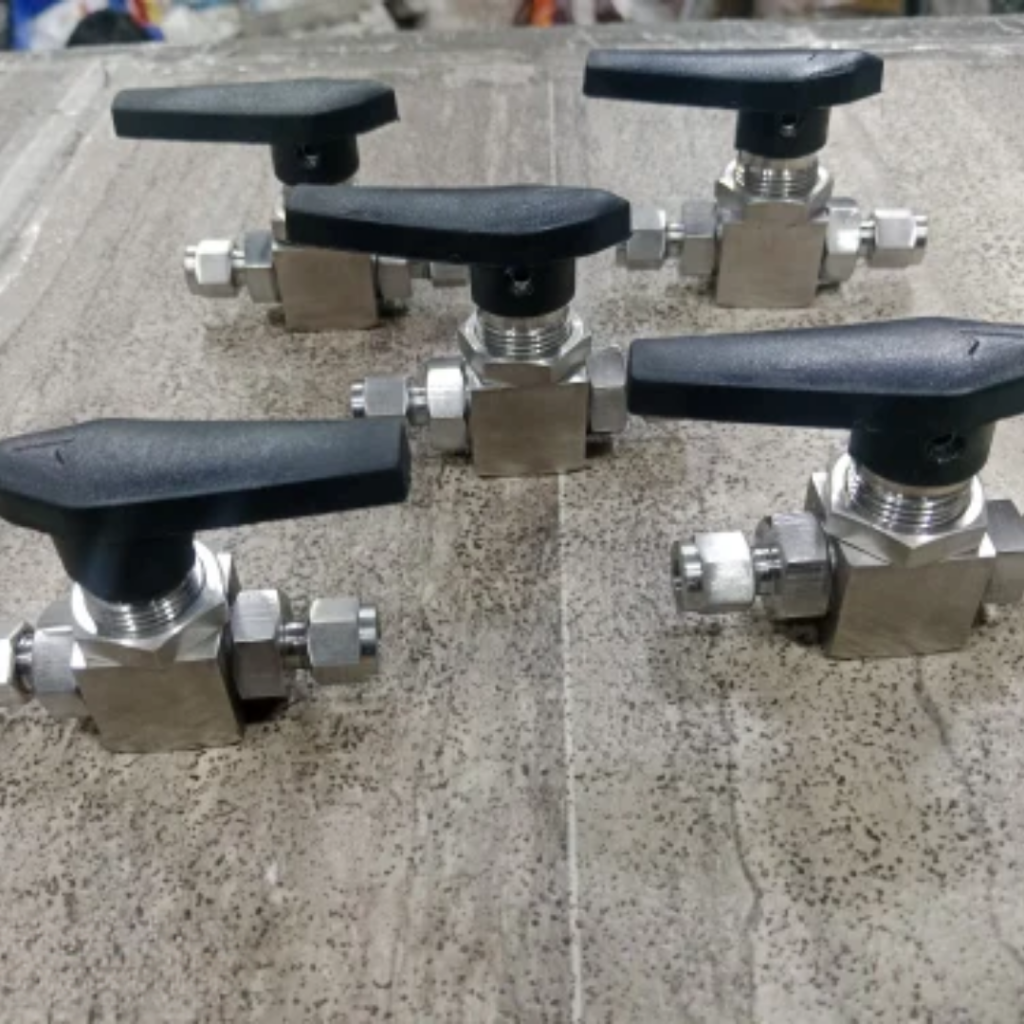

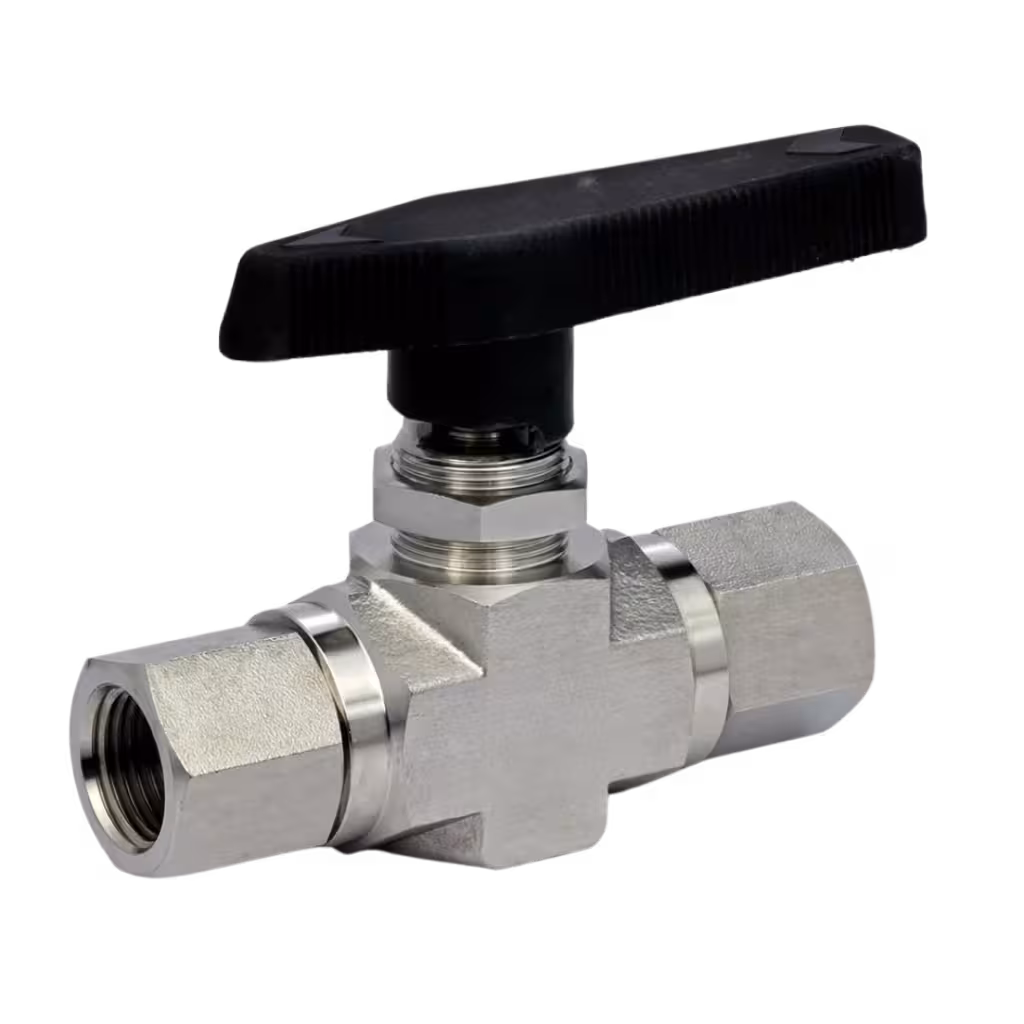

Panel Mounted Ball Valves

Empower your fluid control systems with Frigate’s high-pressure Panel Mounting Ball Valves, engineered for seamless instrument panel integration and zero-leakage performance. Designed to withstand demanding industrial environments, these robust valves deliver precise flow regulation and exceptional durability up to 3000 psi.

Bore Configuration

Reduced Bore / Standard Bore (Optimized for high-pressure instrumentation flow)

Material of Construction (M.O.C)

CS, AS, SS, DSS, SDSS, SASS, Monel, Hastelloy, Inconel, Titanium, Tantalum, Brass

Pressure Rating

Up to 3000 psi

Size Range

1/4″ to 1″

End Connections

NPT, BSP, BSPT, Tube OD, SW (Socket Weld)

Order Type

Quantity Range

Lead Time*

Standard Stock Order

1 – 50 units

3 – 5 Days

Batch Production

51 – 500 units

2 – 3 Weeks

Bulk Industrial Supply

501 – 2000 units

4 – 6 Weeks

Custom M.O.C / Specialized Project

100+ units (Exotic Alloys)

6 – 8 Weeks

*All delivery timelines listed above are indicative ranges based on current raw material availability. Actual lead times may vary based on exact material specs and current factory workloads.

Product Description

Frigate’s panel mounting ball valves offer a compact, quarter-turn solution specifically tailored for high-density instrumentation panels and test benches. Featuring a versatile multi-port design and superior material configurations, they ensure smooth operation and reliable isolation in critical fluid and gas applications.

Design Variants

3 PC Design, T-Port, L-Port, OD Type, OD to TH

Flow Configurations

2-Way (Straight-through), 3-Way (L-Port / T-Port directional flow)

Seat Material

PTFE / RPTFE / PEEK (High-performance polymers)

Operating Temperature

-20°F to 450°F (Depending on seat and seal material)

Actuation

Manual Quarter-Turn Lever Handle (Actuator ready options available)

Stem Design

Blow-out proof, internally loaded stem for enhanced safety

Panel Thickness Capacity

Accommodates variable panel depths with heavy-duty hex nuts

Leakage Class

Bubble-tight shut-off (Class VI compliance)

Testing Standards

Hydrostatic and pneumatic shell/seat tested per industrial norms

Surface Finish

Passivated / Acid-pickled for high corrosion resistance

Nominal Valve Size (inches)

Stem Diameter (mm)

Body Height (mm)

Total Component Length (mm)

1/4″

3/8″

48.5

78.5

1/2″

3/4″

12.5

102

1″

75.5

118

Technical Advantages

These valves feature an integrated panel-mounting nut that allows for quick, secure installation directly onto control boards without dismantling the body assembly. Additionally, the blow-out proof stem design combined with floating ball mechanics optimizes sealing integrity, significantly reducing maintenance downtime under high-pressure cycles.

Compliances

ISO 9001:2015

ISO 14001:2015

ISO 45001:2018

Let's Get Started

Need reliable valve for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Chemical & Petroprocessing

Provides reliable routing and isolation for highly corrosive chemicals, utilizing exotic alloys like Hastelloy and Monel to prevent early component failure.

Oil & Gas Exploration

Deployed in wellhead control panels and offshore platform instrumentation lines to manage high-pressure hydrocarbon streams up to 3000 psi safely.

Power Generation Plants

Ideal for steam and water sampling systems, ensuring tight shut-off and precise directional flow control within high-density control panel arrays.

Aerospace & Defense Testing

Integrated into pneumatic test benches and fuel system simulators where compact sizing, panel optimization, and strict zero-leakage parameters are vital.

Water & Wastewater Treatment

Used in dosing panels and analytic monitoring systems, leveraging stainless steel and brass variants to handle purification fluids and chemical feeds.

Pharmaceutical & Cleanrooms

Excellent for high-purity gas distribution loops and process utility panels requiring passivated surfaces to maintain strict contamination control.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

What configuration options are available for Frigate’s panel mounting ball valves?

We offer 3-Piece designs, T-Port, and L-Port configurations, with specialized Tube OD, fractional OD to TH, and standard threaded (NPT/BSP/BSPT) end connections to suit diverse piping layouts.

Can these valves handle high-pressure systems safely?

Yes, our panel mounting ball valves are engineered and rated for high-pressure operations up to 3000 psi, featuring robust body constructions and blow-out proof stems for maximized safety.

Which exotic materials can Frigate manufacture these valves from?

Beyond standard Carbon Steel (CS) and Stainless Steel (SS), we manufacture valves in Duplex (DSS), Super Duplex (SDSS), Monel, Hastelloy, Inconel, Titanium, Tantalum, and Brass to withstand severe corrosion.

What is the benefit of an L-Port versus a T-Port design?

An L-port valve is used for diverting fluid from a single inlet to one of two different outlets. A T-port valve offers broader flexibility, allowing you to mix flows, divert streams, or completely open all three ports at once.

How does the panel mounting feature improve system architecture?

It allows the valve body to be secured directly behind an instrument console panel while the operating lever remains accessible on the outside. This optimizes space and creates a clean, centralized control interface.
