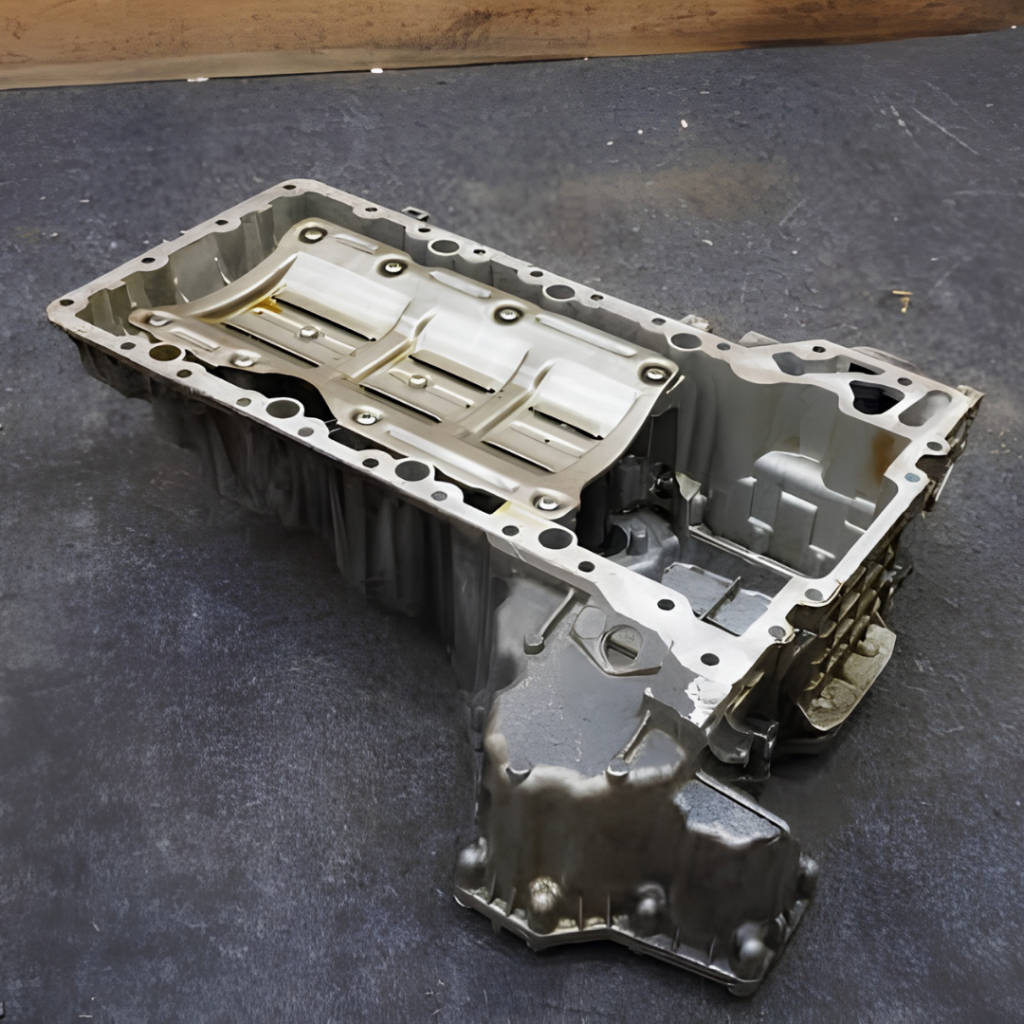

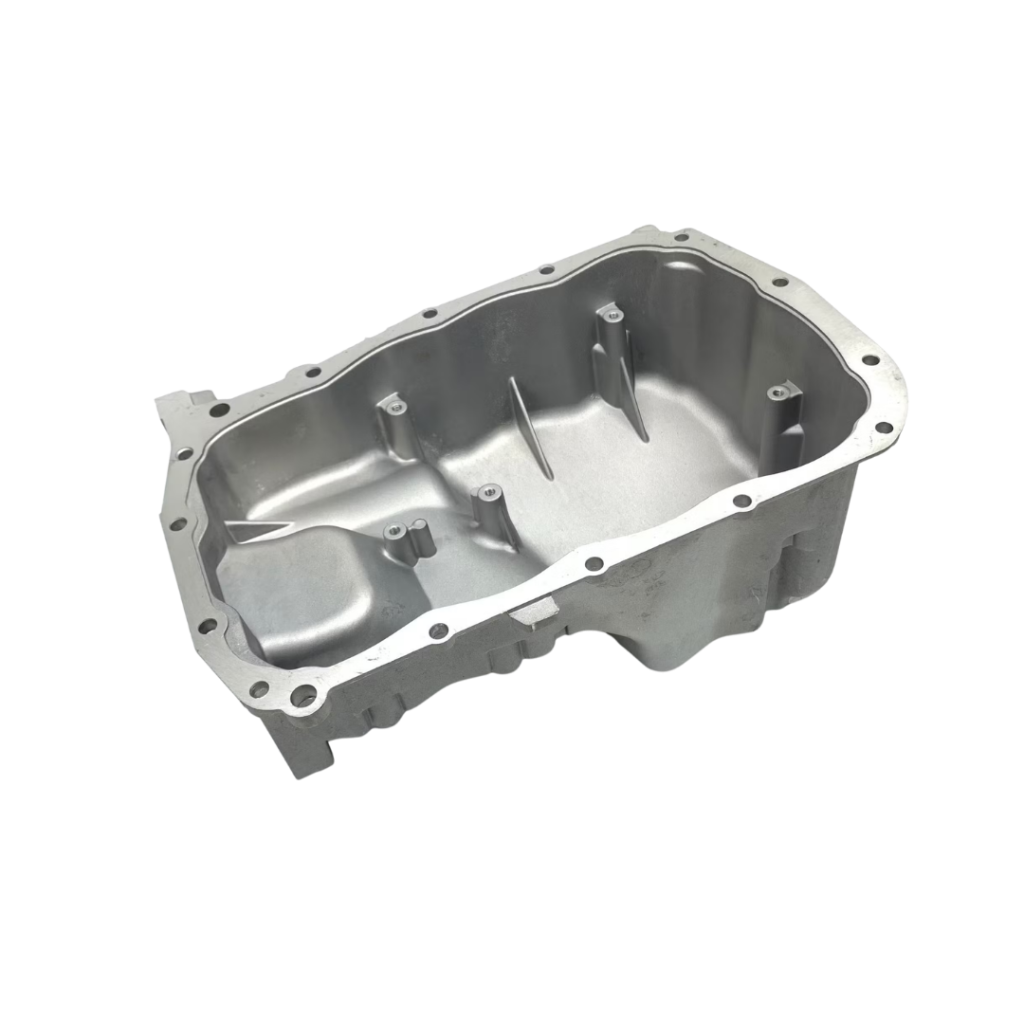

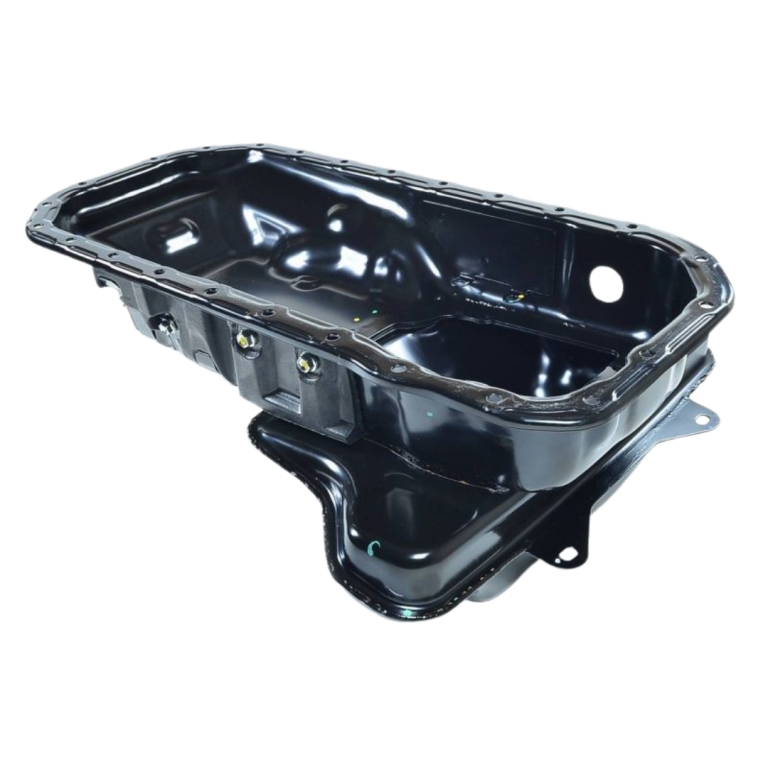

Oil Pan Housings

Engineered for ultimate survivability, Frigate’s heavy-duty oil pan housings provide uncompromising powertrain protection for military and tactical combat vehicles. Manufactured via advanced casting and precision CNC machining, these rugged components guarantee structural integrity and flawless fluid dynamics under extreme ballistic and environmental stress.

Primary Material Grades

Aluminum (A356-T6, A380) or High-Tensile Ductile Iron / Cast Steel

Manufacturing Process

High-Pressure Die Casting / Gravity Casting + Multi-Axis CNC Precision Machining

Wall Thickness Uniformity

± 0.15 mm optimized via solidification simulation software

Surface Treatment

Chemical Conversion Coating / MIL-SPEC Primers and Topcoats (CARC compliant)

Tensile Strength

≥ 290 MPa (for optimized aluminum alloy variants)

Order Type

Quantity Range

Lead Time*

Sample & First Article (FAIR)

1 – 5 Units

4 – 6 Weeks (including tooling setup)

Low-Volume Initial Run

6 – 50 Units

6 – 8 Weeks

Batch Production

51 – 250 Units

8 – 10 Weeks

High-Volume Mass Production

251+ Units

10 – 12 Weeks (staggered delivery available)

*These timelines are indicative ranges based on standard material procurement. Actual lead times depend on specific material grades, NDT compliance protocols, and custom tooling configurations.

Product Description

Frigate’s oil pan housings are purpose-built to safeguard high-performance defence engines against critical oil starvation during steep-angle terrain navigation and high-G tactical maneuvers. By pairing lightweight, military-grade metallurgy with rigorous structural testing, we deliver components that optimize the total cost of ownership while maximizing battlefield uptime.

Yield Strength

≥ 240 MPa to resist high-impact shock and blast waves

Elongation at Break

Greater than or equal to 3.5% to prevent catastrophic shattering under stress

Sealing Interface Flatness

≤ 0.05 mm to ensure zero-leakage performance under extreme vibration

Thread Precision

Class 2B / Metric 6H high-torque inserts for secure structural fastening

Operating Temperature Range

-40° C to +150° C structural stability

Corrosion Resistance

> 500 hours salt spray testing per ASTM B117

Non-Destructive Testing (NDT)

X-ray Radiography (ASTM E155 Class 1) and Liquid Penetrant Inspection

Cleanliness Standard

ISO 16232 / NAS 1638 compliant particulate limits for sensitive oil circuits

Dimensional Tolerance

ISO 2768-m (Fine) to ensure perfect structural integration with the engine block

Baffle & Drainage Design

Integrated anti-slosh baffles with magnetic drain plugs for particulate trapping

Technical Advantages

Our housings feature an advanced internal baffle geometry that eliminates engine oil sloshing and guarantees a continuous, uninterrupted lubricant feed during sudden kinetic movements. Furthermore, the localized structural ribbing drastically reduces cyclic vibration wear and dampens acoustic signatures, rendering vehicles less detectable in field operations.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Main Battle Tanks (MBTs)

Engineered to withstand heavy structural shock, these housings provide a resilient fluid reservoir for high-horsepower multi-fuel tank engines operating in rugged terrains.

Infantry Fighting Vehicles (IFVs)

Optimized for weight and durability, our housings ensure continuous powertrain reliability for rapid-deployment tracked armored assets under intense combat workloads.

Mine-Resistant Ambush Protected (MRAP) Vehicles

Designed with high yield-strength alloys to maintain structural housing integrity and prevent critical fluid loss during underbelly blast events.

Tactical Logistics & Heavy Utility Trucks

Ensures reliable, long-term fleet operational uptime and high thermal stability across long-range supply line transport in desert or arctic environments.

Unmanned Ground Vehicles (UGVs)

Compact, high-precision housing designs tailored for autonomous defence platforms, prioritizing weight reduction without sacrificing powertrain armor density.

Naval Fast Attack Craft Auxiliary Power

Finished with specialized MIL-SPEC anti-corrosion coatings to safeguard auxiliary power generation engines against severe maritime salt-spray exposure.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

What material options does Frigate offer for defence-grade oil pan housings?

We primarily manufacture housings using high-grade cast aluminum alloys (such as A356-T6) for weight-sensitive applications, as well as ductile iron or cast steel for heavy-armored vehicles requiring maximum impact resistance.

How does Frigate ensure the sealing integrity of these components under high vibrations?

Every housing undergoes multi-axis CNC machining to achieve a sealing interface flatness of less than 0.05mm. We validate this structural sealing through precision coordinate measuring machine (CMM) inspections and rigorous pressure leak testing.

Are Frigate’s manufacturing processes compliant with defense-specific standards?

Yes. Our production facilities and workflows support strict adherence to MIL-SPEC requirements, including CARC painting compliance, ASTM non-destructive testing (NDT), and ISO 16232 industrial cleanliness protocols.

Can you accommodate custom internal geometry modifications for existing engine platforms?

Absolutely. Our engineering team utilizes advanced casting solidification and fluid simulation software to integrate custom anti-slosh baffles, specific pickup tube clearances, or localized structural ribbing based on your exact engine blueprint.

How do you handle Quality Assurance and tracing for defense orders?

We provide comprehensive documentation packages for every batch, including raw material test certificates (MTRs), First Article Inspection Reports (FAIR), dimensional layouts, and X-ray or liquid penetrant NDT inspection data.
