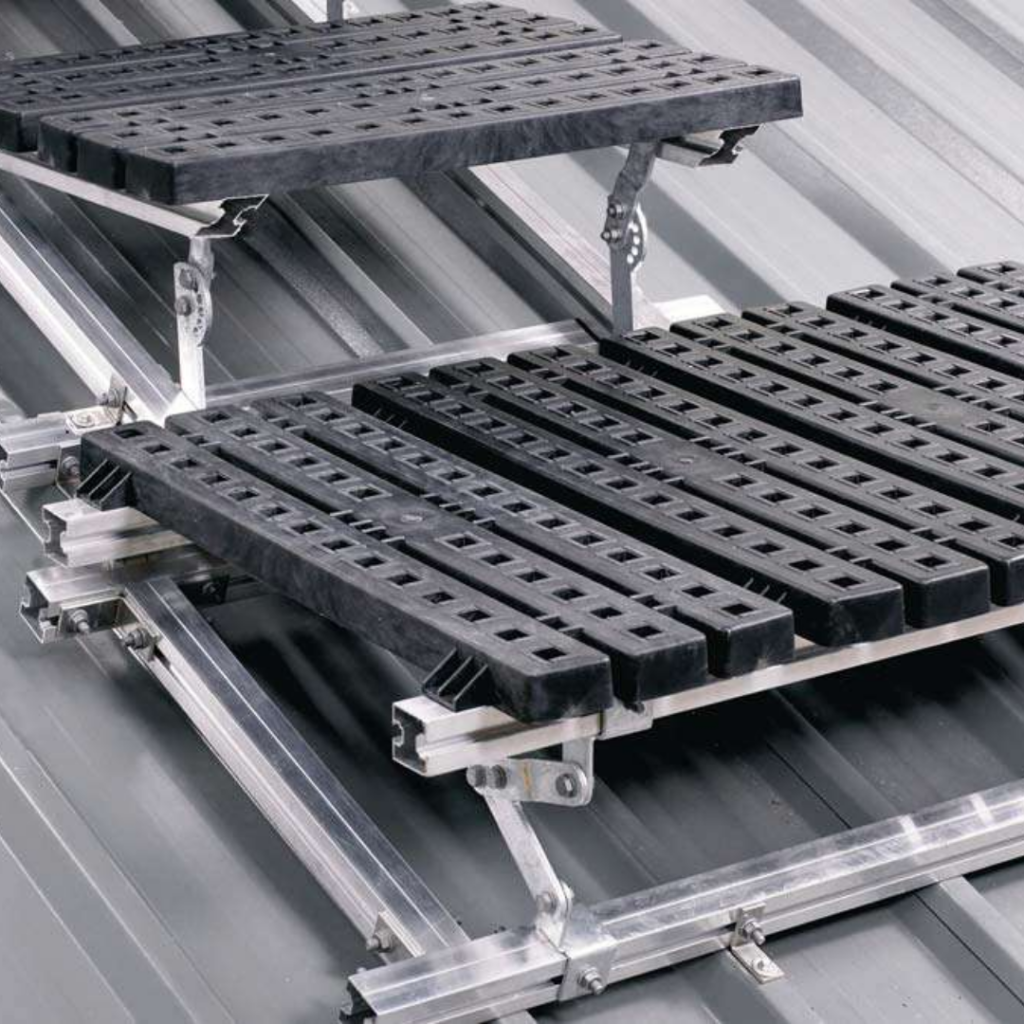

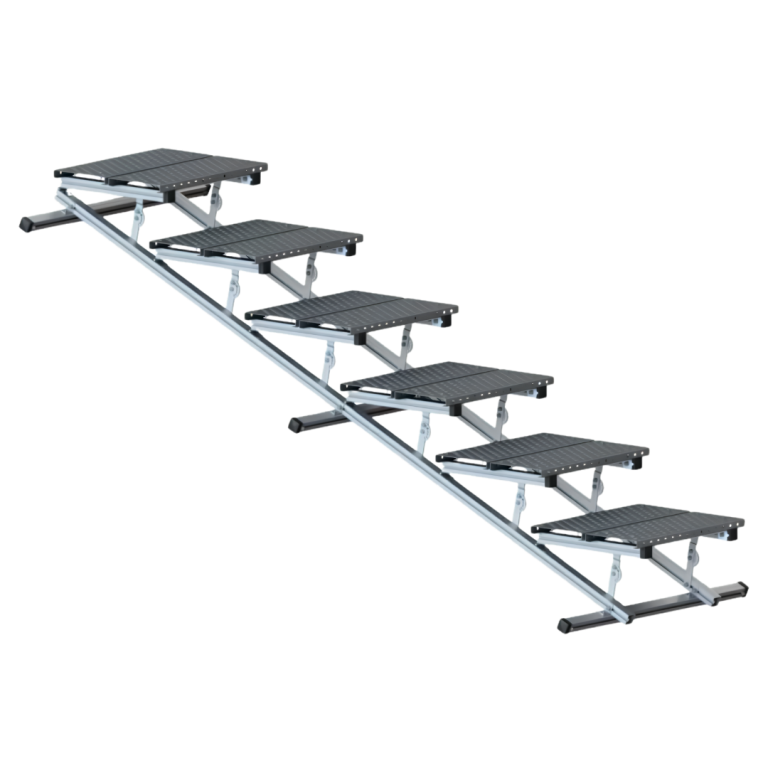

Modular Walkway Sections

Engineered for ultimate structural integrity, Frigate’s high-strength modular walkway sections provide safe, durable, and corrosion-resistant access across complex industrial and infrastructure landscapes. Designed for rapid deployment and compliance with global safety standards, these pre-engineered modules seamlessly integrate into any structural framework to minimize onsite installation downtime.

Material Composition

Structural Grade Mild Steel (IS 2062 / ASTM A36) or Heavy-Duty Aluminum (6061-T6)

Surface Treatment

Hot-Dip Galvanized (as per ISO 1461) or Marine-Grade Powder Coating

Grating Profile

Serrated anti-slip mesh with 30 x 100 mm pitch arrays

Standard Module Widths

600 mm, 800 mm, 1000 mm, and 1200 mm options

Standard Section Lengths

1000 mm to 6000 mm optimized linear spans

Order Type

Quantity Range

Lead Time*

Standard Inventory Run

1 – 50 Modules

2 to 3 Weeks

Medium Batch Procurement

51 – 200 Modules

4 to 6 Weeks

Enterprise Production

201 – 500 Modules

6 to 8 Weeks

Custom Engineered Orders

500+ Modules / Bespoke Layouts

8+ Weeks (Milestone Based)

*Delivery timelines are indicative ranges based on current raw material cycles. Actual lead times depend on engineering approval dates and total order volume.

Product Description

Frigate’s modular walkway sections represent a paradigm shift in industrial access design, replacing labor-intensive on-site fabrication with precision-engineered, bolt-on modules. These high-performance walkways feature exceptional load-to-weight ratios and built-in drainage configurations, maximizing long-term operational safety while significantly driving down the total cost of ownership (TCO) for large-scale infrastructure projects.

Load-Bearing Capacity

Heavy-duty pedestrian and equipment loading up to 5.0 kN/m2 UDL

Deflection Limit

Optimized to L/200 under maximum specified structural load

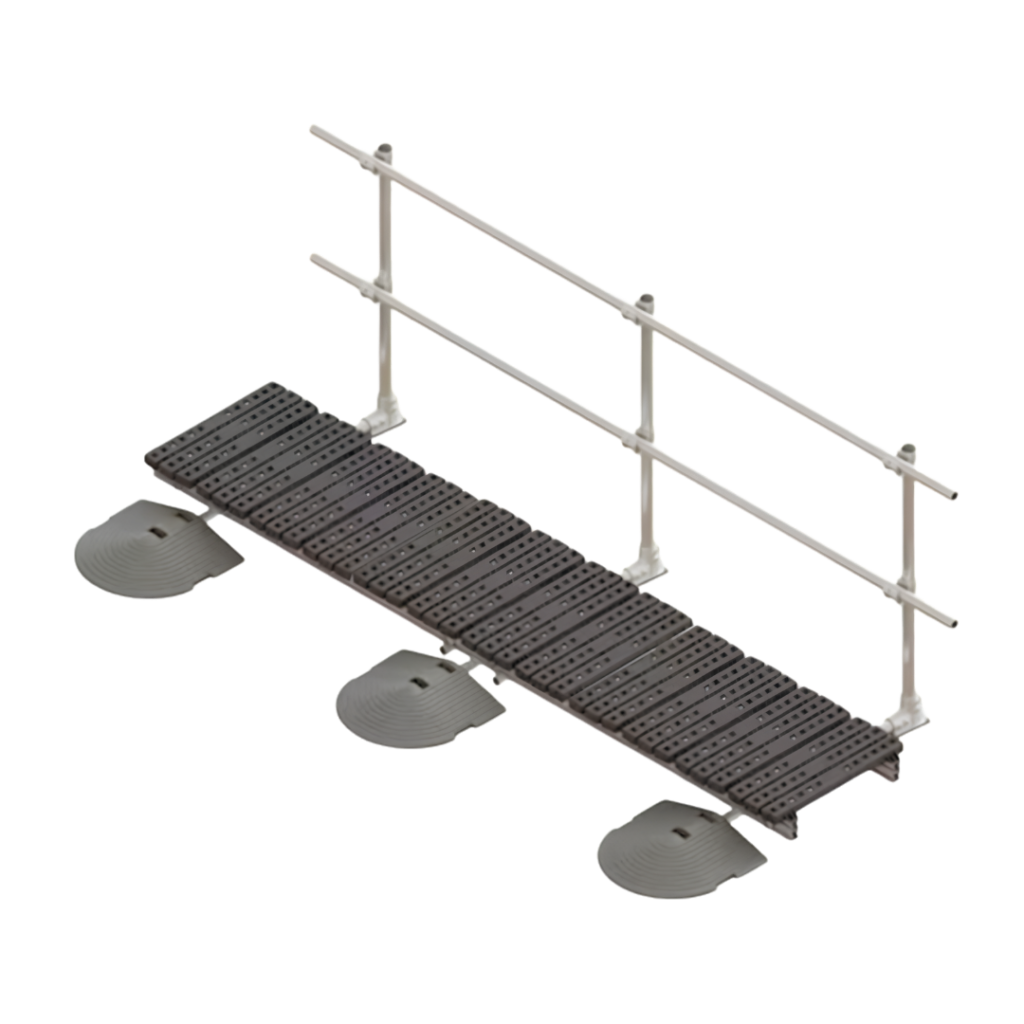

Handrail Integration

Integrated dual-tier handrail sockets with ergonomic top-rail profiling

Kickplate Height

150 mm continuous integrated toe-boards to prevent tool drops

Connection Mechanism

Interlocking male-female alignment lugs with high-tensile bolting flanges

Corrosion Resistance

Salt spray tested up to 1,000 hours for harsh coastal/chemical environments

Slip Resistance Rating

Certified R11 class anti-slip rating under oil and wet conditions

Fastener Specification

Grade 8.8 hot-dip galvanized or SS316 structural fastening hardware

Compliance Standards

Fully compliant with OSHA 1910.28 and ISO 14122 structural mandates

Dead Weight Reference

Approximately 22 kg/m (standard 800mm steel configuration)

Technical Advantages

Our proprietary structural interlocking design eliminates the need for field welding, drastically lowering hot-work hazards and shortening field installation timelines by up to 40%. Additionally, the uniform hot-dip zinc coating ensures complete coverage across all hidden surfaces and joints, providing maintenance-free structural integrity in aggressive, corrosive environments.

Let's Get Started

Need reliable Enclosure for your next project? Get in touch with us today, and we’ll help you find exactly what you need!

Industry Applications

Power Generation & Utilities

Provides secure access along high-voltage cable galleries, cooling towers, and boiler perimeters, ensuring safe routing for maintenance crews under all weather conditions.

Water & Wastewater Treatment

Corrosion-resistant pathways installed over aeration tanks, open clarifiers, and chemical dosing zones, built to withstand constant high humidity.

Oil, Gas & Chemical Processing

Robust, non-sparking walkways for offshore platforms, refineries, and tank farms where chemical exposure resistance and reliable slip prevention are critical.

Mining & Heavy Mineral Extraction

Heavy-duty overhead conveyor walkways engineered to handle high vibration and severe particulate accumulation without compromising structural integrity.

Transportation & Rail Infrastructure

Pedestrian trackside walkways, maintenance pit access platforms, and bridge inspection paths optimized for rapid deployment during tight rail-shutdown windows.

Commercial Seaports & Marine Hubs

Marine-grade access structures designed for cargo terminals, jetties, and ship-to-shore walkways that experience continuous exposure to high-salinity air.

Frigate Approved Quality Management System

At Frigate, quality is built into every stage of manufacturing. Our approved Quality Management System ensures that every material component.

Incoming Material Checking

Before production begins, all incoming materials are checked against specifications, drawings, and supplier documents.

In-Process Inspection

Quality is monitored during manufacturing to prevent defects and maintain process consistency.

Final Dimensional Checking

Finished parts are inspected before dispatch to confirm compliance with customer drawings and tolerances.

Packaging Control

Finished components are packed safely to prevent damage during handling and transportation.

Incoming Material Checking

In-Process Inspection

Final Dimensional Checking

Packaging Control

Quality Document

To help buyers evaluate our quality systems, we provide sample documents that reflect our inspection and reporting standards.

How We Delivered

Complex geometries engineered solutions that move businesses forward.

Solar Inverter Enclosure

units per month

Bento Boxes for D2C Segment

Units Manufactured Monthly

0 +

Defence-Grade Cable Supply

Cost savings

0 %

Flange Assembly for Pump

Faster Production

0 %

Having Doubts? Our FAQ

Can Frigate customize walkway dimensions to fit existing structural steel layouts?

Yes. While our standard modules offer the fastest lead times, Frigate regularly engineers custom widths, specific span lengths, and unique angular cut-outs to integrate seamlessly with your pre-existing industrial framing and site layouts.

How do these modular sections reduce total installation costs compared to traditional fabrication?

Traditional pathways require extensive on-site cutting, welding, and subsequent galvanization touch-ups. Frigate’s modules arrive fully fabricated, drilled, and surface-treated, transforming site installation into a rapid, bolt-together assembly that requires minimal heavy machinery and zero hot-work permits.

What corrosion protection options do you provide for highly acidic or coastal environments?

Our standard protection is heavy-duty hot-dip galvanizing conforming to global standards. For aggressive chemical environments or extreme coastal salinity, we offer duplex systems combining galvanization with marine-grade powder coatings, or complete fabrication using structural aluminum or stainless steel grades.

Are Frigate walkway modules compliant with international occupational safety regulations?

Absolutely. All structural configurations, handrail heights, load capacities, and anti-slip grating profiles are engineered to strictly adhere to international safety criteria, including OSHA 1910.28 and ISO 14122 compliance protocols.

How are CAD models and engineering files handled for procurement planning?

We provide comprehensive technical submittals, including downloadable 3D CAD step files and detailed layout drawings, allowing your engineering and procurement teams to easily validate clearances and integrate our models directly into your master facility blueprints before manufacturing begins.
